UDAS-1

The Mole Enclosure
Ultra-Wideband, Cross-Polarised, Leaky Feeder Antenna
600 - 6000 MHz, 2x2 MIMO
POYNTING antennas enable reliable IoT connectivity for industrial and commercial warehousing, ensuring seamless communication and automation for efficient inventory management. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for IoT-enabled warehouses, supporting seamless communication for autonomous bots and smart logistics operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for industrial applications in both urban and rural environments, providing seamless communication and data transmission. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for busy subway trains, providing seamless communication and internet access in underground tunnels and high-traffic urban environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for RVs and motorhomes, ensuring seamless internet access for families traveling and camping in transport and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for critical IoT applications in emergency services, ensuring seamless communication and data transmission for transport and mobility operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
600-6000 MHzview details below
Omni-Directional
2.4-2.5 GHz 5.0-6.0 GHz
2×2 MIMO
IP68Dust-tight & Waterproof
-40°C to +70°C
Fire Resistant

Key Features

  • Wideband operation form 600 - 6000 MHz, covering 5G/LTE bands
  • Dual-band 2.4 GHz & 5 GHz Wi-Fi coverage
  • Cross-polarised, with 2x2 MIMO for improved performance
  • Robust enclosure design
  • Vandal, dust and water resistant enclosure (IP65)
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-UDAS-0001-V1-01
A-UDAS-0001-V2-01,Ultra-Wideband, Cross-Polarised, Leaky Feeder Antenna,Leaky Feeder Antenna Featured Image
A-UDAS-0001-V2-01,Ultra-Wideband, Cross-Polarised, Leaky Feeder Antenna,Leaky Feeder Antenna Back View
A-UDAS-0001-V2-01,Ultra-Wideband, Cross-Polarised, Leaky Feeder Antenna,Leaky Feeder Antenna Front View
A-UDAS-0001-V2-01,Ultra-Wideband, Cross-Polarised, Leaky Feeder Antenna,Leaky Feeder Antenna Side View
Indoor Signal Enhancement Device for LTE, 5G & Wi-Fi

The UDAS is a unique device designed to improve router signal reception in enclosed environments. Installed between an indoor router and an outdoor antenna, it allows a small portion of the transmitted or received signal to be leaked into the indoor area while most of the power is radiated outside. This enhances indoor signal strength without compromising the primary outdoor antenna performance.

Wideband Frequency Coverage: Operates from 698 – 6000 MHz, covering LTE, 5G, and Wi-Fi (2.4 GHz & 5 GHz) bands.
Omni-Directional Radiation Pattern: Ensures even signal distribution throughout enclosed spaces.
2x2 MIMO Technology: Cross-polarised antenna elements enhance diversity and improve performance.
Seamless Indoor Signal Boosting: Improves connectivity inside while maintaining strong outdoor transmission.
Durable & Weather-Resistant Design: Made from high-impact ABS plastic with UV stabiliser, resistant to acids and chemicals.

The UDAS is an ideal solution for enhancing indoor connectivity while maintaining the full power of an outdoor antenna, ensuring reliable performance for LTE, 5G, and Wi-Fi applications.

Ideal Applications

  • In enclosed rooms where there is a Wi-Fi device, but no Wi-Fi signal (because the device is connected to an outdoor antenna)
  • Transport (Busses, Trains & Public Safety)
  • Smart buildings: climate control, access control, security, irrigation

Technical Specifications for UDAS-1

Additional information

Industry (Application)

,

Technology

,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

Cellular Ports

Product Options/Variants for UDAS-1

SKU Connector Type COAX Cable Type / Length Colour
A-UDAS-0001-V1-01 SMA (m) RG-58 / 0.2m Grey

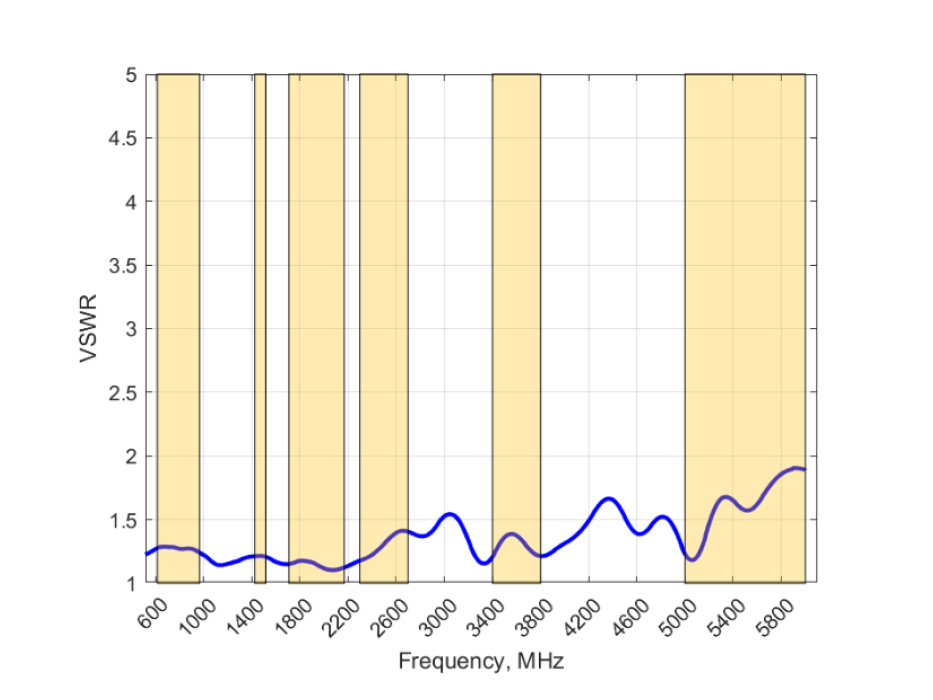

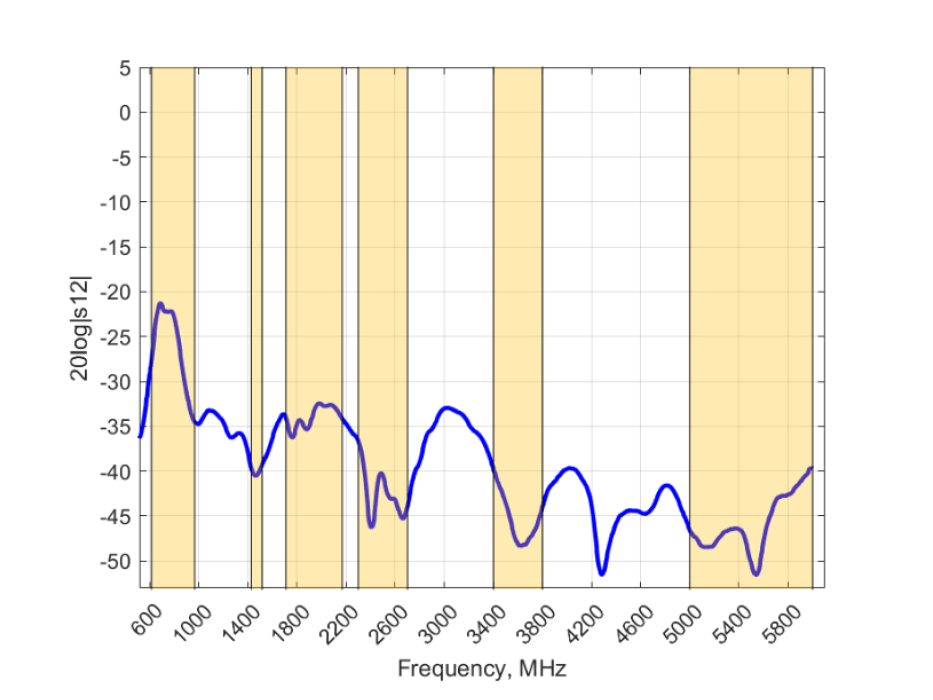

VSWR & Gain

Router Compatibilities

Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

A-UDAS-0001-V1-01 2x2-MIMO Leaky Feeder Feature Image A-UDAS-0001-V1-01 2x2-MIMO Leaky Feeder Back View A-UDAS-0001-V1-01 2x2-MIMO Leaky Feeder Front View A-UDAS-0001-V1-01 2x2-MIMO Leaky Feeder Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-UDAS-0001-V1-01 EAN: 6009710921760 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.32kg
0.71lbs		 Packaged Dimensions: 205 x 200 x 60 mm
8.07 x 7.87 x 2.36 inch		 Master Box QTY: 54 Master Box Weight: 19.28kg
42.51lbs		 Master Box Dimensions: 570 x 400 x 530 mm
22.44 x 15.75 x 20.87 inch		 Country of Origin: RSA
SKU A-UDAS-0001-V1-01
EAN 6009710921760
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.32kg
0.71lbs
Packaged Dimensions 205 x 200 x 60 mm
8.07 x 7.87 x 2.36 inch
Master Box QTY 54
Master Box Weight 19.28kg
42.51lbs
Master Box Dimensions 570 x 400 x 530 mm
22.44 x 15.75 x 20.87 inch
Country of Origin RSA
