POYNTING’s PUCK series offers a small profile antenna for use in the commercial & industrial markets. The PUCK series offers a variety of options for MIMO LTE/5G (617 to 4200 MHz), MIMO Wi-Fi (dual band 2.4 GHz & 5 to 6 GHz) and GPS/GLONASS within the same enclosure, while keeping implementation as simple as possible with its many mounting options.

Due to the excellent engineering and solid design, the PUCK series provides exceptional performance for its small size. The PUCK-series has a small and low-profile design with dimensions Ø100 mm x 36 mm. They were designed to be rugged and ideal for operation in the farming & agricultural environment.

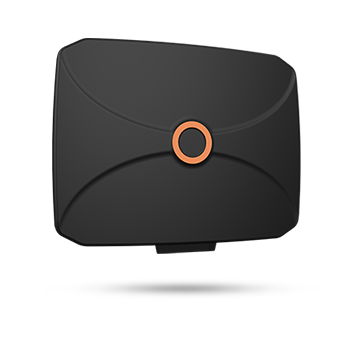

The POYNTING PANEL-Series, comprising the PANL-401 and PANL-631 models, delivers high-performance, omni-directional wideband panel antennas designed for transport, mobility, and home or office connectivity.

The PANL-401 is a 5-in-1 solution offering 4× cellular elements and a dual-band GNSS antenna with ultra-wideband coverage from 410 MHz to 6000 MHz and a peak gain of 7.8 dBi. Meanwhile, the PANL-631 advances this concept to a 10-in-1 configuration featuring 6× cellular, 3× tri-band Wi-Fi (2.4/5/6 GHz), and 1× dual-band GNSS antenna, covering 617 MHz to 6000 MHz for full 5G, Wi-Fi 6E/7 compatibility.

Both models share a sleek, low-profile panel form factor and flexible mounting options, such as suction-cups or Velcro-strips, making them ideal for vehicles, fleets, and fixed installations in homes, offices, or buildings requiring strong, stable, and high-speed wireless connectivity.

The MIMO-3 series is specifically designed for transportation and automotive applications. The MIMO-3 series offers a variety of options for MIMO LTE/5G (410 to 3800 MHz), MIMO Wi-Fi (dual band 2.4 GHz & 5 to 6 GHz) and GPS/GLONASS all within the same enclosure.

The radiation patterns of all radiating elements provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. Which is an important criterion for the transportation and automotive market.

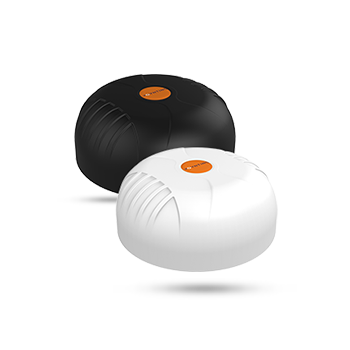

The MIMO-4 is specifically designed for Transportation & Mobility applications. The MIMO-4 series offers a variety of derivatives for MIMO 5G/LTE (617 to 6000 MHz), MIMO Wi-Fi (dual-band 2.4 GHz & 5 to 7.2 GHz), and GPS/GLONASS all within the same enclosure. The flagship of the MIMO-4 range is the MIMO-4-19, which offers a 9-in-1 antenna solution, with 4×4 MIMO Cellular, 4×4 MIMO Wi-Fi, and GPS/GLONASS.

The MIMO-4 antenna range exceeds the performance of most competitors of the same size, due to the attention to detail with this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omni-directionality, pattern diversity, and beam steering at the desired elevation, which is often overlooked in such a small-size antenna.

The POYNTING MIMO-8 series is designed for demanding Transport & Mobility applications where reliable, high-speed connectivity is essential. The range offers advanced 8×8 MIMO cellular connectivity across 4G and 5G networks, with selected variants also incorporating 4×4 MIMO Wi-Fi 6E/7 and dual-band GNSS within a single rugged antenna enclosure. With frequency coverage extending from 410 MHz to 6000 MHz, the MIMO-8 series is ideally suited for emergency vehicles, public transport, fleet management, mobile command units, industrial vehicles and other mission-critical mobility applications.

617 - 6000MHz, 6dBi; Cellular 4x4 MIMO / 2x(4x4 MIMO) + Wi-Fi 4x4 (MIMO) + 1 x GNSS

The SWIRL antenna solution by POYNTING Antennas, a cutting-edge choice for mobility applications. Whether on the move in urban environments or remote areas, the SWIRL-8 ensures consistent 5G connectivity with its 8x cross-polarised cellular antennas, covering a frequency range from 617 to 6000 MHz. The addition of 4x dual-band Wi-Fi antennas and a dual-band GNSS antenna provides reliable communication and precise location tracking. Compact yet robust, with IK08 and IP69K ratings, the SWIRL is built to endure the challenges of mobile applications. For those requiring a complete CPE setup, the SWIRL-BASE offers an innovative solution by housing popular 5G routers directly within the base, minimizing signal loss and boosting overall performance. Experience seamless connectivity wherever your journey takes you with the SWIRL.
