Farming & Agricultural Antennas

Remote Connectivity

One of the first solutions offered by POYNTING Antennas were the high-gain LPDA and YAGI antennas that were used by farmers in remote areas to get better cellphone reception. Our LPDA-92 is still a firm favourite on remote farms and lodges worldwide.

These days smart farms are dependent on connected devices, and automation has found its application in agriculture to improve nearly every aspect of it. With farms being remote by nature – they need dependable communication for the sensors that measure soil, water, light, humidity, temperature and much more. Our farming and agricultural antennas are essential to ensure performance in remote environments where a quality antenna is essential for long-range communications.

Our farming and agricultural range of antennas provide users with consistent voice and data communications while reducing signal degradation.
View All Antennas
Need Help?
POYNTING Antenna Solution Finder

EPOYNT SERIES

CROSS-POLARISED, LTE/5G & WI-FI ANTENNA ENCLOSURES

The ePoynt enclosures are designed to fit a variety of router modules, transforming the antenna enclosure into a Customer Premises Equipment (CPE) – just add your own LTE/5G router.

The ePoynt enclosure can accommodate routers up to the size of 185 x 145 x 45 mm³. The ePoynt-1 (EPNT-1) combines four cross-polarised omni-directional LTE/5G antennas that offer wideband coverage from 617 to 3800 MHz, with a peak gain 5 dBi.

This is ideal in built-up areas where there are several base stations close by, but where higher stability and throughput is required due to its enhanced MIMO configuration.

The ePoynt-2 (EPNT-2) provides two cross-polarised, high gain, uni-directional antennas that offers wideband coverage from 698 to 3800 MHz, with a peak gain of 11 dBi. It also contains two omni-directional antennas from the abovementioned ePoynt-1, making it deal for 4×4 MIMO or dual 2×2 MIMO routers. Both ePoynt series include two dual-band Wi-Fi antennas that cover the 2.4 GHz and 5 to 6 GHz Wi-Fi bands for 2×2 MIMO. The ePoynt series enclosures were designed to withstand adverse weather conditions, making the antenna weatherproof and waterproof with an IP65 rating.
View Series
Contact Us
View Series
Contact Us

LPDA SERIES

WIDEBAND LOG-PERIODIC DIPOLE ARRAY ANTENNA

The LPDA Series is a high-gain, wideband, directional antenna that operates from 698 to 3800 MHz (7200 MHz – LPDA-500), with a peak gain of 11 dBi. This ensures that the antenna covers all international cellular and wireless data bands including GSM900/ GSM1800/UMTS/LTE bands.

It also covers the extended cellular and WiMAX bands such as European/USA “Digital Dividend bands” and 2.3- 2.7GHz licensed and unlicensed data bands. Its configuration is suitable for various wireless communications systems. This antenna is unique in its combination of ultra-wide-band operator with a consistent high-gain performance.

It has been successfully used in extreme weather environments in Africa and Europe with close to zero failures. A firm favourite, in any area where operators are having signal challenges. It is ideal for any application using the GSM network (LTE/ HSPA/3G/EDGE/GPRS).

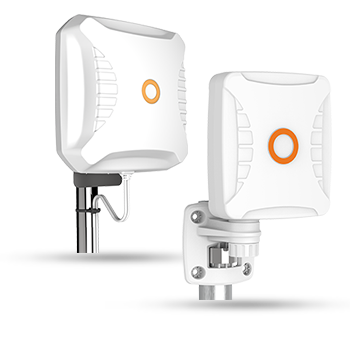

XPOL-5G SERIES

X-POLARISED LTE/5G ANTENNA

The XPOL-5G series consists of POYNTING’s very popular Cross-Polarised (XPOL) antennas. The series consists of our XPOL-1-5G and XPOL-2-5G antennas.

Where the XPOL-1-5G is an omni-directional antennas, while the XPOL-2-5G is a uni-directional antenna. The XPOL-1-5G antenna offer wideband performance from 617 to 3800 MHz, covering contemporary LTE/5G frequency bands, with a peak gain of 3 dBi across the band.

The antenna also offers 2×2 MIMO and 4×4 MIMO for improved performance.

The XPOL-2-5G antennas, which are uni-directional, offer exceptional performance and wideband coverage from 617 to 4200 MHz with 2×2 MIMO performance.

Due to the uni-directional radiation pattern, the antennas achieve a peak gain of 11 dBi within a single direction. The XPOL-2-5G series covers popular LTE/5G frequency bands for future proof deployment. The radiation patterns of the XPOL-5G series are exceptionally well controlled, further adding to the performance of the antennas. The robust mechanical enclosure design of the XPOL-5G series ensures that the antennas are weather, dust and vandal resistant and give it an IP65 rating, suitable for harsh environments.
View Series
Contact Us

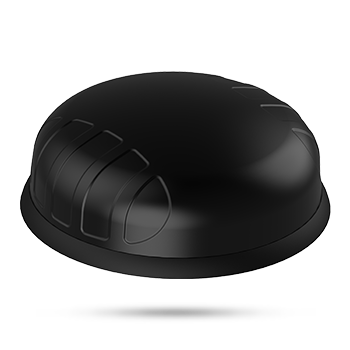

POYNTING PUCK Series available in Black.
View Series
Contact Us

PUCK-SERIES

OMNI-DIRECTIONAL ANTENNA

POYNTING’s PUCK series offers a small profile antenna for use in the commercial & industrial markets. The PUCK series offers a variety of options for MIMO LTE/5G (617 to 4200 MHz), MIMO Wi-Fi (dual band 2.4 GHz & 5 to 6 GHz) and GPS/GLONASS within the same enclosure, while keeping implementation as simple as possible with its many mounting options.

Due to the excellent engineering and solid design, the PUCK series provides exceptional performance for its small size. The PUCK-series has a small and low-profile design with dimensions Ø100 mm x 36 mm. They were designed to be rugged and ideal for operation in the farming & agricultural environment.

The PUCK series features an IP68 ingress protection rating, which indicates that it is dust and water ingress protected. The series also features an IK10 impact rating, adding to the ruggedness of the series.
  • A-XPOL-0024-V1,X-Polarised, Uni-Directional 4x4 MIMO 5G/LTE Antenna,4x4 MIMO Directional 5G Featured Image

    XPOL-24
    Freq.: 617 - 4200 MHz
    Peak Gain
    11dBi
    Pattern Uni-Directional
    MIMO 4x4
    Get Quotation
  • A-XPOL-0001-V2,X-Polarised, Omni-Directional, 2X2 LTE MIMO Antenna,Omni-Directional 5G Antenna Featured Image

    XPOL-1-5G
    Freq.: 617 - 3800 MHz
    Peak Gain
    3dBi
    Pattern Omni-Directional
    MIMO 2x2, 4x4
    Get Quotation
  • A-WLAN-0061-V1,Uni-Directional, Dual-Band Wi-Fi Antenna; (4x4 MIMO),Directional Wi-Fi Featured Image

    WLAN-61
    Freq.: 2400 - 6000 MHz
    Peak Gain
    11dBi
    Pattern Uni-Directional
    MIMO 4x4
    Get Quotation
  • A-WLAN-0060-V1,Uni-Directional, Dual-band Wi-Fi Antenna,Directional Wi-Fi Featured Image

    WLAN-60
    Freq.: 2400 - 6000 MHz
    Peak Gain
    15dBi
    Pattern Uni-Directional
    MIMO SISO
    Get Quotation
  • A-MIMO-0003-V2-17,7-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Featured Image Colour Options in Black and White

    MIMO-3-17
    Freq.: 410 - 3800 MHz
    Peak Gain
    6.2dBi(LTE), 7dBi(Wi-Fi), 21dBi(GPS)
    Pattern Omni-Directional
    MIMO 2x2, 4x4
    Get Quotation
  • A-MIMO-0003-V2-15,5-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Featured Image Colour Options in Black and White

    MIMO-3-15
    Freq.: 410 - 3800 MHz
    Peak Gain
    5.8dBi(LTE), 7dBi(Wi-Fi), 21dBi(GPS)
    Pattern Omni-Directional
    MIMO 2x2
    Get Quotation
  • A-LPDA-0092,Wideband Log-Periodic Dipole Array Antenna,4G LTE Featured Image

    LPDA-92
    Freq.: 698-3800 MHz
    Peak Gain
    11dBi
    Pattern Uni-Directional
    MIMO SISO
    Get Quotation
  • A-LPDA-0500,Ultra-Wideband Log-Periodic Dipole Array 5G Antenna,5G LPDA Featured Image

    LPDA-500
    Freq.: 617 - 7200 MHz
    Peak Gain
    11dBi
    Pattern Uni-Directional
    MIMO SISO
    Get Quotation
