WLAN-60

The BatFox Enclosure
Uni-Directional, Dual-band Wi-Fi & 5G Antenna
2400 - 2500 MHz, 3300 - 4200 MHz & 5000 - 6000 MHz, 16dBi
POYNTING antennas provide reliable connectivity for open-pit mining operations, ensuring seamless communication and data transmission in remote and rugged environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for IoT-enabled open-pit mining, supporting seamless communication for unmanned trucks and autonomous vehicles in rugged environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for open-pit mining trucks, enabling seamless communication and data transmission for coal transportation in rugged environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for open-pit mining operations, ensuring seamless communication between scrapers and pickers for efficient material handling. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for open-pit mining, ensuring seamless communication and automation for enhanced operational efficiency. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for open-pit mining operations, ensuring seamless communication between scrapers, pickers, and ground-loosening vehicles for efficient extraction. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
2400-6000 MHzview details below
16dBi±18km/11mi coverage*
Directional
2.4-2.5 GHz; 5.0-6.0 GHz
IP65Dust-tight & Water-resistant
-40°C to +80°C

Key Features

  • Dual-band 2.4 GHz and 5 GHz Wi-Fi antenna
  • Directional antenna with high gain
  • Complaint with IEEE 802.11b/g/n/ac and 802.11ax wireless standard
  • Covers the 3.5 GHz CBRS band for future 5G applications
  • Vandal and water-resistant enclosure (IP 65)
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-WLAN-0060-V1
A-WLAN-0061-V1,Uni-Directional, Dual-Band Wi-Fi Antenna; (4x4 MIMO),Directional Wi-Fi Front View
A-WLAN-0060-V1,Uni-Directional, Dual-band Wi-Fi Antenna,Directional Wi-Fi Back View

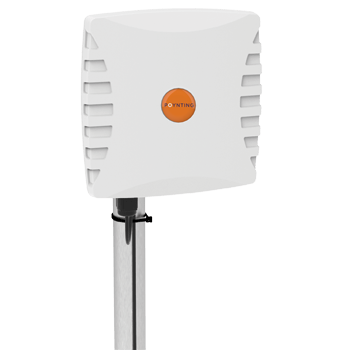

A-WLAN-0060-V1,Uni-Directional, Wi-Fi Antenna;,Directional Wi-Fi Front View

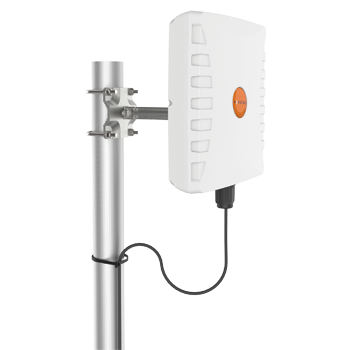

A-WLAN-0060-V1,Uni-Directional, Wi-Fi Antenna;,Directional Wi-Fi Side View
High-Gain Dual-Band Wi-Fi & CBRS Antenna for Reliable Connectivity

The WLAN-60 is a high-performance dual-band Wi-Fi antenna developed by Poynting Antennas. Designed for seamless connectivity, it supports both older and modern dual-band Wi-Fi technologies, ensuring flexibility and superior performance in high-interference environments. This linear high-gain antenna is ideal for point-to-point links, even in RF-noisy and cluttered conditions.

Dual-Band Wi-Fi Connectivity: Operates in 2.4 GHz and 5 GHz bands for optimized network performance.
High-Gain Performance: Provides 12 dBi gain at 2.4 GHz and 16 dBi gain at 5 GHz for strong and stable connections.
CBRS Band Support: Covers the 3.5 GHz CBRS band with a peak gain of 10 dBi, making it futureproof for 5G applications.
Point-to-Point Link Optimisation: Designed for use in environments with high RF noise and congestion.
Durable & Weather-Resistant Housing: Constructed from high-impact ABS plastic, resistant to acids and industrial chemicals.
Optimised Cable Management: Features an SMA female connector with a bypass gland to eliminate connector losses and waterproofing concerns.
Indoor & Outdoor Versatility: Suitable for industrial plants, warehouses, production facilities, and outdoor installations.

The WLAN-60 is the ideal solution for enhancing Wi-Fi performance in high-density environments, delivering reliable, high-gain connectivity for current and future wireless applications.

Ideal Applications

  • Small business
  • Building sites and open cast mines
  • Production facilities and factories
  • M2M and IoT applications
  • Areas with large amounts of machinery (cluttered environments)

Technical Specifications for WLAN-60

Additional information

Industry (Application)

,

Technology

Cellular Freq. Range

Frequency Band

, ,

5G Bands

, ,

Wi-Fi Standard

, , ,

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Product Options/Variants for WLAN-60

SKU Connector Type COAX Cable Type / Length Colour
A-WLAN-0060-V1 SMA (f) N/A / N/A Off White

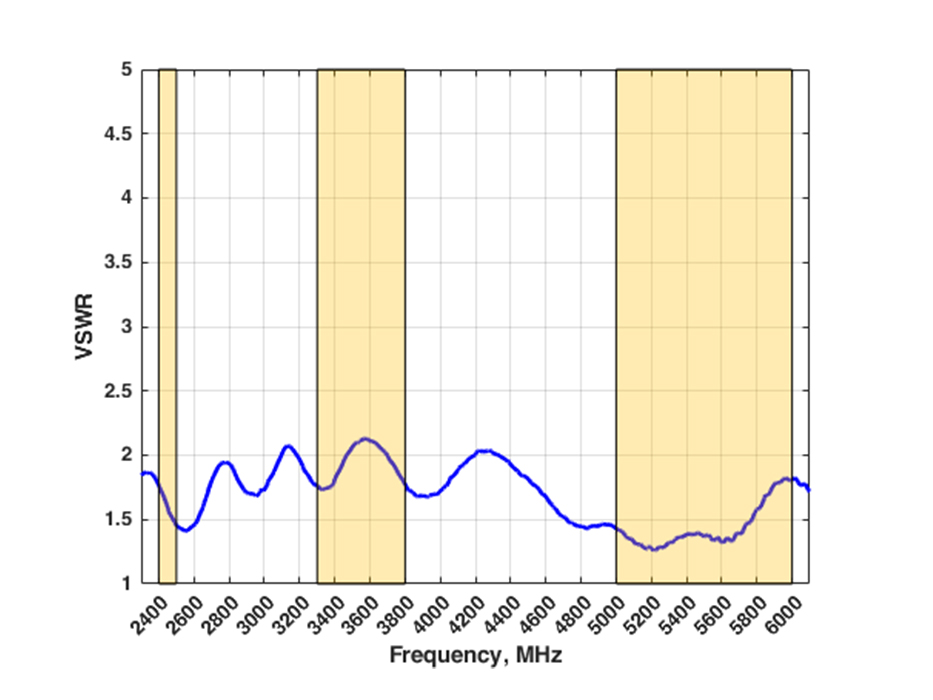

VSWR & Gain

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Advantech
Cradlepoint
Rajant

Technical Drawing

FAQ's & Articles

Downloadable Files

High Resolution Images

A-WLAN-0060-V1 Directional Wi-Fi Feature Image A-WLAN-0060-V1 Directional Wi-Fi Back View A-WLAN-0060-V1 Directional Wi-Fi Front View A-WLAN-0060-V1 Directional Wi-Fi Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-WLAN-0060-V1 EAN: 6009710923986 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.334kg
2.94lbs		 Packaged Dimensions: 260 x 280 x 80 mm
10.24 x 11.02 x 3.15 inch		 Master Box QTY: 14 Master Box Weight: 18.5kg
40.79lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		 Country of Origin: CN
SKU A-WLAN-0060-V1
EAN 6009710923986
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.334kg
2.94lbs
Packaged Dimensions 260 x 280 x 80 mm
10.24 x 11.02 x 3.15 inch
Master Box QTY 14
Master Box Weight 18.5kg
40.79lbs
Master Box Dimensions 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch
Country of Origin CN
