The MIMO-8 Series is a high-performance, multi-frequency antenna engineered for the most demanding transportation, automotive, marine, and industrial environments. The MIMO-8 delivers robust, future-proof wireless connectivity where reliability and versatility are non-negotiable.

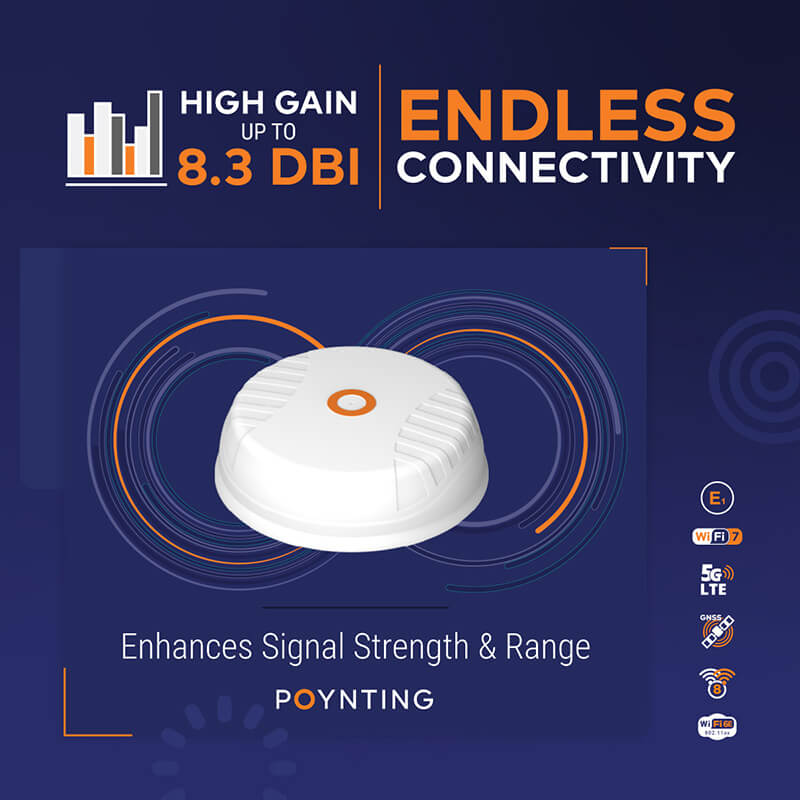

The MIMO‑8 is a high‑performance antenna solution, housing up to 13 antennas—including eight cellular, four Wi‑Fi, and one dual-band GNSS/GLONASS antenna—within a single rugged enclosure. Featuring 8x8 MIMO for cellular and 4x4 MIMO for Wi‑Fi, it offers ultra‑wideband coverage from 410 to 6000 MHz for cellular and 2400 to 7200 MHz for Wi‑Fi, supporting the latest LTE/4G, 5G, and Wi‑Fi standards. With high gain up to 8.3 dBi, the antenna’s design ensures excellent omni‑directionality, pattern diversity, and optimal elevation radiation—critical for reliable connectivity in moving vehicles, marine vessels, and industrial machinery.
With an IP69K rating for water and dust ingress and IK10 impact resistance, the MIMO-8 is built to withstand extreme conditions, from high-vibration transport to outdoor industrial sites. Its ultra-rugged mechanical design and ground plane-independent architecture ensure consistent performance regardless of installation location. The antenna operates reliably in temperatures from -40°C to +80°C, with wind survival up to 220 km/h, making it ideal for both indoor and outdoor deployments.

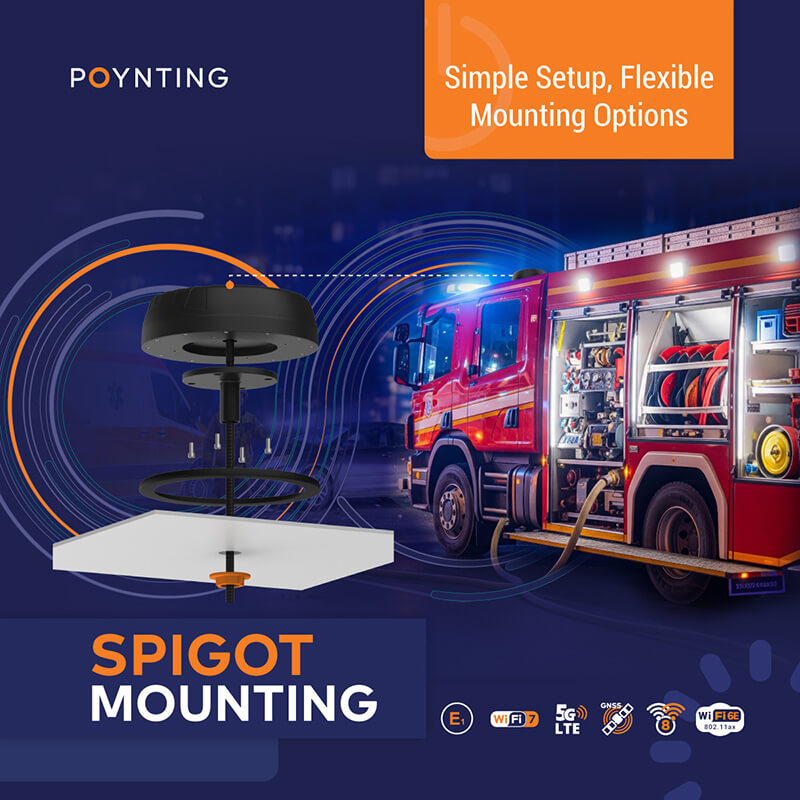

The MIMO-8 supports multiple mounting options—including spigot, surface and optional magnetic mount, pole and wall mount—allowing for easy installation on commercial vehicles, boats, buildings, and more. All coax cables and connectors are factory-mounted for quick deployment, and the antenna is available in black or white radome options to suit diverse environments.
The MIMO-8 is available through POYNTING Antennas and authorized global distributors. For detailed technical specifications, integration support, or product enquiries, please visit www.poynting.tech.
