Ultra Rugged Antennas for Industrial Wi-Fi

Aug 25, 2021 | Articles, August Newsletter 2021, Product News

OMNI-700 Series

Poynting’s new OMNI-700 series antennas, forms part of our latest Poynting “Rhyno” antenna range and offers a low-profile antenna for use in the Industrial M2M infrastructure, Smart Meter, Smart Utilities, and Industrial IoT markets. The new OMNI-700 series offers a variety of industrial Wi-Fi antennas within a rugged enclosure. Due to the excellent engineering and a rugged design, this antenna series provides exceptional performance for their size.

The OMNI-700 antenna series offers a variety of configurations for covering the popular Wi-Fi frequency bands namely, the 2.4 GHz and 5 to 6 GHz bands. The antenna series was designed for superior pattern control across the Wi-Fi frequency bands, adding to the exceptional omni-directional performance of the antenna series.

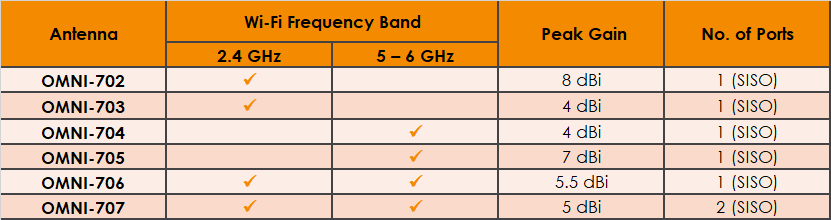

The frequency bands covered by the different antennas in the OMNI-700 series are summarised in the following table.

OMNI-700 Table

The OMNI-700 series antennas were specifically designed to be rugged and ideal for operation in harsh environmental conditions.

The OMNI-700 series are foam filled and features an IP69K protection rating, which is the highest Ingress Protection (IP) rating a product can achieve. This indicates that the antennas are dust proof and protected against high pressure, high temperature spray downs at close range.

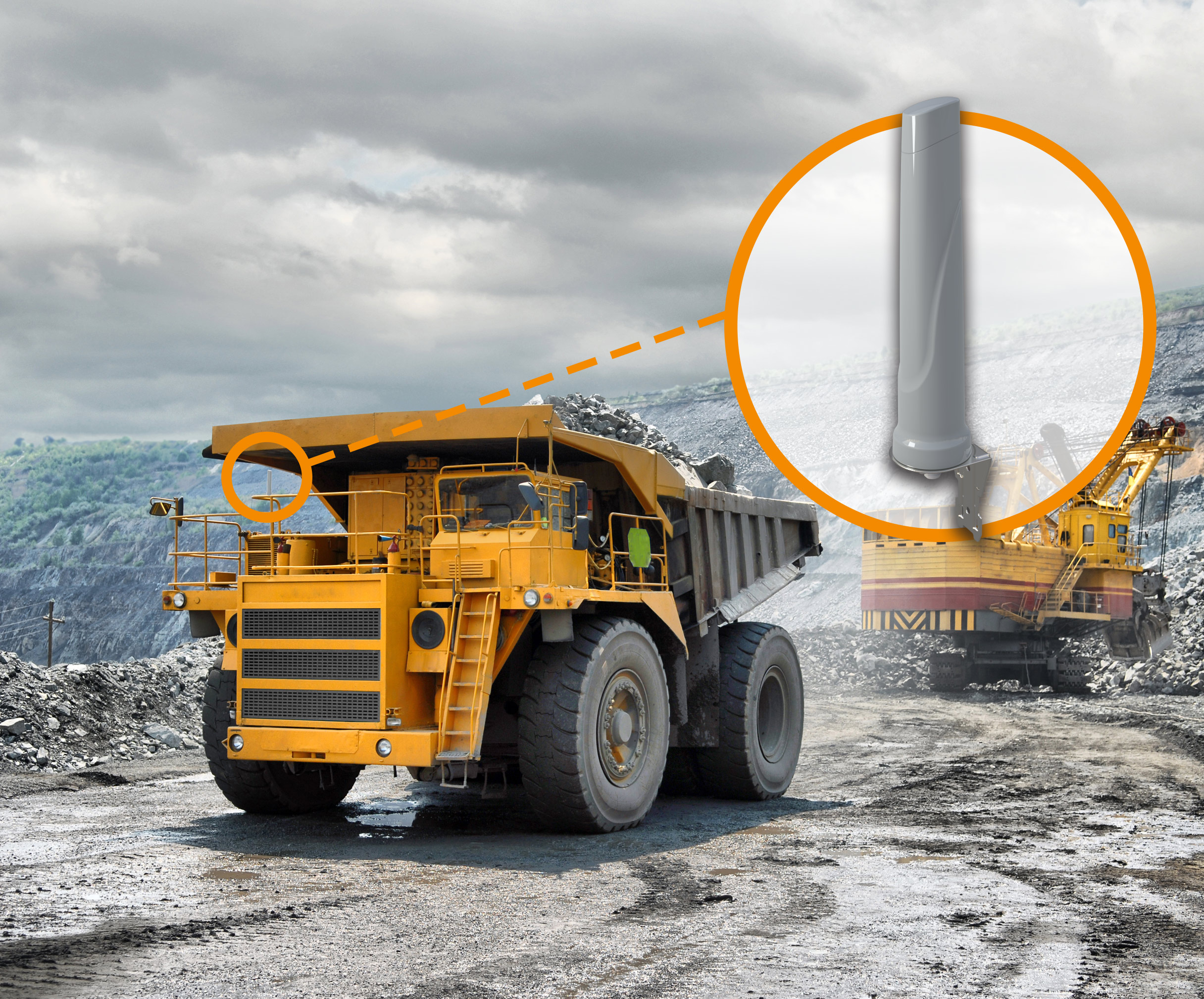

OMNI-702-application-image1

The antennas also feature an IK10 impact resistance rating to protect it against severe vibration and impacts. Making the antennas ideal for industrial IoT/M2M and mining applications.

It complies with CE, EN, CSA, RoHS and IEC Standards and is rated for temperatures of -40°C to +80°C and will survive winds of up to 190 km/h. The antenna can be mounted on a wall, pole or side of a cabinet using the included 304 Stainless steel mounting bracket. It can also be surface mounted using the supplied adhesive disk. This makes the antenna ideal to use in the following applications:

  • Machine to Machine (M2M) and Internet of Things (IoT)
  • Poor data signal reception (indoor or outdoor)
  • High-end industrial grade router applications
  • Improves reception for mobile IoT equipment

If you are looking for a rugged, but aesthetically pleasing antenna that will improve slow access point data transmission connection and increase system transmission reliability, the new Poynting Rhyno OMNI-700 antenna series is the solution for you.
