OMNI-400

617-960 MHz; 1710-2170 MHz; 2300-2700 MHz7.5dBiOmni-Directional4G LTE2.4-2.5 GHzIP 67-40°C to +70°C617-698 MHz
Omni-Directional, Marine & Coastal LTE Antenna
617 - 2700 MHz, 7.5dBi (US Specific)
  • High performance omni-directional marine antenna

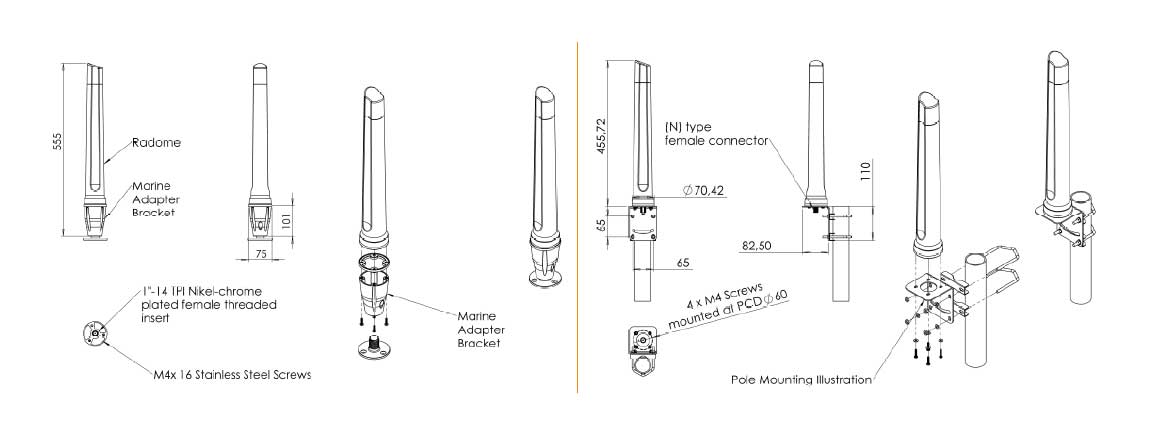

  • Easy mounting with feed through 1-inch marine standard adapter bracket included
  • Robust and all-weather proof for harsh conditions at sea (IP 67)
  • Various 316 stainless steel mounting brackets available optionally
  • UV and saltwater protected against tempestuous weather conditions
OMNI-400 is Band 71 Compatible

Availability Notification

Close Trigger
Product Overview

The OMNI-400 is a high-performance marine antenna. This antenna uses a standard 1-inch (14 TPI) marine mount for simplified installation to most marine attachments. The ultra-wide frequency band covers all contemporary LTE operating frequencies with excellent balanced gain across all frequencies. Higher frequencies are not compromised, and the antenna design allows Poynting to have superior pattern control over the entire frequency range making the OMNI-400 a true high performance omni-directional antenna. The OMNI-400 guarantees signal reception almost everywhere, allowing it to be usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a uniquely (patented) feed network.

Product Options
SKU A-OMNI-0400
COAX Cable Type N/A
COAX Cable Length N/A
Color Off White
Shipping Details
SKU A-OMNI-0400
EAN 707273469434
HS Code #85291069
Packaged Weight 1.245kg
Packaged Dimensions 580 x 95 x 95 mm
Master Box QTY 20
Master Box Weight 25.8kg
Master Box Dimensions 400 x 500 x 610 mm
Country of Origin China
