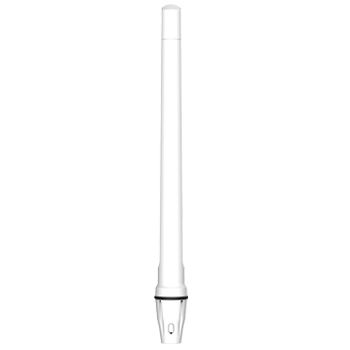

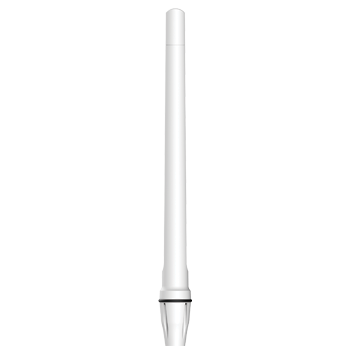

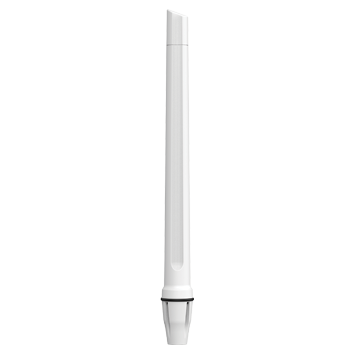

OMNI-493

The Moray Enclosure

617-960 MHz; 1427-2700 MHz; 3400-3800 MHz9dBiOmni-Directional5G4G LTE617-698 MHzIP68-40°C to +80°C

Omni-Directional, Marine & Coastal 5G/LTE Antenna
617 - 3800 MHz, 9dBi




  • High gain omni-directional antenna
  • Includes band 71 (617 to 698 MHz) and 3.5 GHz 5G bands
  • Wideband operation makes the antenna future proof
  • Antenna is purpose built for marine and coastal applications
  • UV and saltwater protected enclosure with IP68 rating
The OMNI-493 is an ultra-wideband, high performance, omni-directional antenna that covers the contemporary 4G/LTE and future 5G operating frequencies with excellent balanced gain across all frequencies. The ultra-wideband performance from the antenna allows it to operate from 617 to 3800 MHz, with a peak gain of 9 dBi. This makes the antenna usable in all parts of the world and guarantees signal reception almost everywhere. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-493 a true high performance omni-directional antenna, suitable for marine and coastal applications. Poynting antennas achieves this performance through new antenna design, where multiple dipoles and a unique (patented) feed network is implemented. The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications.

Additional information

Industry (Application)

Technology

Frequency Band

, , , , , , , , ,

Cellular Freq. Range

Gain

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Directionality

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

, ,

Enclosure Name

Enclosure Size

Price Pricing Scale

LTE Ports

SKU COAX Cable Type COAX Cable Length Colour Other
A-OMNI-0493-V1-01 N/A N/A White

SKU A-OMNI-0493-V1-01 EAN: 6009710922262 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: 1.515kg
3.34lbs
Packaged Dimensions: 704 x 147x 100 mm
27.72 x 5.79 x 3.94 inch
Master Box QTY: 10 Master Box Weight: 16.34kg
36.02lbs
Master Box Dimensions: 770 x 560 x 350 mm
30.32 x 22.05 x 13.78 inch
Country of Origin: CN
SKU A-OMNI-0493-V1-01
EAN 6009710922262
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.515kg
3.34lbs
Packaged Dimensions 704 x 147x 100 mm
27.72 x 5.79 x 3.94 inch
Master Box QTY 10
Master Box Weight 16.34kg
36.02lbs
Master Box Dimensions 770 x 560 x 350 mm
30.32 x 22.05 x 13.78 inch
Country of Origin CN
