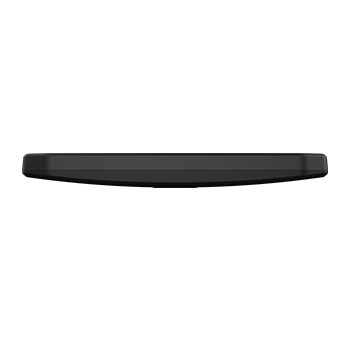

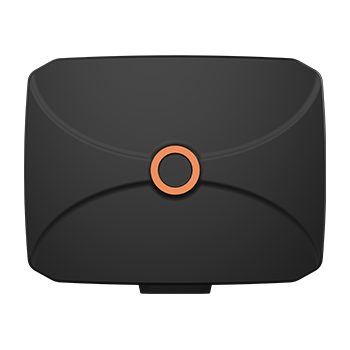

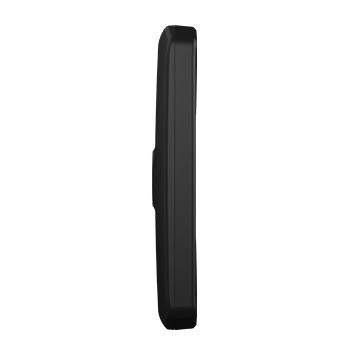

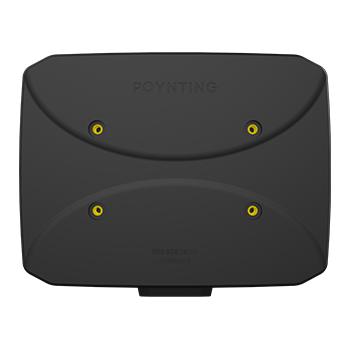

PANL-401

The PANL Enclosure

410-470 MHz; 617-960 MHz; 1427-1517 MHz; 1710-2700 MHz; 3300-6000 MHz7.8 dBi Omni-Directional5G4×4 MIMOGPS IncludedIP65-40°C to +80°C

5-IN-1 Omni-Directional Wideband Panel 5G Antenna
410 – 6000 MHz, 7.8 dBi; 4 x Cellular & 1 x GNSS

  • 5-in-1 high-performance multi-functional 5G antenna
  • 4 x Cellular and 1 x Dual Band GNNS antennas
  • Ultra-Wideband cellular antennas that operate from 410 to 6000 MHz
  • Cross polarised with linear Vertical & Horizontal cellular antennas for improved performance
  • Omni-Directional panel antenna with a low-profile design
  • Flexible, non-invasive mounting options
  • Weather, dust, and vandal-resistant enclosure (IP65)
Introducing the PANL-401: a state-of-the-art, multi-functional panel antenna designed to revolutionize connectivity. This versatile antenna configuration offers a 5-in-1 solution, including 4 x Cellular and 1 x dual-band active GNSS antenna, which provides exceptional performance and versatility for improving cellular and GPS signal reception in vehicles or fixed installations. The PANL-401 is an ultra-wideband antenna that covers a broad frequency range from 410 to 6000 MHz. This allows it to be used across different cellular operators and technologies, and it is ready for future cellular technologies up to 6GHz for 5G applications. The antenna provides an excellent balance between omnidirectionality, pattern diversity, and good radiation abilities at the desired elevation, which is an important criterion, especially for the transportation market. Additionally, the inclusion of a dual-band GNSS antenna ensures reliable navigation and precise location tracking, even in challenging environments. Featuring a low-profile and compact design, the PANL-401 seamlessly blends into any environment, addressing both aesthetic and practical considerations. Its convenient window mount design simplifies installation, allowing for easy attachment to vehicle or building windows through either the included suction cups or adhesive mount. With exceptional GNSS capabilities and wideband performance, the PANL-401 serves as your gateway to unparalleled connectivity across diverse wireless applications.

Additional information

Industry (Application)

,

Technology

,

Application Area

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

Enclosure Size

LTE Ports

GNSS/GPS Ports

SKU COAX Cable Type COAX Cable Length Colour
A-PANL-0401-V1-01 RTK-031 2m Black

SKU A-PANL-0401-V1-01 EAN: 6009710928837 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: 1.40kg
3.09lbs
Packaged Dimensions: 380 x 280 x 70 mm
14.96 x 11.02 x 2.75 inch
Master Box QTY: Master Box Weight: Master Box Dimensions: Country of Origin: CN
SKU A-PANL-0401-V1-01
EAN 6009710928837
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.40kg
3.09lbs
Packaged Dimensions 380 x 280 x 70 mm
14.96 x 11.02 x 2.75 inch
Master Box QTY
Master Box Weight
Master Box Dimensions
Country of Origin CN
