BRKT-92

(A-BRKT-092-V1-01)
Marine-Grade 316 Stainless Steel Bracket for Wall and Pole Installations
POYNTING BRKT-92 white powder-coated 316 stainless steel wall and pole mounting bracket displayed as the main banner image for SWIRL antenna and CPE installations in marine, industrial, and FWA environments
POYNTING antennas ensure reliable connectivity for IoT-enabled warehouses, supporting seamless communication for autonomous bots and smart logistics operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide high-performance connectivity for yachts from large to mega, ensuring seamless communication and internet access for marine and coastal applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural farming, ensuring seamless communication between silos, warehouses, and smart agricultural operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for industrial applications in both urban and rural environments, providing seamless communication and data transmission. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for suburban and rural estates, ensuring seamless internet access for homes located on the outskirts of the city. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for critical IoT applications in emergency services, ensuring seamless communication and data transmission for transport and mobility operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.

Key Features

  • Premium 316 Stainless Steel Construction: Built from marine-grade 316 SS for maximum strength and corrosion resistance in coastal, industrial, and outdoor environments.
  • White Powder-Coated Finish: Durable coating provides added protection against harsh weather and ensures a clean, professional look.
  • Flexible Mounting Options: Supports both wall and pole installation with pole diameters from Ø80 mm to Ø100 mm.
  • SWIRL Antenna & CPE Compatible: Engineered for secure mounting of POYNTING’s SWIRL Antenna and SWIRL-CPE solutions.
  • Heavy-Duty Design: Rigid structure and high-quality stainless-steel fasteners ensure long-term stability and performance.
  • Comprehensive Mounting Kit Included: Supplied with wall and pole mount hardware for easy, reliable installation.
  • Certified Quality: CE and RoHS 2011/65/EU compliant, manufactured under ISO 9001:2015 quality standards.
  • High Impact Resistance: Rated IK10 for durability and UL 94-HB flammability compliance for safety.
Datasheet Options
POYNTING Antenna Solution Finder
A-BRKT-092-V1-01

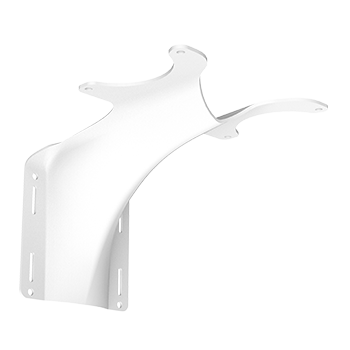

POYNTING BRKT-92 featured view showing white powder-coated 316 stainless steel wall and pole mounting bracket for SWIRL antenna installations

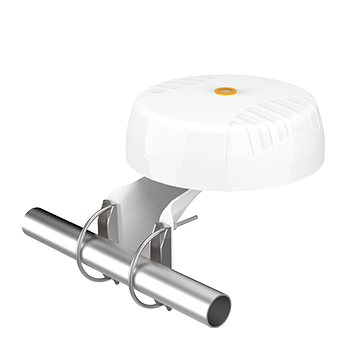

POYNTING BRKT-92 horizontal pole mount featured back view showing SWIRL antenna only with robust white powder-coated stainless steel mounting system

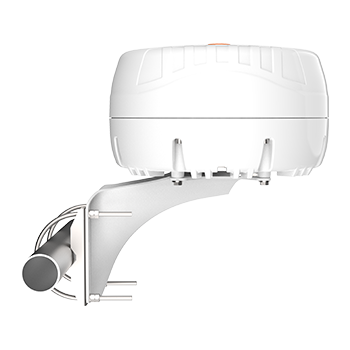

POYNTING BRKT-92 horizontal pole mount side view showing SWIRL CPE unit on corrosion-resistant 316SS bracket ideal for FWA, farming, and urban installations

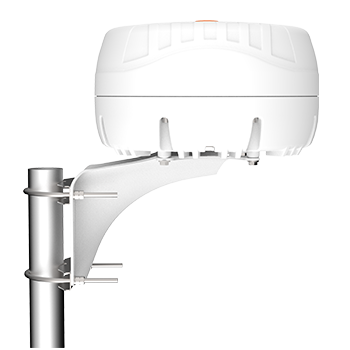

POYNTING BRKT-92 vertical pole mount side view featuring SWIRL CPE solution securely mounted on 316 stainless steel bracket for reliable data connectivity

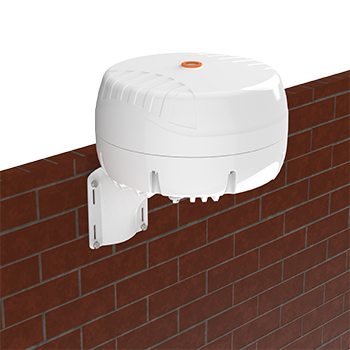

POYNTING BRKT-92 wall mount featured view showing SWIRL CPE solution installed on white powder-coated 316 stainless steel bracket for coastal and industrial applications
POYNTING BRKT-92 wall mount side view with SWIRL antenna only, highlighting durable 316 stainless steel construction and compact mounting profile
Versatile Stainless Steel Mounting Bracket for SWIRL Antennas and CPE Solutions

White Powder-Coated 316 Stainles Steel Wall/Pole Mounting Bracket

Print Friendly, PDF & Email

Ideal Applications

  • Wall or pole mounting of SWIRL Antenna and SWIRL-CPE solutions
  • Marine and coastal installations requiring corrosion-resistant hardware
  • Fixed Wireless Access (FWA) and large-data outdoor communication setups
  • Industrial and factory network expansions
  • Urban rooftop and building-mounted antenna deployments
  • Farming and remote site connectivity requiring robust bracket solutions

Technical Specifications for BRKT-92

Additional information

Industry (Application)

Mounting Type

, ,

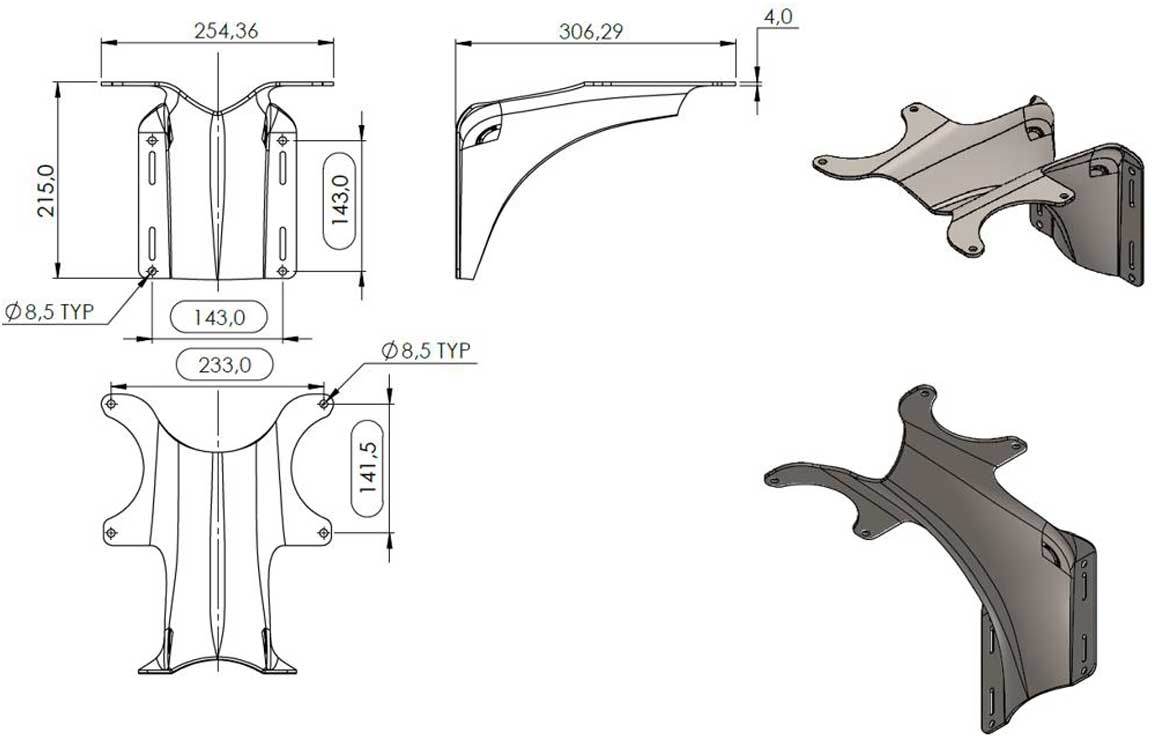

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

Download BRKT-92 Bracket Only Images Download BRKT-92 Horizontal Pole Mount Images Download BRKT-92 Vertical Pole Mount Images Download BRKT-92 Wall Mount Images Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-BRKT-092-V1-01 EAN: 6009710929117 HS Code: 7326 90 Packaged Weight: 2.50 kg
5.51 lbs		 Packaged Dimensions: 401.2 x 265.5 x 164.3 mm
15.79 x 10.45 x 6.47 inch		 Master Box QTY: 4 Master Box Weight: 18.7 Kg
41,23 lbs		 Master Box Dimensions: 560 x 400 x 505 mm
22,05 x 15.75 x 19.89 inch		 Country of Origin: CN
SKU A-BRKT-092-V1-01
EAN 6009710929117
HS Code 7326 90
Packaged Weight 2.50 kg
5.51 lbs
Packaged Dimensions 401.2 x 265.5 x 164.3 mm
15.79 x 10.45 x 6.47 inch
Master Box QTY 4
Master Box Weight 18.7 Kg
41,23 lbs
Master Box Dimensions 560 x 400 x 505 mm
22,05 x 15.75 x 19.89 inch
Country of Origin CN
