DPLX-2

The Mole Enclosure
4-To-2 Dual-Band Wi-Fi Diplexer
2400 - 2500 MHz, 5000 - 6000 MHz; 2x2 MIMO
POYNTING antennas ensure reliable connectivity for underground mining, enabling seamless communication and data access for miners using digital devices and autonomous trucks. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for underground mining operations, ensuring seamless communication, automation, and data transmission in challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for IoT-enabled open-pit mining, supporting seamless communication for unmanned trucks and autonomous vehicles in rugged environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for mining operations, ensuring seamless communication, automation, and real-time data monitoring in challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for critical IoT applications in emergency services, ensuring seamless communication and data transmission for transport and mobility operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for busy subway trains, providing seamless communication and internet access in underground tunnels and high-traffic urban environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
2400-6000 MHzview details below
2.4-2.5 GHz 5.0-7.2 GHz±12km/7mi coverage*
2×2 MIMO
IP68Dust-tight & Waterproof
-40°C to +80°C
Fire Resistant

Key Features

  • Dual-band Wi-Fi diplexer for 2.4 GHz and 5 to 6 GHz
  • 4-to-2 diplexer which allows for 2x2 MIMO on both Wi-Fi frequency bands
  • Easy to implement with rugged design for an environment
  • Ideal for use with multiband Access Points and Routers
  • Weather, dust, and vandal-resistant enclosure (IP68)
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
A-DPLX-0002-V1-01

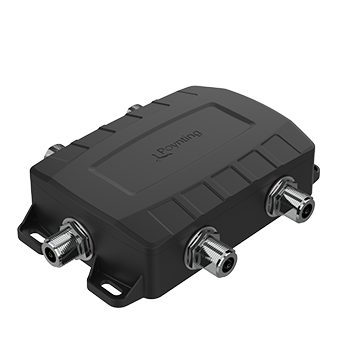

A-DPLX-0002-V2-01,4-To-2 Dual-Band Wi-Fi Diplexer,Dual-Band Wi-Fi Diplexer Featured Image

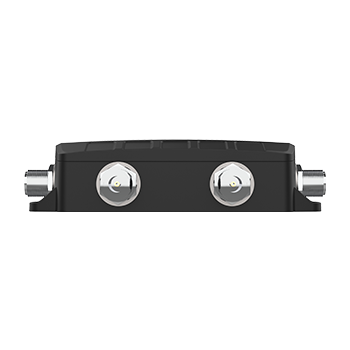

A-DPLX-0002-V2-01,4-To-2 Dual-Band Wi-Fi Diplexer,Dual-Band Wi-Fi Diplexer Front View

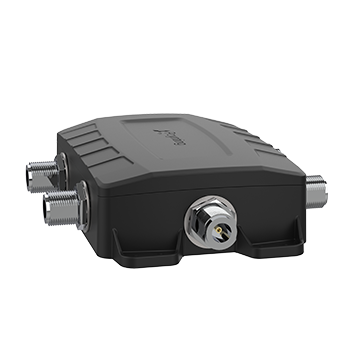

A-DPLX-0002-V2-01,4-To-2 Dual-Band Wi-Fi Diplexer,Dual-Band Wi-Fi Diplexer Side View

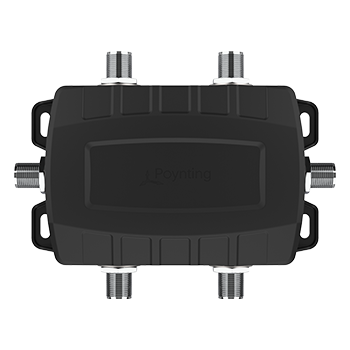

A-DPLX-0002-V2-01,4-To-2 Dual-Band Wi-Fi Diplexer,Dual-Band Wi-Fi Diplexer Top View
High-Performance Dual-Band Wi-Fi Diplexer for 2x2 MIMO

The DPLX-2 is a robust dual-band Wi-Fi diplexer designed to efficiently multiplex or split 2.4 GHz and 5 GHz signals, enhancing wireless performance for demanding applications. With two integrated diplexers, it supports 2x2 MIMO, making it ideal for high-performance networking.

Dual-Band Signal Multiplexing & Splitting: Combines or separates 2.4 GHz and 5 GHz signals for optimal antenna performance.
2x2 MIMO Support: Ensures enhanced connectivity and data throughput.
Low Insertion Loss & High Isolation: Maximises efficiency and minimises interference between ports.
Rugged & Weatherproof Design: IK10 impact rating and IP68 ingress protection for extreme environments.
Durable ABS Enclosure: UV-stabilised and resistant to acids and harsh chemicals.
Easy Installation: Equipped with N-Type (female) connectors for seamless integration.

The DPLX-2 is the ultimate solution for high-performance Wi-Fi applications, ensuring reliability and durability in even the harshest conditions.

Ideal Applications

  • Least Cost Routers (LCR’s)
  • Access Points and Routers for 802.11a/b/g
  • Dual-band Wi-Fi routers with single ports
  • WiMAX and Wi-Fi Systems

Technical Specifications for DPLX-2

Additional information

Industry (Application)

,

Technology

Cellular Freq. Range

Frequency Band

,

Wi-Fi Standard

, , ,

Product Configuration

Gain

Mounting Type

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Product Options/Variants for DPLX-2

SKU Connector Type COAX Cable Type / Length Colour
A-DPLX-0002-V1-01 N-Type (f) N/A / N/A Grey

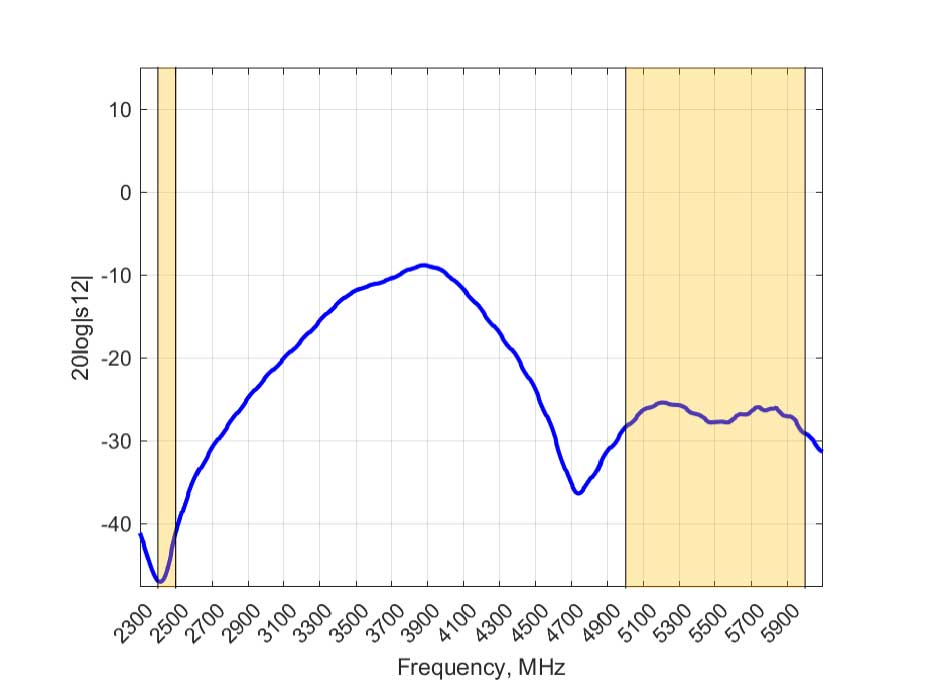

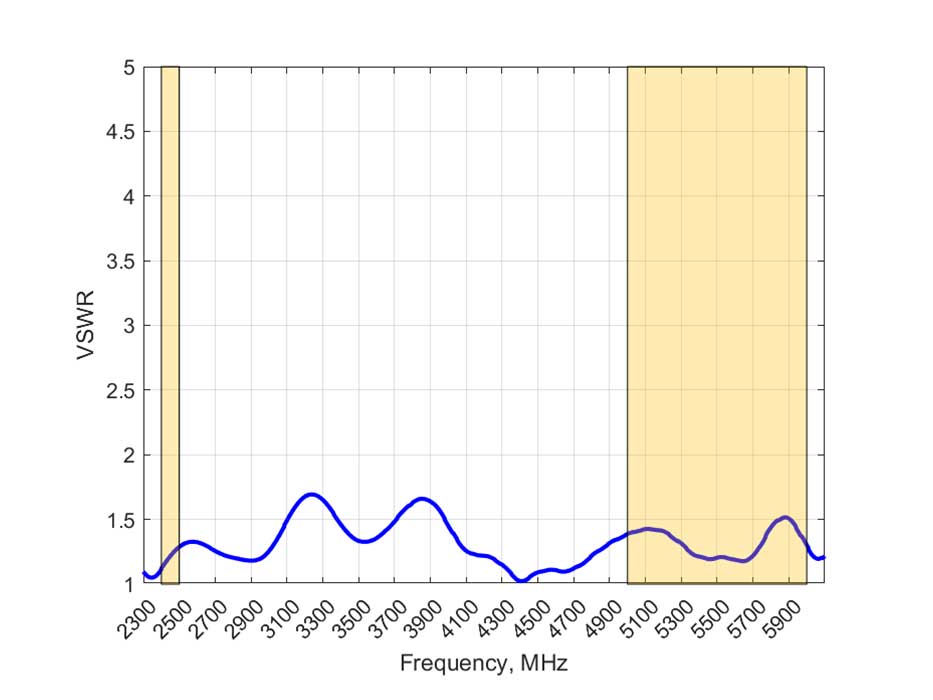

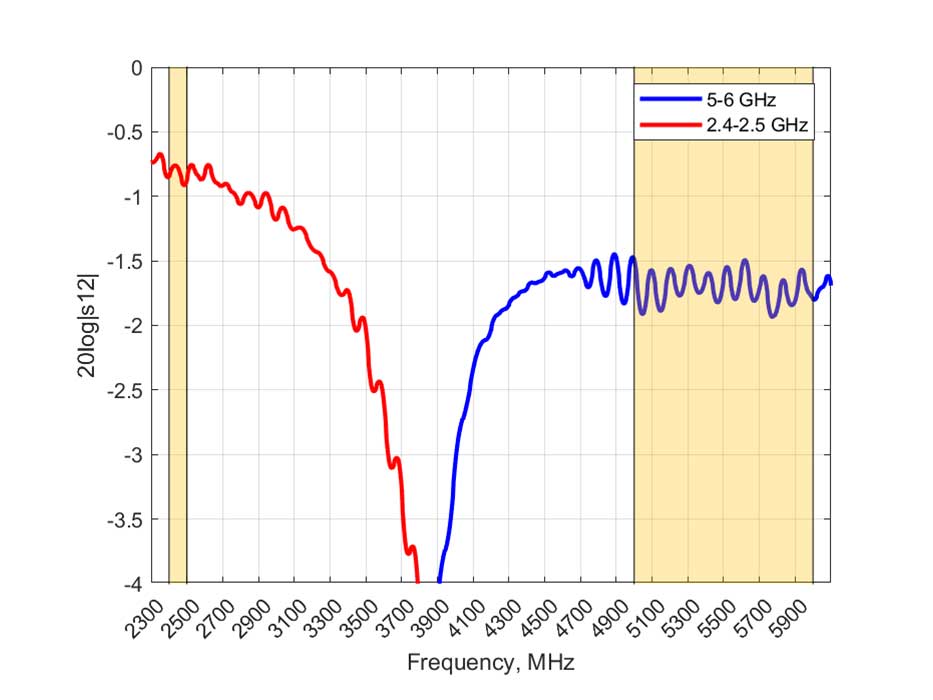

VSWR & Gain

Router Compatibilities

Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.

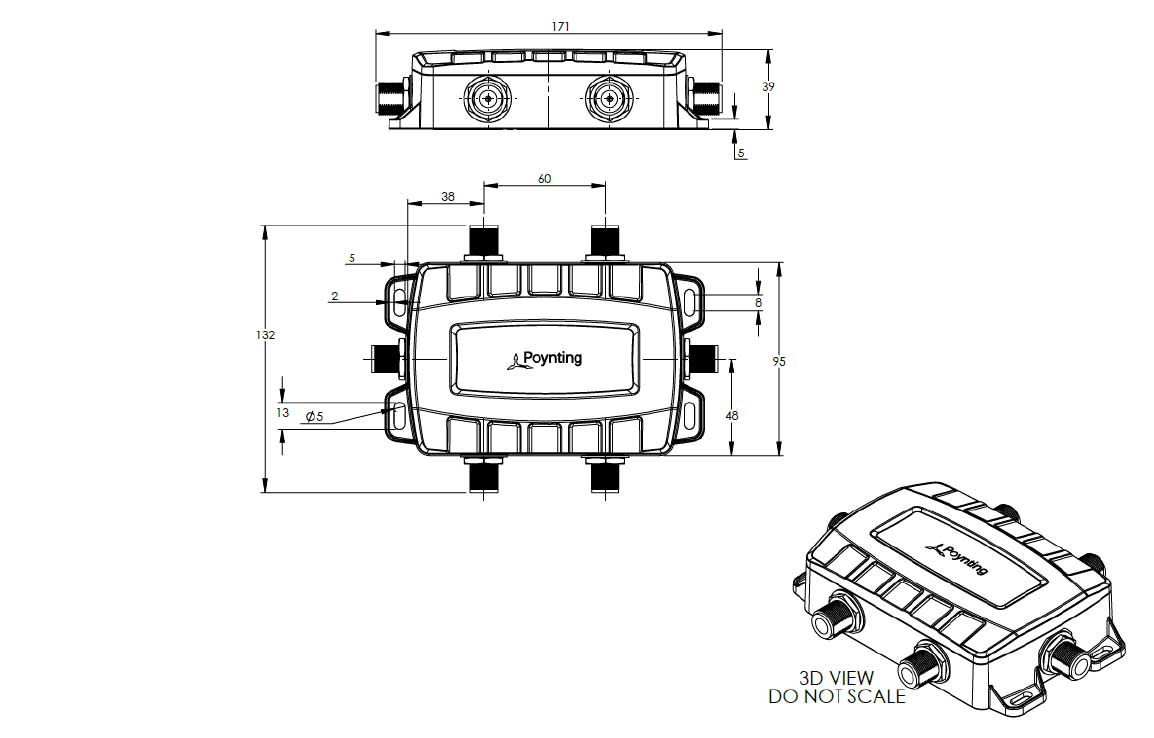

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

DPLX-2 Product Certificates

A-DPLX-002-V1 Declaration of Conformity

High Resolution Images

DPLX- 2 Diplexer, Dual-band Wi-Fi Antenna Feature Image DPLX- 2 Diplexer, Dual-band Wi-Fi Antenna Front View DPLX- 2 Diplexer, Dual-band Wi-Fi Antenna Side View DPLX- 2 Diplexer, Dual-band Wi-Fi Antenna Top View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-DPLX-0002-V1-01 EAN: 6009710927489 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.52kg
1.15lbs		 Packaged Dimensions: 200 x 200 x 50 mm
7.87 x 7.87 x 1.97 inch		 Master Box QTY: 50 Master Box Weight: 23.7kg
52.25lbs		 Master Box Dimensions: 510 x 420 x 630 mm
20.08 x 16.54 x 24.80 inch		 Country of Origin: RSA
SKU A-DPLX-0002-V1-01
EAN 6009710927489
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.52kg
1.15lbs
Packaged Dimensions 200 x 200 x 50 mm
7.87 x 7.87 x 1.97 inch
Master Box QTY 50
Master Box Weight 23.7kg
52.25lbs
Master Box Dimensions 510 x 420 x 630 mm
20.08 x 16.54 x 24.80 inch
Country of Origin RSA
