HELI-3-IS

The MinePoynt Enclosure
A-HELI-0003-IS Circular Polarised, Directional Mine/Tunnel Antenna;Wi-Fi, 2400 - 2500 MHz, 17.5 dBic (Intrinsically Safe) Directional Mine Tunnel
A-HELI-0003-IS Circular Polarised, Directional Mine/Tunnel Antenna;Wi-Fi, 2400 - 2500 MHz, 17.5 dBic (Intrinsically Safe) Directional Mine Tunnel
Technical Specification Download
2400-2500 MHz17.5dBicUni-DirectionalMachine to Machine2.4-2.5 GHzIP65-20°C to +70°CFire Resistant

Circular Polarised, Uni-Directional Mine/Tunnel Antenna;Wi-Fi

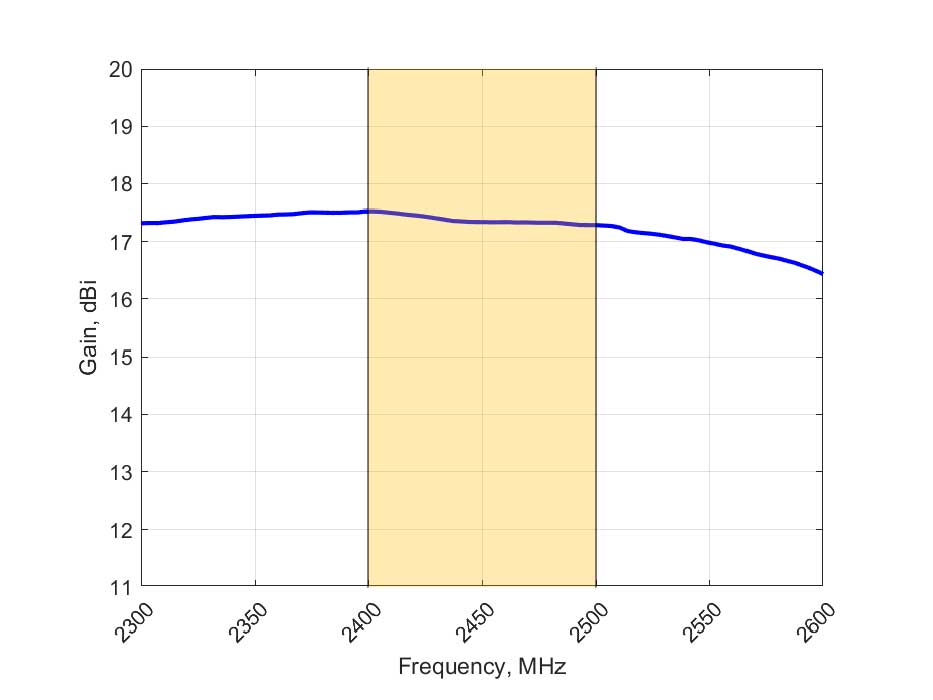

2400 - 2500 MHz, 17.5dBic (Intrinsically Safe)

  • Circular polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
  • Uni-directional – radiates in one direction in a tunnel
  • Covers Wi-Fi band from 2400 – 2500 MHz
  • Careful mechanical design provides ruggedness, water and dust resistance (IP 65)
  • Ideal for Mining & Tunnel M2M and Wi-Fi deployments
  • Easy installation with eye-bolts for ceiling use and ground plane
Add to Compare
TS Document

Availability Notification

Availability Notification

Close Trigger
Product Overview

The HELI-3-IS is a high gain, uni-directional antenna which complements our Wi-Fi MinePoynt tunnel and mine antennas. The combination of MinePoynt beam antennas for long distance Thru-tunnel links with this directional antenna, exploits Poynting’s fifteen years’ experience in designing and manufacturing antennas for underground mining data networks. The HELI-3-IS is an intrinsically safe (IS) antenna with a high resistivity non static radome. This antenna is also suitable for oil/gas chemical environments where IS equipment is required. HELI-3-IS, is a uni-directional antenna whilst the closely related HELI-8 is a bi-directional antenna. The HELI-3-IS gives you a low-cost network infrastructure for current voice and data needs in mines and tunnels

Print Friendly, PDF & Email
Product Options
SKU A-HELI-0003-IS
COAX Cable Type N/A
COAX Cable Length N/A
Color Grey
Product Video's
Why is it important to use Circular Polarised Antennas in Mine and Tunnel Communications? How to reduce cost for underground antenna installations? How does a tunnel's surface influence underground communications? How do I determine the best placement for an antenna in a tunnel? Webinar 6: Digging into circular polarised underground communication Poynting MiniHELI Antennas - for mining and underground communications How does a tunnel's surface influence underground communications?
Downloadable Files
A-HELI-00003-IS Directional Mine Tunnel Feature Image A-HELI-0003-IS Directional Mine Tunnel Back View A-HELI-0003-IS Directional Mine Tunnel Front View A-HELI-0003-IS Directional Mine Tunnel Side View View Our Downloads Page for High-Res Images and more
FAQ
FAQ - Why Are Circular Polarised MinePoynt HELI Antennas Better For Tunnels? Case Study - Tunnel inspection & measurement using HELI antennas Case Study - Poynting’s MinePoynt Antennas Makes Wireless Work Underground Article - Underground Propagation Range Tests With Poynting’s MinePoynt HELI And MiniHELI Antennas Article - Making Wireless Happen… Underground Article - LTE HELI Antenna Customised in Orange
Shipping Details
SKU A-HELI-0003-IS
EAN 6009710920312
HS Code #85291069
Packaged Weight 2.6kg
5.73lbs
Packaged Dimensions 1060 x 160 x 160 mm
41.73 x 6.3 x 6.3 inch
Master Box QTY 10
Master Box Weight 26.30kg
57.99lbs
Master Box Dimensions 1250 x 730 x 360mm
49.21 x 28.74 x 14.17 inch
Country of Origin RSA
