HELI-8-IS

The MinePoynt Enclosure
Circular Polarised, Bi-Directional Mine/Tunnel Antenna; Wi-Fi
2400 - 2500 MHz, 14.5dBic (Intrinsically Safe)
2400-2500 MHzview details below
14.5dBic±17km/11mi coverage*
Bi-Directional
2.4-2.5 GHz
IP65Dust-tight & Water-resistant
-40°C to +80°C
Fire Resistant

Key Features

  • Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
  • Circularly polarised
  • Bi-directional – radiates in both directions in a tunnel
  • Careful mechanical design provides ruggedness, water and dust resistance (IP 65)
  • Ideal for Mining & Tunnel M2M and IoT deployments
  • Intrinsically safe
Supported Connectivity Technologies



A-HELI-0008-IS
Intrinsically Safe High-Gain Bi-Directional Antenna for Mining and Industrial Applications

The HELI-8-IS is a high-gain, bi-directional antenna designed to complement Poynting’s Wi-Fi MinePoynt tunnel and mine antenna solutions. With over fifteen years of expertise in underground mining data networks, this antenna is optimized for long-distance thru-tunnel communication when paired with MinePoynt beam antennas. The HELI-8-IS is an Intrinsically Safe (IS) antenna with a high-resistivity, non-static radome, making it suitable for hazardous environments, including oil, gas, and chemical industries requiring IS-certified equipment.

Intrinsically Safe (IS) Design: Features a high-resistivity, non-static radome for use in hazardous environments.
Optimized for Tunnel Communications: Designed for 2.4 – 2.5 GHz wireless applications, ensuring reliable connectivity in underground mining environments.
High-Gain Performance: Enhances data transmission and extended network coverage, outperforming linear polarized panel antennas of the same gain.
Bi-Directional Design: Provides signal coverage in both directions, making it ideal for thru-tunnel communication.
Rugged and Durable Construction: Built to withstand extreme mining and industrial conditions.
Compatible with MinePoynt Beam Antennas: Seamlessly integrates with MinePoynt antennas for extended-range underground connectivity.
Suitable for Hazardous Environments: Designed for oil, gas, and chemical industries requiring intrinsically safe (IS) equipment.
Alternative Uni-Directional Model: The HELI-3 is available for applications requiring signal focus in one direction.
Cost-Effective Network Solution: Provides a low-cost infrastructure for underground voice and data communication.

The HELI-8-IS is an ideal choice for mining, tunnel, oil, gas, and chemical applications, offering a reliable, high-performance, and cost-effective solution for underground wireless communication networks in hazardous environments.

Ideal Applications

  • Supplementing fibre/cable networks by providing wireless “Hotspots” to areas to enhance mobility or extend networks to inaccessible areas such as mines and tunnels
  • Underground telemetry
  • Creation of complete in tunnel/mine wide data networks and or internet connectivity
  • Seamless connection to personnel using VOIP phones, smart devices and tablets

Technical Specifications for HELI-8-IS

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Product Options/Variants for HELI-8-IS

SKU Connector Type COAX Cable Type / Length Colour
A-HELI-0008-IS N-Type (f) N/A / N/A Grey

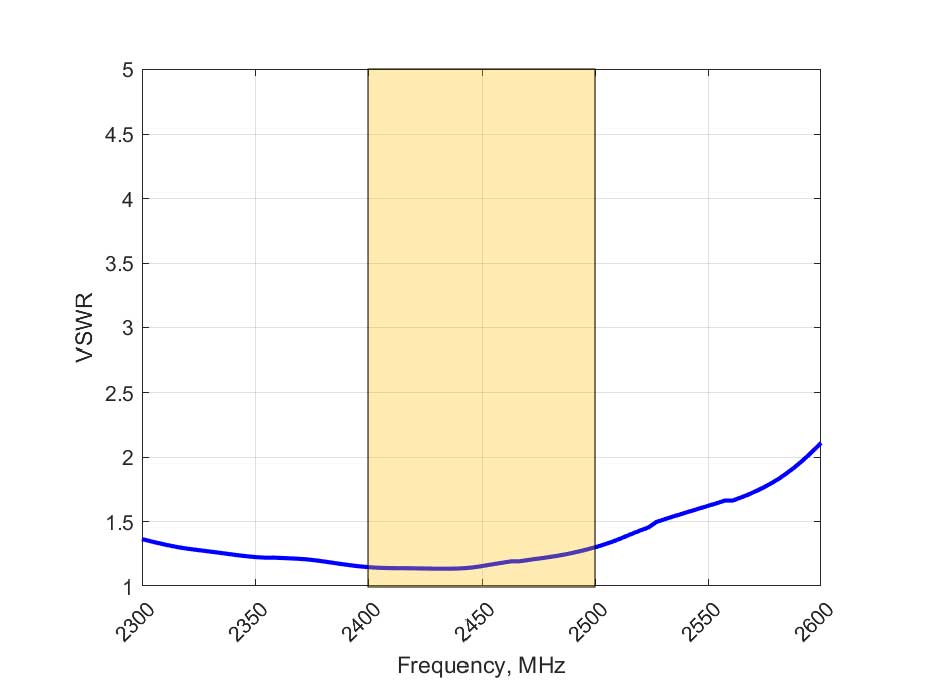

VSWR & Gain

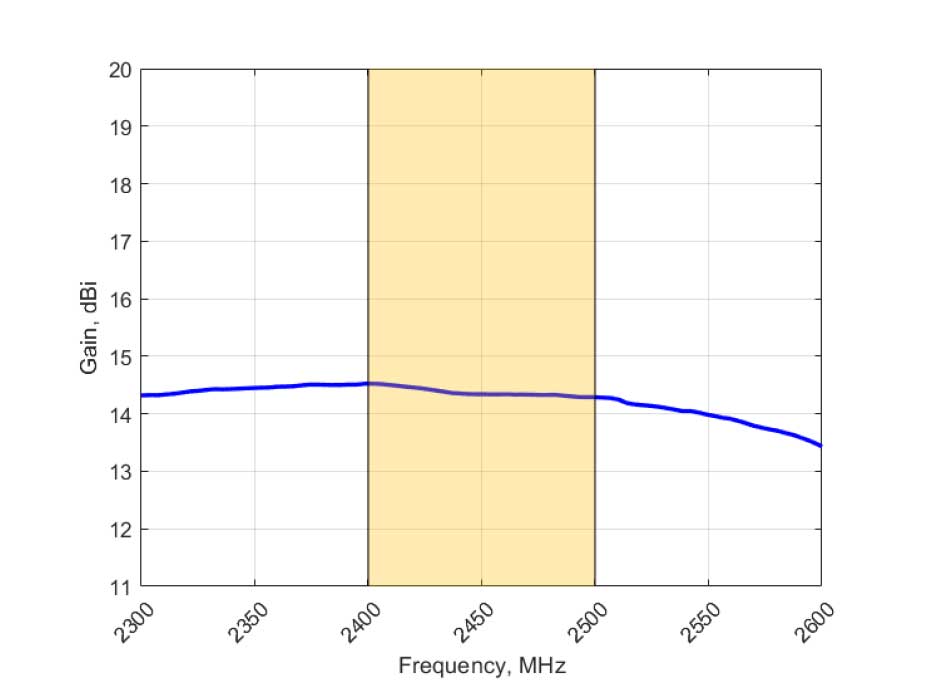

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Rajant

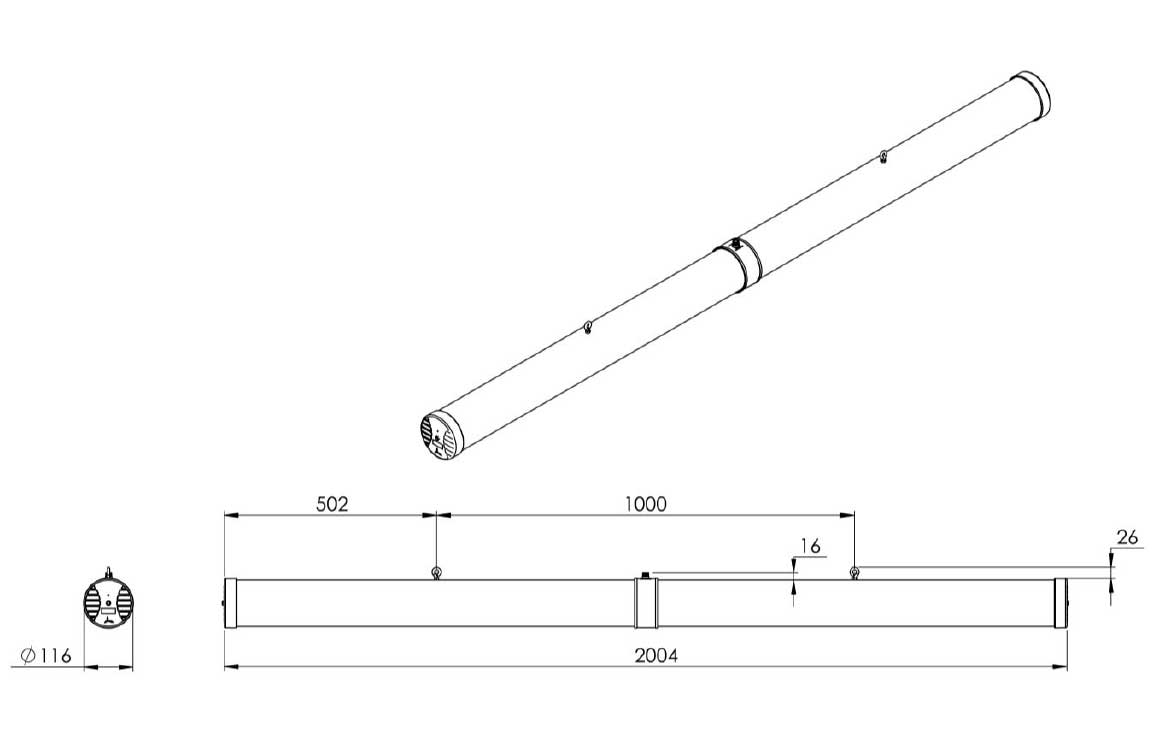

Technical Drawing

FAQ's & Articles

No articles available currently.

Shipping Details

SKU A-HELI-0008-IS EAN: 6009710920374 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: 6.02kg
13.27lbs
Packaged Dimensions: 2200 x 160 x 160 mm
86.61 x 6.3 x 6.3 inch
Master Box QTY: 10 Master Box Weight: 128.80kg
283.96lbs
Master Box Dimensions: 2140 x 700 x 300 mm
84.25 x 2.76 x 11.81 inch
Country of Origin: RSA
SKU A-HELI-0008-IS
EAN 6009710920374
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 6.02kg
13.27lbs
Packaged Dimensions 2200 x 160 x 160 mm
86.61 x 6.3 x 6.3 inch
Master Box QTY 10
Master Box Weight 128.80kg
283.96lbs
Master Box Dimensions 2140 x 700 x 300 mm
84.25 x 2.76 x 11.81 inch
Country of Origin RSA
