The MinePoynt Enclosure
2400-2500 MHz14.5dBicBi-DirectionalMachine to Machine2.4-2.5 GHzIP65-20°C to +70°CFire Resistant

Circular Polarised, Bi-Directional Mine/Tunnel Antenna; Wi-Fi

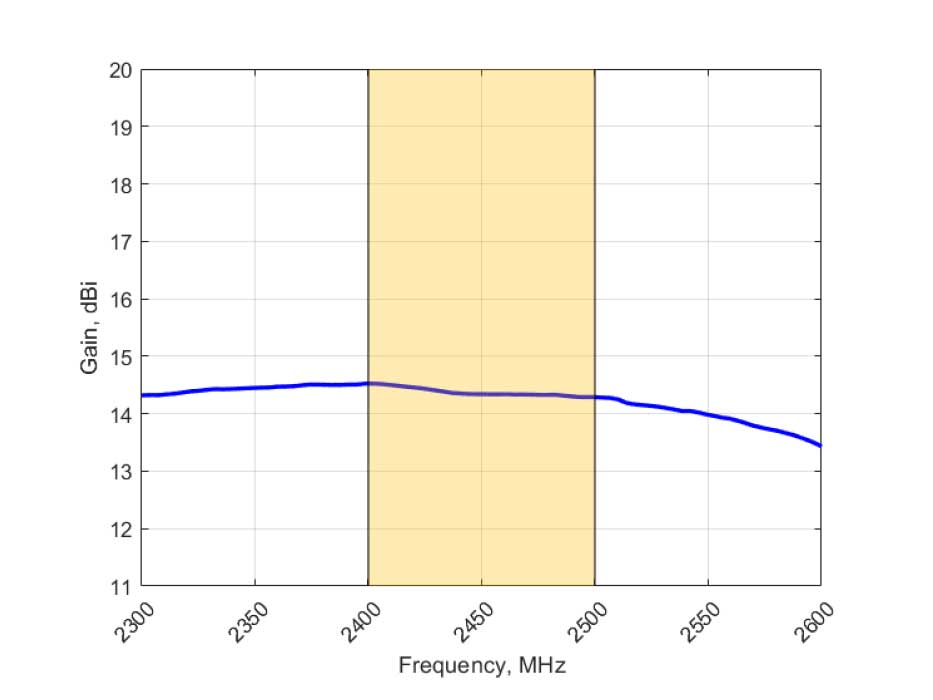

2400 - 2500 MHz, 14.5dBic

  • Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
  • Circularly polarised
  • Bi-directional – radiates in both directions in a tunnel
  • Careful mechanical design provides ruggedness, water and dust resistance (IP 65)
  • Ideal for Mining & Tunnel M2M and IoT deployments

Availability Notification

Availability Notification

Close Trigger
Product Overview

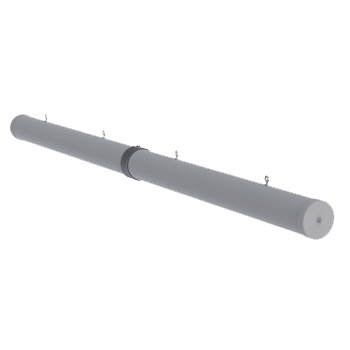

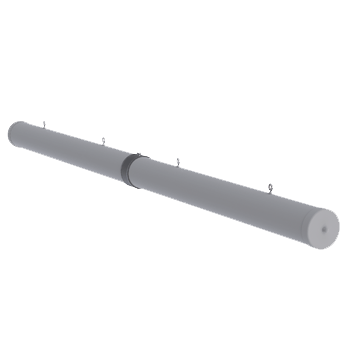

The HELI-8 is a high gain, bi-directional antenna, which complements our Wi-Fi MinePoynt tunnel and mine antennas. The combination of MinePoynt beam antennas for long distance thru-tunnel links with this directional antenna, exploits Poynting’s fifteen years’ experience in designing and manufacturing antennas for underground mining data networks. This antenna is also suitable for oil/gas chemical environments where IS equipment is required. The HELI 8 tunnel antenna is the ideal antenna for 2.4 – 2.5 GHz wireless applications in tunnels. In tests, both the data rate and range achieved with this antenna was greater than obtained when using linearly polarized panel antennas of the same gain. The hardy construction of this antenna makes it ideal for the mining environment. HELI-8 is a bi-directional antenna whilst the closely related HELI-3 fires in one direction. This antenna gives you a low-cost network infrastructure for current voice and data needs in mines and tunnels.

Print Friendly, PDF & Email
Product Options
COAX Cable Type N/A
COAX Cable Length N/A
Color Grey
Shipping Details
EAN 6009710920350
HS Code #85291069
Packaged Weight 6.02kg

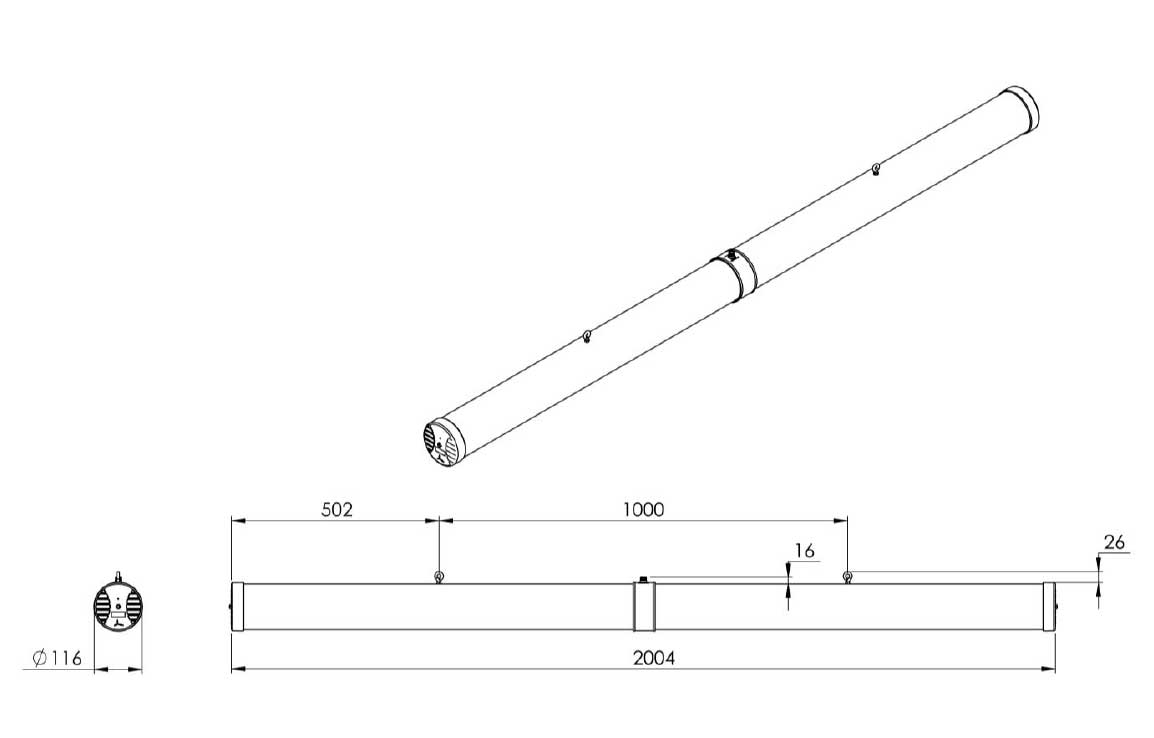

Packaged Dimensions 2200 x 160 x 160 mm
86.61 x 6.3 x 6.3 inch
Master Box QTY 10
Master Box Weight 128.80kg
Master Box Dimensions 2140 x 700 x 300 mm
84.25 x 2.76 x 11.81 inch
Country of Origin RSA
