HELI-3

The MinePoynt Enclosure
A-HELI-0003 Circular Polarised, Directional Mine/Tunnel Antenna; Wi-Fi, 2400 - 2500 MHz, 17.5 dBic Directional Mine Tunnel
A-HELI-0003 Circular Polarised, Directional Mine/Tunnel Antenna; Wi-Fi, 2400 - 2500 MHz, 17.5 dBic Directional Mine Tunnel
Technical Specification Download
2400-2500 MHz17.5dBicUni-DirectionalMachine to Machine2.4-2.5 GHzIP65-20°C to +70°CFire Resistant

Circular Polarised, Uni-Directional Mine/Tunnel Antenna; Wi-Fi

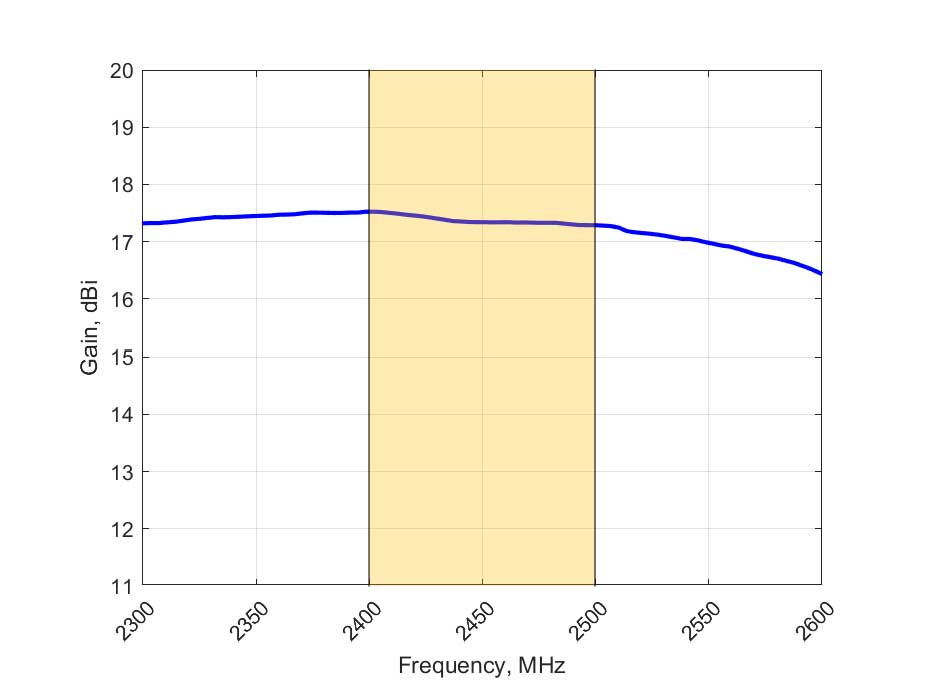

2400 - 2500 MHz, 17.5dBic

  • Circular polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
  • Uni-directional – radiates in one direction in a tunnel
  • Covers Wi-Fi band from 2400 – 2500 MHz
  • Careful mechanical design provides ruggedness, water and dust resistance (IP 65)
  • Ideal for Mining & Tunnel M2M and Wi-Fi deployments
  • Easy installation with eye-bolts for ceiling use and ground plane
Add to Compare
TS Document

Availability Notification

Availability Notification

Close Trigger
Product Overview

The HELI-3 is a high gain, uni-directional antenna which complements our Wi-Fi MinePoynt tunnel and mine antennas. The combination of MinePoynt beam antennas for long distance Thru-tunnel links with this directional antenna, exploits Poynting’s fifteen years’ experience in designing and manufacturing antennas for underground mining data networks. The tunnel antenna is the ideal antenna for 2.4 – 2.5 GHz wireless applications in tunnels. In tests, both the data rate and range achieved with this antenna was greater than obtained when using linearly polarized panel antennas of the same gain. The hardy construction of this antenna makes it ideal for the mining environment. HELI-3 is a uni-directional antenna whilst the closely related HELI-8 is a bi-directional antenna. An intrinsically safe version of this antenna is available with code HELI-3-IS. The HELI-3 gives you a low-cost network infrastructure for current voice and data needs in mines and tunnels.

Print Friendly, PDF & Email
Product Options
SKU A-HELI-0003
COAX Cable Type N/A
COAX Cable Length N/A
Color Grey
Product Video's
Why is it important to use Circular Polarised Antennas in Mine and Tunnel Communications? How to reduce cost for underground antenna installations? How does a tunnel's surface influence underground communications? How do I determine the best placement for an antenna in a tunnel? Webinar 6: Digging into circular polarised underground communication Poynting MiniHELI Antennas - for mining and underground communications How does a tunnel's surface influence underground communications?
Downloadable Files
A-HELI-0003 Directional Mine Tunnel Feature Image A-HELI-0003 Directional Mine Tunnel Back View A-HELI-0003 Directional Mine Tunnel Front View A-HELI-0003 Directional Mine Tunnel Side View View Our Downloads Page for High-Res Images and more
FAQ
FAQ - Why Are Circular Polarised MinePoynt HELI Antennas Better For Tunnels? Case Study - Tunnel inspection & measurement using HELI antennas Case Study - Poynting’s MinePoynt Antennas Makes Wireless Work Underground Article - Underground Propagation Range Tests With Poynting’s MinePoynt HELI And MiniHELI Antennas Article - Making Wireless Happen… Underground Article - LTE HELI Antenna Customised in Orange
Shipping Details
SKU A-HELI-0003
EAN 6009710920299
HS Code #85291069
Packaged Weight 2.6kg
5.73lbs
Packaged Dimensions 1060 x 160 x 160 mm
41.73 x 6.3 x 6.3 inch
Master Box QTY 10
Master Box Weight 26.30kg
57.99lbs
Master Box Dimensions 1250 x 730 x 360mm
49.21 x 28.74 x 14.17 inch
Country of Origin RSA
