OMNI-298

The Moray Enclosure
Omni-Directional, 2x2 MIMO Dual-Band Wi-Fi Antenna
Dual-Band Wi-Fi; 2400 - 2500 MHz, 3300 - 4200 MHz, 4900 - 7200 MHz; 10 dBi
POYNTING antennas provide reliable connectivity for rural farming, ensuring seamless communication between silos, warehouses, and smart agricultural operations.
POYNTING antennas provide reliable IoT connectivity for rural wind farms, ensuring seamless communication, monitoring, and automation for efficient energy production.
POYNTING antennas ensure reliable connectivity for IoT-enabled warehouses, supporting seamless communication for autonomous bots and smart logistics operations.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments.
POYNTING antennas provide reliable connectivity for rural homes on the outskirts of urban areas, ensuring seamless internet access across large open spaces and farmland.
POYNTING antennas provide reliable connectivity for rural houses, ensuring seamless internet access and communication in remote locations.
2.4-2.5GHz; 3.3-4.2GHz; 4.9-7.2GHz
Wi-Fi: 10dBi
Omni-Directional
2.4-2.5 GHz 4.9-7.2 GHz
IP65Dust-tight & Water-resistant
-40°C to +80°C
2×2 MIMO

Key Features

  • Dual-band Wi-Fi antenna for 2.4 GHz and 4.9 to 7.2 GHz
  • 2x2 MIMO capability for improved performance
  • High gain omnidirectional antenna for Wi-Fi deployments
  • Covers 3.5 GHz CBRS band for future 5G applications
  • Robust and weather-resistant enclosure with an IP 65 rating
Supported Connectivity Technologies

Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0298-V1-01

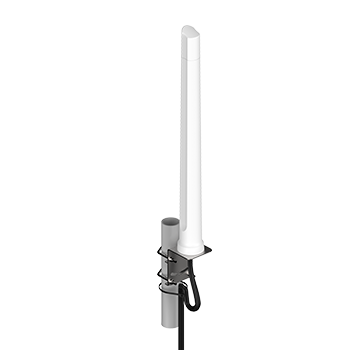

A-OMNI-0298-V1-01,Omni-Directional, 2x2 MIMO Dual-Band Wi-Fi Antenna,Featured Image

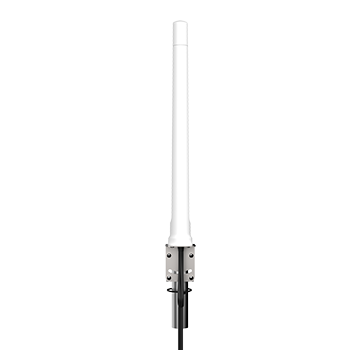

A-OMNI-0298-V1-01,Omni-Directional, 2x2 MIMO Dual-Band Wi-Fi Antenna,Front View

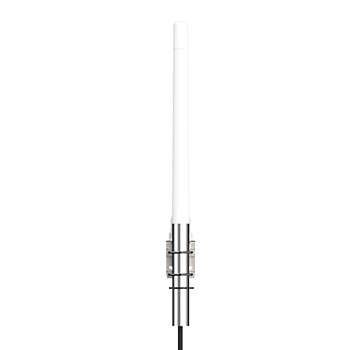

A-OMNI-0298-V1-01,Omni-Directional, 2x2 MIMO Dual-Band Wi-Fi Antenna,Back View

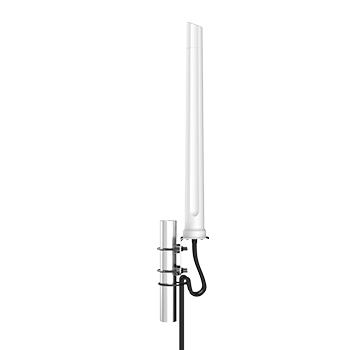

A-OMNI-0298-V1-01,Omni-Directional, 2x2 MIMO Dual-Band Wi-Fi Antenna,Side View

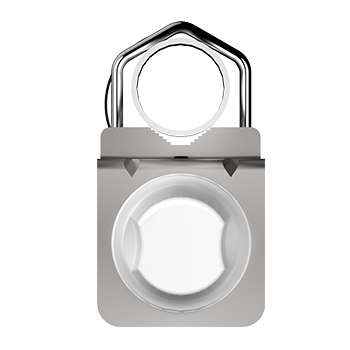

A-OMNI-0298-V1-01,Omni-Directional, 2x2 MIMO Dual-Band Wi-Fi Antenna,Top View
High-Performance Dual-Band Wi-Fi Omni-Directional Antenna for FWA
The OMNI-298 is a high-performance dual-band Wi-Fi omni-directional antenna, specifically designed for Fixed Wireless Access (FWA) deployments. Operating across the 2.4 GHz and 4.9 to 7.2 GHz frequency bands, this antenna ensures compatibility with both legacy Wi-Fi technologies and next-generation advancements, including Wi-Fi 7. With 2x2 MIMO technology and vertically polarized radiating elements, the OMNI-298 delivers reliable and efficient omni-directional coverage for seamless wireless connectivity. Dual-Band Wi-Fi Coverage: Supports 2.4 GHz and 4.9 – 7.2 GHz, ensuring compatibility with Wi-Fi 7 and future technologies. 2x2 MIMO Technology: Utilizes vertically polarized elements to enhance data throughput and network efficiency. Optimized for Fixed Wireless Access (FWA): Designed without horizontal elements, simplifying installation and improving coverage. CBRS & 5G Compatibility: Supports 3.3 – 4.2 GHz, making it suitable for Citizens Broadband Radio Service (CBRS) and 5G applications. High-Gain Performance: Delivers 7.8 dBi peak gain for CBRS/5G and 10 dBi peak gain for high-gain vertical antennas. Versatile Deployment: Ideal for residential, commercial, and industrial Wi-Fi access points requiring robust wireless coverage. The OMNI-298 is a future-proof, high-performance Wi-Fi and 5G antenna, offering dual-band coverage, 2x2 MIMO support, and CBRS compatibility for reliable, long-range connectivity in FWA applications.

Ideal Applications

  • Industrial and commercial Wi-Fi deployment
  • Small businesses
  • Building sites and open-cast mines
  • Production facilities and factories
  • M2M and IoT applications
  • Areas with large amounts of machinery (cluttered environments)
  • Increase system transmission reliability
  • High-end industrial-grade router applications

Technical Specifications for OMNI-298

Additional information

Industry (Application)

, ,

Technology

,

Cellular Freq. Range

Frequency Band

, , ,

5G Bands

, ,

Wi-Fi Standard

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Product Options/Variants for OMNI-298

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0298-V1-01 SMA (M) & RPSMA adaptors Twin HDF-195 / 2m White

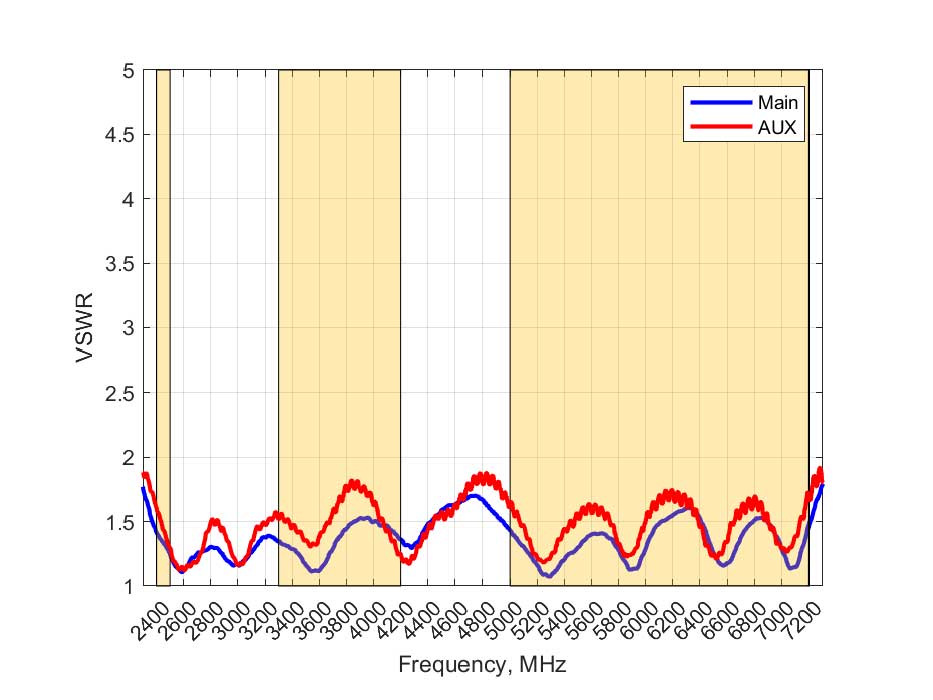

VSWR & Gain

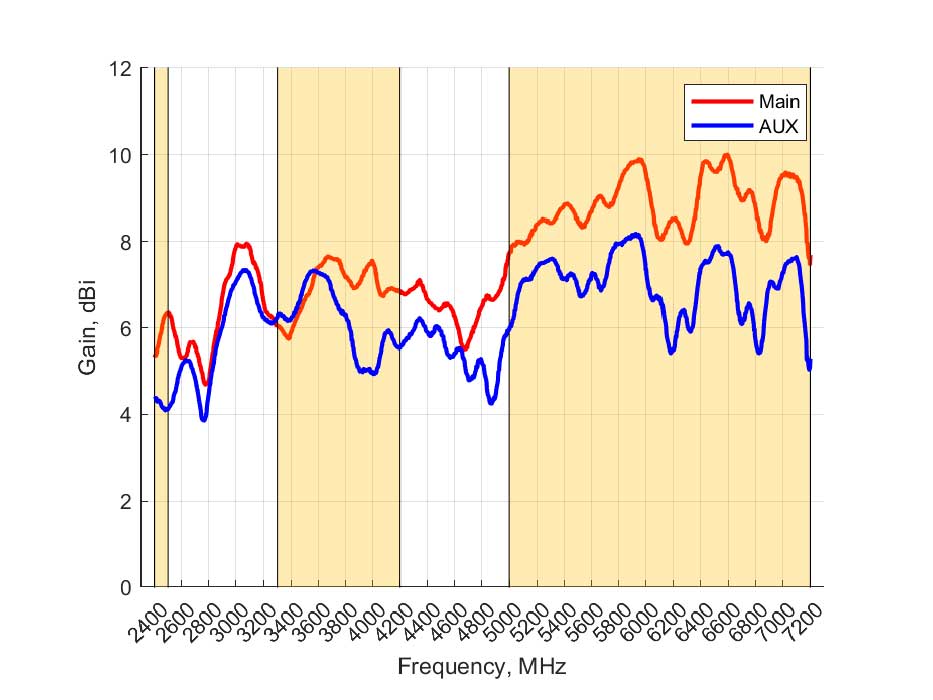

Gain (excluding Cable Loss)

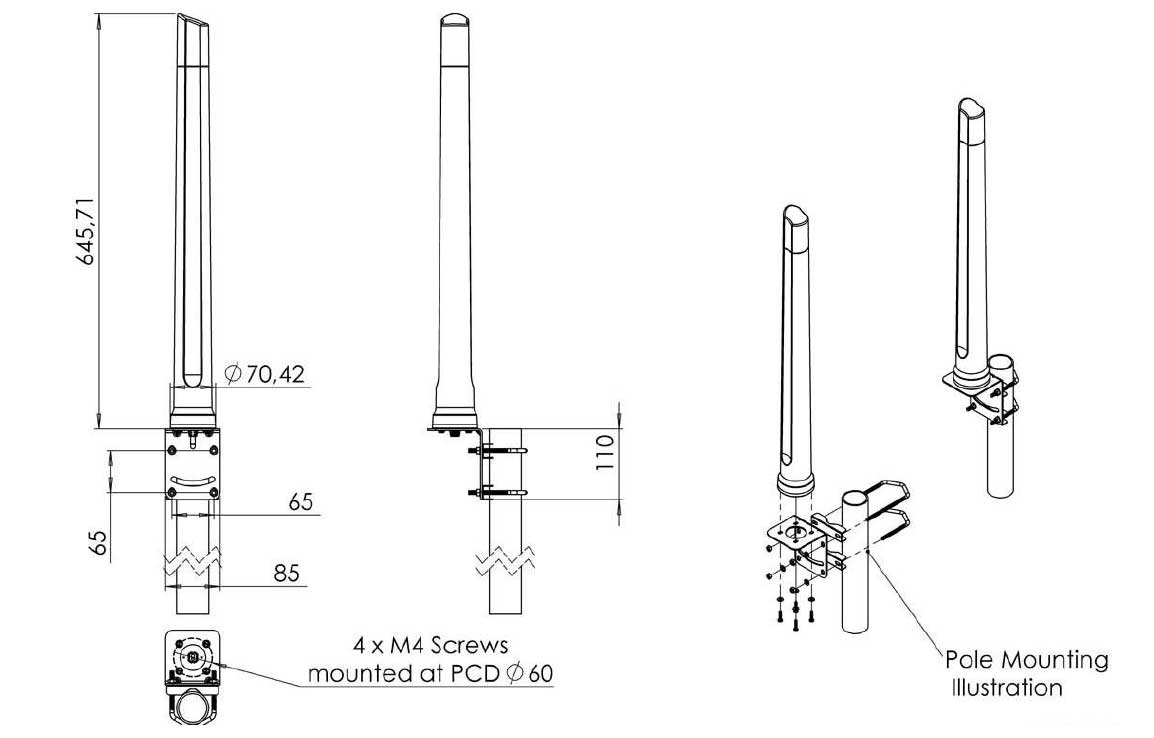

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

A-OMNI-0298-V1-01 Feature Image A-OMNI-0298-V1-01 Back View A-OMNI-0298-V1-01 Front View A-OMNI-0298-V1-01 Side View A-OMNI-0298-V1-01 Top View Web Images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0298-V1-01 EAN: 6009710928172 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.48kg
3.26lbs		 Packaged Dimensions: 710 mm x 150 mm x 100 mm
27.95 x 5.90 x 3.94 inch		 Master Box QTY: 10 Master Box Weight: 17.70kg
39.02lbs		 Master Box Dimensions: 560 x 350 x 770 mm
22.05 x 13.78 x 30.32 inch		 Country of Origin: CN
SKU A-OMNI-0298-V1-01
EAN 6009710928172
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.48kg
3.26lbs
Packaged Dimensions 710 mm x 150 mm x 100 mm
27.95 x 5.90 x 3.94 inch
Master Box QTY 10
Master Box Weight 17.70kg
39.02lbs
Master Box Dimensions 560 x 350 x 770 mm
22.05 x 13.78 x 30.32 inch
Country of Origin CN
