OMNI-498

The Moray Enclosure
Omni-Directional, Marine, 2x2 MIMO Wi-Fi Antenna
Dual-Band Wi-Fi; 2400 - 2500 MHz, 3300 - 4200 MHz, 4900 - 7200 MHz; 9.8 dBi
POYNTING antennas ensure reliable connectivity for large yachts, providing seamless communication and internet access for marine and coastal journeys. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for medium-sized yachts, ensuring seamless communication and internet access for marine and coastal adventures. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for tugboats, ensuring seamless communication and internet access for marine and coastal operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for small yachts, providing seamless communication and internet access for marine and coastal adventures. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for small speedboats and yachts, ensuring seamless communication and internet access for marine and coastal adventures. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for small speedboats, providing seamless communication and internet access for marine and coastal adventures. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
2.4-2.5GHz; 3.3-4.2GHz; 4.9-7.2GHz
Wi-Fi: 9.8dBi
Omni-Directional
2.4-2.5 GHz 4.9-7.2 GHz
IP68Dust-tight & Waterproof
-40°C to +80°C
2×2 MIMO
Salt Spray Protection

Key Features

  • Dual-band Wi-Fi antenna for 2.4 GHz and 4.9 to 7.2 GHz
  • 2x2 MIMO capability for improved performance
  • Compliant with IEEE 802.11a/b/g/n/ac wireless standards
  • UV and saltwater protected for marine and coastal conditions
  • Robust and all-weather proof for harsh conditions at sea (IP 68)
  • Various 316-stainless steel mounting brackets available
Supported Connectivity Technologies

Datasheet Options
POYNTING Antenna Solution Finder
Get Quotation
A-OMNI-0498-V1-01
A-OMNI-0498-V2-01,Omni-Directional, Marine, 2x2 MIMO Wi-Fi Antenna,2x2 MIMO Wi-Fi Marine Antenna Featured Image
A-OMNI-0498-V2-01,Omni-Directional, Marine, 2x2 MIMO Wi-Fi Antenna,2x2 MIMO Wi-Fi Marine Antenna Back View
A-OMNI-0498-V2-01,Omni-Directional, Marine, 2x2 MIMO Wi-Fi Antenna,2x2 MIMO Wi-Fi Marine Antenna Front View
A-OMNI-0498-V2-01,Omni-Directional, Marine, 2x2 MIMO Wi-Fi Antenna,2x2 MIMO Wi-Fi Marine Antenna Side View Left
A-OMNI-0498-V2-01,Omni-Directional, Marine, 2x2 MIMO Wi-Fi Antenna,2x2 MIMO Wi-Fi Marine Antenna Side View Right
A-OMNI-0498-V2-01,Omni-Directional, Marine, 2x2 MIMO Wi-Fi Antenna,2x2 MIMO Wi-Fi Marine Antenna Side View Top
Dual-Band Omni-Directional Marine & Coastal Wi-Fi Antenna

The OMNI-498 is a high-performance dual-band Wi-Fi omni-directional antenna designed for marine and coastal applications. Covering the 2.4 GHz and 4.9 to 7.2 GHz bands, this antenna supports both older Wi-Fi technology and modern Wi-Fi 6E, ensuring seamless connectivity up to 7.2 GHz. Its 2×2 MIMO capability with vertically separated radiating elements provides excellent omni-directional coverage for stable and reliable wireless communication.

Dual-Band Wi-Fi Coverage: Supports 2.4 GHz and 4.9 – 7.2 GHz bands, ensuring compatibility with Wi-Fi 6E technology.

2×2 MIMO Capability: Features vertically separated elements for enhanced data throughput and network efficiency.

True Omni-Directional Coverage: Provides 360° Wi-Fi connectivity, making it ideal for marine and coastal applications.

Rugged Marine-Grade Construction: Built to withstand extreme weather conditions, ensuring reliability at sea.

IP68 Protection Rating: Fully dustproof and waterproof, with foam-filled construction for durability in severe storms.

Saltwater & UV Protection: UV-stable ASA radome resists corrosion in harsh marine environments.

Versatile Deployment: Suitable for yachts, ships, offshore platforms, and other maritime installations requiring long-range Wi-Fi connectivity.

The OMNI-498 is purpose-built for harsh environments, providing superior Wi-Fi performance in marine and coastal settings. With its rugged design, dual-band support, and 2×2 MIMO technology, it ensures stable and high-speed connectivity even in extreme conditions.

Print Friendly, PDF & Email

Ideal Applications

  • Marine applications: Yachts / Boats / Ferries
  • Increase system transmission reliability
  • High-end industrial-grade router applications
  • Ports and harbour Wi-Fi & WLAN deployments
  • Industrial and commercial Wi-Fi deployment

Technical Specifications for OMNI-498

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

, , ,

5G Bands

, ,

Wi-Fi Standard

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

, ,

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Accessories

, ,

Product Options/Variants for OMNI-498

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0498-V1-01 SMA (M) & RPSMA adaptors Twin HDF-195 / 2m White

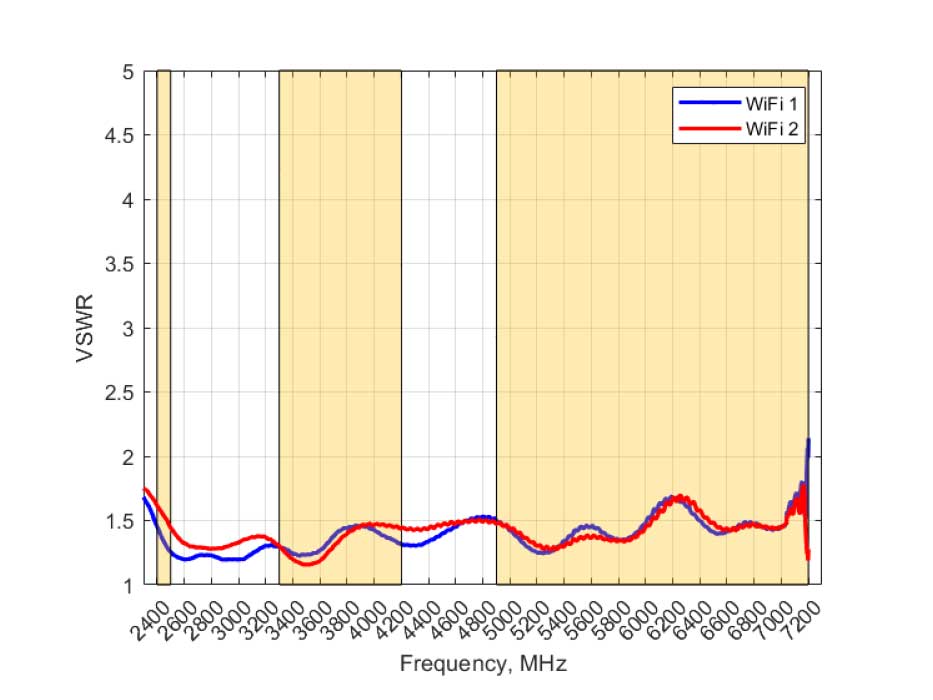

VSWR & Gain

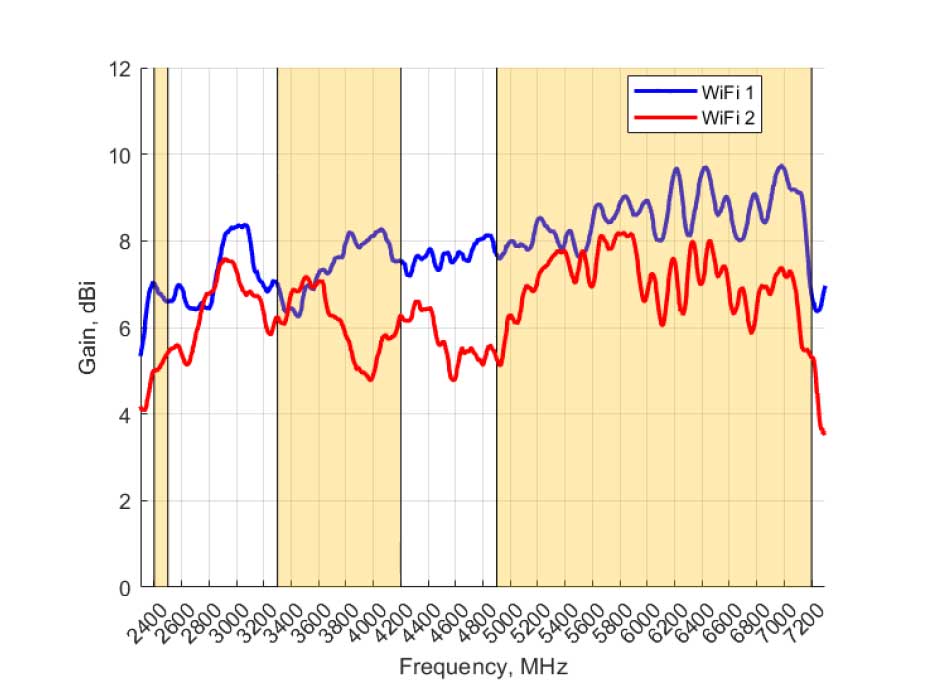

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.
Advantech
Cisco
EuroTech
Huawei
InHand Networks
Peplink
Rajant
Robustel

Technical Drawing

FAQ's & Articles

Downloadable Files

OMNI-498 Product Certificates

A-OMNI-0498 Declaration of Conformity

High Resolution Images

OMNI-498 Feature Image OMNI-498 Front View OMNI-498 Top View OMNI-498 Back View OMNI-498 Side View OMNI-498 Side View - 2 Web Images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0498-V1-01 EAN: 6009710927465 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.71kg
3.77lbs		 Packaged Dimensions: 704 x 147 x 100 mm
27.72 x 5.79 x 3.94 inch		 Master Box QTY: 10 Master Box Weight: 18.65kg
41.12lbs		 Master Box Dimensions: 560 x 350 x 770 mm
22.05 x 13.78 x 30.32 inch		 Country of Origin: CN
SKU A-OMNI-0498-V1-01
EAN 6009710927465
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.71kg
3.77lbs
Packaged Dimensions 704 x 147 x 100 mm
27.72 x 5.79 x 3.94 inch
Master Box QTY 10
Master Box Weight 18.65kg
41.12lbs
Master Box Dimensions 560 x 350 x 770 mm
22.05 x 13.78 x 30.32 inch
Country of Origin CN
