OMNI-510

The Lizzard Enclosure
Ultra Low Profile, Smart Meter LTE Antenna
698 - 960 MHz, 1710 - 2700 MHz, 2dBi
POYNTING antennas provide reliable IoT connectivity for mining operations, ensuring seamless communication, automation, and real-time data monitoring in challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for electric vehicle charging stations, ensuring seamless communication and real-time data management for smart mobility solutions. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
698-2700 MHzview details below
2dBi±14km/9mi coverage*
Omni-Directional
IP68Dust-tight & Waterproof
-40°C to +75°C
Fire Resistant

Key Features

  • Omni-directional 4G/LTE antenna
  • Backwards compatible with 2G and 3G technologies
  • Smart Meter, M2M, IoT antenna
  • Ultra-low-profile design
  • Weather resistant enclosure (IP 68)
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0510-V1-02
A-OMNI-0510-V1-02,Ultra Low Profile, Smart Meter LTE Antenna,Low-Profile LTE Featured Image

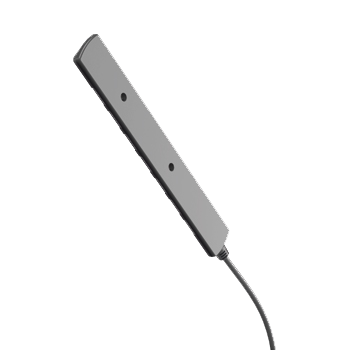

A-OMNI-0510-V1-02,Ultra Low Profile, Smart Meter LTE Antenna,Low-Profile LTE Back View

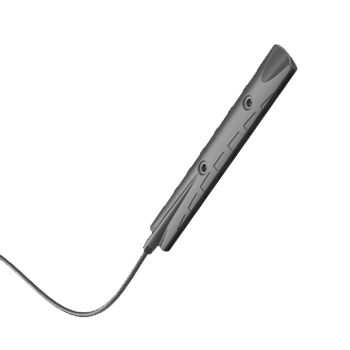

A-OMNI-0510-V1-02,Ultra Low Profile, Smart Meter LTE Antenna,Low-Profile LTE Front View
A-OMNI-0510-V1-02,Ultra Low Profile, Smart Meter LTE Antenna,Low-Profile LTE Side View
Ultra-Low-Profile Omni-Directional 4G/LTE Antenna

The OMNI-510 is a compact, ultra-low-profile antenna designed specifically for Smart Meters and other discreet installations. With its omni-directional radiation pattern, this antenna ensures reliable signal reception, making it ideal for both indoor and outdoor applications. It is designed for easy integration, typically mounted on the top or side of smart meter boxes.

Wideband Frequency Coverage: Supports 4G/LTE frequency bands from 698 to 2700 MHz for seamless connectivity.
Ultra-Low-Profile Design: Compact form factor enables discreet installation while maintaining high performance.
Omni-Directional Coverage: Provides 360° signal reception, ensuring stable connectivity in all directions.
Optimised for Smart Metering: Designed for integration with smart utility systems, ensuring consistent data transmission.
Indoor & Outdoor Compatibility: Durable design allows for reliable performance in various environmental conditions.
Easy Installation: Mounts effortlessly on the top or side of smart meter boxes for seamless deployment.

The OMNI-510 is a high-performance, ultra-low-profile antenna engineered for smart metering and IoT applications. With its wideband frequency support, omni-directional coverage, and ease of installation, it delivers consistent and reliable connectivity for modern utility networks.

Ideal Applications

  • Smart Utilities: Smart Power Metering, Gas & Water Metering
  • Smart Buildings: Climate control, access control, security, irrigation
  • Digital Signage
  • Smart Environmental & Water Systems
  • Warehouses & Logistics systems
  • Industrial factory automation and M2M systems
  • Farming & Agricultural M2M IoT

Technical Specifications for OMNI-510

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

Cellular Ports

Product Options/Variants for OMNI-510

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-510-V1-02 SMA (m) RTK-031 / 1m Black

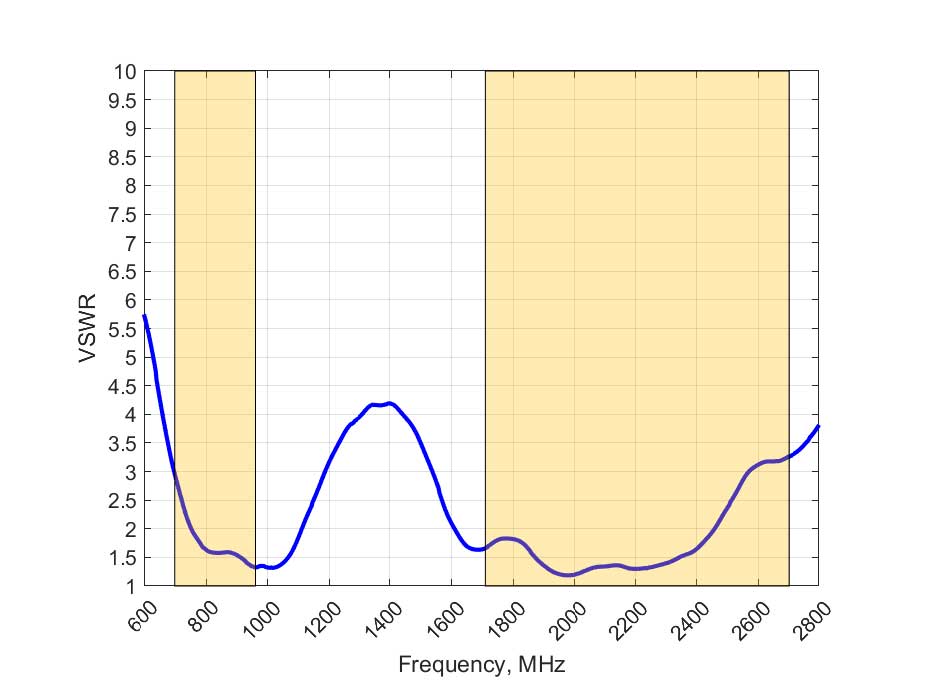

VSWR & Gain

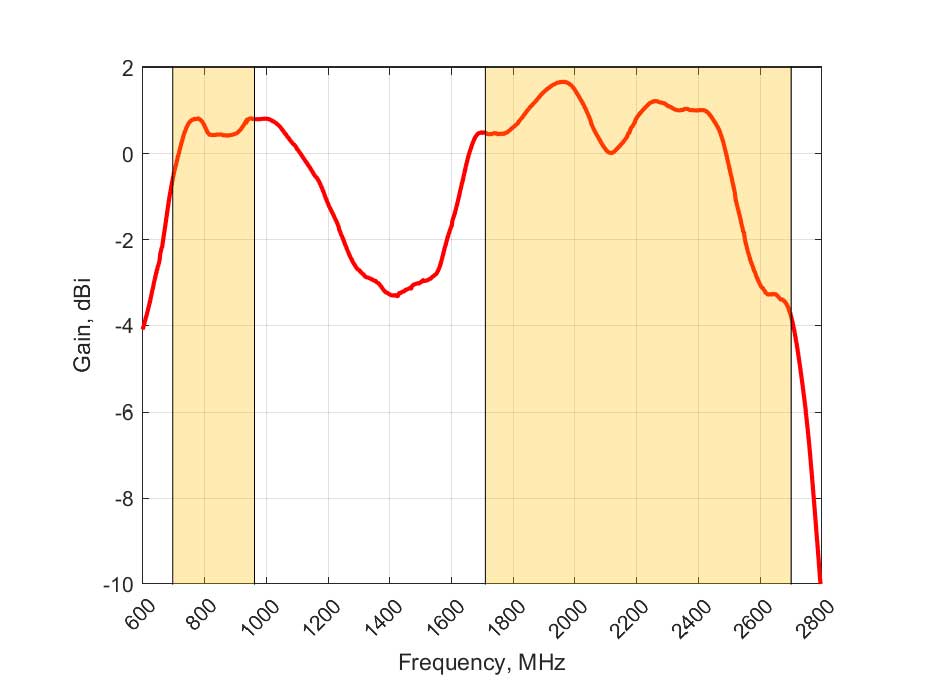

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Advantech
Digi
Robustel
Teltonika

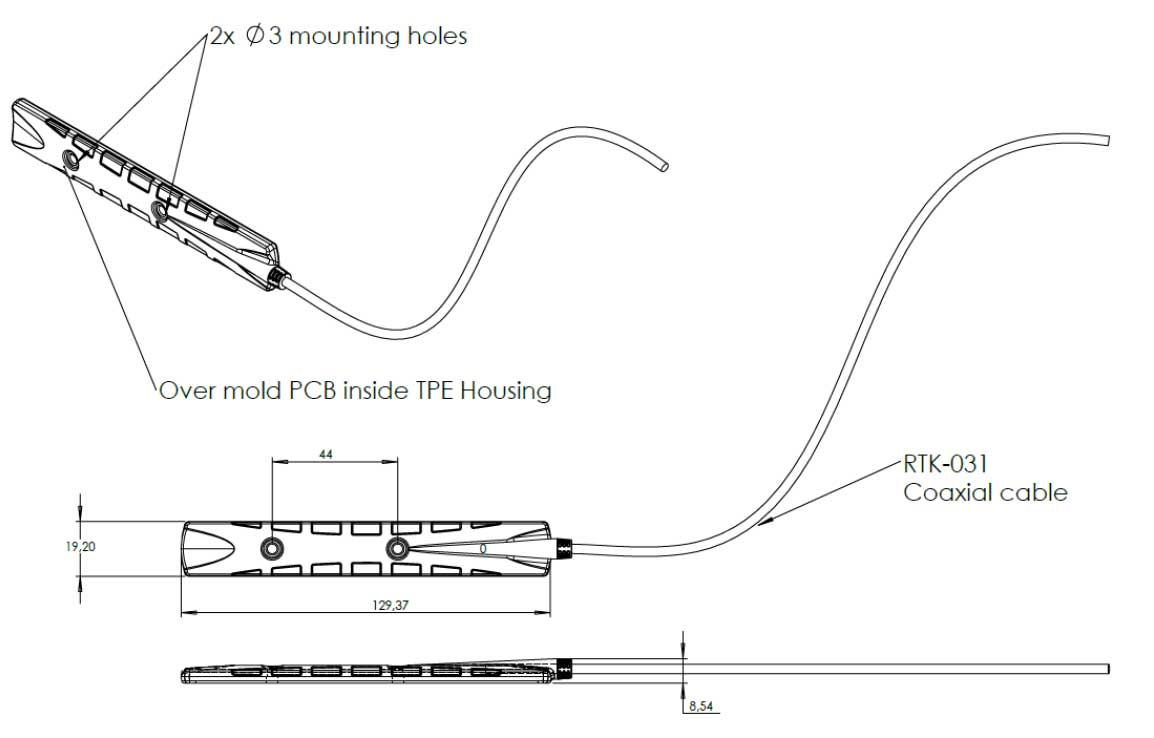

Technical Drawing

FAQ's & Articles

Downloadable Files

High Resolution Images

A-OMNI-0510-V1-02 Low Profile LTE Feature Image A-OMNI-0510-V1-02 Low Profile LTE Back View A-OMNI-0510-V1-02 Low Profile LTE Front View A-OMNI-0510-V1-02 Low Profile LTE Side View Web Images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0510-V1-02 EAN: 6009880915699 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.052kg
0.115lbs		 Packaged Dimensions: 200 x 180 x 15 mm
7.87 x 7.09 x 0.59 inch		 Master Box QTY: 200 Master Box Weight: 10.3kg
22.71 lbs		 Master Box Dimensions: 500 x 330 x 320 mm
19.69 x 13 x 12.6 inch		 Country of Origin: CN
SKU A-OMNI-0510-V1-02
EAN 6009880915699
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.052kg
0.115lbs
Packaged Dimensions 200 x 180 x 15 mm
7.87 x 7.09 x 0.59 inch
Master Box QTY 200
Master Box Weight 10.3kg
22.71 lbs
Master Box Dimensions 500 x 330 x 320 mm
19.69 x 13 x 12.6 inch
Country of Origin CN
