OMNI-280

The Blade Enclosure
Omni-Directional, Wideband, LTE/5G Antenna
617 - 4200 MHz, 3dBi
617-4200 MHzview details below
3dBi±17km/11mi coverage*
Omni-Directional
IP65Dust-tight & Water-resistant
-40°C to +80°C
Fire Resistant

Key Features

  • Future proof omni-directional wideband LTE SISO antenna
  • Backwards compatible with 2G, 3G technologies
  • Improves mobile network subscriber’s user experience
  • Increased connectivity stability
  • Weatherproof enclosure
  • Pole, wall or magnetic mountable
Supported Connectivity Technologies



A-OMNI-0280-V1
Omni-Directional LTE Antenna for Enhanced Signal Reception

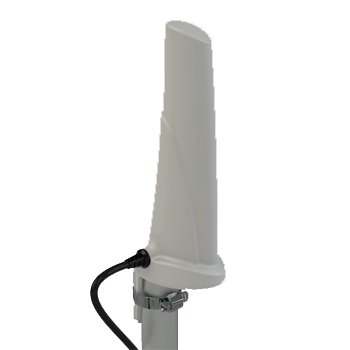

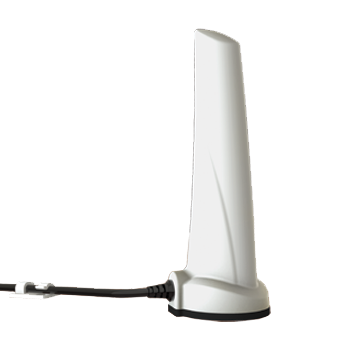

The OMNI-280 is an innovative omni-directional antenna designed to enhance 4G, 3G, and 2G network signals. This single-polarized, full LTE band antenna features an ultra-wideband element housed in a compact design, offering magnetic, wall, or pole mounting options. The OMNI-280 is a cost-effective solution for improving signal reception, increasing data throughput, and ensuring a stable, high-quality connection.

Wideband LTE Coverage: Supports 4G, 3G, and 2G networks, covering LTE/HSPA/3G/EDGE/GPRS bands.
Enhanced Signal Stability: Improves signal reliability and data throughput, ensuring a seamless user experience.
Versatile Mounting Options: Can be magnetically, wall, or pole-mounted, allowing for flexible installations.
Compact and Efficient Design: Integrates an ultra-wideband element into a single housing for consistent performance.
Optimized for GSM Networks: Ensures stable and improved connectivity across all LTE, HSPA, and 3G network applications.
Cost-Effective Performance: Provides an affordable solution for signal enhancement and network reliability.

The OMNI-280 is an ideal choice for users seeking improved LTE signal reception, offering stable connectivity, flexible installation, and enhanced network performance across a wide range of applications.

Ideal Applications

  • M2M applications where machines and measurement devices need to be connected for real time monitoring and information transfer (Telematics)
  • Utilities for power and water metering
  • Security industry where cameras and other security equipment needs to be monitored
  • Retail point of sale equipment
  • Areas with poor data signal reception (indoor and outdoor)

Technical Specifications for OMNI-280

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

, , ,

Connectors

,

MIMO

Polarisation

Environmental

Cellular Ports

Product Options/Variants for OMNI-280

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0280-01-V1 SMA (m) RG-58 / 1m Off White
A-OMNI-0280-02-V1 SMA (m) RG-58 / 2m Off White
A-OMNI-0280-08-V1 RA-SMA (m) RG-58 / 2m Off White

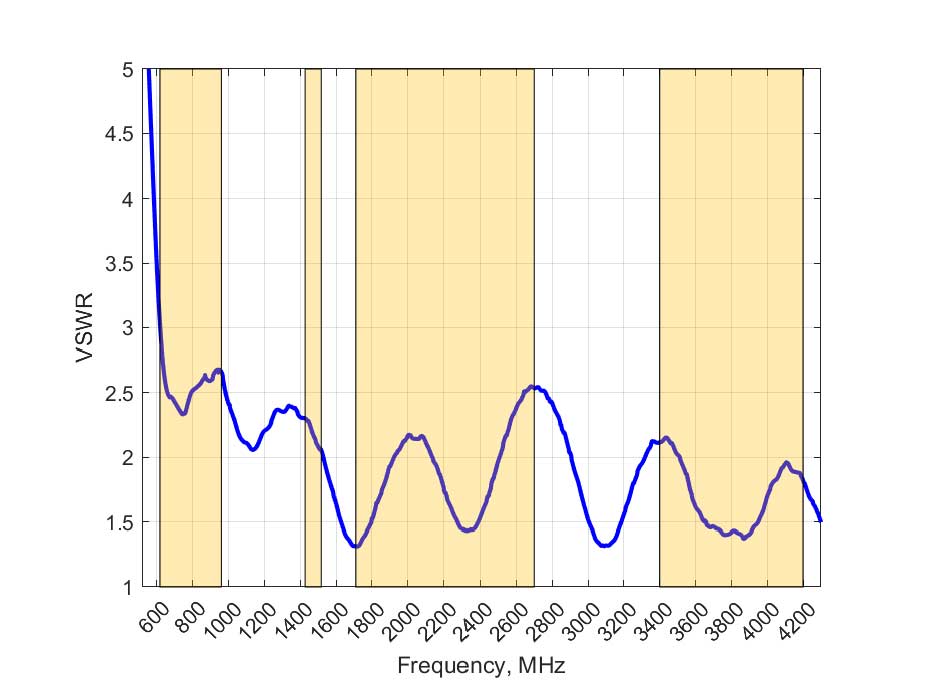

VSWR & Gain

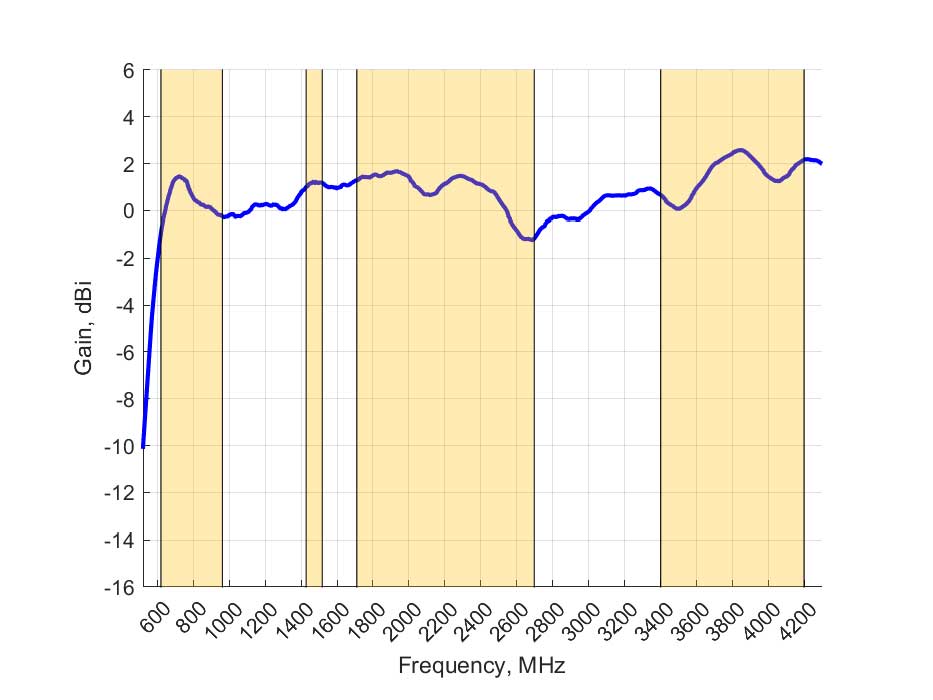

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.

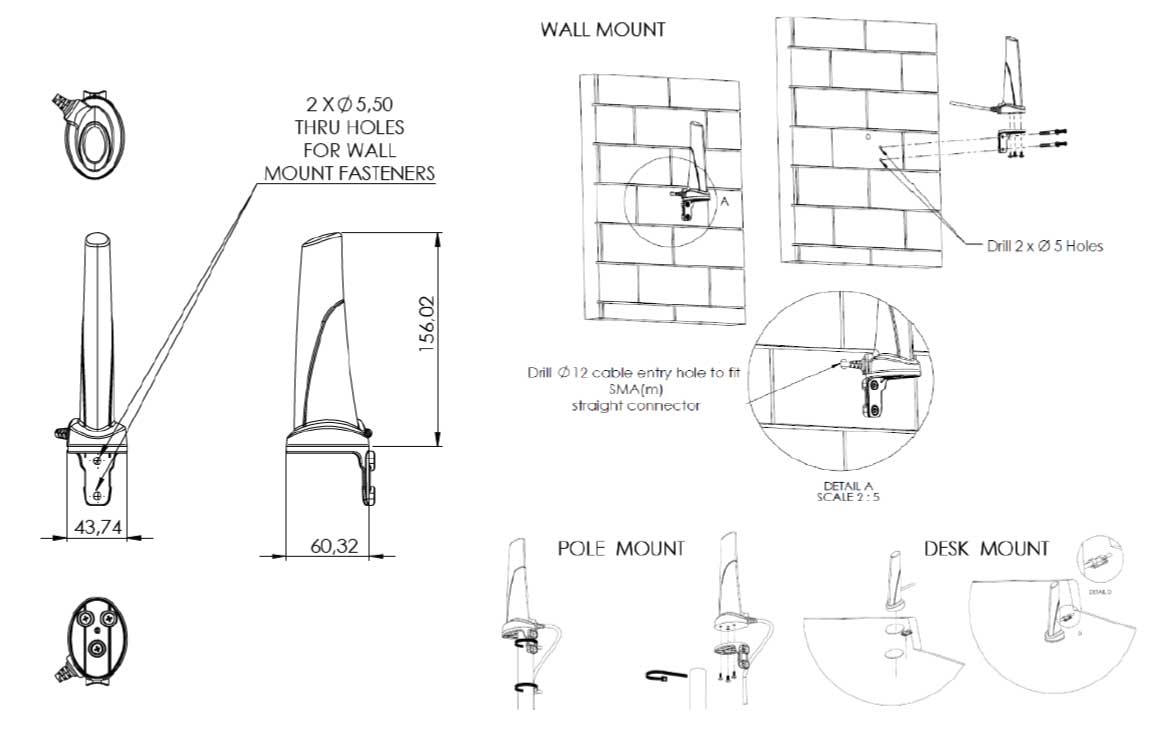

Technical Drawing

FAQ's & Articles

Shipping Details

SKU A-OMNI-0280-01-V1 EAN: 6009710923924 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: 0.158kg
0.35lbs
Packaged Dimensions: 250 x 150 x 50 mm
9.84 x 5.91 x 1.97 inch
Master Box QTY: 50 Master Box Weight: 7.93kg
17.48lbs
Master Box Dimensions: 500 x 330 x 320 mm
19.69 x 13 x 12.6 inch
Country of Origin: CN
SKU A-OMNI-0280-02-V1 EAN: 6009710923948 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: 0.180kg
0.4lbs
Packaged Dimensions: 250 x 150 x 50 mm
9.84 x 5.91 x 1.97 inch
Master Box QTY: 50 Master Box Weight: 9.36kg
20.64lbs
Master Box Dimensions: 500 x 330 x 320 mm
19.69 x 13 x 12.6 inch
Country of Origin: CN
SKU A-OMNI-0280-08-V1 EAN: 6009710923962 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: 0.182kg
0.401lbs
Packaged Dimensions: 250 x 150 x 50 mm
9.84 x 5.91 x 1.97 inch
Master Box QTY: 50 Master Box Weight: 9.410kg
20.75lbs
Master Box Dimensions: 500 x 330 x 320 mm
19.69 x 13 x 12.6 inch
Country of Origin: CN
SKU A-OMNI-0280-01-V1A-OMNI-0280-02-V1A-OMNI-0280-08-V1
EAN 600971092392460097109239486009710923962
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.158kg
0.35lbs
0.180kg
0.4lbs
0.182kg
0.401lbs
Packaged Dimensions 250 x 150 x 50 mm
9.84 x 5.91 x 1.97 inch
250 x 150 x 50 mm
9.84 x 5.91 x 1.97 inch
250 x 150 x 50 mm
9.84 x 5.91 x 1.97 inch
Master Box QTY 505050
Master Box Weight 7.93kg
17.48lbs
9.36kg
20.64lbs
9.410kg
20.75lbs
Master Box Dimensions 500 x 330 x 320 mm
19.69 x 13 x 12.6 inch
500 x 330 x 320 mm
19.69 x 13 x 12.6 inch
500 x 330 x 320 mm
19.69 x 13 x 12.6 inch
Country of Origin CNCNCN
