OMNI-706

The Rhyno Enclosure
Omni-Directional, Dual Band Wi-Fi Antenna
2400 - 2500 MHz, 5000 - 6000 MHz; 4.8dBi
POYNTING antennas enable reliable IoT connectivity for open-pit mining, ensuring seamless communication and automation for enhanced operational efficiency.
POYNTING antennas ensure reliable connectivity for underground mining, enabling seamless communication and data access for miners using digital devices and autonomous trucks.
POYNTING antennas provide reliable IoT connectivity for mining operations, ensuring seamless communication, automation, and real-time data monitoring in challenging environments.
POYNTING antennas provide reliable connectivity for IoT-enabled open-pit mining, supporting seamless communication for unmanned trucks and autonomous vehicles in rugged environments.
POYNTING antennas enable reliable IoT connectivity for rural farming and wind farms, ensuring seamless communication, automation, and efficient energy and agricultural management.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments.
2400-2500 MHz; 5000-6000 MHzview details below
4.8dBi±5km/3mi coverage*
Omni-Directional
2.4-2.5GHz 5.0-6.0GHz
IP69K
-40°C to +80°C
Fire Resistant

Key Features

  • Medium gain, omni-directional Wi-Fi antenna
  • Suitable for dual band 2.4 GHz and 5 GHz Wi-Fi deployment
  • Compliant with IEEE 802.11b/g/n and 802.11ac wireless standard
  • Ideal for IoT and M2M applications
  • Highly rugged and low-profile design
  • High pressure water and dust ingress protected enclosure (IP69K)
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0706-V1-01

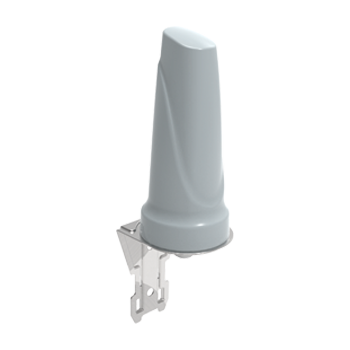

A-OMNI-0706-V2-01,Omni-Directional, Dual Band Wi-Fi Antenna,Industrial Wi-Fi Featured Image

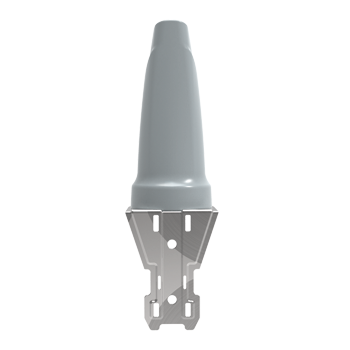

A-OMNI-0706-V2-01,Omni-Directional, Dual Band Wi-Fi Antenna,Industrial Wi-Fi Back View

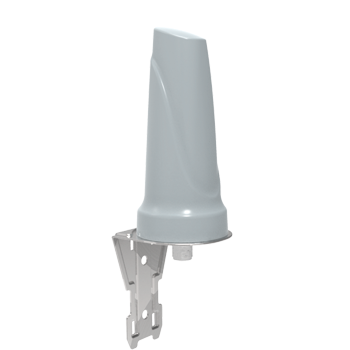

A-OMNI-0706-V2-01,Omni-Directional, Dual Band Wi-Fi Antenna,Industrial Wi-Fi Front View

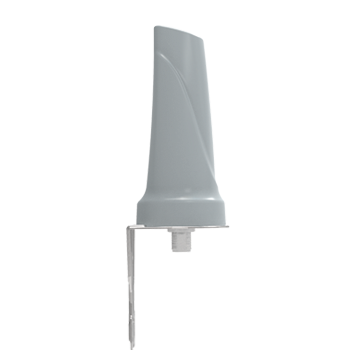

A-OMNI-0706-V2-01,Omni-Directional, Dual Band Wi-Fi Antenna,Industrial Wi-Fi Side View
Rugged Dual-Band Omni-Directional Wi-Fi Antenna

The OMNI-706 is a high-performance dual-band Wi-Fi antenna developed by Poynting Antennas as part of the "Rhyno" antenna range. Designed for demanding environments, this antenna ensures reliable connectivity across the 2.4 GHz and 5 – 6 GHz Wi-Fi bands, optimising radio spectrum usage for enhanced wireless performance.

Dual-Band Wi-Fi Connectivity: Supports 2.4 GHz and 5 – 6 GHz Wi-Fi bands for improved flexibility and compatibility.
High-Gain Performance: Provides 4 dBi gain at 2.4 GHz and 4.8 dBi gain at 5 GHz, ensuring strong and stable wireless connections.
Omni-Directional Design: Offers 360° signal coverage for reliable connectivity in all directions.
Superior Pattern Control: Ensures balanced performance across the entire frequency range, reducing interference and improving signal reliability.
Versatile Deployment: Ideal for Wi-Fi channel saturation management, point-to-point links, and RF-noisy environments.
Rugged & Weatherproof Design: Features an IP69K and IK10-rated enclosure for extreme durability in harsh conditions.
Customisable Connectivity: Equipped with an N-Type female connector at its base, allowing for easy integration with cables of various lengths.

The OMNI-706 is a robust and high-performance Wi-Fi antenna, designed to deliver stable and reliable connectivity in industrial, commercial, and outdoor environments.

Ideal Applications

  • Smart Utilities: Smart Power Metering, Gas & Water Metering
  • Smart Buildings: Climate control, access control, security, irrigation
  • Smart Environmental & Water Systems
  • Industrial factory automation and M2M systems

Technical Specifications for OMNI-706

Additional information

Industry (Application)

,

Technology

Cellular Freq. Range

Frequency Band

,

Wi-Fi Standard

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

, ,

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Product Options/Variants for OMNI-706

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0706-V1-01 N-Type (f) N/A / N/A Grey

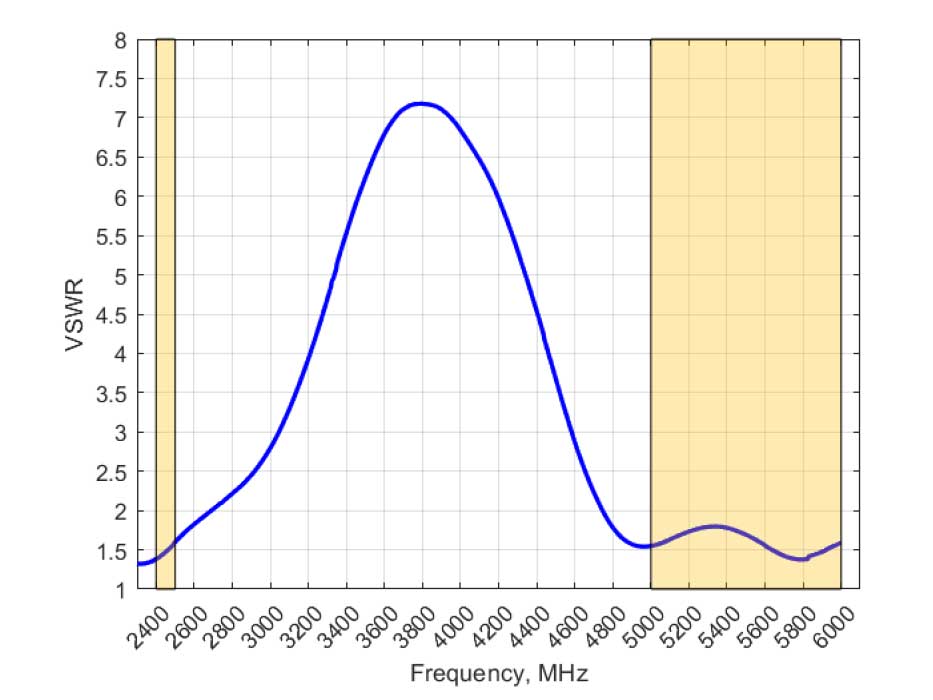

VSWR & Gain

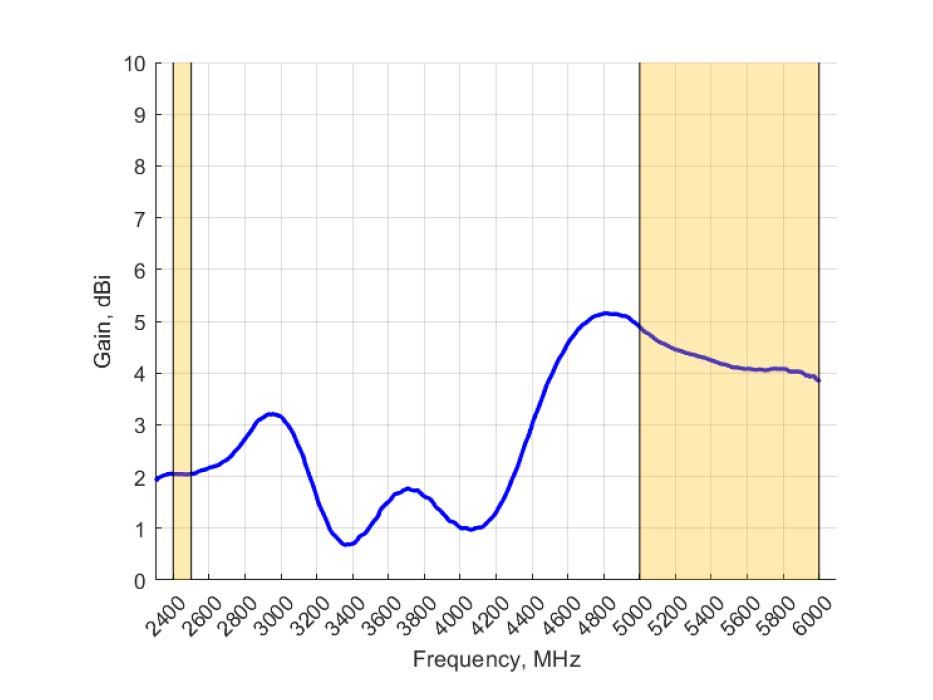

Gain (excluding Cable Loss)

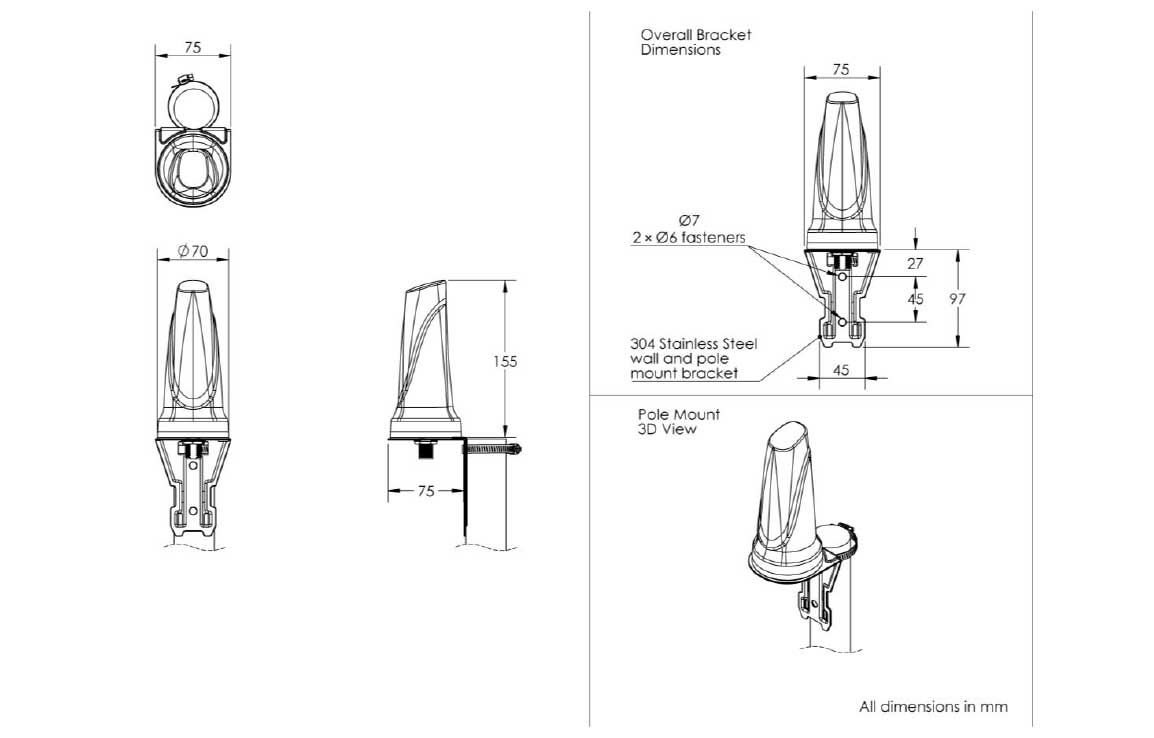

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

OMNI-706 Product Certificates

A-OMNI-0705-V1-01 Declaration of Conformity

High Resolution Images

A-OMNI-0706-V1-01 Feature Image A-OMNI-0706-V1-01 Back View A-OMNI-0706-V1-01 Front View A-OMNI-0706-V1-01 Side View A-OMNI-0706-V1-01 Feature Image - Pole Mount A-OMNI-0706-V1-01 Back View - Pole Mount A-OMNI-0706-V1-01 Front View - Pole Mount A-OMNI-0706-V1-01 Side View - Pole Mount Web Images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0706-V1-01 EAN: 6009710922224 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.4kg
0.88lbs		 Packaged Dimensions: 236 x 80 x 96 mm
9.29 x 3.15 x 3.78 inch		 Master Box QTY: 50 Master Box Weight: 21.22kg
46.78lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		 Country of Origin: CN
SKU A-OMNI-0706-V1-01
EAN 6009710922224
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.4kg
0.88lbs
Packaged Dimensions 236 x 80 x 96 mm
9.29 x 3.15 x 3.78 inch
Master Box QTY 50
Master Box Weight 21.22kg
46.78lbs
Master Box Dimensions 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch
Country of Origin CN
