PATCH-25

The BatFox Enclosure
Uni-directional, Circular Polarised, RFID Patch Antenna
860 - 960 MHz, 8.8dBic
POYNTING antennas provide reliable IoT connectivity for rural wind farms, ensuring seamless communication, monitoring, and automation for efficient energy production. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for mining operations, ensuring seamless communication, automation, and real-time data monitoring in challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for critical IoT applications in emergency services, ensuring seamless communication and data transmission for transport and mobility operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
860-960 MHzview details below
8.8dBic±24km/15mi coverage*
Directional
Machine to Machine
IP65Dust-tight & Water-resistant
-20°C to +70°C
Fire Resistant

Key Features

  • Uni-directional antenna
  • Circularly polarised
  • Covers GSM-800 and GSM-900 bands
  • Robust design
  • Vandal and water resistant (IP 65)
  • Meets the stringent electrical requirement for RFID applications
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
A-PATCH-0025-01

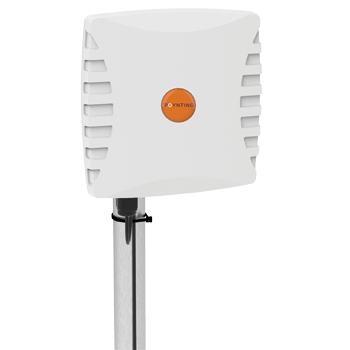

A-PATCH-0025-01,Uni-directional, Circular Polarised, RFID Patch Antenna,Directional RFID Featured Image

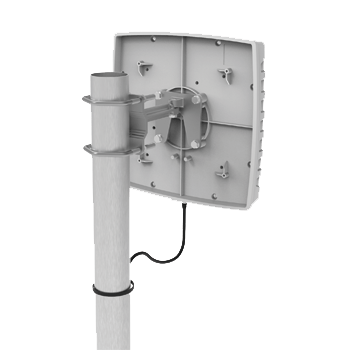

A-PATCH-0025-01,Uni-directional, Circular Polarised, RFID Patch Antenna,Directional RFID Back View
A-PATCH-0025-01,Uni-directional, Circular Polarised, RFID Patch Antenna,Directional RFID Front View

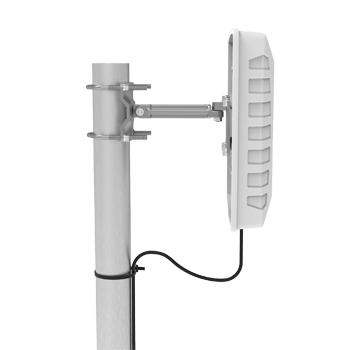

A-PATCH-0025-01,Uni-directional, Circular Polarised, RFID Patch Antenna,Directional RFID Side View
High-Performance Circularly Polarised RFID & GSM Patch Antenna

The PATCH-25 antenna is designed for seamless operation across both EU and USA RFID bands, ensuring reliable and efficient performance. With a water-resistant design and easy installation, this antenna is ideal for RFID applications requiring stable connectivity in various environments. Its circular polarisation allows for consistent reading in any orientation, enhancing usability.

Dual-Region RFID Compatibility: Covers both EU and USA RFID frequency bands for global applications.
Circularly Polarised for Reliable Reading: Ensures accurate RFID tag detection in any orientation.
Enhanced Indoor GSM Coverage: Circular polarisation improves signal reception for indoor GSM applications.
Optimised VSWR & Gain Performance: VSWR is typically less than 1.3:1, providing a return loss better than 20 dB.
Water-Resistant & Easy to Install: Designed for durability and simple integration into various environments.

The PATCH-25 is a unique and high-performing solution for RFID applications, offering superior VSWR and gain specifications for stable and efficient operation.

Print Friendly, PDF & Email

Ideal Applications

  • Areas with poor GSM-800 and GSM-900 coverage
  • Indoor GSM applications
  • Rural and urban environments
  • Operator agnostic
  • RFID reader applications

Technical Specifications for PATCH-25

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

,

5G Bands

, , ,

LTE/4G Bands

,

Product Configuration

Gain

Directionality

Mounting Type

Connectors

,

MIMO

Polarisation

Environmental

Product Options/Variants for PATCH-25

SKU Connector Type COAX Cable Type / Length Colour
A-PATCH-0025-01 SMA (m) RG-58 / 1m Off White
A-PATCH-0025-V2-02 N-Type (f) RG-58 / 0 Off White
/ 3m

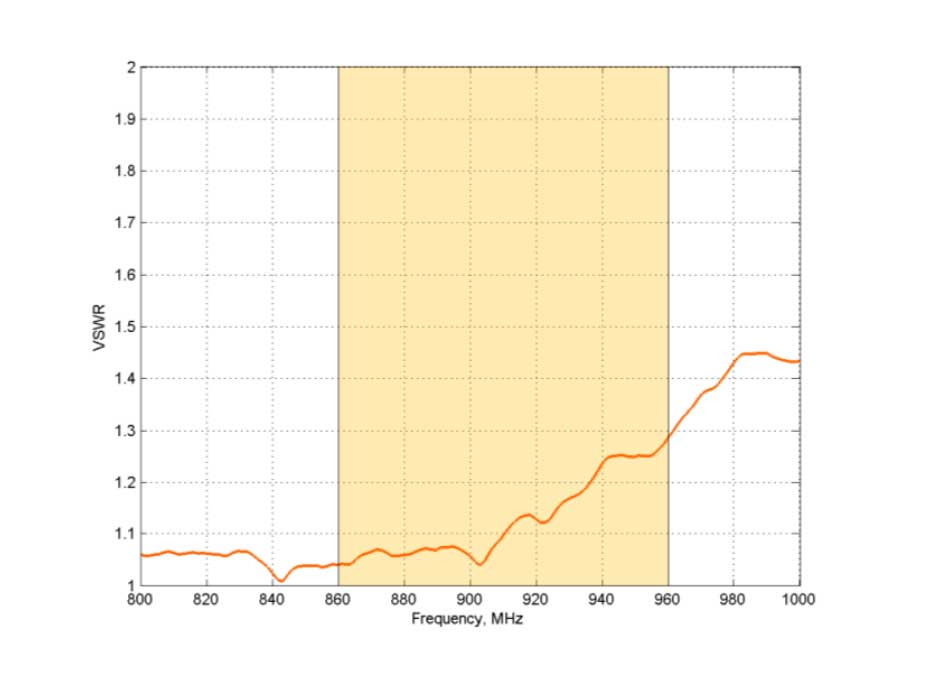

VSWR & Gain

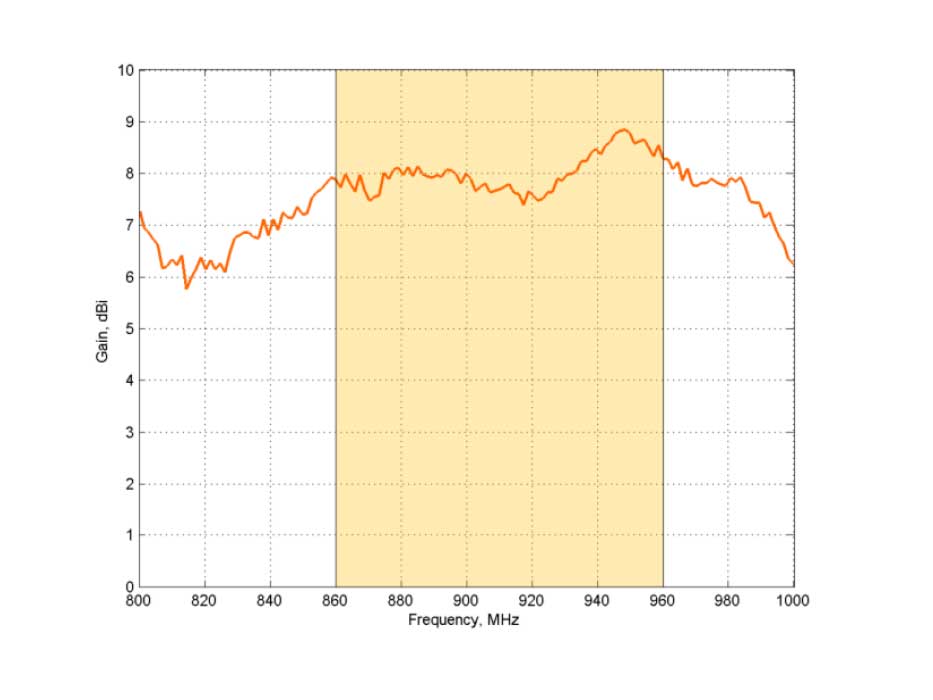

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Digi

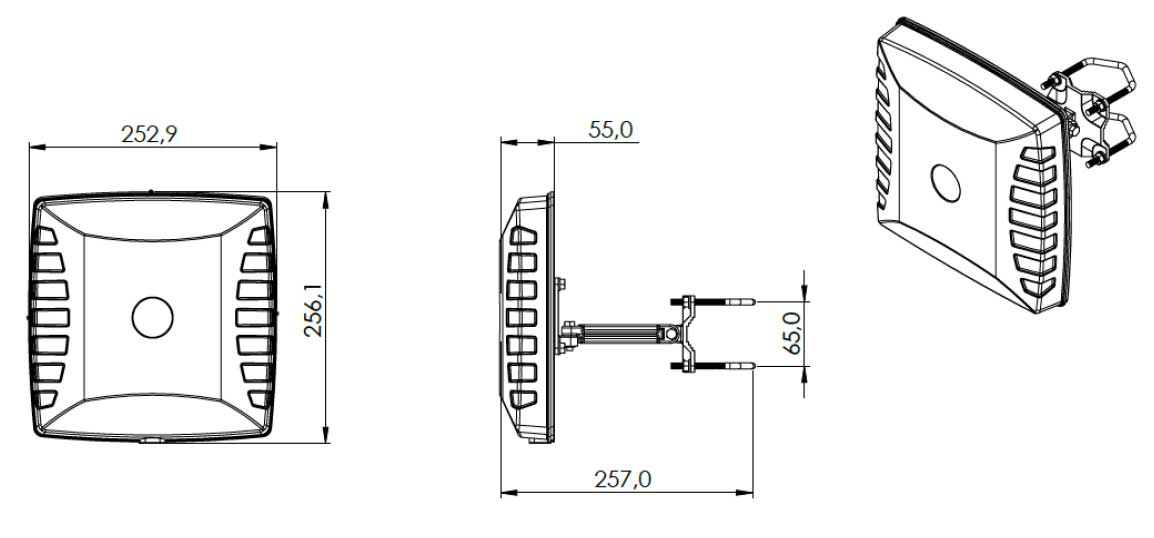

Technical Drawing

FAQ's & Articles

Downloadable Files

High Resolution Images

A-PATCH-0025-V2 Directional RFID Feature Image A-PATCH-0025-V2 Directional RFID Back View A-PATCH-0025-V2 Directional RFID Front View A-PATCH-0025-V2 Directional RFID Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-PATCH-0025-01 EAN: 6009710923849 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.75kg
1.65lbs		 Packaged Dimensions: 335 x 250 x 95 mm
13.19 x 9.84 x 3.74 inch		 Master Box QTY: 20 Master Box Weight: 15.3kg
33.73lbs		 Master Box Dimensions: 530 x 362 x 505 mm
20.87 x 14.25 x 19.88 inch		 Country of Origin: CN
SKU A-PATCH-0025-V2-02 EAN: 6009880915460 HS Code: Packaged Weight: 0.86kg
1.9lbs		 Packaged Dimensions: Master Box QTY: 10 Master Box Weight: 13.28kg
29.28lbs		 Master Box Dimensions: Country of Origin: CN
SKU A-PATCH-0025-01A-PATCH-0025-V2-02
EAN 60097109238496009880915460
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.75kg
1.65lbs		0.86kg
1.9lbs
Packaged Dimensions 335 x 250 x 95 mm
13.19 x 9.84 x 3.74 inch
Master Box QTY 2010
Master Box Weight 15.3kg
33.73lbs		13.28kg
29.28lbs
Master Box Dimensions 530 x 362 x 505 mm
20.87 x 14.25 x 19.88 inch
Country of Origin CNCN
