PATCH-26

The BatFox Enclosure
Uni-directional, RFID Patch Antenna
820 - 970 MHz, 8dBi
POYNTING antennas provide reliable IoT connectivity for rural wind farms, ensuring seamless communication, monitoring, and automation for efficient energy production. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for mining operations, ensuring seamless communication, automation, and real-time data monitoring in challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for critical IoT applications in emergency services, ensuring seamless communication and data transmission for transport and mobility operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
820-970 MHzview details below
8dBi±23km/14mi coverage*
Directional
-20°C to +70°C
Fire Resistant
IP65Dust-tight & Water-resistant

Key Features

  • Medium gain, directional antenna
  • High performance narrow band antenna
  • Covers GSM 800 and GSM 900 bands
  • Linearly polarised
  • Robust enclosure design
  • Vandal and water resistant (IP65)
  • Meets the stringent electrical requirements for RFID applications
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-PATCH-0026
A-PATCH-0026-01,Uni-directional, Circular Polarised, RFID Patch Antenna,Directional RFID Featured Image

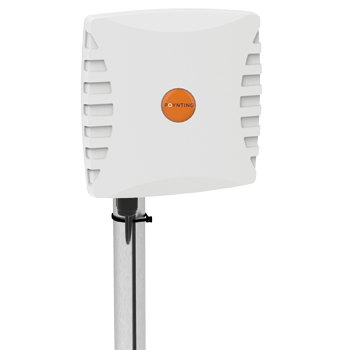

A-PATCH-0026,Uni-directional, RFID Patch Antenna,Directional RFID Front View
A-PATCH-0026,Uni-directional, RFID Patch Antenna,Directional RFID Back View
A-PATCH-0026,Uni-directional, RFID Patch Antenna,Directional RFID Side View
High-Performance RFID & GSM Patch Antenna

The PATCH-26 antenna is designed for seamless operation across both EU and USA RFID bands, offering reliable and efficient performance. Built with a water-resistant design, this antenna is easy to install and ensures consistent connectivity in various environments. Its linear polarisation allows for reading in any orientation, making it a versatile choice for RFID applications.

Dual-Region RFID Compatibility: Covers both EU and USA RFID frequency bands for global usability.
Linearly Polarised for Versatile Reading: Ensures reliable RFID tag reading in any orientation.
Enhanced Indoor GSM Coverage: Can also be used to improve indoor GSM signal reception.
Optimised VSWR & Gain Performance: VSWR is typically less than 1.4:1, providing a return loss better than 20 dB.
Water-Resistant & Easy to Install: Designed for durability and simple integration into various environments.

The PATCH-26 is a unique and high-performing solution for RFID applications, delivering exceptional VSWR and gain specifications, ensuring stable and efficient performance.

Print Friendly, PDF & Email

Ideal Applications

  • Areas with poor GSM-800 and GSM-900 coverage
  • Indoor GSM applications
  • Rural and urban environments
  • Operator agnostic
  • RFID reader applications

Technical Specifications for PATCH-26

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

,

5G Bands

, , , , , ,

LTE/4G Bands

, , , , ,

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

Product Options/Variants for PATCH-26

SKU Connector Type COAX Cable Type / Length Colour
A-PATCH-0026 N-Type (f) HDF-195 / 0.3m Off White
A-PATCH-0026 /

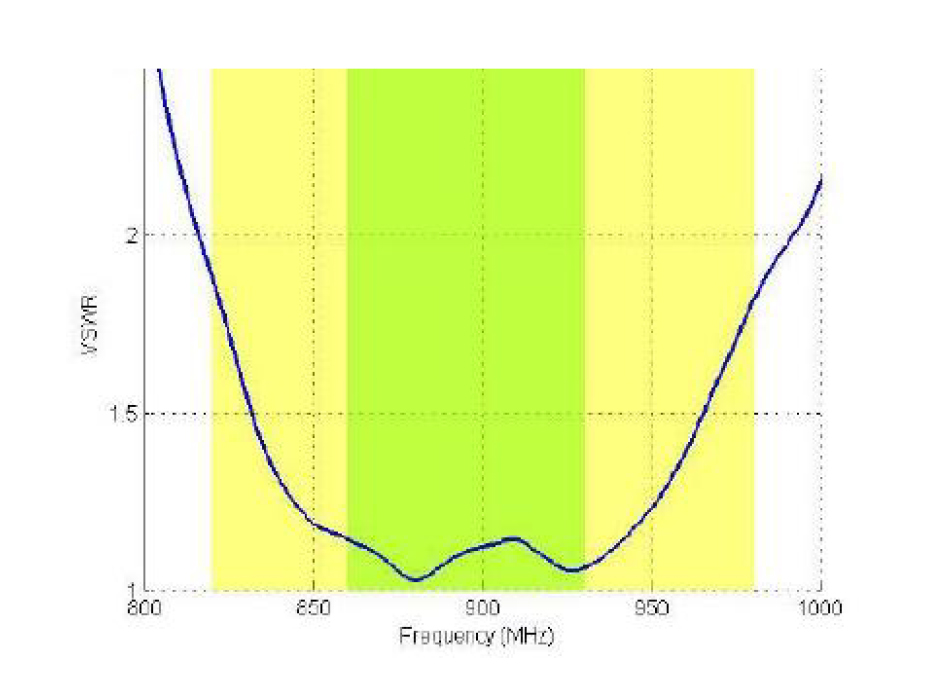

VSWR & Gain

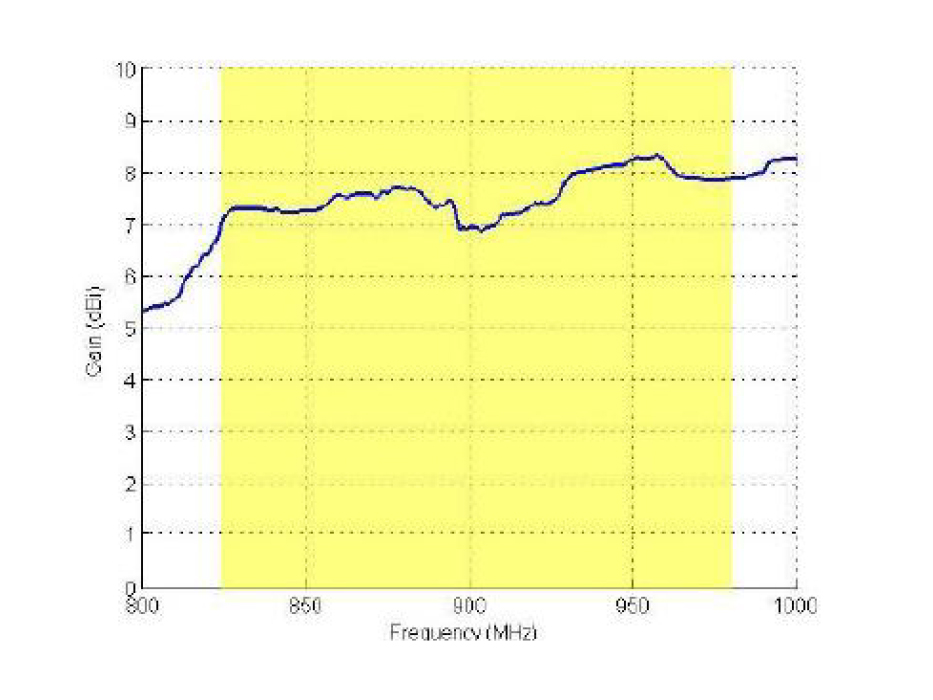

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

A-PATCH-0026-V2 Directional RFID Feature Image A-PATCH-0026-V2 Directional RFID Back View A-PATCH-0026-V2 Directional RFID Front View A-PATCH-0026-V2 Directional RFID Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-PATCH-0026 EAN: 6009693810020 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.75kg
1.65lbs		 Packaged Dimensions: 335 x 250 x 95 mm
13.19 x 9.84 x 3.74 inch		 Master Box QTY: 10 Master Box Weight: 12.93kg-
28.51lbs		 Master Box Dimensions: 530 x 362 x 505 mm
20.87 x 14.25 x 19.88 inch		 Country of Origin: CN
SKU A-PATCH-0026
EAN 6009693810020
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.75kg
1.65lbs
Packaged Dimensions 335 x 250 x 95 mm
13.19 x 9.84 x 3.74 inch
Master Box QTY 10
Master Box Weight 12.93kg-
28.51lbs
Master Box Dimensions 530 x 362 x 505 mm
20.87 x 14.25 x 19.88 inch
Country of Origin CN
