SWIRL-4

The Swirl Enclosure
X-Polarised, Omni-Directional 5G/LTE, Multi MIMO Antenna Array
617 - 6000MHz, 6dBi; Cellular 4x4 MIMO + Wi-Fi 2x2 (MIMO) + 1 x GNSS
POYNTING antennas provide reliable connectivity for motorhomes, ensuring seamless internet access for camping in both rural and urban sites, as well as transport and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for broadcasting vans in rural and urban areas, supporting seamless live streaming, communications, and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
Enhance RV connectivity with POYNTING antennas, ensuring reliable internet access for seamless travel, remote work, and entertainment in rural and transport mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for buses and tour buses, providing seamless internet access for passengers in transport and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for RVs and motorhomes, ensuring seamless internet access for families traveling and camping in transport and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for medium-sized yachts, ensuring seamless communication and internet access for marine and coastal adventures. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-6000 MHzview details below
6dBi±24km/15mi coverage*
Omni-Directional
2×2 MIMO
IP69K
-40°C to +80°C
E1*10R06/03*10530*00

Key Features

  • High performance, omni-directional Maritime & Mobility Antenna
  • Up to 2 x 2 MIMO capability for improved performance
  • Covers contemporary 5G/LTE band from 617 to 6000 MHz
  • Innovative heat sink design for improved temperature regulation
  • IP69K weather/dust resistant enclosure
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-SWIRL-0004-V1-01
A-SWIRL-0008-V1-01,Marine & Coastal Antennas
Transportation & Mobility Antennas,Featured Image
A-SWIRL-0008-V1-01,Marine & Coastal Antennas
Transportation & Mobility Antennas,Front View
A-SWIRL-0008-V1-01,Marine & Coastal Antennas
High-Performance Multi-Frequency Antenna for LTE, 5G, Wi-Fi & GNSS

The SWIRL-4-01 is the antenna-only version of the SWIRL series, designed to provide exceptional multi-frequency connectivity. It integrates advanced antenna technology for seamless LTE, 5G, Wi-Fi, and GNSS applications, ensuring optimal signal performance across various networks. This versatile antenna solution is ideal for demanding communication networks, ensuring reliable performance and future-ready connectivity.

Wideband Cellular Coverage: Features four cross-polarised cellular antennas covering LTE and 5G frequency bands from 617 to 6000 MHz.
Advanced Wi-Fi Connectivity: Includes four dual-band Wi-Fi antennas supporting 2.4 GHz and 5 to 7.2 GHz for superior wireless coverage.
High-Precision GNSS Positioning: Equipped with a dual-band GNSS antenna covering GPS L1 and L5 bands for fast and accurate location tracking.
Optimised for MIMO Applications: Designed to enhance signal strength, diversity, and overall network performance.
Versatile Deployment: Ideal for applications requiring high-speed connectivity, including mobile, industrial, and IoT environments.

Additional SWIRL-4-01 Benefits

  1. Router Agnostic: The SWIRL-4-01 is a great choice for users who prefer the flexibility to use any router. The antenna system is compatible with most commercially available routers, offering adaptability and future-proofing for evolving networking needs. This allows users to easily swap or upgrade routers without replacing the antenna.
  2. Custom Deployment: In environments where the user already has an established setup or specific router preferences, the antenna-only configuration offers seamless integration. It allows users to take full advantage of their preferred networking hardware without being constrained to any one system.
  3. Compact Design: The SWIRL-4-01 features a compact design with dimensions of 382 mm (15.04 inches) in diameter and 127 mm (5 inches) in height.

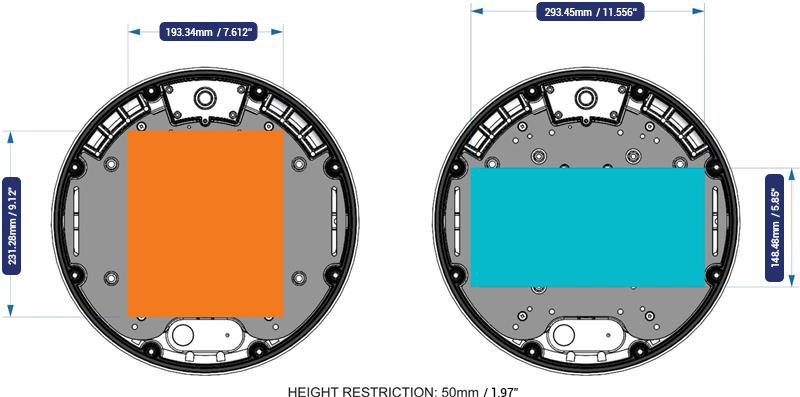

  4. Upgradable to a Complete CPE Solution: The SWIRL can be transformed into a Customer Premises Equipment (CPE) device by incorporating the SWIRL-BASE. This cast aluminium base is specifically designed to house 5G routers, available in sizes of 231 x 193 x 50 mm (9.094 x 7.60 x 1.97 inches) or 293.5 x 148.5 x 50 mm (11.56 x 5.85 x 1.97 inches). Installing the router within the base reduces coaxial cable runs, improving performance by minimising signal loss.
Print Friendly, PDF & Email

Ideal Applications

  • Reliable connectivity for ships, boats, and other marine vessels.
  • Enhanced network performance for vehicles and other mobile platforms.
  • Stable connections for remote sites and infrastructure monitoring.
  • Robust communication systems for emergency response and public safety services.
    – Efficient data transmission for various Internet of Things (IoT) applications in challenging environments.

Technical Specifications for SWIRL-4

Additional information

Industry (Application)

,

Technology

, ,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , , , ,

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

LTE Ports

Wi-Fi Ports

GNSS/GPS Ports

Accessories

Product Options/Variants for SWIRL-4

SKU Connector Type COAX Cable Type / Length Colour
A-SWIRL-0004-V1-01 SMA (m) & RPSMA (m) RTK-031 / 0.65m White

VSWR & Gain

Gain (excluding Cable Loss)

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.
Advantech
Billion
Celerway
Cisco
Digi
Ericsson
InHand Networks
Peplink
Rajant
Robustel

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

SWIRL-4 Product Certificates

A-SWRL-0004-V1-01 Declaration of Conformity
POYNTING SWIRL E-Mark E1*10R06/03*10530*00 Certificate

High Resolution Images

A-SWRL-0004-V1-01 Feature Image A-SWRL-0004-V1-01 Front View A-SWRL-0004-V1-01 Side View A-SWRL-0004-V1-01 Top View A-SWRL-0004-V1-01 Bottom View A-SWRL-0004-V1-01 Mounting Option: Magnetic A-SWRL-0004-V1-01 Mounting Option: Surface A-SWRL-0004-V1-01 Mounting Option: Pole Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU EAN: HS Code: Packaged Weight: Packaged Dimensions: Master Box QTY: Master Box Weight: Master Box Dimensions: Country of Origin:
SKU EAN: HS Code: Packaged Weight: Packaged Dimensions: Master Box QTY: Master Box Weight: Master Box Dimensions: Country of Origin:
SKU
EAN
HS Code
Packaged Weight
Packaged Dimensions
Master Box QTY
Master Box Weight
Master Box Dimensions
Country of Origin
