OMNI-914

The Narwhal Enclosure
High Gain, Omni-Directional, 4x4 MIMO LTE/5G Antenna
617 - 4200 MHz, 8dBi
POYNTING antennas provide reliable connectivity for large ferries transporting passengers and vehicles, ensuring seamless communication and internet access for marine and coastal operations.
POYNTING antennas provide high-performance connectivity for yachts from large to mega, ensuring seamless communication and internet access for marine and coastal applications.
POYNTING antennas provide reliable connectivity for large passenger ferries, ensuring seamless communication and internet access for marine and coastal operations.
POYNTING antennas deliver reliable connectivity for large fishing boats, ensuring seamless communication and internet access for marine and coastal operations.
POYNTING antennas ensure reliable connectivity for large rescue boats, enabling seamless communication and internet access for marine and coastal operations.
POYNTING antennas ensure reliable connectivity for large yachts, providing seamless communication and internet access for marine and coastal journeys.
617-4200 MHzview details below
8dBi±31km/19mi coverage*
Omni-Directional
4×4 MIMO
IP68Dust-tight & Waterproof
-40°C to +80°C

Key Features

  • High performance, omni-directional marine & coastal antenna
  • 4x4 MIMO capability for improved performance
  • Covers contemporary LTE/5G bands from 617 - 4200 MHz
  • UV and saltwater protected for marine and coastal conditions
  • Robust and all-weather proof for harsh conditions at sea (IP 68)
  • Optional 316 stainless steel mounting bracket available
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0914-V1-01

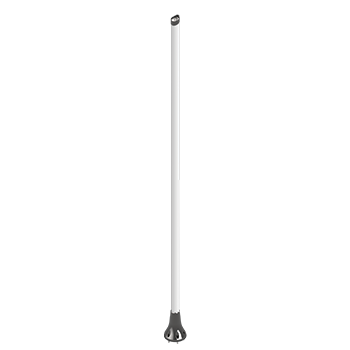

A-OMNI-0914-V2-01,High Gain, Omni-Directional, 4x4 MIMO LTE/5G Antenna,4x4 MIMO Marine Antenna Featured Image

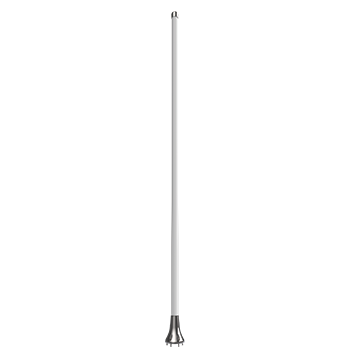

A-OMNI-0914-V2-01,High Gain, Omni-Directional, 4x4 MIMO LTE/5G Antenna,4x4 MIMO Marine Antenna Back View
A-OMNI-0914-V2-01,High Gain, Omni-Directional, 4x4 MIMO LTE/5G Antenna,4x4 MIMO Marine Antenna Front View

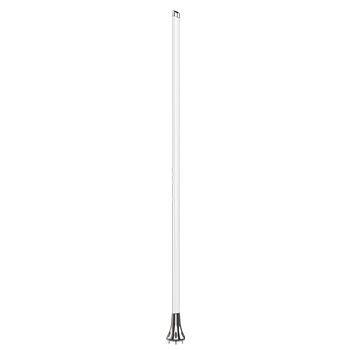

A-OMNI-0914-V2-01,High Gain, Omni-Directional, 4x4 MIMO LTE/5G Antenna,4x4 MIMO Marine Antenna Side View
High-Gain Ultra-Wideband 4x4 MIMO Marine & Coastal Antenna

The OMNI-914 is a high-gain, ultra-wideband antenna designed to provide exceptional performance across all contemporary LTE/5G frequency bands. Covering a wide range from 617 to 4200 MHz, this antenna ensures reliable connectivity with balanced gain across all frequencies. Its robust design and superior omni-directional pattern control make it ideal for demanding marine and coastal applications.

Ultra-Wideband Frequency Coverage: Supports LTE/5G bands from 617 to 4200 MHz, including LTE Band 71 and CBRS bands from 3400 to 4200 MHz.
True Omni-Directional 4x4 MIMO: Features four high-gain omni-directional antennas with vertically separated radiating elements within a single radome.
Superior Pattern Control: Ensures consistent performance across all frequency bands, maximising signal reception and connectivity.
Marine-Grade Durability: Fully saltwater protected with a durable fiberglass radome, designed for highly corrosive environments.
IP68 Protection Rating: Provides complete resistance against dust and water ingress, making it ideal for severe storm conditions at sea.
Future-Proof Design: Supports next-generation LTE and 5G networks, ensuring long-term connectivity solutions.

The OMNI-914 guarantees reliable signal reception worldwide, making it an ideal choice for marine, coastal, and inland applications requiring robust and future-proof LTE/5G connectivity.

Ideal Applications

  • Marine applications: Super Yachts / Boats / Ferries
  • Enhanced LTE/4G and 5G reception
  • Increase system transmission reliability
  • High-end industrial grade router applications
  • Industrial and commercial LTE/5G deployment
  • Agricultural and farming LTE/5G data distribution

Technical Specifications for OMNI-914

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

, ,

Cellular Ports

Accessories

Product Options/Variants for OMNI-914

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0914-V1-01 N-Type (f) Twin HDF-195 / 2m White
A-OMNI-0914-V1-02 N-Type (f) N/A / N/A White

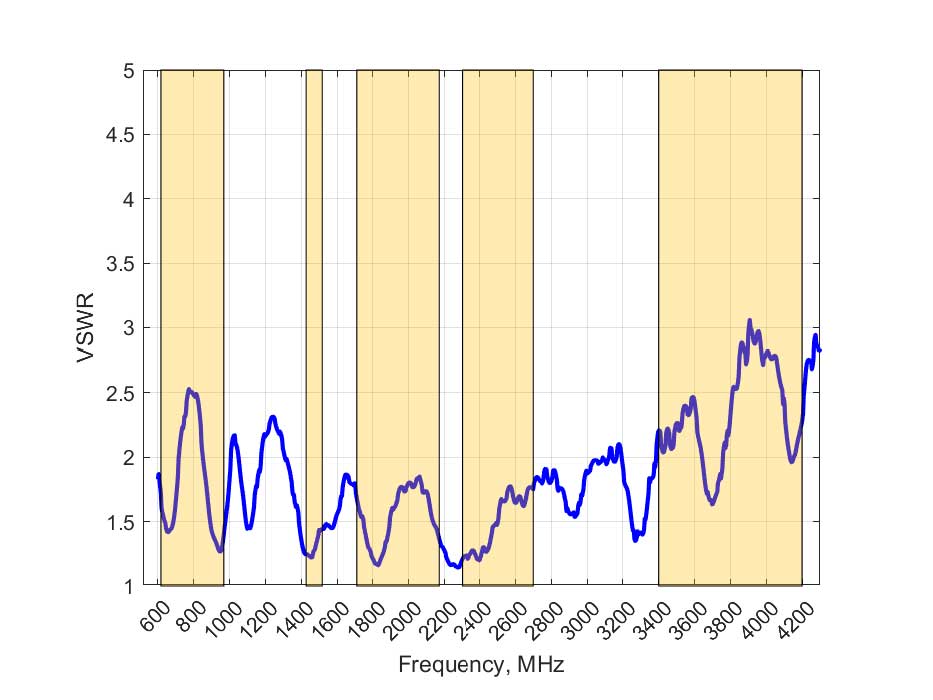

VSWR & Gain

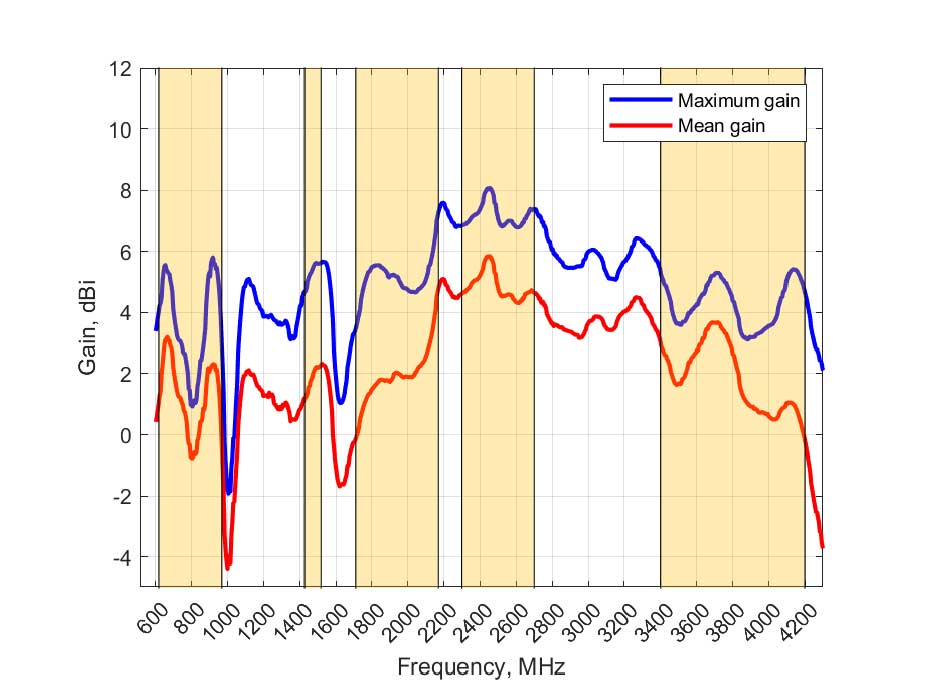

Gain (excluding Cable Loss)

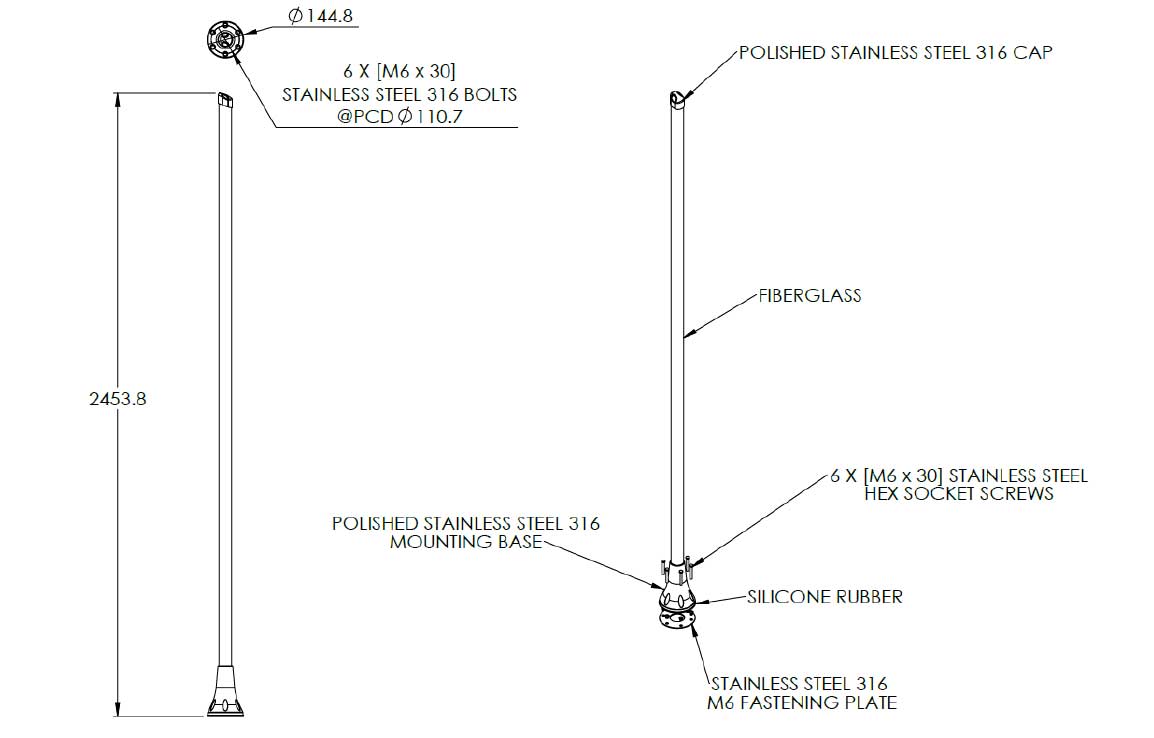

Technical Drawing

FAQ's & Articles

Downloadable Files

OMNI-914 Product Certificates

A-OMNI-0914-V1-01 Declaration of Conformity A-OMNI-0914-V1-02 Declaration of Conformity

High Resolution Images

A-OMNI-0914-V1-01-Marine-Antenna Feature Image A-OMNI-0914-V1-01-Marine-Antenna Back View A-OMNI-0914-V1-01-Marine-Antenna Front View A-OMNI-0914-V1-01-Marine-Antenna Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0914-V1-01 EAN: 6009710924235 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 9.42kg
20.77lbs		 Packaged Dimensions: 2550 x 180 x 210 mm
100.39 x 7.09 x 8.27 inch		 Master Box QTY: 1 Master Box Weight: 9.42kg
20.77lbs		 Master Box Dimensions: 2550 x 180 x 210 mm
100.39 x 7.09 x 8.27 inch		 Country of Origin: RSA
SKU A-OMNI-0914-V1-02 EAN: 6009710924976 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 9.40kg
20.72lbs		 Packaged Dimensions: 2550 x 180 x 210 mm
100.39 x 7.09 x 8.27 inch		 Master Box QTY: 1 Master Box Weight: 9.40kg
20.72lbs		 Master Box Dimensions: 2550 x 180 x 210 mm
100.39 x 7.09 x 8.27 inch		 Country of Origin: RSA
SKU A-OMNI-0914-V1-01A-OMNI-0914-V1-02
EAN 60097109242356009710924976
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 9.42kg
20.77lbs		9.40kg
20.72lbs
Packaged Dimensions 2550 x 180 x 210 mm
100.39 x 7.09 x 8.27 inch		2550 x 180 x 210 mm
100.39 x 7.09 x 8.27 inch
Master Box QTY 11
Master Box Weight 9.42kg
20.77lbs		9.40kg
20.72lbs
Master Box Dimensions 2550 x 180 x 210 mm
100.39 x 7.09 x 8.27 inch		2550 x 180 x 210 mm
100.39 x 7.09 x 8.27 inch
Country of Origin RSARSA
