The Armadillo Enclosure
617-960 MHz; 1427-2700 MHz; 3400-6000 MHzLTE: 6dBi; Wi-Fi: 6.5dBi; GPS: 21dBi Omni-Directional5G4x4 MIMO2.4-2.5 GHz 5.0-7.2 GHzGPS IncludedIP 69K

9-in-1 Transportation & Automotive Antenna

617 - 7200 MHz; 4x4 LTE/5G (MIMO), 6dBi; 4x4 Wi-Fi (MIMO), 6.5dBi; GPS/GLONASS, 21dBi

  • 9-in-1 High performance multi frequency automotive antenna
  • Ultra-wideband coverage from 617 to 6000 MHz for cellular
  • 4x4 MIMO LTE/5G, 4x4 MIMO Wi-Fi & GPS/GLONASS
  • Robust and weather resistant antenna with an IP69K rating
  • Ideal for transportation and marine implementation
  • Multi mounting options for ease of installation

Availability Notification

Availability Notification

Close Trigger
Product Overview

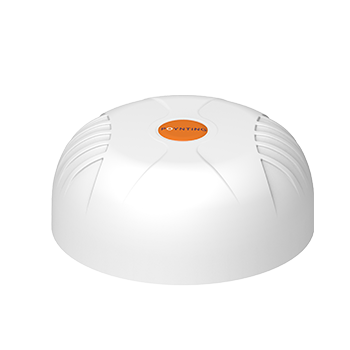

The MIMO-4-19 is a 9-in-1 high performance, multi frequency antenna within a single housing. The antenna provides four cellular, four Wi-Fi and a GPS/GLONASS antenna. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications, as well as Wi-Fi application from 5 to 6 GHz.
The antenna also provides four dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 4×4 MIMO capability. The MIMO-4-19 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements, provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.

Print Friendly, PDF & Email
Product Options
SKU A-MIMO-0004-V1-19-B A-MIMO-0004-V1-19-W
COAX Cable Type RTK-031 RTK-031
COAX Cable Length 2m 2m
Color Black White
Shipping Details
SKU A-MIMO-0004-V1-19-B A-MIMO-0004-V1-19-W
EAN 6009710925348 6009710925362
HS Code #85291069 #85291069
Packaged Weight TBC TBC
Packaged Dimensions TBC TBC
Master Box QTY 8 8
Master Box Weight TBC TBC
Master Box Dimensions TBC TBC
Country of Origin China China
