SWIRL-4-CPE

Short Cable.
Zero Loss.
The Swirl Enclosure
X-Polarised, Omni-Directional 5G/LTE, Multi MIMO Antenna Array
617 - 6000MHz, 6dBi; Cellular 4x4 MIMO + Wi-Fi 4x4 (MIMO) + 1 x GNSS
POYNTING antennas provide reliable connectivity for medium-sized yachts, ensuring seamless communication and internet access for marine and coastal adventures. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for broadcasting vans in rural and urban areas, supporting seamless live streaming, communications, and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for tugboats, ensuring seamless communication and internet access for marine and coastal operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
Enhance RV connectivity with POYNTING antennas, ensuring reliable internet access for seamless travel, remote work, and entertainment in rural and transport mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas deliver reliable connectivity for medium-sized boats, tugboats, and coastal vessels, ensuring seamless marine communication and internet access. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for buses and tour buses, providing seamless internet access for passengers in transport and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-6000 MHzview details below
6dBi±24km/15mi coverage*
Omni-Directional
2×2 MIMO
IP69K
-40°C to +80°C
E1*10R06/03*10530*00

Key Features

No Long Feeders. Maximum Performance.

Router inside enclosure for short RF cables, stronger signal, and faster data.
  • An all-in-one solution that integrates high-performance antennas with your router into a single, rugged outdoor enclosure, simplifying installation
  • Minimal RF cable losses, as there is no need for lengthy RF cables to connect to your router, enhancing overall antenna performance
  • High performance, omni-directional Maritime & Mobility Antenna
  • Up to 4 x 4 MIMO capability for improved performance
  • Covers contemporary 5G/LTE band from 617 to 6000 MHz
  • Innovative heat sink design for improved temperature regulation
  • E-Mark certified ensuring compliance, safety, and performance in automotive applications
  • UV and saltwater protected for marine and coastal applications
  • IP69K weather/dust resistant enclosure
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
Get Quotation
A-SWIRL-0004-V1-02
A-SWIRL-0008-V1-02,Marine & Coastal Antennas
Transportation & Mobility Antennas,CPE Base Featured Image
A-SWIRL-0008-V1-02,Base Featured Image
A-SWIRL-0008-V1,Marine & Coastal Antennas
High-Performance Multi-Frequency Antenna for LTE, 5G, Wi-Fi & GNSS

The SWIRL-4-02 (CPE) builds upon the antenna array of the SWIRL-4-01 by adding an aluminum base, known as the SWIRL-BASE.
The SWIRL-BASE serves as an enclosure for 5G routers, transforming the SWIRL-4-02 into a Customer Premises Equipment (CPE) device, where the router and antennas are combined into a single unit.

Additional Benefits

  1. Simplified Deployment: SWIRL-4-02 provides an all-in-one solution, simplifying the installation process by housing both the antenna array and the 5G router(s) in a single unit. This reduces setup complexity.
  2. Optimized Performance: Housing the router within the same enclosure as the antennas minimizes cable loss and improves signal integrity. This leads to better overall performance, especially in challenging environments where maintaining a stable connection is crucial.
  3. Router Housing: The SWIRL-BASE can accommodate router sizes of 231 x 193 x 50 mm / 9.094 x 7.60 x 1.97 inch or 293.5 x 148.5 x 50 mm / 11.56 x 5.85 x 1.97 inch.
  4. Compact Design: SWIRL-4-02 features a compact design with dimensions of 382 mm / 15.039 inch in diameter and 224 mm / 8.82 inch in height.
Print Friendly, PDF & Email

Ideal Applications

  • Reliable connectivity for ships, boats, and other marine vessels.
  • Enhanced network performance for vehicles and other mobile platforms.
  • Stable connections for remote sites and infrastructure monitoring.
  • Robust communication systems for emergency response and public safety services.
  • Efficient data transmission for various Internet of Things (IoT) applications in challenging environments.

Technical Specifications for SWIRL-4-CPE

Additional information

Industry (Application)

,

Technology

, ,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , , , ,

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

LTE Ports

Wi-Fi Ports

GNSS/GPS Ports

Product Options/Variants for SWIRL-4-CPE

SKU Connector Type COAX Cable Type / Length Colour
A-SWIRL-0004-V1-02 SMA (m) & RPSMA (m) RTK-031 / 0.65m White

VSWR & Gain

Gain (excluding Cable Loss)

Gain (excluding Cable Loss)

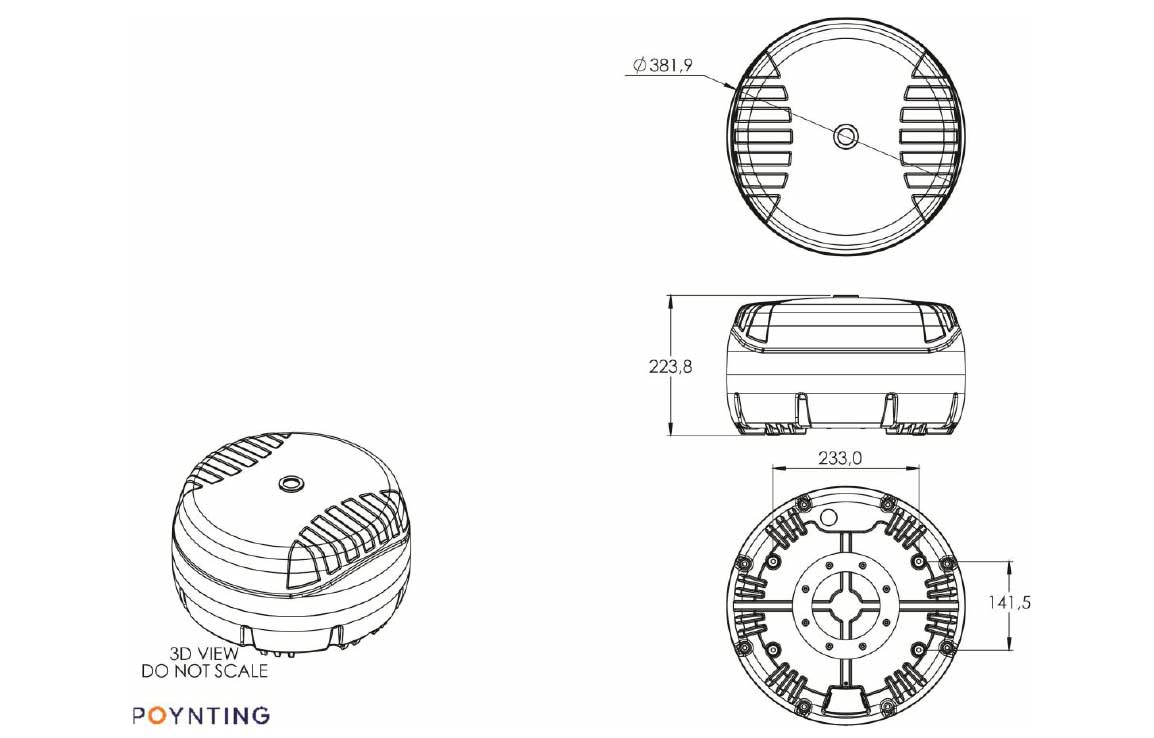

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

SWIRL-4-CPE Product Certificates

A-SWRL-0004-V1-02 Declaration of Conformity A-SWRL-BS-V1-01 Declaration of Conformity
POYNTING SWIRL E-Mark E1*10R06/03*10530*00 Certificate

High Resolution Images

A-SWRL-0004-V1-02 Full CPE Featured View A-SWRL-0004-V1-02 Full CPE Back View A-SWRL-0004-V1-02 Full CPE Side View A-SWRL-0004-V1-02 Base Featured Image A-SWRL-0004-V1-02 Base Featured Image Option 2 A-SWRL-0004-V1-02 Base Top View A-SWRL-0004-V1-02 Base Bottom View A-SWRL-0004-V1-02 Base Router Featured Image A-SWRL-0004-V1-02 Mounting Option: Pole Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-SWIRL-0004-V1-02 EAN: 6009710928899 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 12.00kg
26.46lbs		 Packaged Dimensions: 2x (450 x 450 x 180 mm
17.72 x 17.72 x 7.09 inch)		 Master Box QTY: 1x Antenna only & 1x Base only Master Box Weight: 12.00kg
26.46lbs		 Master Box Dimensions: 2x (450 x 450 x 180 mm)
2x (17.72 x 17.72 x 7.09 inch)		 Country of Origin: CN
SKU A-SWIRL-0004-V1-02
EAN 6009710928899
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 12.00kg
26.46lbs
Packaged Dimensions 2x (450 x 450 x 180 mm
17.72 x 17.72 x 7.09 inch)
Master Box QTY 1x Antenna only & 1x Base only
Master Box Weight 12.00kg
26.46lbs
Master Box Dimensions 2x (450 x 450 x 180 mm)
2x (17.72 x 17.72 x 7.09 inch)
Country of Origin CN
