RIPPLE-16

The Ripple Enclosure
X-Polarised, Omni-Directional 5G/LTE, 16x16 Multi MIMO Antenna Array
617 - 7200MHz, 9.5dBi; Cellular 4x(4x4 MIMO) + Wi-Fi 4x4 (MIMO) + 2 x GPS/Glonass
POYNTING antennas provide reliable connectivity for large passenger ferries, ensuring seamless communication and internet access for marine and coastal operations.
POYNTING antennas provide reliable connectivity for large ferries transporting passengers and vehicles, ensuring seamless communication and internet access for marine and coastal operations.
POYNTING antennas ensure reliable connectivity for large rescue boats, enabling seamless communication and internet access for marine and coastal operations.
POYNTING antennas provide seamless connectivity for XL cruise ships, ensuring reliable internet access and communication for marine and coastal operations.
POYNTING antennas ensure reliable connectivity for XL cargo ships, providing seamless communication and internet access for marine and coastal operations.
POYNTING antennas deliver reliable connectivity for XL container ships, ensuring seamless communication and internet access for marine and coastal operations.
617-7200 MHzview details below
9.5dBi±34km/21mi coverage*
Omni-Directional
16×16 MIMO
IP65Dust-tight & Water-resistant
-40°C to +80°C

Key Features

  • High performance, omni-directional marine & coastal antenna
  • Up to 16 x 16 MIMO capability for improved performance
  • Covers contemporary 5G/LTE band from 617 to 7200 MHz
  • Innovative heat sink design for improved temperature regulation
  • UV and saltwater protected for marine and coastal applications
  • IP65 weather/dust resistant enclosure
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
A-RIPL-0016-V1-01
A-RIPL-0016-V2-01,X-Polarised, Omni-Directional 5G/LTE, 16x16 Multi MIMO Antenna Array,RIPPLE 16x16 MIMO 5G Featured Image
A-RIPL-0016-V2-01,X-Polarised, Omni-Directional 5G/LTE, 16x16 Multi MIMO Antenna Array,RIPPLE 16x16 MIMO 5G Top View
A-RIPL-0016-V2-01,X-Polarised, Omni-Directional 5G/LTE, 16x16 Multi MIMO Antenna Array,RIPPLE 16x16 MIMO 5G Side View

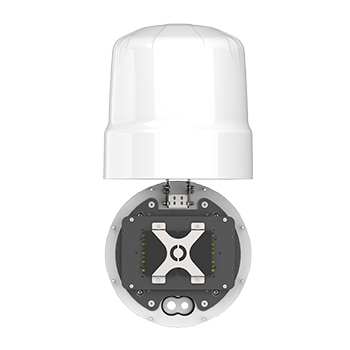

A-RIPL-0016-V2-01,X-Polarised, Omni-Directional 5G/LTE, 16x16 Multi MIMO Antenna Array,RIPPLE 16x16 MIMO 5G Exploded Top View
A-RIPL-0016-V2-01,X-Polarised, Omni-Directional 5G/LTE, 16x16 Multi MIMO Antenna Array,RIPPLE 16x16 MIMO 5G Exploded Side View
A-RIPL-0016-V2-01,X-Polarised, Omni-Directional 5G/LTE, 16x16 Multi MIMO Antenna Array,RIPPLE 16x16 MIMO 5G - BRKT-073

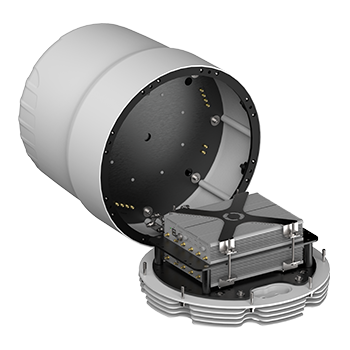

A-RIPL-0016-V2-01,X-Polarised, Omni-Directional 5G/LTE, 16x16 Multi MIMO Antenna Array,RIPPLE 16x16 MIMO 5G - BRKT-072
High-Performance Marine Antenna Enclosure for LTE & 5G

Poynting Antennas introduces the Ripple series, an all-new marine antenna enclosure range designed to expand on the existing WaveHunter series. The Ripple enclosure transforms traditional networking setups into high-performance Customer Premises Equipment (CPE) by accommodating various LTE/5G routers, ensuring reliable connectivity in marine and coastal environments.

Versatile Router Integration: Supports routers up to 300 x 250 x 110 mm³, mounted directly onto the base.
High-Performance Omni-Directional Antenna Arrays:
  • RIPL-16: Features 16 cross-polarised omni-directional antennas (8 vertically & 8 horizontally polarised) for enhanced performance.
  • RIPL-8: Includes 8 cross-polarised omni-directional antennas (4 vertically & 4 horizontally polarised), offering a compact yet powerful solution.
Wideband Frequency Coverage: Operates from 617 to 7200 MHz with a peak gain of 9.5 dBi, making it ideal for multi-router LTE & 5G bonded and aggregated deployments.
Marine-Grade Weatherproof Design: Engineered to withstand harsh marine and coastal conditions with an IP65 rating for superior durability.

The Ripple series is designed specifically for **marine and coastal applications**, ensuring robust, uninterrupted LTE and 5G connectivity even in the most challenging environments.

Ideal Applications

  • Marine applications: Super yachts, commercial vessels, cruise ships, ferries, private yachts, and towing vessels
  • Harsh environments such as harbour buildings, and buoys
  • Enhanced LTE/4G and 5G reception
  • Increase system transmission reliability

Technical Specifications for RIPPLE-16

Additional information

Industry (Application)

Technology

, ,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

Cellular Ports

Wi-Fi Ports

GNSS/GPS Ports

Product Options/Variants for RIPPLE-16

SKU Connector Type COAX Cable Type / Length Colour
A-RIPL-0016-V1-01 SMA (m) RG-316 / 0.35m White

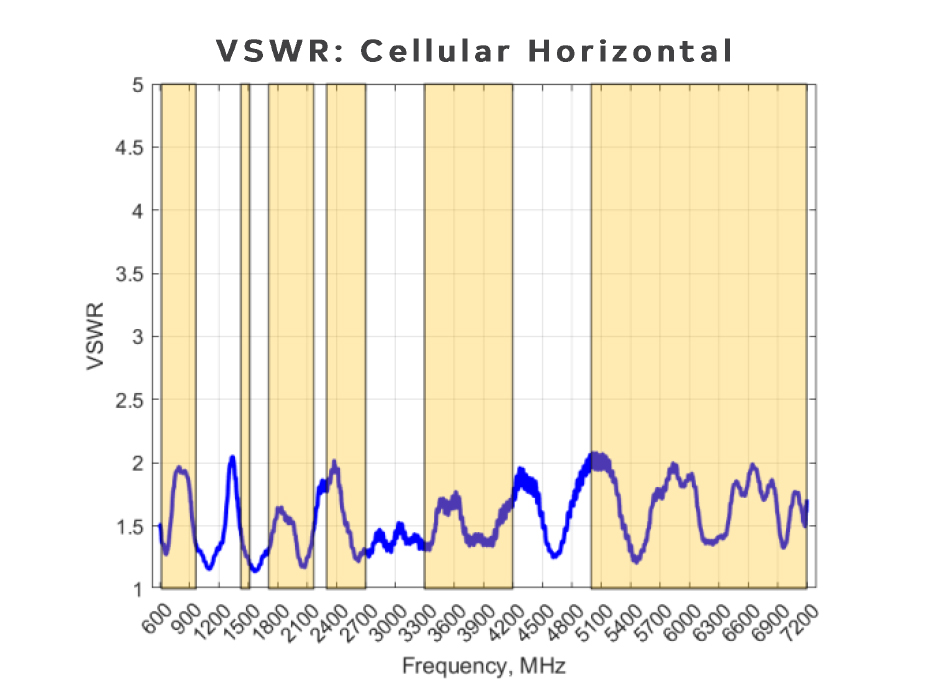

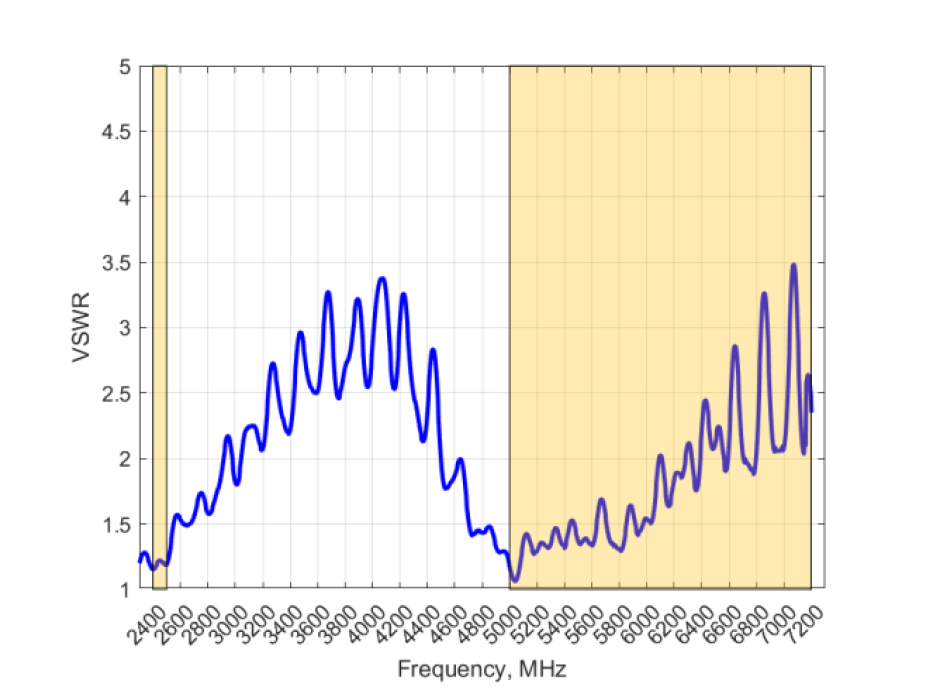

VSWR & Gain

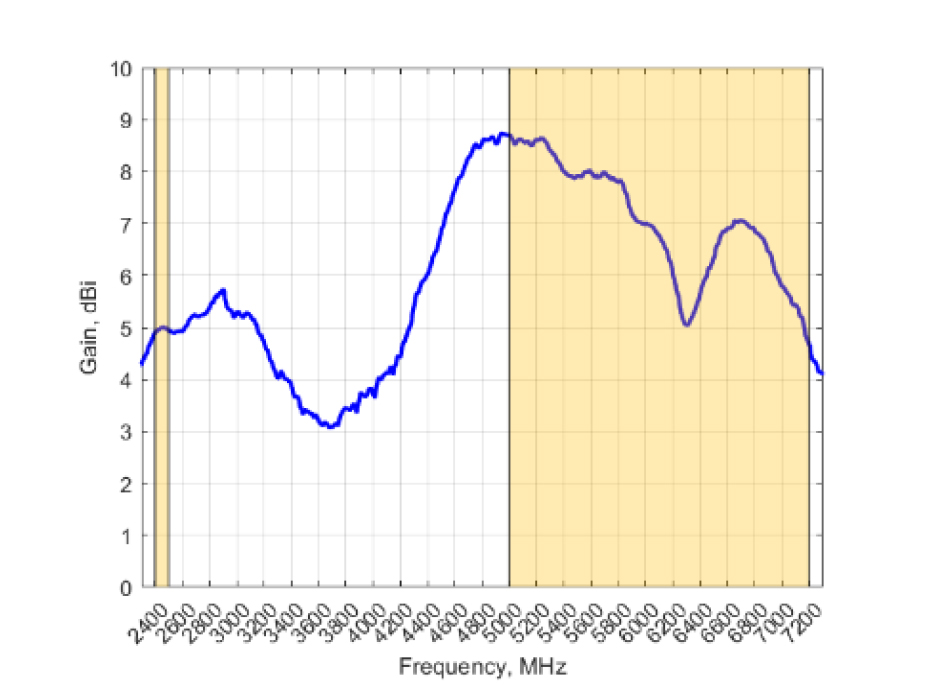

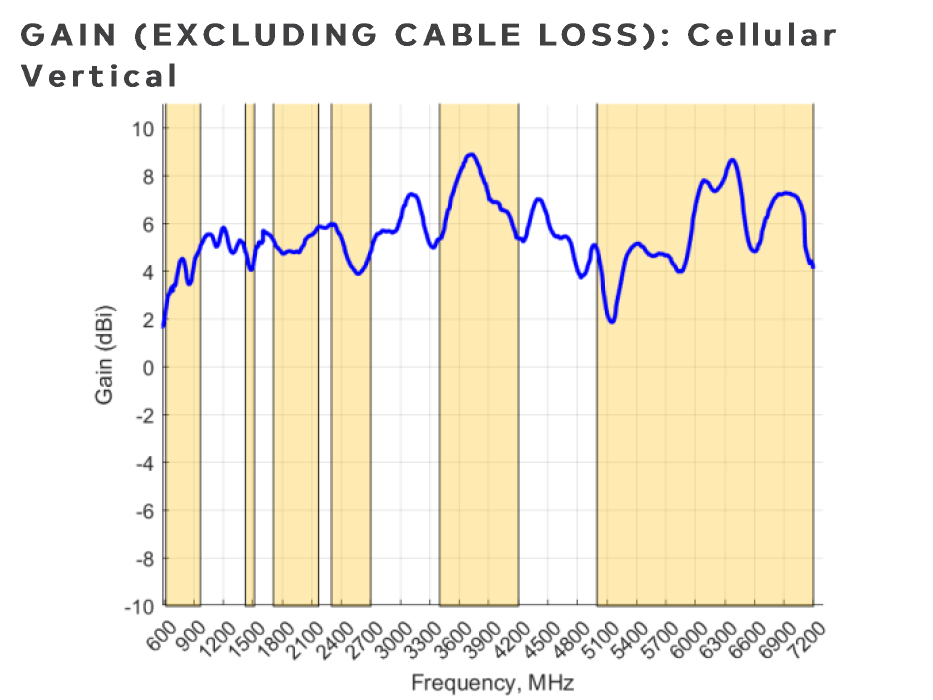

Gain (excluding Cable Loss)

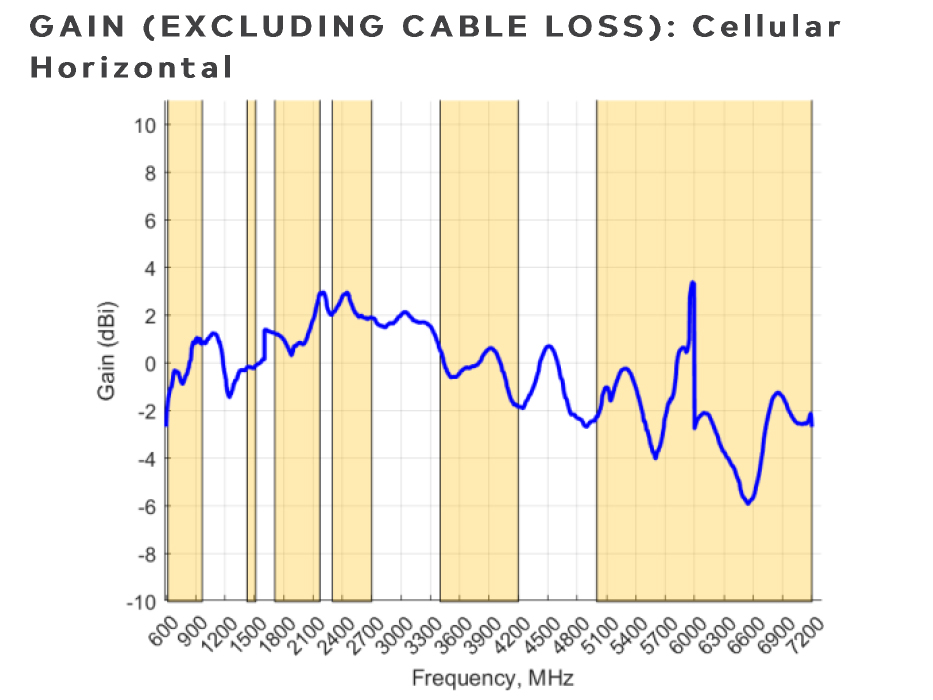

Gain (excluding Cable Loss)

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

RIPPLE-16 Product Certificates

A-RIPL-0016-V1-01 Declaration of Conformity

High Resolution Images

A-RIPL - Feature Image A-RIPL - Top View A-RIPL - Side View A-RIPL - Exploded Featured Image A-RIPL - Exploded Side View A-RIPL - Exploded Top View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-RIPL-0016-V1-01 EAN: 6009710927199 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 25.0kg
55.1lbs		 Packaged Dimensions: 530 x 530 x 630 mm
20.9 x 20.9 x 24.8 inch		 Master Box QTY: 1 Master Box Weight: 25.0kg
55.1lbs		 Master Box Dimensions: 496 x 410 x 410 mm
19.5 x 16.1 x 16.1 inch		 Country of Origin: RSA
SKU A-RIPL-0016-V1-01
EAN 6009710927199
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 25.0kg
55.1lbs
Packaged Dimensions 530 x 530 x 630 mm
20.9 x 20.9 x 24.8 inch
Master Box QTY 1
Master Box Weight 25.0kg
55.1lbs
Master Box Dimensions 496 x 410 x 410 mm
19.5 x 16.1 x 16.1 inch
Country of Origin RSA
