XPOL-6

The Cheetah Enclosure
X-Polarised, High Gain, Directional LTE Antenna (2X2 MIMO)
1710 - 2700 MHz, 11dBi
POYNTING antennas ensure reliable connectivity in urban environments, providing seamless internet access for city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for urban and rural estates, providing seamless communication and internet access for residential and business applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural homes on the outskirts of urban areas, ensuring seamless internet access across large open spaces and farmland. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas deliver reliable connectivity for offices in the sky, ensuring seamless internet access and communication in urban city environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for suburban and rural estates, ensuring seamless internet access for homes located on the outskirts of the city. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
1710-2700 MHzview details below
11dBi±16km/10mi coverage*
Directional
2.4 -2.5 GHz
2×2 MIMO
IP65Dust-tight & Water-resistant
-40°C to +70°C

Key Features

  • Cross-polarised with high-gain for LTE applications
  • Futureproof wideband LTE antenna and Wi-Fi operational frequencies
  • Backwards compatible with 2G and 3G technologies
  • Two antennas in one enclosure for optimal LTE performance
  • 2X2 MIMO LTE/4G antenna
  • Increased connectivity stability
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
A-XPOL-0006-10M
A-XPOL-0006-10M,X-Polarised, High Gain, Directional LTE Antenna (2X2 MIMO),Directional LTE Featured Image

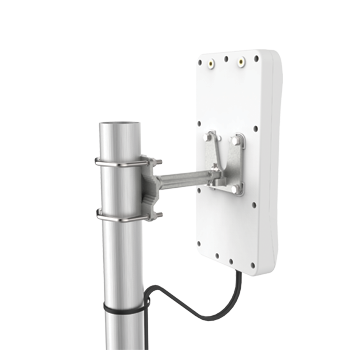

A-XPOL-0006-10M,X-Polarised, High Gain, Directional LTE Antenna (2X2 MIMO),Directional LTE Back View

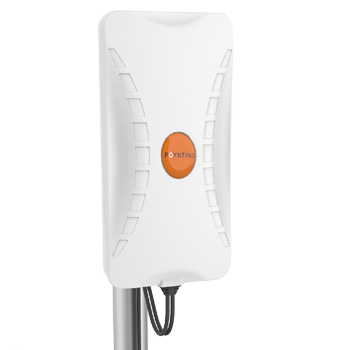

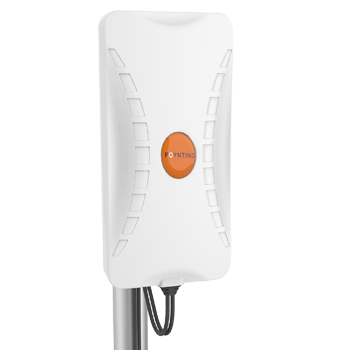

A-XPOL-0006-10M,X-Polarised, High Gain, Directional LTE Antenna (2X2 MIMO),Directional LTE Front View

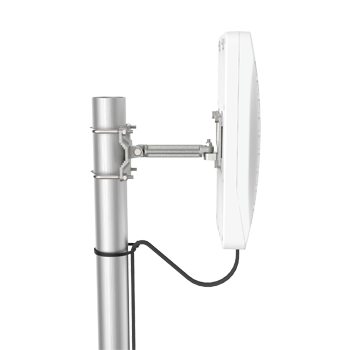

A-XPOL-0006-10M,X-Polarised, High Gain, Directional LTE Antenna (2X2 MIMO),Directional LTE Side View
High-Gain Dual-Polarised LTE Antenna for Enhanced Connectivity

The XPOL-6 is a high-performance LTE antenna designed to provide constant high gain for 4G, 3G, and 2G networks. Featuring a dual-polarised full LTE band design, this antenna enhances signal reception and throughput for improved connectivity. It is wall- or pole-mountable, making it a versatile solution for various applications.

Consistent High-Gain Performance: Ensures reliable connectivity for LTE, 3G, and 2G networks.
Dual-Polarised MIMO Technology: Provides improved signal strength, stability, and increased data throughput.
Wall or Pole Mountable: Flexible mounting options for optimal positioning and signal reception.
Enhanced Network Reliability: Ensures higher data speeds, stable connections, and improved user experience.
Cost-Effective Solution: Designed to improve subscriber satisfaction while reducing network congestion.
Ideal for GSM-Based Applications: Compatible with LTE, HSPA, 3G, EDGE, and GPRS networks.

The XPOL-6 is an ideal solution for improving mobile connectivity, offering reliable performance and ensuring a seamless user experience in various network environments.

Print Friendly, PDF & Email

Ideal Applications

  • Urban and rural areas
  • Poor data signal reception (Indoor or outdoor)
  • Slow data transmission connectivity
  • Unstable connection
  • Increase system transmission reliability
  • LTE fringe areas (close to an LTE area, but just out of reach)
  • Network operator flexibility – as the antennas are wideband, a new antenna is not needed per network operator – works on most networks

Technical Specifications for XPOL-6

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

, , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

LTE Ports

Product Options/Variants for XPOL-6

SKU Connector Type COAX Cable Type / Length Colour
A-XPOL-0006-10M SMA (m) Twin HDF-195 / 10m Off White

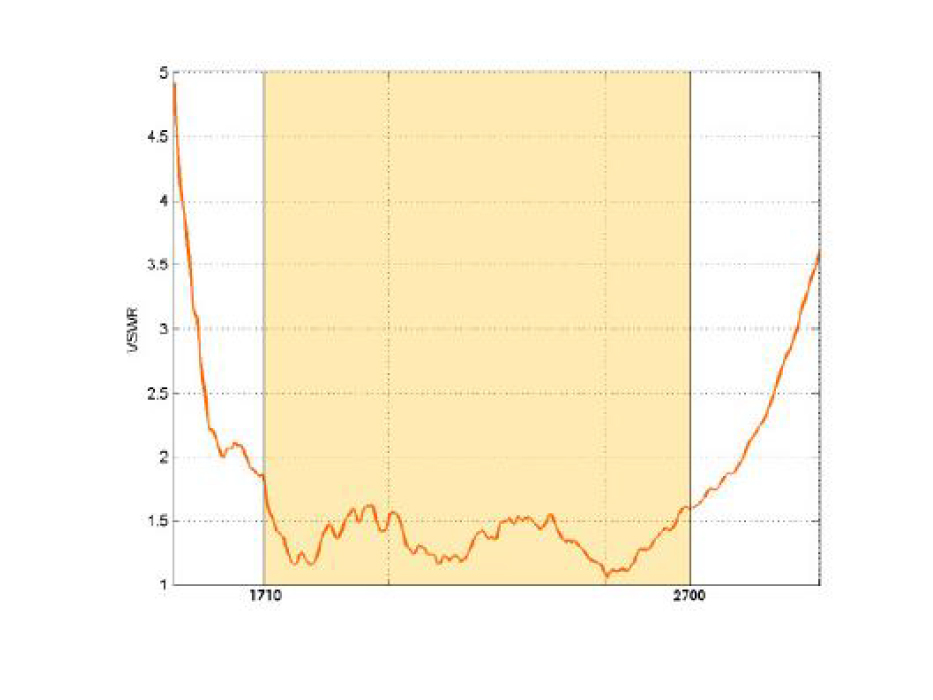

VSWR & Gain

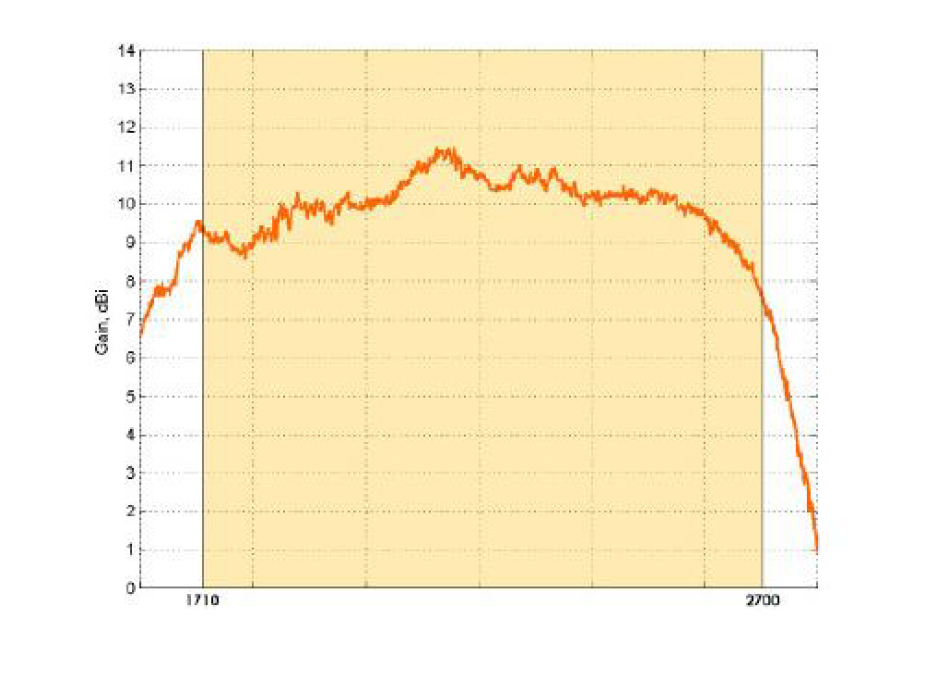

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.
Advantech
Billion
Celerway
EuroTech
Fritz!Box
Huawei
InHand Networks
Peplink
Robustel

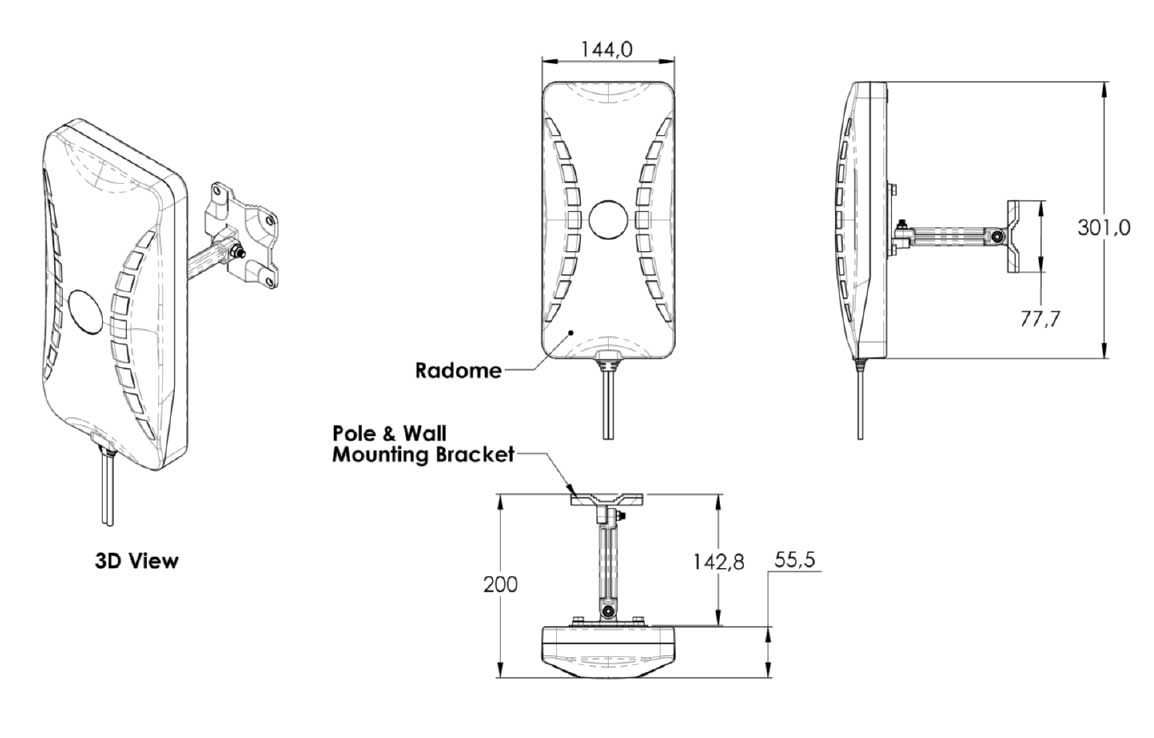

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

A-XPOL-0006-10M Directional LTE Feature Image A-XPOL-0006-10M Directional LTE Back View A-XPOL-0006-10M Directional LTE Front View A-XPOL-0006-10M Directional LTE Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-XPOL-0006-10M EAN: 6009710923801 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.6kg
3.53lbs		 Packaged Dimensions: 360 x 160 x 115 mm
14.17 x 6.3 x 4.53lbs		 Master Box QTY: 13 Master Box Weight: 22.6kg
49.82lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75lbs		 Country of Origin: CN
SKU A-XPOL-0006-10M
EAN 6009710923801
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.6kg
3.53lbs
Packaged Dimensions 360 x 160 x 115 mm
14.17 x 6.3 x 4.53lbs
Master Box QTY 13
Master Box Weight 22.6kg
49.82lbs
Master Box Dimensions 520 x 495 x 400 mm
20.47 x 19.49 x 15.75lbs
Country of Origin CN
