XPOL-2-5G

The Leopard Enclosure
X-Polarised, High Gain, Uni-Directional 5G/LTE Antenna (2X2 MIMO)
617 - 4200 MHz, 11dBi; 2x2 MIMO
POYNTING antennas provide reliable connectivity for small and large open office spaces in urban commercial environments, ensuring seamless communication and data access. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for industrial and commercial warehousing, ensuring seamless communication and automation for efficient inventory management. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural farming, ensuring seamless communication between silos, warehouses, and smart agricultural operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for urban and rural estates, providing seamless communication and internet access for residential and business applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for suburban and rural estates, ensuring seamless internet access for homes located on the outskirts of the city. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-4200 MHzview details below
11dBi±43km/27mi coverage*
Directional
2×2 MIMO
IP65Dust-tight & Water-resistant
-40°C to +80°C

Key Features

  • New advanced metamaterial technology
  • Exceptional performance over the main 4G/5G bands
  • High Gain for the antenna size
  • Wideband 2x2 MIMO 4G/5G antenna
  • Backwards compatible 2G/3G/4G/LTE/5G antenna
  • Two cross polarised antennas in one enclosure for optimal LTE performance
  • IP65 weather/dust and vandal resistant enclosure.
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
A-XPOL-0002-V3
XPOL-2-5G
XPOL-2-5G - Image 2
XPOL-2-5G - Image 3
XPOL-2-5G - Image 4
Third-Generation Cross-Polarised MIMO Antenna for 5G & LTE

The XPOL-2-5G is Poynting’s third-generation “V3” version of its popular Cross Polarised (XPOL) 2x2 MIMO antenna. While the enclosure retains the familiar look of the second-generation “V2,” the internal design has been completely re-engineered using advanced metamaterial technology. The incorporation of Artificial Magnetic Conductors (AMC) and a patent-pending radiator configuration significantly enhances bandwidth and gain.

Expanded Frequency Coverage: Now includes the 3400 – 4200 MHz bands, in addition to 617 – 960 MHz, 1710 – 2170 MHz, and 2300 – 2700 MHz.
Enhanced Gain Performance: Delivers up to 3 dB higher gain in the 1700 MHz and 2.7 GHz bands compared to the V2 model.
Advanced Metamaterial Technology: Uses Artificial Magnetic Conductors (AMC) for improved signal efficiency and performance.
Optimised Radiation Patterns: Well-controlled radiation patterns enhance overall antenna effectiveness.
2x2 MIMO Configuration: Provides better throughput, stability, and signal quality for 2G, 3G, 4G, and 5G networks.

The XPOL-2-5G represents a major upgrade in antenna technology, offering exceptional performance improvements while maintaining its proven reliability. It is an ideal solution for next-generation 5G and LTE deployments.

Ideal Applications

  • Outdoor antenna for Fixed Wireless Access (FWA)
  • Consumer LTE/5G internet connectivity
  • Industrial & Commercial LTE/5G deployments
  • Urban and rural household reception enhancement
  • Agricultural & Farming LTE/5G data distribution
  • Power, Energy & Water telemetry access
  • Oil & Gas communication systems
  • Municipal & Government systems
  • Repeaters & coverage enhancement amplifiers

Technical Specifications for XPOL-2-5G

Additional information

Industry (Application)

, ,

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

,

MIMO

Polarisation

Environmental

Product Options/Variants for XPOL-2-5G

SKU Connector Type COAX Cable Type / Length Colour
A-XPOL-0002-V3-01 SMA (M) Twin HDF-195 / 5m White
A-XPOL-0002-V3-02 N-Type (F) N/A / N/A White
A-XPOL-0002-V3-03 SMA (M) Twin HDF-195 / 10m White

VSWR & Gain

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Advantech
Celerway
Cradlepoint
Digi
Robustel
Teltonika

Technical Drawing

FAQ's & Articles

Downloadable Files

High Resolution Images

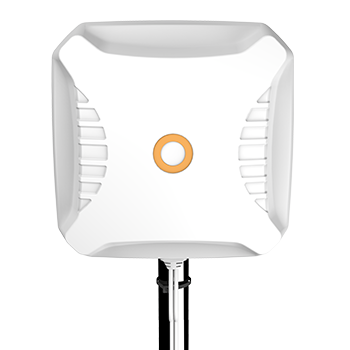

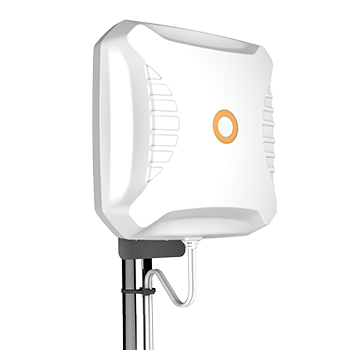

A-XPOL-0002-V3-01 Directional LTE Feature Image A-XPOL-0002-V3-01 Directional LTE Back View A-XPOL-0002-V3-01 Directional LTE Front View A-XPOL-0002-V3-01 Directional LTE Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-XPOL-0002-V3-01 EAN: 6009880915750 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.98kg
4.37lbs		 Packaged Dimensions: 375x267x100mm
14.76x10.51x3.94inch		 Master Box QTY: 10 Master Box Weight: 22.7kg
50.04lbs		 Master Box Dimensions: 550 x 390 x 500mm
21.65 x 15.35 x 19.67 inch		 Country of Origin: CN
SKU A-XPOL-0002-V3-02 EAN: 6009710920107 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.86kg
4.1lbs		 Packaged Dimensions: 375x267x120mm
14.76x10.51 x4.72 inch		 Master Box QTY: 8 Master Box Weight: 19kg
41.89lbs		 Master Box Dimensions: 550 x 390 x 500mm
21.65 x 15.35 x 19.67 inch		 Country of Origin: CN
SKU A-XPOL-0002-V3-03 EAN: 6009710920121 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 2.3kg
5.07lbs		 Packaged Dimensions: 375x267x100mm
14.76x10.51x3.94inch		 Master Box QTY: 10 Master Box Weight: 24.07kg
53.07lbs		 Master Box Dimensions: 550 x 390 x 500mm
21.65 x 15.35 x 19.67 inch		 Country of Origin: CN
SKU A-XPOL-0002-V3-01A-XPOL-0002-V3-02A-XPOL-0002-V3-03
EAN 600988091575060097109201076009710920121
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.98kg
4.37lbs		1.86kg
4.1lbs		2.3kg
5.07lbs
Packaged Dimensions 375x267x100mm
14.76x10.51x3.94inch		375x267x120mm
14.76x10.51 x4.72 inch		375x267x100mm
14.76x10.51x3.94inch
Master Box QTY 10810
Master Box Weight 22.7kg
50.04lbs		19kg
41.89lbs		24.07kg
53.07lbs
Master Box Dimensions 550 x 390 x 500mm
21.65 x 15.35 x 19.67 inch		550 x 390 x 500mm
21.65 x 15.35 x 19.67 inch		550 x 390 x 500mm
21.65 x 15.35 x 19.67 inch
Country of Origin CNCNCN
