GPS-1

The PUCK Enclosure
GPS/GLONASS Active Antenna
1575.42/1600 MHz, 21dBi
POYNTING antennas enable reliable IoT connectivity for industrial and commercial warehousing, ensuring seamless communication and automation for efficient inventory management.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications.
POYNTING antennas ensure reliable connectivity for IoT-enabled warehouses, supporting seamless communication for autonomous bots and smart logistics operations.
POYNTING antennas provide reliable connectivity for rally cars, ensuring seamless communication and data transmission in transport and mobility applications.
POYNTING antennas provide reliable connectivity for RVs and motorhomes, ensuring seamless internet access for families traveling and camping in transport and mobility applications.
POYNTING antennas ensure reliable connectivity for buses and tour buses, providing seamless internet access for passengers in transport and mobility applications.
1575.42 MHz / 1600 MHzview details below
GPS: 21dBi
Omni-Directional
IP68Dust-tight & Waterproof
-40°C to +80°C
Fire Resistant
Chemical Protection

Key Features

  • GPS/GLONASS Active Antenna
  • Robust enclosure (IK10), vandal resistant and waterproof (IP68)
  • Ideal for positioning and timing systems for transportation, marine and IoT/M2M applications
  • Ultra-versatile mounting options for easy installation
Supported Connectivity Technologies

Datasheet Options
POYNTING Antenna Solution Finder
A-GPS-0001-V2-01

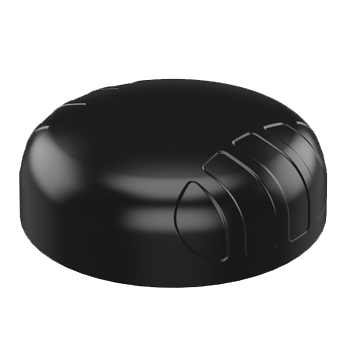

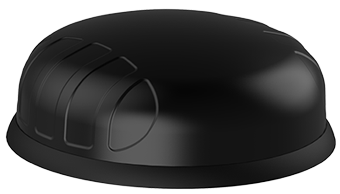

A-GPS-0001-V2-01,GPS/GLONASS Active Antenna,GPS Antenna Featured Image

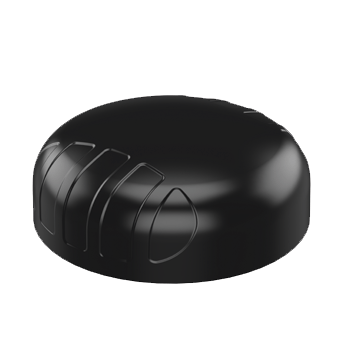

A-GPS-0001-V2-01,GPS/GLONASS Active Antenna,GPS Antenna Back View

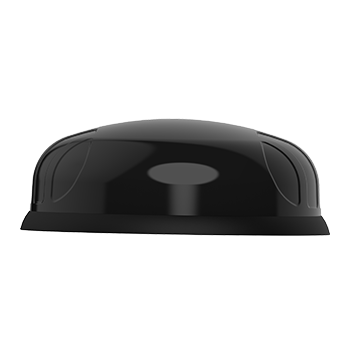

A-GPS-0001-V2-01,GPS/GLONASS Active Antenna,GPS Antenna Front View

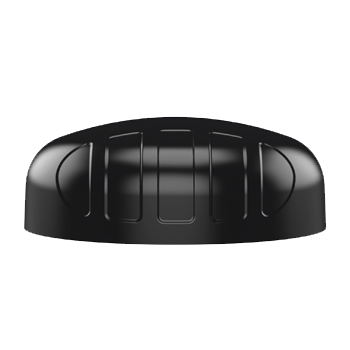

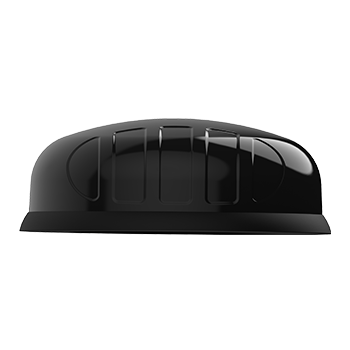

A-GPS-0001-V2-01,GPS/GLONASS Active Antenna,GPS Antenna Side View
Compact & High-Precision GPS Antenna for IoT & Transportation

POYNTING's new V2 version of the GPS-1 antenna is a compact and reliable solution designed for IoT/M2M and transportation applications where precise positioning and timing are critical. The updated enclosure ensures effortless implementation with multiple mounting options.

Accurate GPS/GLONASS Positioning: Supports 1575.42 MHz / 1600 MHz for enhanced satellite connectivity.
Compact & Low-Profile Design: Ideal for space-constrained IoT and M2M applications.
Reliable Performance in Extreme Conditions: Operates in temperatures as low as -40°C for dependable functionality in harsh environments.
Easy Installation: Features a new enclosure with versatile mounting options for seamless integration.

The GPS-1 V2 is the perfect solution for industries requiring **accurate navigation and timing**, offering durability, efficiency, and effortless deployment.

Ideal Applications

  • Industrial automation, robotic machinery and other M2M systems
  • Transport, tracking (Busses, Utility & Public Safety)
  • Mining Vehicles & Machinery communications and positioning (M2M & IoT)
  • Agricultural machinery
  • Marine: small boats, yachts.
  • Clocking and timing systems

Technical Specifications for GPS-1

Additional information

Industry (Application)

,

Technology

Cellular Freq. Range

Product Configuration

Gain

Directionality

Mounting Type

, , , ,

Connectors

MIMO

Polarisation

Environmental

GNSS/GPS Ports

Product Options/Variants for GPS-1

SKU Connector Type COAX Cable Type / Length Colour
A-GPS-0001-V2-01 SMA (m) RTK-031 / 2m Black

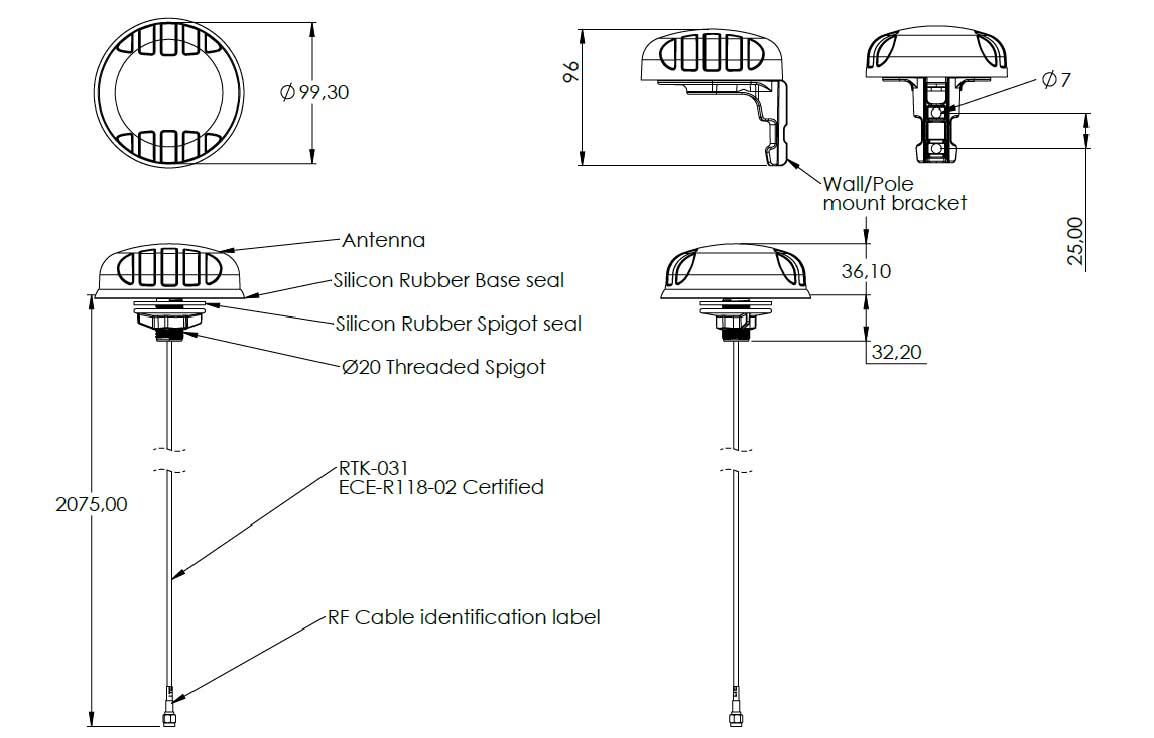

Technical Drawing

FAQ's & Articles

Downloadable Files

GPS-1 Product Certificates

POYNTING PUCK/GPS E-Mark E1*10R06 Certificate

High Resolution Images

A-GPS-0002-V1 Feature Image A-GPS-0002-V1 Back View A-GPS-0002-V1 Front View A-GPS-0002-V1 Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-GPS-0001-V2-01 EAN: 707273469823 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.443kg
0.98lbs		 Packaged Dimensions: 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		 Master Box QTY: 27 Master Box Weight: 14.95kg
32.96lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		 Country of Origin: RSA
SKU A-GPS-0001-V2-01
EAN 707273469823
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.443kg
0.98lbs
Packaged Dimensions 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch
Master Box QTY 27
Master Box Weight 14.95kg
32.96lbs
Master Box Dimensions 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch
Country of Origin RSA
