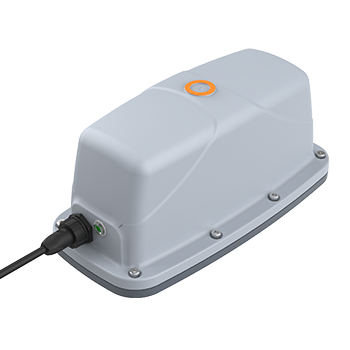

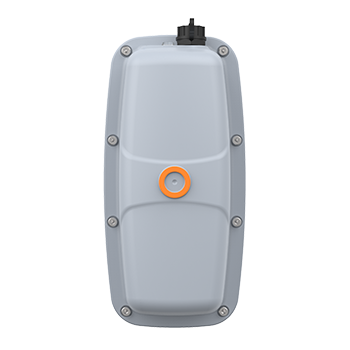

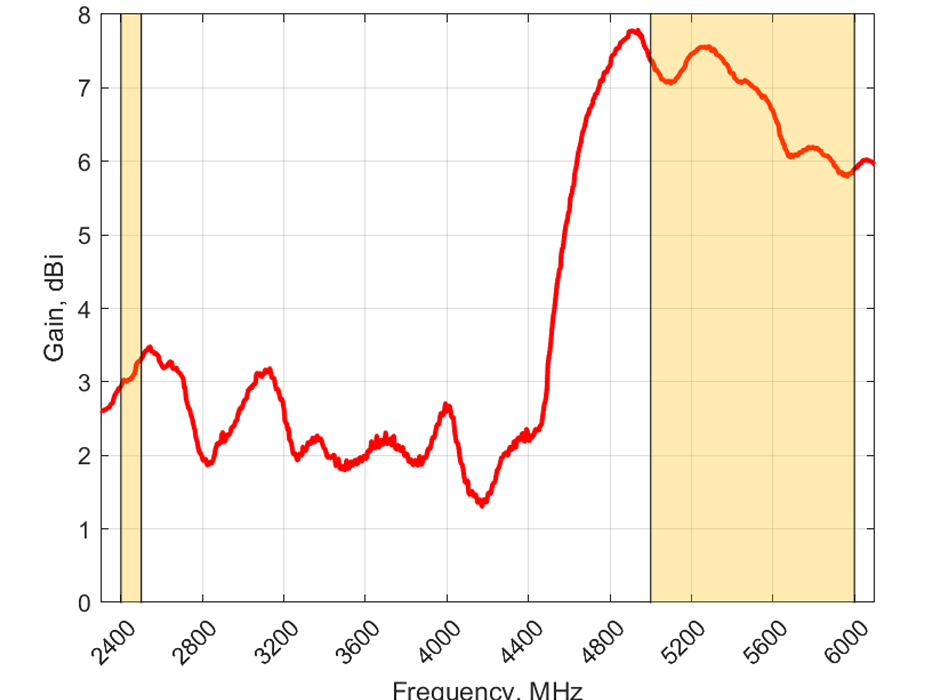

The EPNT-7 from POYNTING is a robust 4×4 MIMO dual-band Wi-Fi antenna enclosure designed to deliver superior wireless performance in the most demanding environments. Equipped with four dual-band antennas covering the 2.4 GHz and 5–6 GHz Wi-Fi bands, the EPNT-7 achieves up to 3.5 dBi gain at 2.4 GHz and up to 7.5 dBi gain at 5–6 GHz, ensuring powerful and reliable omni-directional coverage.

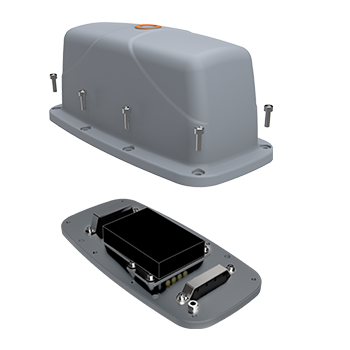

Purpose-Built Enclosure: Designed to integrate compact router modules such as the Rajant Cardinal, transforming it into a rugged mobile Wi-Fi CPE.
Optimised for Harsh Environments: Reliable performance in high-noise, high-vibration applications like mining, agriculture, and logistics.
Compact Router Compatibility: Supports routers up to 108 × 73.5 × 20 mm³ for flexible deployments.

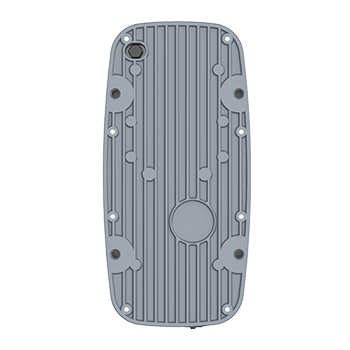

Durable & Rugged Design: IP69 and IK08-rated housing with a powder-coated aluminium base for heat dissipation and long-term reliability.
Enhanced Cable Protection: Strain reliefs safeguard against mechanical stress and vibration to maintain consistent connectivity.

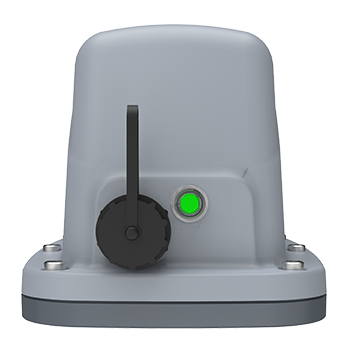

Easy Router Monitoring: Transparent LED status window allows quick and simple system checks.
The EPNT-7 is an ideal solution for mining vehicles, agricultural machinery, port logistics, and industrial warehouses – providing reliable Wi-Fi connectivity that keeps operations running smoothly even in the harshest environments.
| Industry (Application) | Commercial & Industrial Antennas, Farming & Agricultural Antennas, Mining & Tunnelling Antennas |
|---|---|
| Technology | |
| Cellular Freq. Range | |
| Frequency Band | |
| Wi-Fi Standard | Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Product Configuration | |
| Gain | |
| Directionality | |
| Mounting Type | |
| Connectors | |
| MIMO | |
| Polarisation | |
| Environmental | |
| Wi-Fi Ports | |
| Router Housing Dimensions |
| SKU | Connector Type | COAX Cable Type / Length | Colour |
|---|---|---|---|
| A-EPNT-0007-V1-01 | SMA (m) | RTK-031 / 0.22m | Grey |
| A-EPNT-0007-V1-02 | SMA(m) | RTK-031 / 0.22m | Grey |
