PUCK-5-V2

The PUCK Enclosure
5-in-1 Transportation & IoT/M2M Antenna
617 - 6000 MHz; 2X2 5G (MIMO); 2400 - 7200 MHz, 2X2 Wi-Fi (MIMO); GPS/GLONASS
POYNTING antennas ensure reliable connectivity for small yachts, providing seamless communication and internet access for marine and coastal adventures.
POYNTING antennas enable reliable IoT connectivity for open-pit mining, ensuring seamless communication and automation for enhanced operational efficiency.
POYNTING antennas ensure reliable connectivity for buses and tour buses, providing seamless internet access for passengers in transport and mobility applications.
POYNTING antennas ensure reliable connectivity for IoT-enabled warehouses, supporting seamless communication for autonomous bots and smart logistics operations.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication and real-time data access for farmers using tablets in the field.
617-6000MHzview details below
6.5dBi±26km/16mi coverage*
Omni-Directional
2.4-2.5 GHz 5.0-7.2 GHz
2×2 MIMO
IP69K

Key Features

  • 5-in-1 5G high performance multi frequency antenna
  • Antenna supports Private 5G/5G/4G/3G/2G/Wi-Fi-6e/ Wi-Fi-7/LoRa/Bluetooth
  • 5G (2x2 MIMO), Dual-band Wi-Fi (2x2 MIMO), GPS/GLONASS
  • Ultra-wideband coverage from 617 – 6000 MHz for cellular
  • Robust, vandal resistant and waterproof (IP 69K)
  • Ideal for transportation, marine and IoT/M2M use
  • Ultra-versatile mounting options for easy installation
Supported Connectivity Technologies
Datasheet Options
POYNTING Antenna Solution Finder
A-PUCK-0005-V2-01
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Featured Image Colour Options in White and Black
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Featured Image
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Back View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Front View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Side View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Featured Image
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Back View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Front View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Side View
PUCK-5-V2 - Image 10
Compact High-Performance 5-in-1 5G, LTE, Wi-Fi & GPS Antenna

Poynting’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-5 is a 5-in-1 antenna system within a single enclosure, offering reliable and future-proof connectivity for 5G, LTE, Wi-Fi, and GPS applications.

Wideband Cellular Coverage: Features 2x Cellular MIMO antennas covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Dual-Band 2x2 MIMO Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards.
High-Precision GPS/GLONASS Antenna: Active GPS system ensures accurate positioning, operational at temperatures as low as -40ºC.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
Enhanced Connection Stability: Designed to ensure both 5G/LTE ports are connected to the router/device for maximum throughput and performance.

The PUCK-5 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, Wi-Fi, and GPS connectivity. For SISO applications, other derivatives in the PUCK range may be more suitable.

Ideal Applications

  • Smart utilities: Smart power, Gas & Water Metering
  • Smart Buildings: Climate control, access control, security, irrigation
  • Industrial factory automation, robotic machinery and other M2M systems
  • Digital Signage
  • Warehouses & Logistic systems
  • Transport (Buses, Utility & Public Safety)
  • Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
  • Agricultural machinery
  • Marine: small boats, yachts near to coastlines or inner waters

Technical Specifications for PUCK-5-V2

Additional information

Industry (Application)

, ,

Technology

, ,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , , , ,

Gain

Directionality

Mounting Type

, , , ,

Connectors

MIMO

Polarisation

Environmental

Cellular Ports

Wi-Fi Ports

GNSS/GPS Ports

Product Options/Variants for PUCK-5-V2

SKU Connector Type COAX Cable Type / Length Colour
A-PUCK-0005-V2-01 SMA (m) & RPSMA adaptors RTK-031 / 2m Black
A-PUCK-0005-V2-01-W SMA (m) & RPSMA adaptors RTK-031 / 2m White

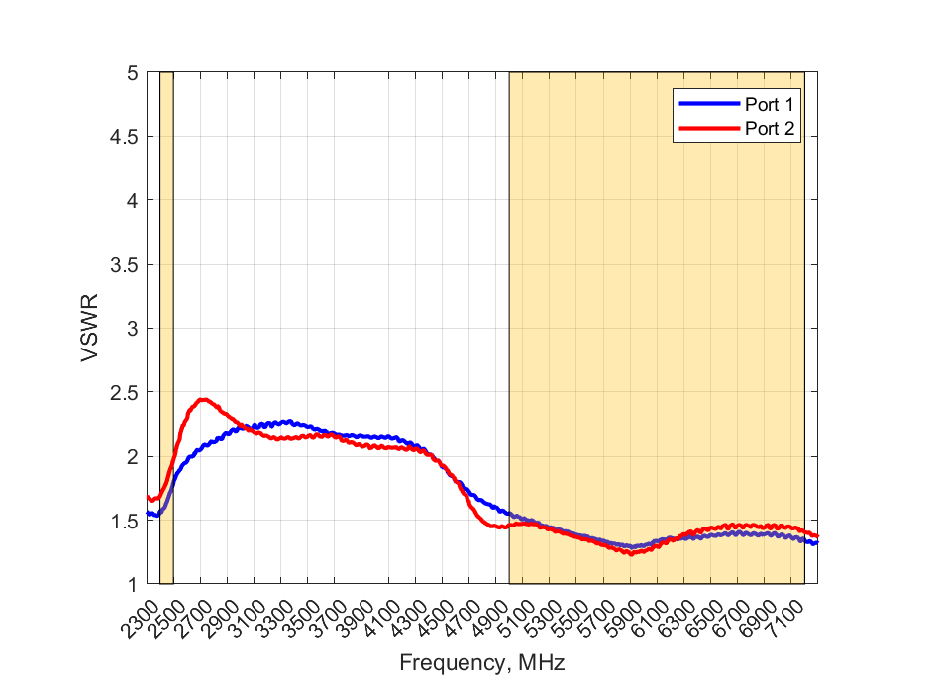

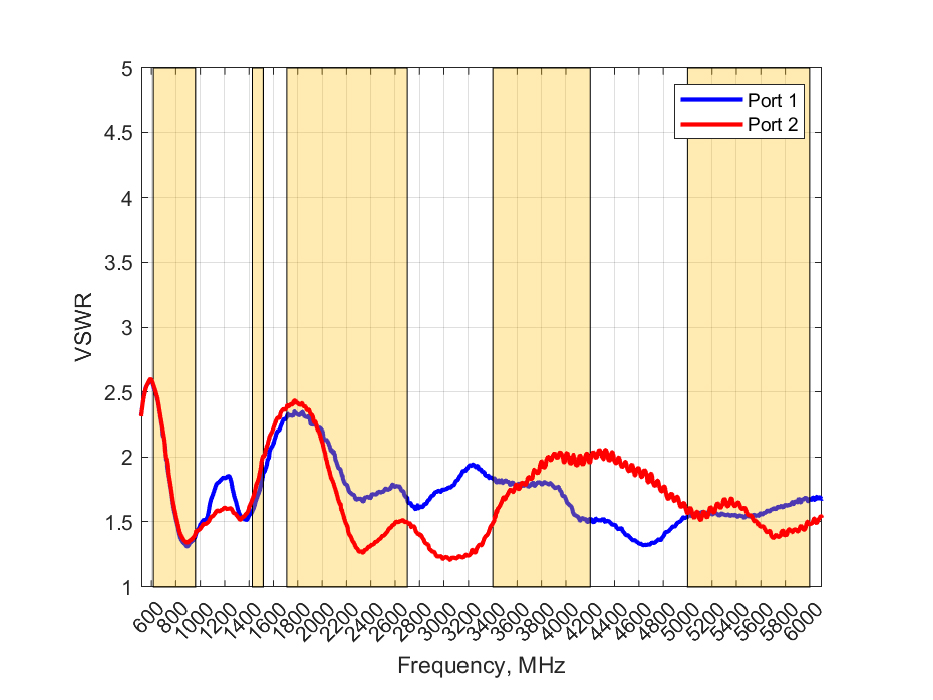

VSWR & Gain

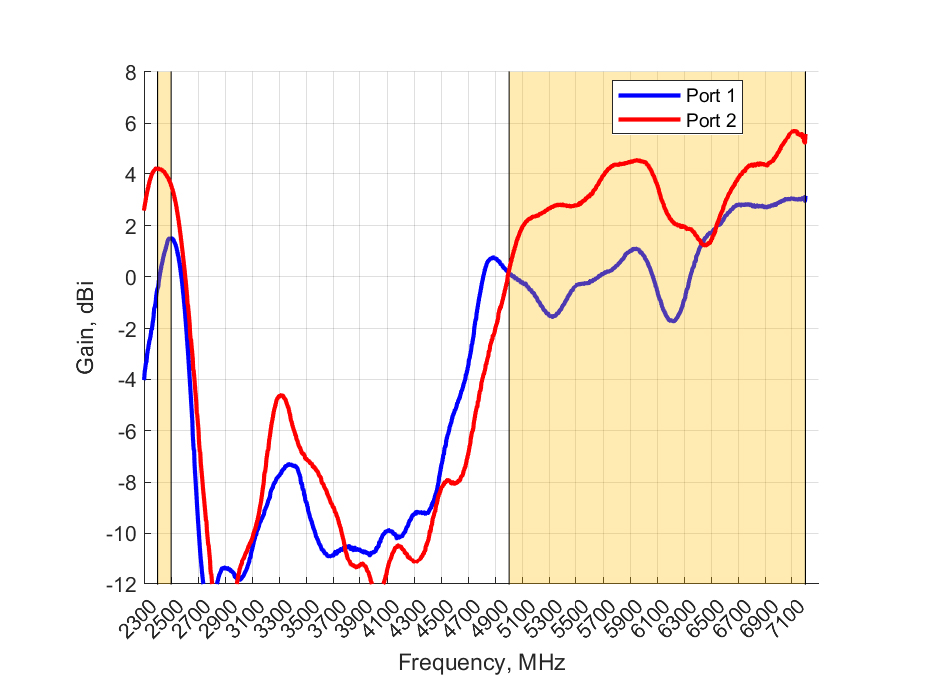

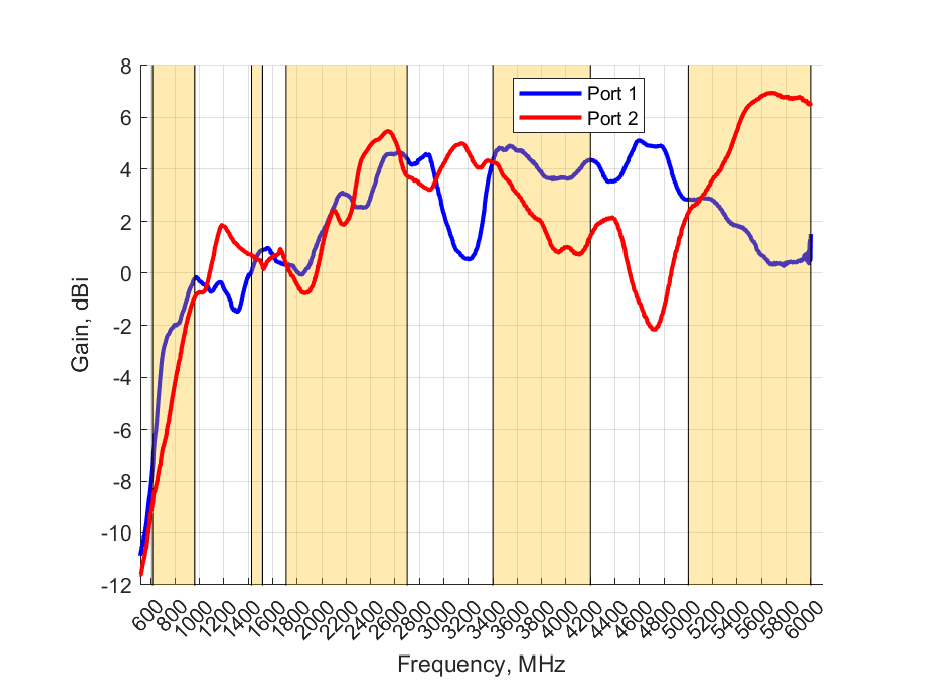

Gain (excluding Cable Loss)

Gain (excluding Cable Loss)

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

PUCK-5-V2 Product Certificates

A-PUCK-0005-V2-01 Declaration of Conformity A-PUCK-0005-V2-01-W Declaration of Conformity A-PUCK-0005-V2-0.75M Declaration of Conformity A-PUCK-0005-V2-4M Declaration of Conformity A-PUCK-0005-V2-4M W Declaration of Conformity

High Resolution Images

PUCK LTE MIMO Antenna Feature Image PUCK LTE MIMO Antenna Back View PUCK LTE MIMO Antenna Front View PUCK LTE MIMO Antenna Side View PUCK LTE MIMO Antenna Feature Image White PUCK LTE MIMO Antenna Back View White PUCK LTE MIMO Antenna Front View White PUCK LTE MIMO Antenna Side View White PUCK Mounting Option: Panel PUCK Mounting Option: Wall and Pole PUCK Mounting Option: Spigot PUCK Mounting Option: Spigot Exploded Long PUCK Mounting Option: Spigot Exploded PUCK Mounting Option: Surface Adhesive PUCK Mounting Option: Magnetic Base Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-PUCK-0005-V2-01 EAN: 6009710928097 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.70kg
1.54lbs		 Packaged Dimensions: 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		 Master Box QTY: 27 Master Box Weight: 20.70kg
45.64lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		 Country of Origin: CN
SKU A-PUCK-0005-V2-01-W EAN: 6009710928110 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.70kg
1.54lbs		 Packaged Dimensions: 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		 Master Box QTY: 27 Master Box Weight: 20.70kg
45.64lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		 Country of Origin: CN
SKU A-PUCK-0005-V2-01A-PUCK-0005-V2-01-W
EAN 60097109280976009710928110
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.70kg
1.54lbs		0.70kg
1.54lbs
Packaged Dimensions 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch
Master Box QTY 2727
Master Box Weight 20.70kg
45.64lbs		20.70kg
45.64lbs
Master Box Dimensions 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch
Country of Origin CNCN
