MIMO-3-14

The Badger Enclosure
5-in-1 Transportation & Automotive Antenna
410 - 3800 MHz; 4X4 LTE (MIMO), 6.2dBi; GPS/GLONASS, 21dBi
POYNTING antennas provide reliable connectivity for rally cars, ensuring seamless communication and data transmission in transport and mobility applications.
POYNTING antennas provide reliable connectivity for small speedboats and yachts, ensuring seamless communication and internet access for marine and coastal adventures.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications.
POYNTING antennas provide reliable connectivity for RVs and motorhomes, ensuring seamless internet access for families traveling and camping in transport and mobility applications.
POYNTING antennas ensure reliable connectivity for small speedboats, providing seamless communication and internet access for marine and coastal adventures.
POYNTING antennas enable reliable IoT connectivity for industrial and commercial warehousing, ensuring seamless communication and automation for efficient inventory management.
410-3800 MHzview details below
LTE: 6.2dBi; GPS: 21dBi ±38km/24mi coverage*
Omni-Directional
4×4 MIMO
IP69K
E-Mark

Key Features

  • 5-in-1 High performance multi frequency 2G/3G/4G/LTE/5G antenna
  • 4X4 MIMO LTE & GPS / GLONASS
  • Ultra-wideband, includes 450 MHz and 3.5 GHz CBRS bands
  • Robust and water-resistant antenna (IP 69K)
  • Ideal for transportation and marine use
  • Multi mounting options for easy installation
Supported Connectivity Technologies




Datasheet Options
POYNTING Antenna Solution Finder
A-MIMO-0003-V2-14
A-MIMO-0003-V2-14,5-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Featured Image

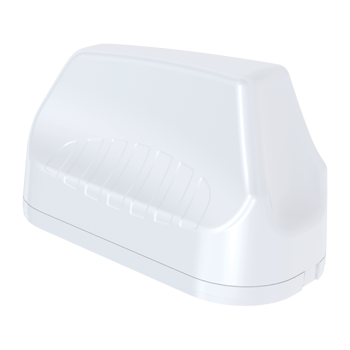

A-MIMO-0003-V2-14,5-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Back View

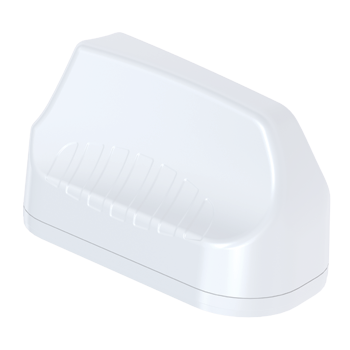

A-MIMO-0003-V2-14,5-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Front View

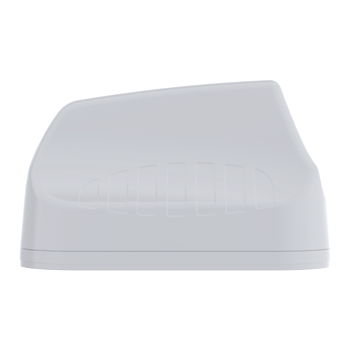

A-MIMO-0003-V2-14,5-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Side View
High-Performance 5-in-1 Multi-Frequency Antenna for 5G, LTE & GPS

The MIMO-3-14 is a high-performance 5-in-1 multi-frequency antenna housed in a single enclosure, providing four cellular MIMO antennas and a GPS/GLONASS antenna. Designed for seamless 2G, 3G, 4G, and emerging 5G connectivity, it supports a wide frequency range from 617 MHz to 2700 MHz, as well as the new 450 MHz and 3.5 GHz CBRS bands. This ultra-wideband performance ensures compatibility with multiple network operators and future cellular technologies up to 3.8 GHz.

Ultra-Wideband Cellular Coverage: Supports frequencies from 617 MHz to 3.8 GHz, covering LTE and 5G applications.
Advanced 4x4 MIMO Technology: Provides enhanced signal strength, pattern diversity, and omnidirectional coverage.
Integrated GPS/GLONASS Antenna: High-performance active GPS system for accurate positioning, operational down to -40°C.
Optimised for Transportation & Marine Use: Engineered to meet the rigorous demands of commercial vehicles, marine, and industrial applications.
Futureproof Connectivity: Ensures long-term compatibility with evolving cellular networks and IoT applications.
Superior Radiation Performance: Designed for an optimal balance between omnidirectionality, diversity, and signal propagation.

The MIMO-3-14 is the ideal solution for transportation, marine, M2M, and IoT applications, delivering exceptional performance, durability, and future-ready connectivity across multiple frequency bands.

Ideal Applications

  • Transport broadband, automation and telemetry for buses, utility, trucks and public safety vehicles
  • Industrial factory automation, robotic machinery and other M2M systems telemetry
  • Farming & agricultural automation such as M2M & IoT
  • Broadband cellular distribution for marine / boats (inland and near coastal vessels)
  • Mining vehicles and machinery communications, telemetry and automation (M2M & IoT)

Technical Specifications for MIMO-3-14

Additional information

Industry (Application)

,

Technology

, ,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

, ,

Connectors

MIMO

Polarisation

Environmental

Cellular Ports

GNSS/GPS Ports

Accessories

Product Options/Variants for MIMO-3-14

SKU Connector Type COAX Cable Type / Length Colour
A-MIMO-0003-V2-14 SMA (m) HDF-195 & RTK-031 / 2m White

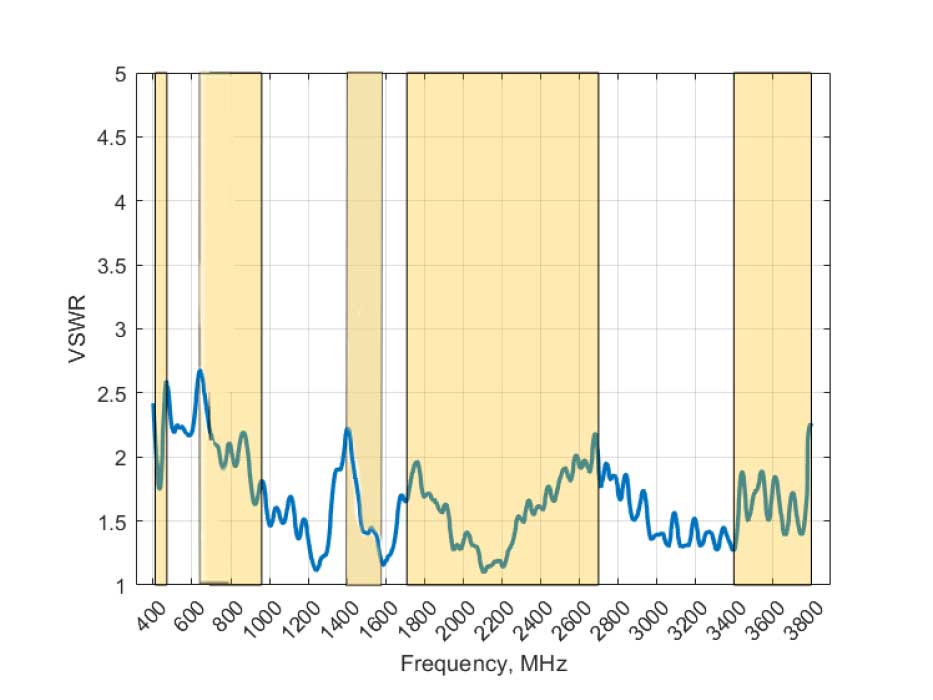

VSWR & Gain

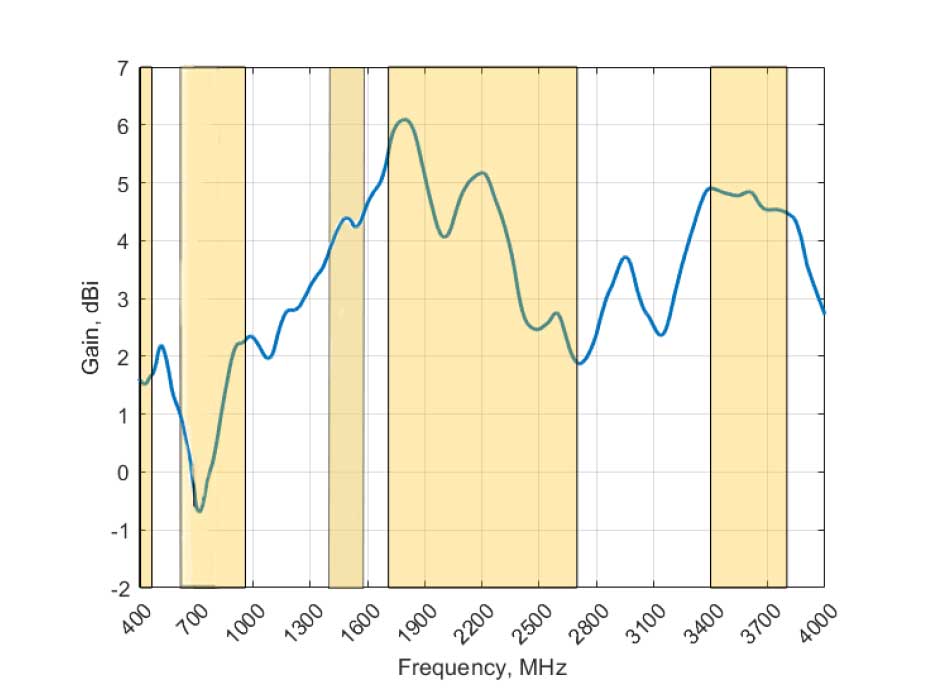

Gain (excluding Cable Loss)

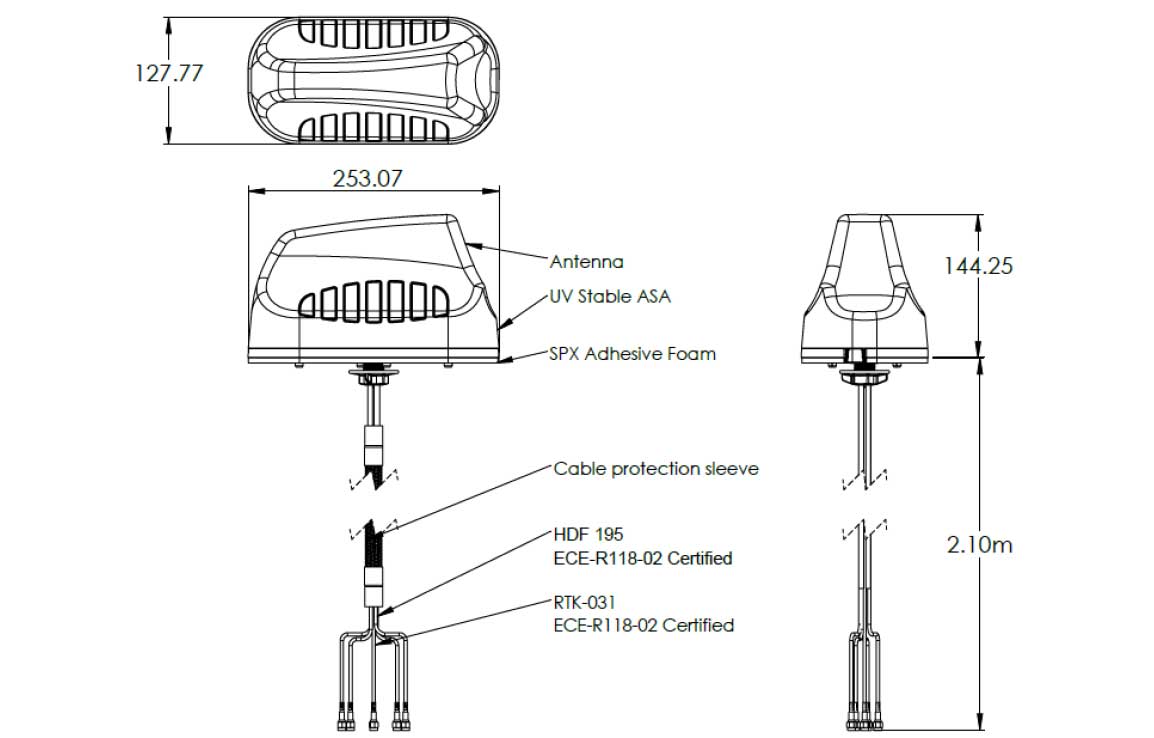

Technical Drawing

FAQ's & Articles

Downloadable Files

MIMO-3-14 Product Certificates

POYNTING-MIMO-3-E-Mark_E1_10R06-Certificate

High Resolution Images

A-MIMO-0003-V2-14 LTE MIMO Antenna Feature Image A-MIMO-0003-V2-14 LTE MIMO Antenna Back View A-MIMO-0003-V2-14 LTE MIMO Antenna Front View A-MIMO-0003-V2-14 LTE MIMO Antenna Side View View Mounting Options Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-MIMO-0003-V2-14 EAN: 6009710920596 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.33kg
2.93lbs		 Packaged Dimensions: 265 x 211 x 204 mm
10.43 x 8.31 x 8.03 inch		 Master Box QTY: 10 Master Box Weight: 18.29kg
40.32lbs		 Master Box Dimensions: 1125 x 430 x 330mm
44.29 x 16.93 x 13 inch		 Country of Origin: CN
SKU A-MIMO-0003-V2-14
EAN 6009710920596
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.33kg
2.93lbs
Packaged Dimensions 265 x 211 x 204 mm
10.43 x 8.31 x 8.03 inch
Master Box QTY 10
Master Box Weight 18.29kg
40.32lbs
Master Box Dimensions 1125 x 430 x 330mm
44.29 x 16.93 x 13 inch
Country of Origin CN
