MIMO-3-15

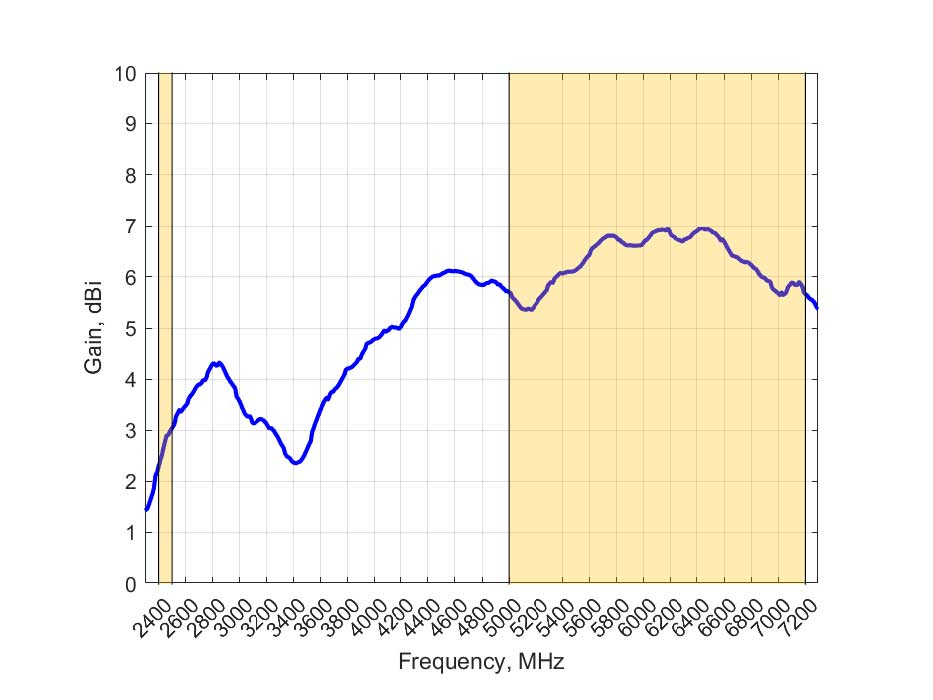

410-3800 MHzLTE: 5.8dBi; Wi-Fi: 7dBi; GPS: 21dBi Omni-Directional5G Ready2X2 MIMO2.4-2.5 GHz 5.0-6.0 GHzGPS IncludedIP 68

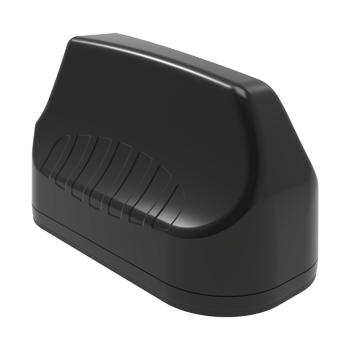

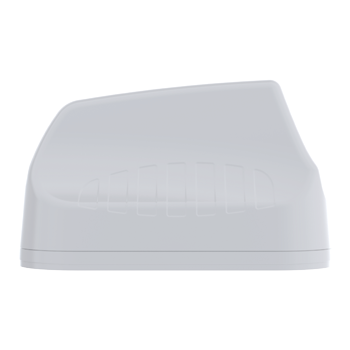

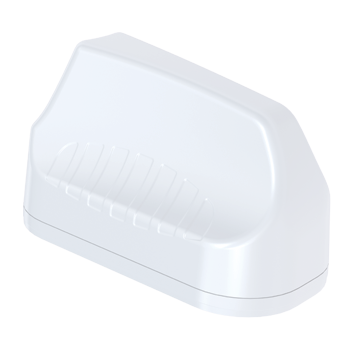

5-in-1 Transportation & Automotive Antenna

410 – 3800 MHz; 2X2 LTE (MIMO), 5.8dBi; 2X2 Wi-Fi (MIMO), 7dBi; GPS/GLONASS, 21dBi

  • 5-in-1 High performance multi frequency 2G/3G/4G/LTE antenna (5G Ready)
  • 2X2 MIMO LTE, 2X2 MIMO Wi-Fi & GPS / GLONASS
  • Ultra-wideband, includes 450 MHz and 3.5 GHz CBRS bands
  • Robust and water-resistant antenna (IP 68)
  • Ideal for transportation and marine use
  • Multi mounting options for easy installation




Closing tab trigger

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Product Overview

The MIMO-3-15 is a 5-in-1 high performance multi frequency antenna within a single housing, providing two cellular, two Wi-Fi and a GPS/GLONASS antenna. The two cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 698 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 GHz on each antenna with 2×2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40°C. The MIMO-3-15 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.

Product Options

SKU A-MIMO-0003-V2-15
Coax Cable Type HDF-195, RTK-031
Coax Cable Length 2.00m
Connector Type SMA (m) & RPSMA adaptors

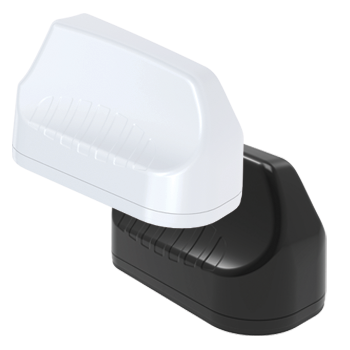

Colour White

Shipping Details

SKU A-MIMO-0003-V2-15
EAN 0707273470263
HS Code #85291069
Packaged Weight 1.36kg
Packaged Dimensions 265 x 211 x 204 mm
Master Box QTY 10
Master Box Weight 18.320kg
Master Box Dimensions 1125 x 430 x 330mm
Country of Origin China
