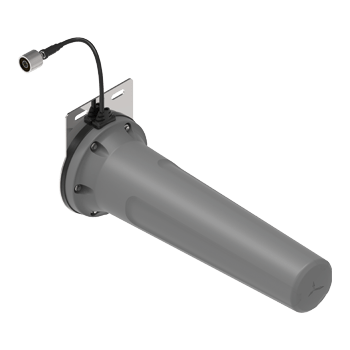

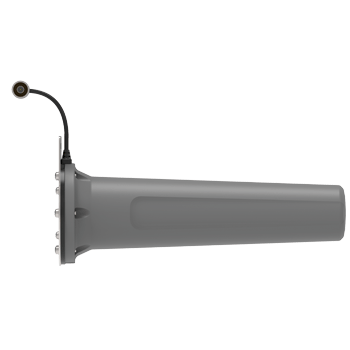

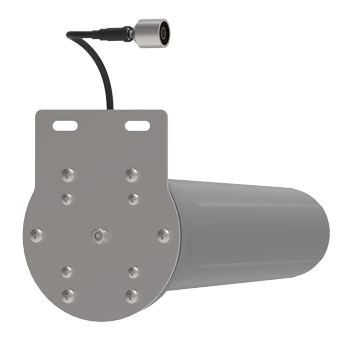

HELI-11
2400-2500 MHz12dBiUni-Directional2.4-2.5 GHz2X2 MIMO Possible with RHC & LHC combined IP 65-40°C to +70°CFire Resistant
Circular Polarised, Uni-Directional Mine/Tunnel Antenna; Wi-Fi

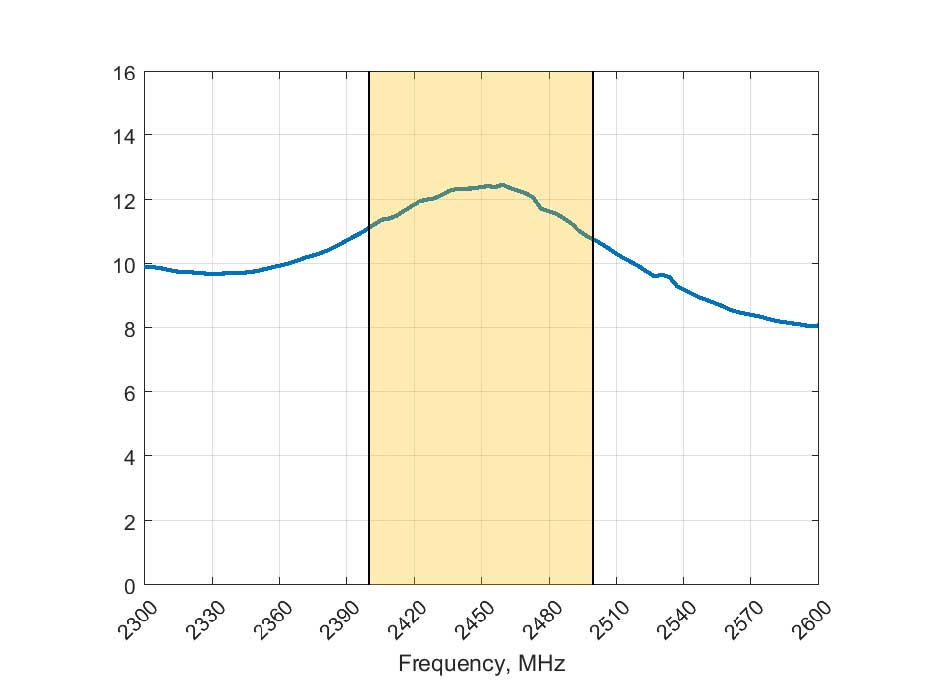

2400 – 2500 MHz, 12dBi
- Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
- Left-Hand Circular (LHC) & Right-Hand Circular (RHC) Polarised options available
- Uni-directional – radiates in one direction in a tunnel
- Ruggedized water and dust ingress protected (IP 65)
- Ideal for Mining & Tunnel M2M and IoT deployments
Closing tab trigger
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Product Overview
The HELI-11 forms part of a series of Mini-HELI antennas. These antennas are only mini in size relative to their bigger brothers, the HELI-3, HELI-4 and, HELI-8 but offer medium to high gain, which makes these antennas ideal for mining tunnels where IoT/M2M connectivity is deployed and can also be used for coverage into the stopes.
The HELI-11 is a 2.4 GHz Wi-Fi antenna, radiating in one direction (i.e. Uni-directional), which makes it ideal for the coverage of the 2.4 GHz in mining and other types of tunnels. These antennas are typically used for the deployment of IoT within the tunnel to provide telemetry and mine automation. These antennas are available in both Left Hand Circular (LHC) & Right-Hand Circular (RHC) polarised antenna elements to provide optimal decorrelation within a MIMO deployment when using the BRKT-45, resulting in optimum performance. The decorrelation is due to the polarisation difference and spatial diversity, between the two antenna elements, which enhances MIMO performance and RF reliability within a mining tunnel. The Wi-Fi connection propagates around tunnel bends in a Non-Line of Sight scenario and provides immunity to many Wi-Fi signal disrupting objects such as trains and drilling machinery which appear to obscure the tunnel.
Product Options
| SKU | A-HELI-0011-V2-01-L | A-HELI-0011-V2-01-R | |||
|---|---|---|---|---|---|
| Coax Cable Type | RG-58 | RG-58 | |||
| Coax Cable Length | 0.35m | 0.35m | |||
| Connector Type | N-Type (m) | N-Type (m) | |||
| Colour | Grey | Grey |
Product Video's
Downloadable Files
FAQ
FAQ – Why Are Circular Polarised MinePoynt HELI Antennas Better For Tunnels?
Case Study – Tunnel inspection & measurement using HELI antennas
Case Study – Poynting’s MinePoynt Antennas Makes Wireless Work Underground
Article – Underground Propagation Range Tests With Poynting’s MinePoynt HELI And MiniHELI Antennas
Shipping Details
| SKU | A-HELI-0011-V2-01-L | A-HELI-0011-V2-01-R | |||
|---|---|---|---|---|---|
| EAN | 6009710920145 | 6009710920152 | |||
| HS Code | #85291069 | #85291069 | |||
| Packaged Weight | 0.9kg | 0.9kg | |||
| Packaged Dimensions | 360 x 150 x 140 mm | 360 x 150 x 140 | |||
| Master Box QTY | 24 | 24 | |||
| Master Box Weight | 23.32kg | 23.32kg | |||
| Master Box Dimensions | 1110 x 690 x 300 mm | 1110 x 690 x 300 mm | |||
| Country of Origin | RSA | RSA |
