- Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
- Left Hand Circular (LHC) & Right-Hand Circular (RHC) Polarised options available
- Bi-directional – radiates in both directions in a tunnel
- Ruggedized, water and dust ingress protected (IP 65)
- Ideal for Mining & Tunnel M2M and IoT deployments

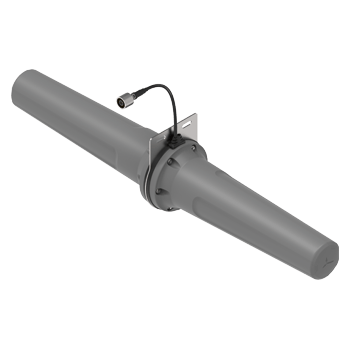

The HELI-18 forms part of a series of Mini-HELI antennas. These antennas are only mini in size relative to their bigger brothers, the HELI-3, HELI-4 & HELI-8, but offer medium to high gain, which makes these antennas ideal for mining tunnels where IoT/M2M connectivity is deployed and can also be used for coverage into the stopes.
The HELI-18 is a set of 5 GHz Wi-Fi antennas, radiating in both directions (i.e. bi-directional), which make them ideal for the coverage of the 5 GHz in mining and other type of tunnels. These antennas are typically used for the deployment of IoT within the tunnel to provide telemetry and mine automation. These antennas are available in both Left Hand Circular (LHC) & Right-Hand Circular (RHC) polarised antenna elements to provide optimal decorrelation within a MIMO deployment when using the BRKT-45, resulting in optimum performance. The decorrelation is due to the polarisation difference and spatial diversity, between the two antenna elements, which enhances MIMO performance and RF reliability within a mining tunnel. The Wi-Fi connection propagates around tunnel bends in a Non-Line of Sight scenario and provides immunity to many Wi-Fi signal disrupting objects such as trains and drilling machinery which appear to obscure the tunnel.
|COAX Cable Type||RG-58||RG-58|
|COAX Cable Length||0.35m||0.35m|
|Packaged Dimensions||660 x 165 x 140 mm||660 x 165 x 140 mm|
|Master Box QTY||12||12|
|Master Box Weight||19.28kg||19.28kg|
|Master Box Dimensions||1110 x 690 x 300 mm||1110 x 690 x 300 mm|
|Country of Origin||RSA||RSA|
