HELI-13

The MiniHELI Enclosure
Circular Polarised, Uni-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi
2400 - 2500 MHz, 12.5dBic; 5000 - 6000 MHz, 13dBic
POYNTING antennas ensure reliable connectivity for busy subway trains, providing seamless communication and internet access in underground tunnels and high-traffic urban environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for mining operations, ensuring seamless communication, automation, and real-time data monitoring in challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas deliver robust connectivity for high-traffic subway trains, ensuring seamless communication and internet access in underground and tunnel environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for underground mining operations, ensuring seamless communication, automation, and data transmission in challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for underground mining trucks, enabling seamless communication and data transmission in tunnel environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for IoT-enabled open-pit mining, supporting seamless communication for unmanned trucks and autonomous vehicles in rugged environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
2400 – 2500; 5000 – 6000 MHzview details below
2.4GHz 12.5dBic; 5GHz 13dBic±14km/9mi coverage*
Directional
2.4-2.5 GHz 5.0-6.0 GHz
2×2 MIMO Possible with RHC & LHC combined
IP65Dust-tight & Water-resistant
-40°C to +80°C
Fire Resistant
(TRG) MDG 3608:2022

Key Features

  • Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
  • Left-Hand Circular (LHC) & Right-Hand Circular (RHC) Polarised options available
  • Uni-directional – radiates in one direction in a tunnel
  • Ruggedized water and dust ingress protected (IP 65)
  • Ideal for Mining & Tunnel M2M and IoT deployments
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
A-HELI-0013-V3-01
A-HELI-0013-V3-01,Circular Polarised, Uni-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Uni-Directional Mine Tunnel Featured Image
A-HELI-0013-V3-01,Circular Polarised, Uni-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Uni-Directional Mine Tunnel Back View
A-HELI-0013-V3-01,Circular Polarised, Uni-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Uni-Directional Mine Tunnel Front View
A-HELI-0013-V3-01,Circular Polarised, Uni-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Uni-Directional Mine Tunnel Side View Left
A-HELI-0013-V3-01,Circular Polarised, Uni-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Uni-Directional Mine Tunnel Side View Right
A-HELI-0013-V3-01,Circular Polarised, Uni-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Uni-Directional Mine Tunnel Top View
A-HELI-0013-V3-01,Circular Polarised, Uni-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Uni-Directional Mine Tunnel Featured Bracket 45
A-HELI-0013-V3-01,Circular Polarised, Uni-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Uni-Directional Mine Tunnel Featured Bracket 47
Compact Bi-Directional Dual-Band Wi-Fi Antenna for IoT and Mining Tunnels

The HELI-13 is part of Poynting’s Mini-HELI series, designed to provide reliable dual-band 2.4 GHz and 5 GHz Wi-Fi connectivity in mining tunnels where IoT and M2M communication is essential. Despite its compact size compared to larger models like the HELI-3, HELI-4, and HELI-8, the HELI-13 delivers medium to high gain performance, making it ideal for coverage into stopes and throughout tunnel environments. This bi-directional antenna radiates signals in both directions, ensuring optimal tunnel-wide Wi-Fi coverage for telemetry, mine automation, and IoT deployments.

Optimized for Tunnel Communications: Supports dual-band 2.4 GHz and 5 GHz Wi-Fi, ensuring reliable coverage for mining and industrial tunnels.
Bi-Directional Design: Provides signal coverage in both directions, making it ideal for long tunnels and extended connectivity.
MIMO-Optimized Deployment: Available in Left-Hand Circular (LHC) and Right-Hand Circular (RHC) polarisation, enhancing MIMO performance when used with the BRKT-45 mount.
Non-Line of Sight (NLOS) Propagation: Wi-Fi signals can propagate around tunnel bends, overcoming obstacles such as mining equipment and trains.
Enhanced RF Reliability: Reduces signal degradation caused by metallic surfaces, machinery, and tunnel curvature.
Compact and Durable Construction: Engineered for harsh underground conditions, ensuring long-term reliability in mining environments.

The HELI-13 is an ideal solution for mining tunnels, delivering reliable, dual-band Wi-Fi connectivity to support industrial automation, IoT, and M2M applications in demanding underground environments.

Ideal Applications

  • Supplementing fibre/leaky feeder cable “Hotspots” to areas to enhance mobility or extend networks to inaccessible areas
  • Underground telemetry and automation
  • Creating of complete underground in tunnel wide data networks and internet/LTE connectivity
  • Seamless connection to personnel using cellular phones and smart devices and tablets

Technical Specifications for HELI-13

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

,

Wi-Fi Standard

, , ,

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Accessories

Product Options/Variants for HELI-13

SKU Connector Type COAX Cable Type / Length Colour
A-HELI-0013-V3-01-L N-Type (m) RG-141 / 0.6m Grey
A-HELI-0013-V3-01-R N-Type (m) RG-141 / 0.6m Grey

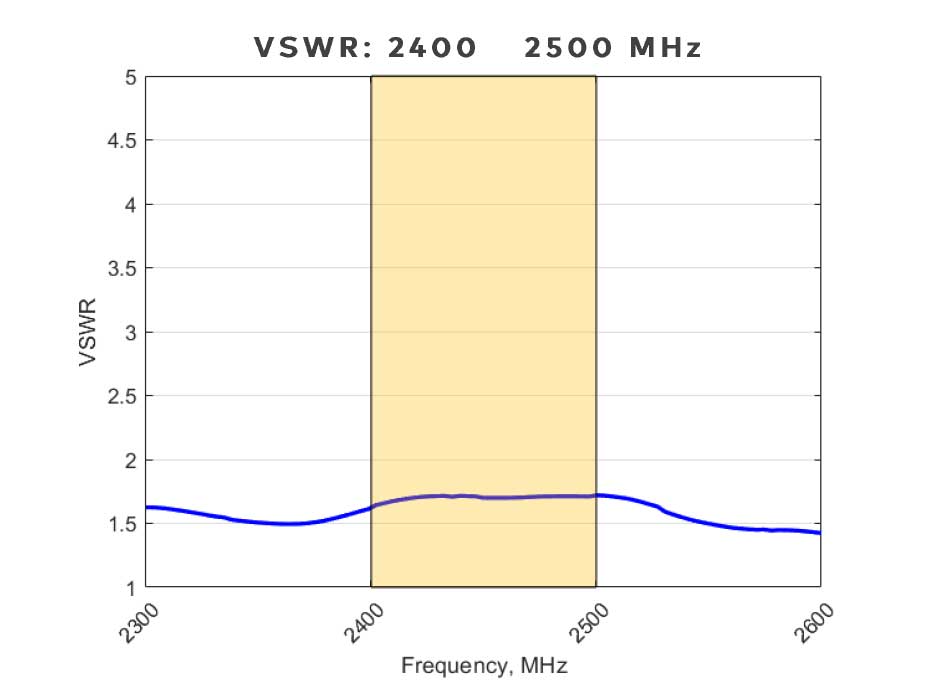

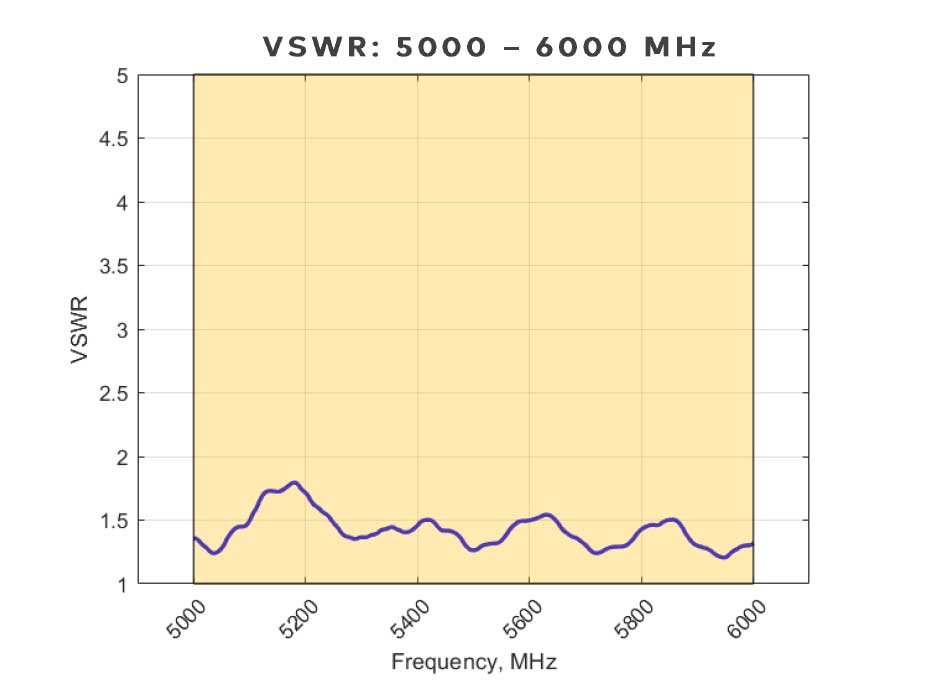

VSWR & Gain

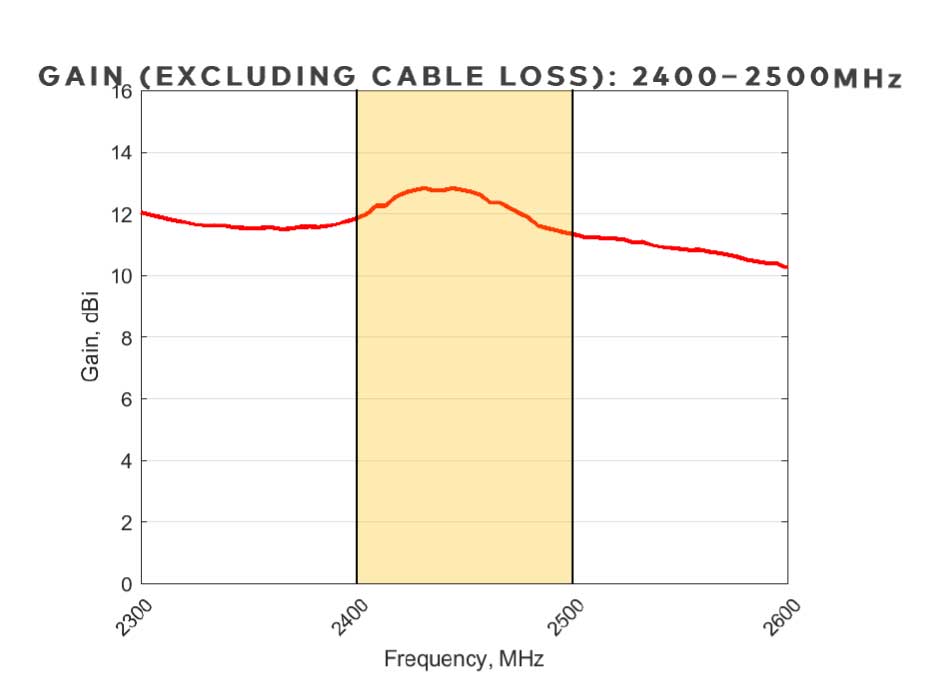

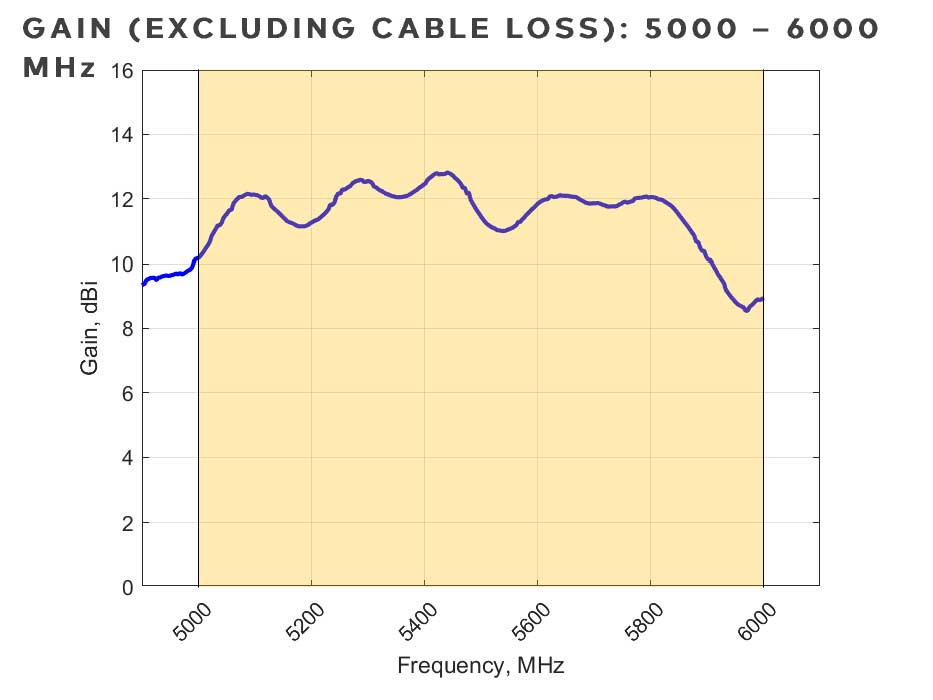

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Rajant

Technical Drawing

FAQ's & Articles

Downloadable Files

HELI-13 Product Certificates

A-HELI-0013-V3-01-L Declaration of Conformity A-HELI-0013-V3-01-R Declaration of Conformity A-HELI-0013-V3 FRAS Certification

High Resolution Images

A-HELI-0013-V3-01 Feature Image A-HELI-0013-V3-01 Front View A-HELI-0013-V3-01 Back View A-HELI-0013-V3-01 Back View Render A-HELI-0013-V3-01 Side View - Left A-HELI-0013-V3-01 Side View - Right A-HELI-0013-V3-01 Top View A-HELI-0013-V3-01 Featured Image - BRKT 45 A-HELI-0013-V3-01 Front View - BRKT 45 A-HELI-0013-V3-01 Back View - BRKT 45 A-HELI-0013-V3-01 Side View - BRKT 45 A-HELI-0013-V3-01 Top View - BRKT 45 A-HELI-0013-V3-01 Featured Image - BRKT 47 A-HELI-0013-V3-01 Front View - BRKT 47 A-HELI-0013-V3-01 Back View - BRKT 47 A-HELI-0013-V3-01 Side View - BRKT 47 A-HELI-0013-V3-01 Top View - BRKT 47 Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-HELI-0013-V3-01-L EAN: 6009710921357 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.9kg
1.98lbs		 Packaged Dimensions: 360 x 165 x 140 mm
14.17 x 6.49 x 5.51 inch		 Master Box QTY: 24 Master Box Weight: 23.32kg
51.41lbs		 Master Box Dimensions: 1110 x 690 x 300 mm
43.7 x 27.17 x 11.82 inch		 Country of Origin: RSA
SKU A-HELI-0013-V3-01-R EAN: 6009710921364 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.9kg
1.98lbs		 Packaged Dimensions: 360 x 165 x 140 mm
14.17 x 6.49 x 5.51 inch		 Master Box QTY: 24 Master Box Weight: 23.32kg
51.41lbs		 Master Box Dimensions: 1110 x 690 x 300 mm
43.7 x 27.17 x 11.82 inch		 Country of Origin: RSA
SKU A-HELI-0013-V3-01-LA-HELI-0013-V3-01-R
EAN 60097109213576009710921364
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.9kg
1.98lbs		0.9kg
1.98lbs
Packaged Dimensions 360 x 165 x 140 mm
14.17 x 6.49 x 5.51 inch		360 x 165 x 140 mm
14.17 x 6.49 x 5.51 inch
Master Box QTY 2424
Master Box Weight 23.32kg
51.41lbs		23.32kg
51.41lbs
Master Box Dimensions 1110 x 690 x 300 mm
43.7 x 27.17 x 11.82 inch		1110 x 690 x 300 mm
43.7 x 27.17 x 11.82 inch
Country of Origin RSARSA
