HELI-42

The MiniHELI Enclosure
Circular Polarised, Bi-Directional Mine/Tunnel Wi-Fi Antenna
2400 - 2500 MHz, 9.5dBic; 5000 - 6000 MHz, 13dBic
2400-6000 MHzview details below
2.4 GHz 9.5dBi; 5 GHz 13dBi±9km/6mi coverage*
Bi-Directional
2.4-2.5 GHz 5.0-6.0 GHz
4×4 MIMO Possible with RHC & LHC combined
IP65Dust-tight & Water-resistant
-40°C to +70°C
Fire Resistant
(TRG) MDG 3608:2022

Key Features

  • Circular Polarised HELI antenna provides enhanced signal propagation ad connection stability within a tunnel
  • Left Hand Circular (LHC) & Right-Hand Circular (RHC) polarised
  • Uni-directional – radiates in one direction in a tunnel
  • Ruggedized, water and dust ingress protected (IP 65)
  • Ideal for Mining & Tunnel M2M and IoT deployment
Supported Connectivity Technologies


A-HELI-0042-V2-01
Dual-Band Bi-Directional Wi-Fi Antenna for Mining and Tunnel Applications

The HELI-42 is part of the Mini-HELI antenna series, offering medium to high gain performance in a compact design. This dual-band 2.4 GHz and 5 GHz Wi-Fi antenna provides bi-directional coverage, making it ideal for seamless connectivity in mining tunnels and industrial environments. The HELI-42 enhances IoT, telemetry, and automation applications, ensuring reliable communication even in challenging underground conditions.

Dual-Band Wi-Fi Coverage: Supports both 2.4 GHz and 5 GHz frequency bands for high-performance wireless communication.
Bi-Directional Radiation Pattern: Provides extended coverage along tunnels, enhancing network stability and connectivity.
Optimized for High-Density MIMO Deployments: Compatible with 4x4 and 8x8 MIMO configurations using the BRKT-46 mount.
Left-Hand & Right-Hand Circular Polarization: Improves decorrelation, reducing interference and enhancing MIMO performance.
Non-Line-of-Sight (NLOS) Propagation: Circular polarization allows signals to navigate around tunnel bends and obstacles.
Rugged Industrial Design: Engineered for underground applications, ensuring durability and resistance to environmental disruptions.

The HELI-42 is a powerful Wi-Fi antenna solution for mining and industrial environments, delivering robust and stable connectivity in complex tunnel networks.

Ideal Applications

  • Supplementing fibre/leaky feeder cable “Hotspots” to areas to enhance mobility or extend networks to inaccessible areas
  • Underground telemetry and automation
  • Creating of complete underground in tunnel wide data networks and internet/ LTE connectivity
  • Seamless connection to personnel using cellular phones, smart devices and tablets

Technical Specifications for HELI-42

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

,

Wi-Fi Standard

, , ,

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Accessories

Product Options/Variants for HELI-42

SKU Connector Type COAX Cable Type / Length Colour
A-HELI-0042-V2-01 N-Type (m) RG-58 / 0.6m Grey
A-HELI-0042-V2-02 N-Type (m) RG-58 / 0.6m Grey

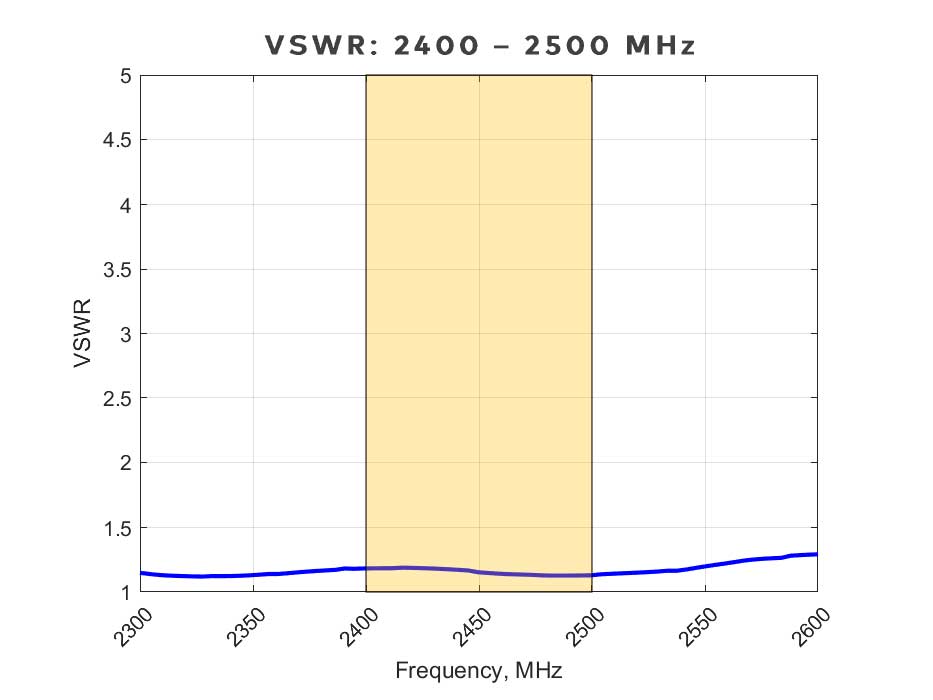

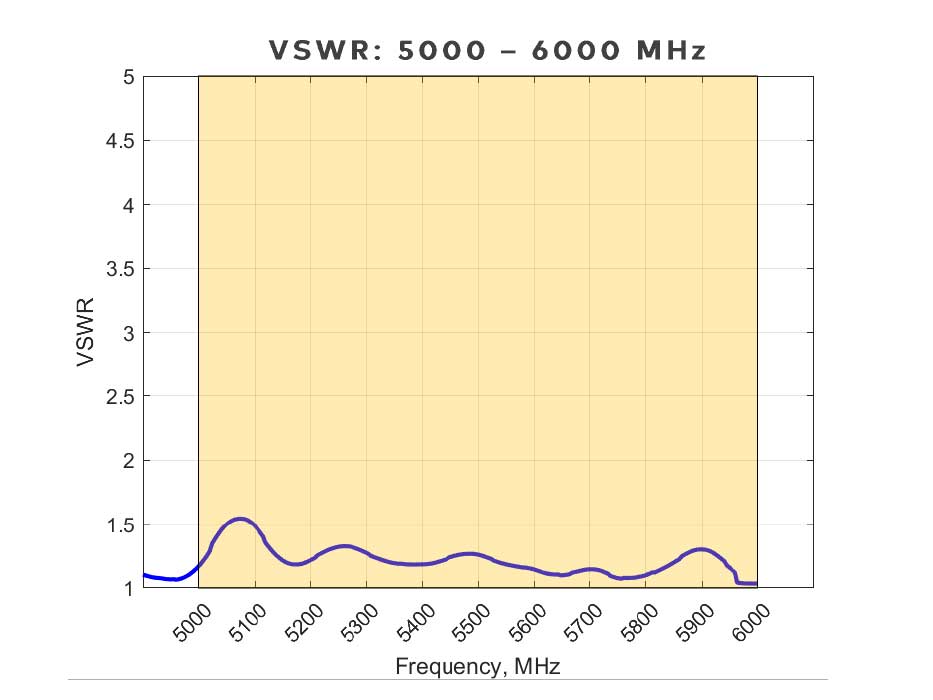

VSWR & Gain

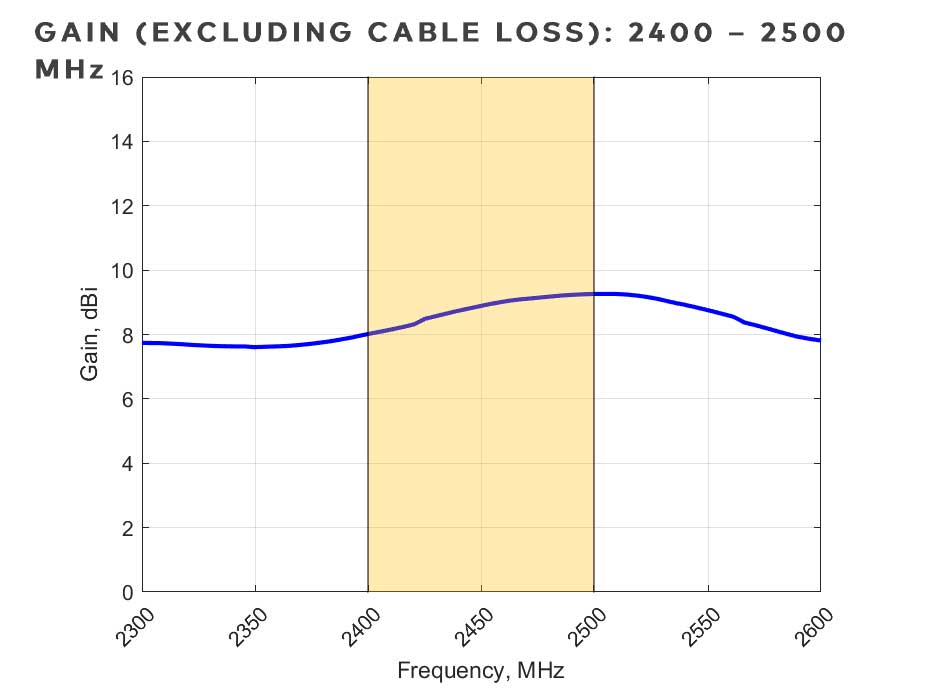

Gain (excluding Cable Loss)

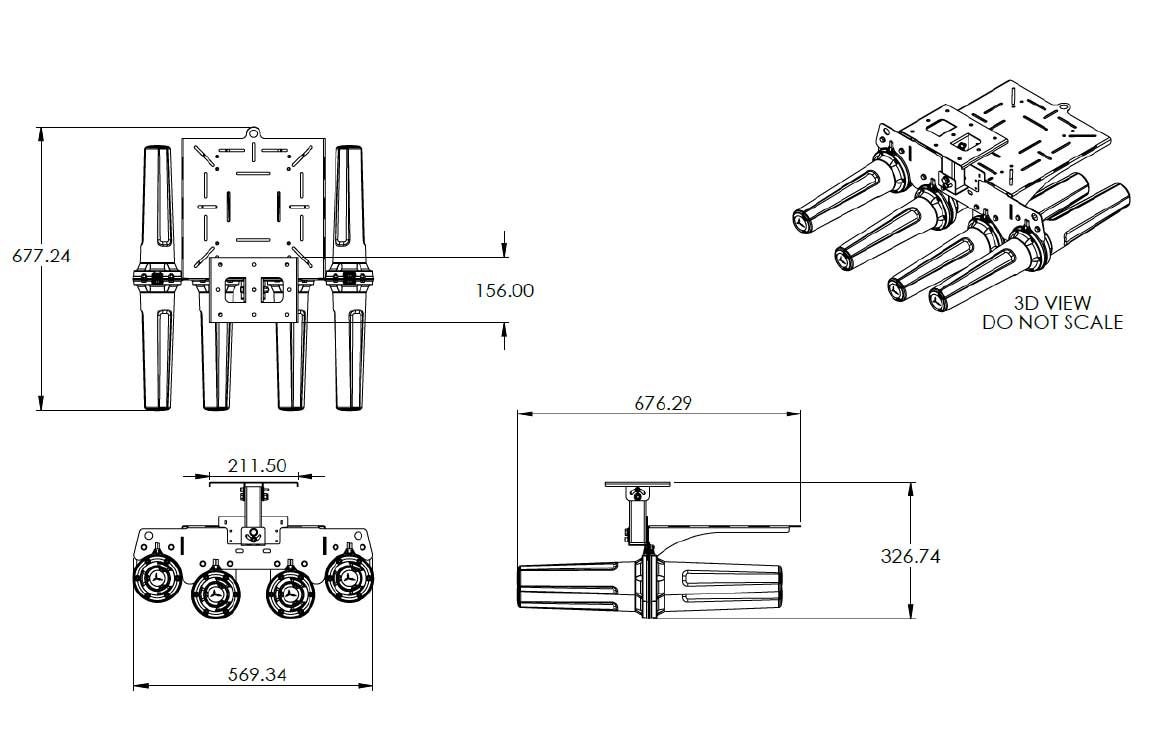

Technical Drawing

FAQ's & Articles

No articles available currently.

Shipping Details

SKU A-HELI-0042-V2-01 EAN: 6009710924112 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: TBC Packaged Dimensions: TBC Master Box QTY: TBC Master Box Weight: TBC Master Box Dimensions: TBC Country of Origin: RSA
SKU A-HELI-0042-V2-02 EAN: 6009710924136 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: TBC Packaged Dimensions: TBC Master Box QTY: TBC Master Box Weight: TBC Master Box Dimensions: TBC Country of Origin: RSA
SKU A-HELI-0042-V2-01A-HELI-0042-V2-02
EAN 60097109241126009710924136
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight TBCTBC
Packaged Dimensions TBCTBC
Master Box QTY TBCTBC
Master Box Weight TBCTBC
Master Box Dimensions TBCTBC
Country of Origin RSARSA
