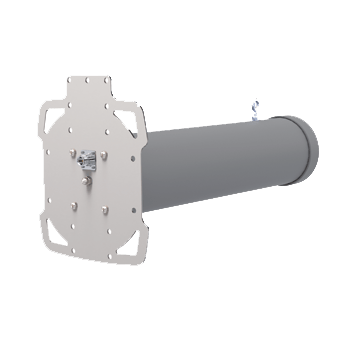

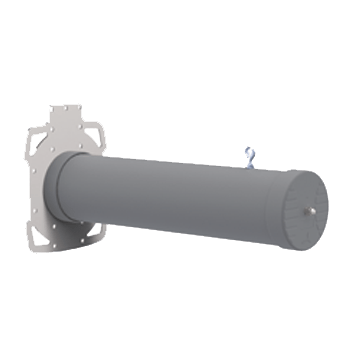

HELI-5

The MinePoynt Enclosure
Circular Polarised, Directional Mine/Tunnel Antenna; LTE
1710 - 2170 MHz, 16dBic
1710 – 2170 MHzview details below
16dBic±28km/17mi coverage*
Directional
IP65Dust-tight & Water-resistant
-40°C to +80°C
Fire Resistant

Key Features

  • Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
  • Covers LTE frequency band 10 from 1710 – 2170 MHz
  • Uni-directional – radiates in one direction in a tunnel
  • Ruggedized & water ingress protected
  • Ideal for Mining & Tunnel M2M and IoT deployments
Supported Connectivity Technologies


A-HELI-0005-V1-01
High-Gain Uni-Directional Antenna for LTE and Underground Mining Applications

The HELI-5 is a high-gain, uni-directional antenna designed for LTE applications, complementing Poynting’s MinePoynt mine and tunnel antennas. Developed with over fifteen years of expertise in underground mining communication and data networks, this antenna is optimized for long-distance thru-tunnel communication when paired with MinePoynt beam antennas. The HELI-5 is also suitable for oil, gas, and chemical environments where intrinsically safe (IS) equipment is required.

Optimized for LTE Networks: Operates within 1710 MHz – 2170 MHz, ensuring reliable LTE connectivity in mining and industrial environments.
High-Gain Performance: Delivers superior data transmission and network reliability, outperforming linear polarized panel antennas of the same gain.
Uni-Directional Design: Focuses signal strength for long-distance thru-tunnel communication.
Rugged and Durable Construction: Engineered to withstand harsh mining and industrial conditions.
Compatible with MinePoynt Beam Antennas: Seamlessly integrates with MinePoynt antennas for extended-range underground connectivity.
Suitable for Hazardous Environments: Designed for oil, gas, and chemical industries requiring intrinsically safe (IS) equipment.
Alternative Frequency Option: The HELI-6 operates within 698 – 960 MHz, providing an alternative for applications requiring lower frequency coverage.

The HELI-5 is a cost-effective, high-performance solution for underground mining, industrial, and hazardous environments, ensuring strong LTE connectivity and enhanced communication networks.

Ideal Applications

  • Supplementing fibre/cable network “Hotspots” to enhance mobility or extend networks to inaccessible areas such as mines and tunnels
  • Underground telemetry
  • Creation of complete underground in-tunnel wide data networks and internet/LTE connectivity
  • Seamless connection to personnel using cellular phones, smart devices and tablets

Technical Specifications for HELI-5

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

,

5G Bands

, , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , ,

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

Cellular Ports

Product Options/Variants for HELI-5

SKU Connector Type COAX Cable Type / Length Colour
A-HELI-0005-V1-01 N-Type (f) N/A / N/A Grey

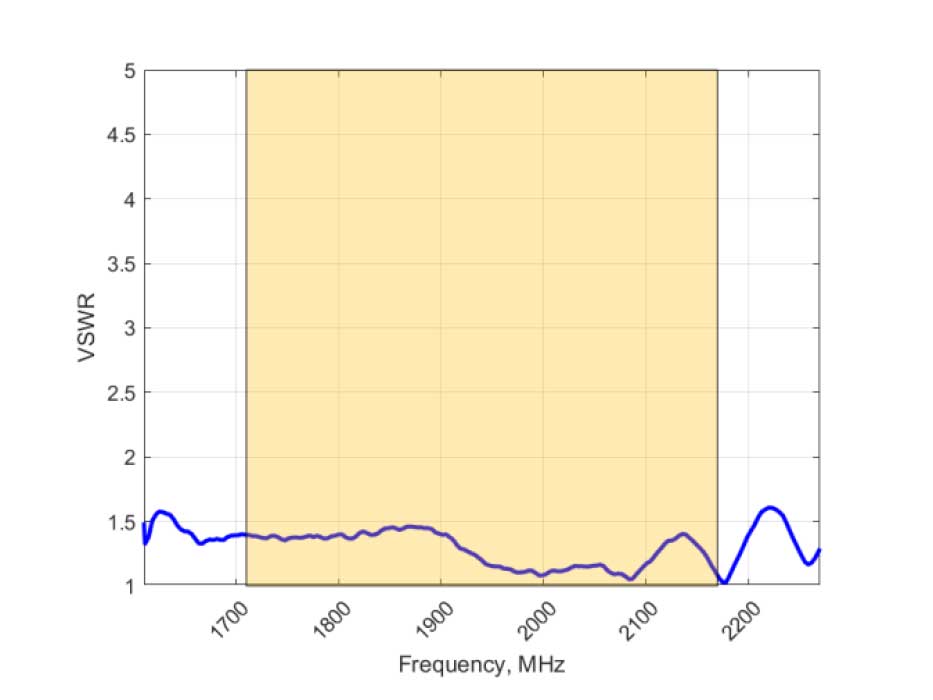

VSWR & Gain

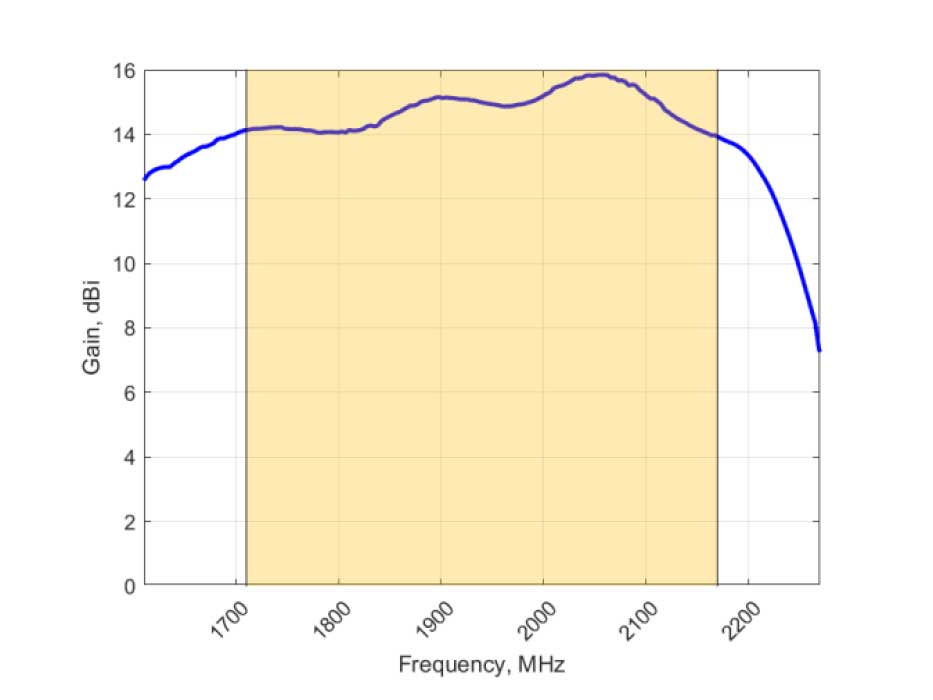

Gain (excluding Cable Loss)

Router Compatibilities

Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.

Technical Drawing

FAQ's & Articles

Shipping Details

SKU A-HELI-0005-V1-01 EAN: 6009880915446 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: 1.8kg
3.97lbs
Packaged Dimensions: 600 x 160 x 160 mm
23.62 x 6.3 x 6.3 inch
Master Box QTY: 1 Master Box Weight: 1.8kg
3.97lbs
Master Box Dimensions: 600 x 160 x 160 mm
23.62 x 6.3 x 6.3 inch
Country of Origin: RSA
SKU A-HELI-0005-V1-01
EAN 6009880915446
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.8kg
3.97lbs
Packaged Dimensions 600 x 160 x 160 mm
23.62 x 6.3 x 6.3 inch
Master Box QTY 1
Master Box Weight 1.8kg
3.97lbs
Master Box Dimensions 600 x 160 x 160 mm
23.62 x 6.3 x 6.3 inch
Country of Origin RSA
