HELI-6
698-960 MHz13.5dBiUni-directional4G LTELoRaIP 65-40°C to +70°CFire Resistant
Circular Polarised, Directional Mine/Tunnel Antenna; LTE/LoRa

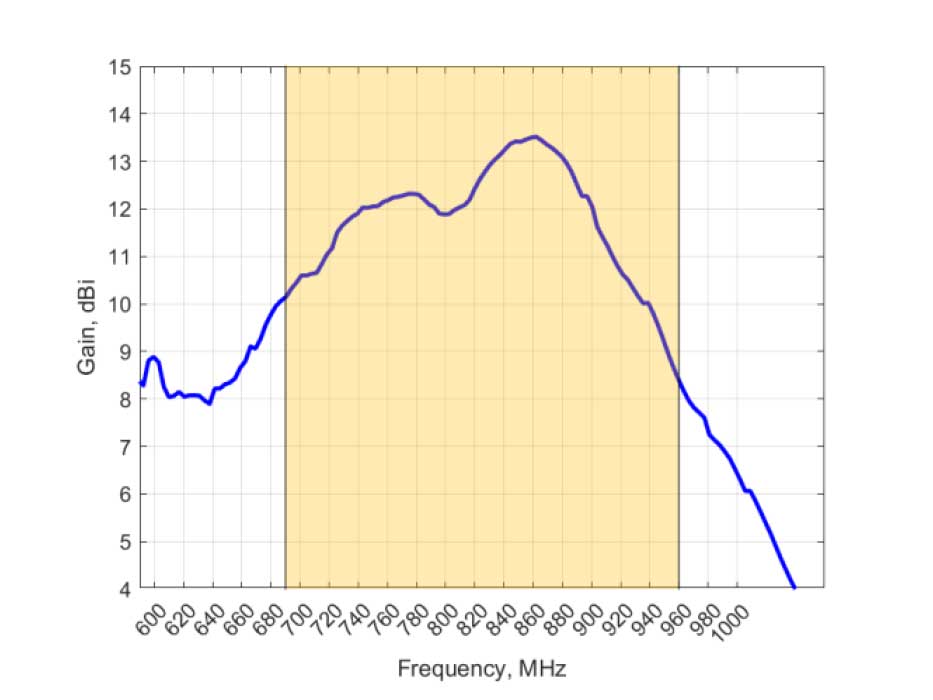

698 – 960 MHz, 13.5dBi
- Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
- Covers traditional ISM bands for 868/915 MHz, LoRa and other technologies
- Uni-directional – radiates in one direction in a tunnel
- Ruggedized & water ingress protected (IP 65)
- Ideal for Mining & Tunnel M2M and IoT deployments
Closing tab trigger
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Product Overview
The HELI-6 is a high gain LTE directional antenna, which complements our MinePoynt mine and tunnel antennas. MinePoynt antennas exploits Poynting’s fifteen years’ experience in designing and manufacturing antennas for underground mining communication and data networks. This antenna is also suitable for oil/gas chemical environments as well as fiery mines where IS equipment is required. In tests, the data rate and range achieved with this antenna was substantially greater than obtained when using linear polarised panel antennas of the same gain. The hardy construction of the antenna makes it ideal for a mining environment. The HELI-6 operates from 698 – 960 MHz while the HELI-5 operates from 1710 – 2170 MHz.
Product Options
| SKU | A-HELI-0006-V1-01 | ||||
|---|---|---|---|---|---|
| Coax Cable Type | N/A | ||||
| Coax Cable Length | N/A | ||||
| Connector Type | N-Type (f) | ||||
| Colour | Grey |
Product Video's
Downloadable Files
FAQ
FAQ – Why Are Circular Polarised MinePoynt HELI Antennas Better For Tunnels?
Case Study – Tunnel inspection & measurement using HELI antennas
Case Study – Poynting’s MinePoynt Antennas Makes Wireless Work Underground
Article – Underground Propagation Range Tests With Poynting’s MinePoynt HELI And MiniHELI Antennas
Shipping Details
| SKU | A-HELI-0006-V1-01 | ||||
|---|---|---|---|---|---|
| EAN | 6009880915453 | ||||
| HS Code | #85291069 | ||||
| Packaged Weight | 1.9kg | ||||
| Packaged Dimensions | 600 x 250 x 210 mm | ||||
| Master Box QTY | - | ||||
| Master Box Weight | - | ||||
| Master Box Dimensions | - | ||||
| Country of Origin | - |
