MIMO-4-14 V2

The Armadillo Enclosure
High-Performance 5-in-1 4×4 MIMO and GNSS Antenna for 4G/5G Applications
617 - 6000 MHz; 4x4 LTE/5G (MIMO), 6dBi; GNSS, 21dBi
POYNTING MIMO-4 V2 product banner showcasing 5-in-1 antenna series for 4G, 5G and GNSS connectivity across transport, industrial and marine applications.
Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for first responders, enabling seamless communication and critical IoT support in urban transport and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for urban buses, supporting seamless communication and internet access for transport and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for small and large open office spaces in urban commercial environments, ensuring seamless communication and data access. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for industrial and commercial warehousing, ensuring seamless communication and automation for efficient inventory management. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-6000 MHzview details below
LTE: 6dBi; GPS: 21dBi ±24km/15mi coverage*
Omni-Directional
4×4 MIMO
IP69K
E-Mark

Key Features

  • 5-in-1 High performance multi frequency automotive antenna
  • Ultra-wideband coverage from 617 to 6000 MHz for cellular
  • 4x4 MIMO LTE/5G & GNSS
  • Robust and weather resistant antenna with an IP69K rating
  • Ideal for transportation and marine implementation
  • Multi mounting options for easy installation
Supported Connectivity Technologies




Datasheet Options
POYNTING Antenna Solution Finder
A-MIMO-0004-V2-14
POYNTING MIMO-4-17 V2 featured view showing both black and white antenna variants

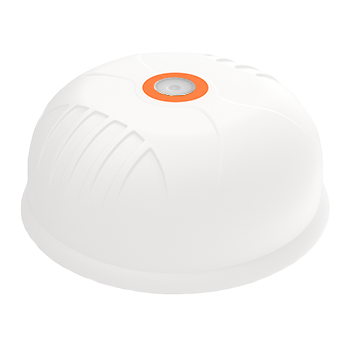

POYNTING MIMO-4-17 V2 white featured view showing compact antenna housing

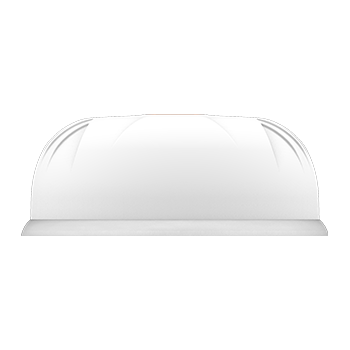

POYNTING MIMO-4-17 V2 white front view showing low-profile antenna design

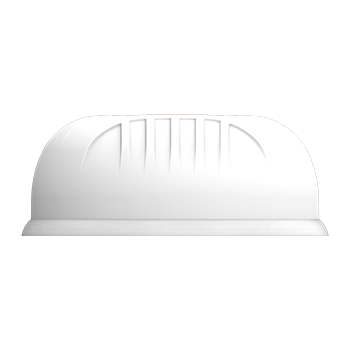

POYNTING MIMO-4-17 V2 white side view displaying aerodynamic housing

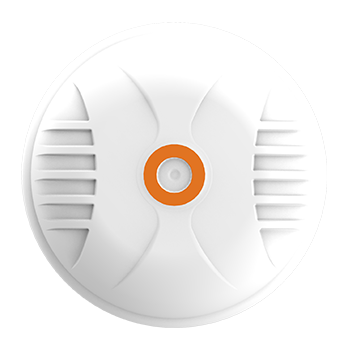

POYNTING MIMO-4-17 V2 white top view showing symmetrical antenna layout
POYNTING MIMO-4-17 V2 white bottom view showing cable exits and mounting base
POYNTING MIMO-4-17 V2 black featured view showing compact antenna design

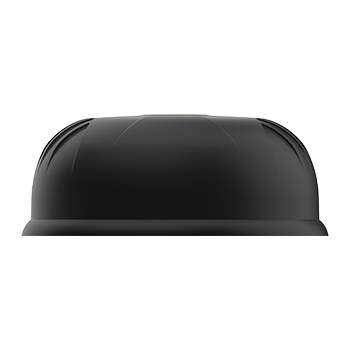

POYNTING MIMO-4-17 V2 black front view showing strong low-profile enclosure
POYNTING MIMO-4-17 V2 black side view highlighting aerodynamic profile

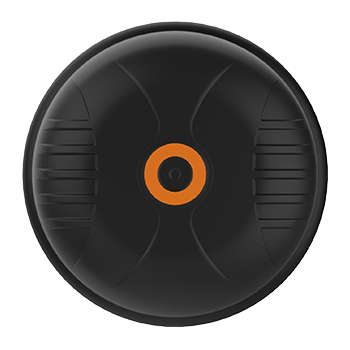

POYNTING MIMO-4-17 V2 black top view showing symmetrical antenna configuration

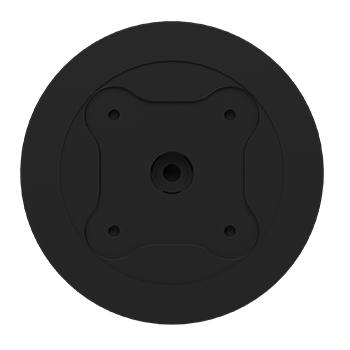

POYNTING MIMO-4-17 V2 black bottom view showing cable outputs and mounting base

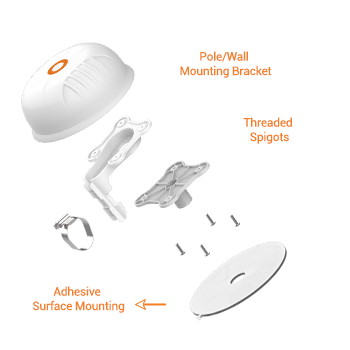

POYNTING MIMO-4-17 V2 mounting options showing pole, spigot and surface installation examples
Future-Ready Connectivity for Transportation, Marine and Industrial Environments

The POYNTING MIMO-4-14 is a high-performance 5-in-1, multi-frequency antenna designed to deliver reliable 4×4 MIMO cellular connectivity with integrated GNSS. Featuring four wideband cellular antennas covering 617 – 6000 MHz and one high-performance GNSS antenna, the MIMO-4-14 provides future-proof operation across 4G/LTE and 5G bands, as well as Wi-Fi (2.4 – 6 GHz) frequencies. Its ultra-wideband design ensures optimal performance across global cellular operators, delivering high throughput and low latency for next-generation connectivity.

5-in-1 Multi-Frequency Design: Combines 4×4 MIMO cellular antennas and 1× GNSS antenna for full 4G/5G and positioning coverage.

Ultra-Wideband Cellular Support: Operates from 617 MHz to 6 GHz for LTE, 5G NR and Wi-Fi applications.

Superior Radiation Performance: Balanced omni-directional patterns ensure stable connectivity across variable environments.

Ideal for Mobile and Fixed Applications: Perfect for transport fleets, marine systems, industrial automation, and IoT/M2M deployments.

Rugged and Compact Housing: Designed for reliable performance in vibration-prone or weather-exposed environments such as vehicles and vessels.

Future-Proof Design: Ready for upcoming 5G frequency expansions and technology shifts.

The MIMO-4-14 offers outstanding performance and pattern stability, ensuring consistent connectivity for mission-critical mobile, industrial, and marine communications where high-speed broadband and telemetry are essential.

Print Friendly, PDF & Email

Ideal Applications

  • Transport broadband, automation and telemetry for busses, utility, trucking and public safety vehicles
  • Industrial factory automation, robotic machinery and other M2M systems telemetry
  • Farming & Agricultural automation such as M2M & IoT
  • Broadband cellular to Wi-Fi distribution for Marine/Boats
  • Mining vehicles & machinery communications, telemetry, and automation (M2M & IoT)

Technical Specifications for MIMO-4-14 V2

Additional information

Industry (Application)

, ,

Technology

,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , ,

Product Configuration

Gain

Directionality

Mounting Type

, , , ,

Connectors

MIMO

Polarisation

Environmental

LTE Ports

GNSS/GPS Ports

Accessories

Product Options/Variants for MIMO-4-14 V2

SKU Connector Type COAX Cable Type / Length Colour
A-MIMO-0004-V2-14-B SMA (M) RTK-031 / 2m Black
A-MIMO-0004-V2-14-W SMA (M) RTK-031 / 2m White

VSWR & Gain

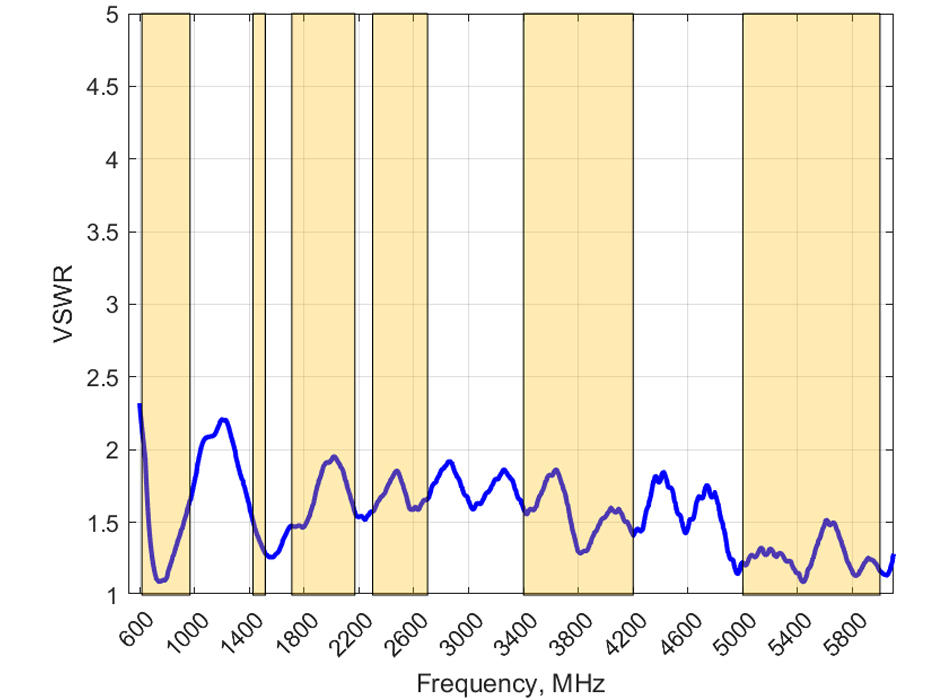

POYNTING MIMO-4-14 VSWR performance chart showing frequency response from 617 MHz to 6000 MHz

Gain (excluding Cable Loss)
POYNTING MIMO-4-14 gain performance chart displaying radiation efficiency across 4G, 5G and Wi-Fi bands

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

MIMO-4-14 V2 Front View - White MIMO-4-14 V2 Side View - White MIMO-4-14 V2 Top View - White MIMO-4-14 V2 Bottom View - White MIMO-4-14 V2 Featured View - Black MIMO-4-14 V2 Front View - Black MIMO-4-14 V2 Side View - Black MIMO-4-14 V2 Top View - Black MIMO-4-14 V2 Bottom View - Black MIMO-4-14 V2 Mounting Options (Pole) MIMO-4-14 V2 Mounting Options (Spigot) Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-MIMO-0004-V2-14-B EAN: TBC HS Code: TBC Packaged Weight: TBC Packaged Dimensions: TBC Master Box QTY: TBC Master Box Weight: TBC Master Box Dimensions: TBC Country of Origin: CN
SKU A-MIMO-0004-V2-14-W EAN: HS Code: Packaged Weight: Packaged Dimensions: Master Box QTY: Master Box Weight: Master Box Dimensions: Country of Origin: CN
SKU A-MIMO-0004-V2-14-BA-MIMO-0004-V2-14-W
EAN TBC
HS Code TBC
Packaged Weight TBC
Packaged Dimensions TBC
Master Box QTY TBC
Master Box Weight TBC
Master Box Dimensions TBC
Country of Origin CNCN
