MIMO-4-4 V2

The Armadillo Enclosure
4-in-1 Transportation & Automotive Antenna
617 - 6000 MHz; 4x4 LTE/5G (MIMO), 6dBi
POYNTING MIMO-4 V2 product banner showcasing 5-in-1 antenna series for 4G, 5G and GNSS connectivity across transport, industrial and marine applications.
Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for first responders, enabling seamless communication and critical IoT support in urban transport and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for urban buses, supporting seamless communication and internet access for transport and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for small and large open office spaces in urban commercial environments, ensuring seamless communication and data access. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for industrial and commercial warehousing, ensuring seamless communication and automation for efficient inventory management. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-6000 MHzview details below
6dBi±24km/15mi coverage*
Omni-Directional
4×4 MIMO
IP69K
-40°C to +80°C
E-Mark

Key Features

  • 4-in-1 High performance multi-frequency automotive antenna
  • Ultra-wideband coverage from 617 to 6000 MHz for cellular
  • 4x4 MIMO LTE/5G
  • Robust and weather resistant antenna with an IP69K rating
  • Ideal for transportation and marine implementation
  • Multi mounting options for easy installation
Supported Connectivity Technologies




Datasheet Options
POYNTING Antenna Solution Finder
A-MIMO-0004-V2-04
POYNTING MIMO-4-17 V2 featured view showing both black and white antenna variants
POYNTING MIMO-4-17 V2 white featured view showing compact antenna housing
POYNTING MIMO-4-17 V2 white front view showing low-profile antenna design
POYNTING MIMO-4-17 V2 white side view displaying aerodynamic housing
POYNTING MIMO-4-17 V2 white top view showing symmetrical antenna layout
POYNTING MIMO-4-17 V2 white bottom view showing cable exits and mounting base
POYNTING MIMO-4-17 V2 black featured view showing compact antenna design
POYNTING MIMO-4-17 V2 black front view showing strong low-profile enclosure
POYNTING MIMO-4-17 V2 black side view highlighting aerodynamic profile
POYNTING MIMO-4-17 V2 black top view showing symmetrical antenna configuration
POYNTING MIMO-4-17 V2 black bottom view showing cable outputs and mounting base
POYNTING MIMO-4-17 V2 mounting options showing pole, spigot and surface installation examples
High-Performance 4-in-1 Multi-Frequency Antenna for 5G & LTE

The MIMO-4-4 is a high-performance 4-in-1 multi-frequency antenna housed in a single enclosure, providing four cellular MIMO antennas for seamless connectivity. Designed for LTE/4G and emerging 5G networks, it supports a wide frequency range from 617 MHz to 6000 MHz, ensuring compatibility with various operators and future cellular technologies up to 6 GHz.

Ultra-Wideband Cellular Coverage: Supports frequencies from 617 MHz to 6 GHz, covering LTE and 5G applications.

Advanced 4×4 Cellular MIMO Technology: Enhances signal strength, pattern diversity, and omnidirectional coverage.

Optimised for Transportation & Marine Use: Designed to meet the demanding requirements of commercial vehicles, marine, and industrial applications.

Futureproof Connectivity: Ensures long-term compatibility with evolving cellular networks and IoT applications.

Superior Radiation Performance: Engineered for an optimal balance between omnidirectionality, diversity, and signal propagation.

The MIMO-4-4 is the ideal solution for transportation, marine, M2M, and IoT applications, delivering exceptional performance, durability, and future-ready connectivity across multiple frequency bands.

Print Friendly, PDF & Email

Ideal Applications

  • Transport broadband, automation and telemetry for busses, utility, trucking and public safety vehicles
  • Industrial factory automation, robotic machinery and other M2M systems telemetry
  • Farming & Agricultural automation such as M2M & IoT
  • Broadband cellular to Wi-Fi distribution for Marine/Boats
  • Mining vehicles & machinery communications, telemetry, and automation (M2M & IoT)

Technical Specifications for MIMO-4-4 V2

Additional information

Industry (Application)

, ,

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , ,

Product Configuration

Gain

Directionality

Mounting Type

, , , ,

Connectors

MIMO

Polarisation

Environmental

LTE Ports

Accessories

Product Options/Variants for MIMO-4-4 V2

SKU Connector Type COAX Cable Type / Length Colour
A-MIMO-0004-V2-04-B SMA (M) RTK-031 / 2m Black
A-MIMO-0004-V2-04-W SMA (M) RTK-031 / 2m White

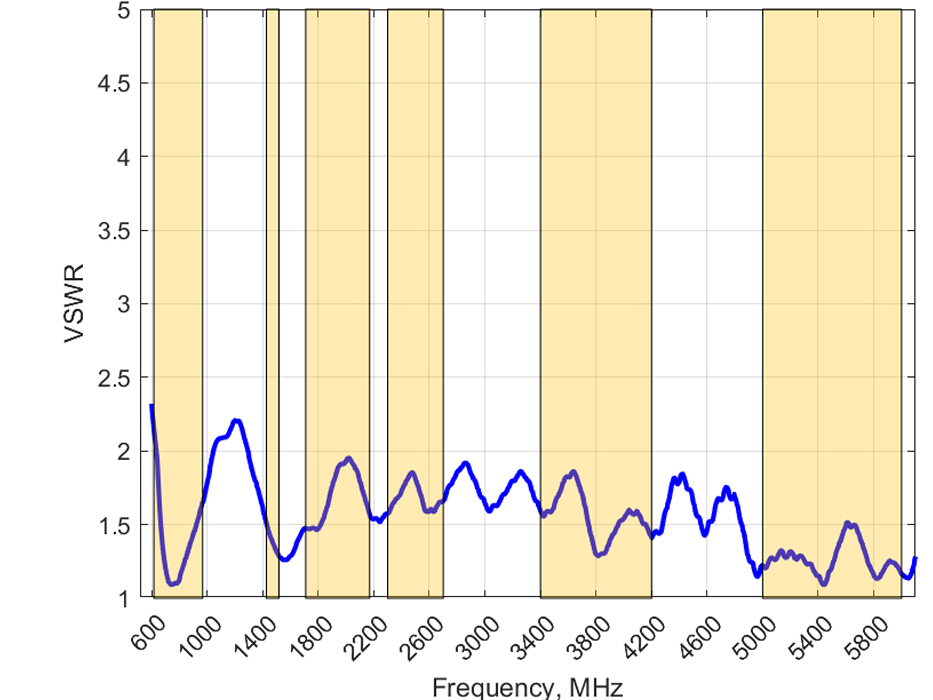

VSWR & Gain

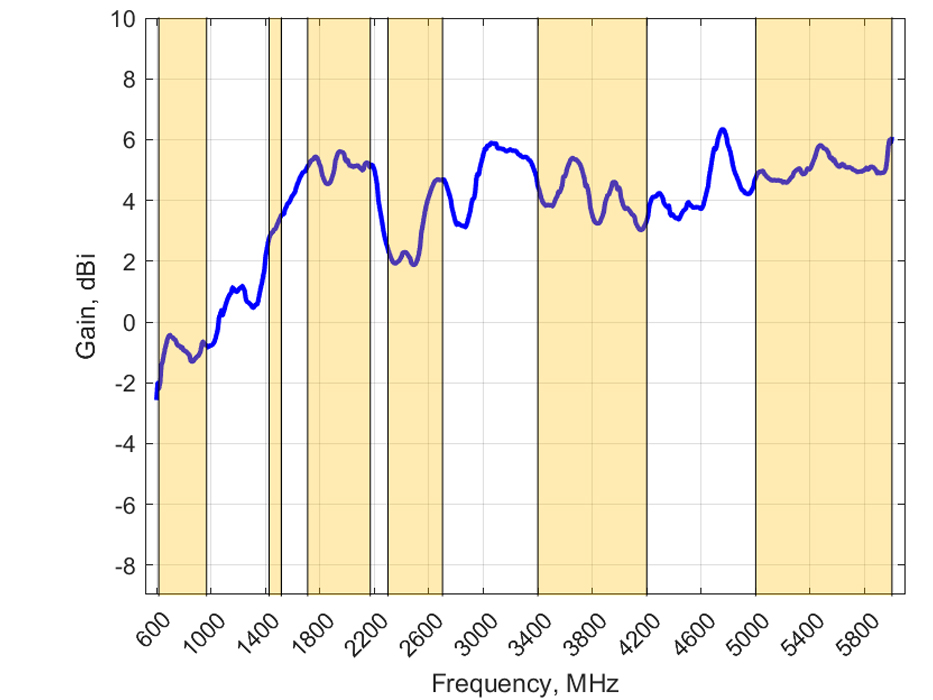

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.

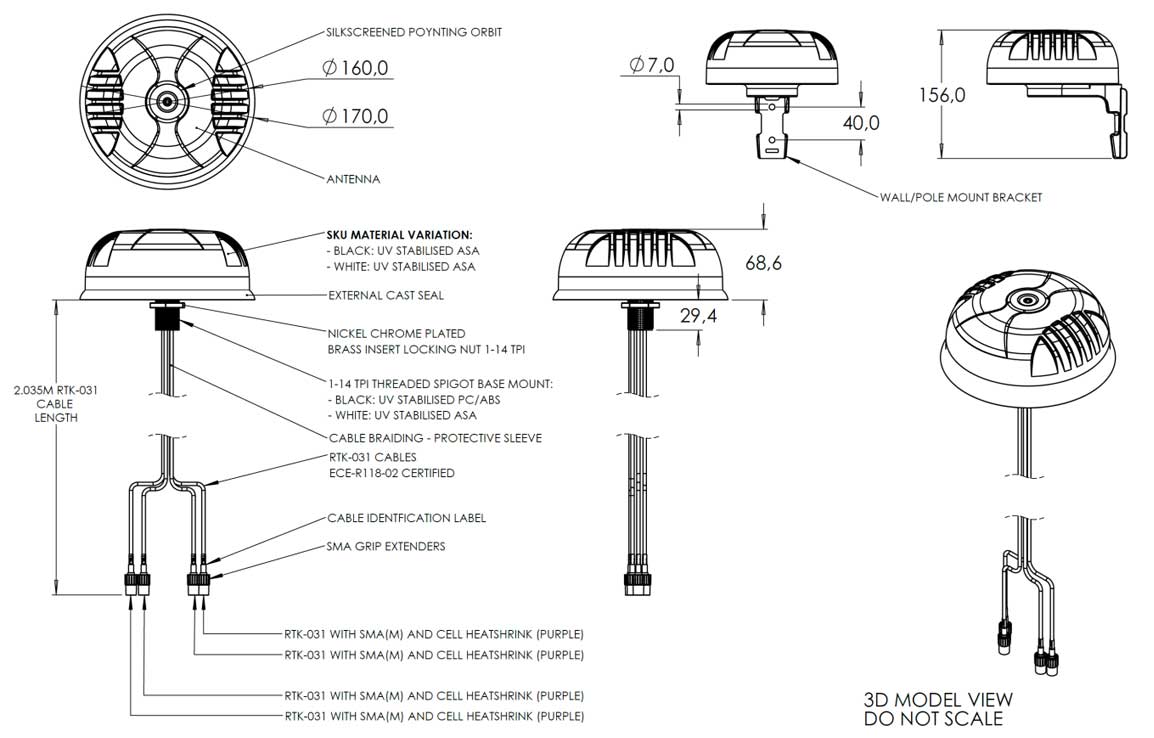

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

MIMO-4-4 V2 Front View - White MIMO-4-4 V2 Side View - White MIMO-4-4 V2 Top View - White MIMO-4-4 V2 Bottom View - White MIMO-4-4 V2 Featured View - Black MIMO-4-4 V2 Front View - Black MIMO-4-4 V2 Side View - Black MIMO-4-4 V2 Top View - Black MIMO-4-4 V2 Bottom View - Black MIMO-4-4 V2 Mounting Options (Pole) MIMO-4-4 V2 Mounting Options (Spigot) Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-MIMO-0004-V2-04-B EAN: 6009710927694 HS Code: TBC Packaged Weight: 1.20kg
2.65lbs		 Packaged Dimensions: 230 x 220 x 150 mm
9.06 x 8.66 x 5.91 inch		 Master Box QTY: 8 Master Box Weight: 10.90kg
24.03lbs		 Master Box Dimensions: 565 x 465 x 315 mm
22.24 x 18.31 x 12.40 inch		 Country of Origin: CN
SKU A-MIMO-0004-V2-04-W EAN: 6009710927670 HS Code: Packaged Weight: 1.20kg
2.65lbs		 Packaged Dimensions: 230 x 220 x 150 mm
9.06 x 8.66 x 5.91 inch		 Master Box QTY: 8 Master Box Weight: 10.90kg
24.03lbs		 Master Box Dimensions: 565 x 465 x 315 mm
22.24 x 18.31 x 12.40 inch		 Country of Origin: CN
SKU A-MIMO-0004-V2-04-BA-MIMO-0004-V2-04-W
EAN 60097109276946009710927670
HS Code TBC
Packaged Weight 1.20kg
2.65lbs		1.20kg
2.65lbs
Packaged Dimensions 230 x 220 x 150 mm
9.06 x 8.66 x 5.91 inch		230 x 220 x 150 mm
9.06 x 8.66 x 5.91 inch
Master Box QTY 88
Master Box Weight 10.90kg
24.03lbs		10.90kg
24.03lbs
Master Box Dimensions 565 x 465 x 315 mm
22.24 x 18.31 x 12.40 inch		565 x 465 x 315 mm
22.24 x 18.31 x 12.40 inch
Country of Origin CNCN
