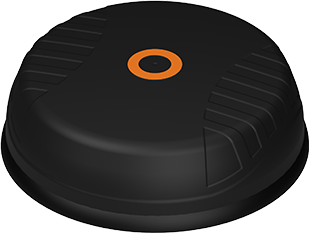

MIMO-8-841

The Caracal Enclosure
One Rugged Antenna. Total Connectivity: 5G, Wi-Fi 6E/7 and GNSS for Mission-Critical Mobility.
410 – 6000 MHz,8.3 dBi; Cellular 8x8 MIMO; Wi-Fi 4x4 MIMO; 1 x GNSS
410–6000 MHzview details below
8.3dBi(LTE), 9.3dBi(Wi-Fi), 20dB(GPS)±48km/30mi coverage*
Omni-Directional
8×8 MIMO
2.4 GHz and 5.0–7.2 GHz
Dual-Band GNSS
IP69K
E-Mark

Key Features

  • 13-in-1 High-performance multi-frequency automotive antenna
  • Ultra-wideband coverage from 410 to 6000 MHz for cellular
  • 8x8 MIMO LTE/5G, 4x4 MIMO Wi-Fi & GNSS
  • Antenna supports Private 5G/5G/4G/3G/2G/Wi-Fi-6e/Wi-Fi-7/LoRa/Bluetooth
  • Robust and weather-resistant antenna with an IP 69K rating
  • Ideal for transportation and marine implementation
  • Multiple mounting options available for ease of installation
Supported Connectivity Technologies





A-MIMO-0008-V1-841
MIMO-8-841 Ultra-Wideband 8×8 MIMO 5G + 4×4 Dual-Band Wi-Fi 6E/7 + Dual-Band GNSS 13-in-1 Antenna (410–6000 MHz)

The MIMO-8-841 is a high-performance 13-in-1 antenna system built for modern, data-intensive connectivity in mobility and mission-critical environments. It combines eight ultra-wideband cellular antenna elements, four dual-band Wi-Fi antennas, and a dual-band GNSS antenna into one rugged enclosure, delivering a consolidated solution for advanced multi-port 5G routers. Purpose-built for routers with four or more cellular ports — including eight-port 5G routers, dual 4-port 5G modems, or two independent 4-port routers operating simultaneously — the MIMO-8-841 enables exceptional throughput, improved network resilience, and simplified installation.

True 8×8 MIMO Cellular Performance: Eight ultra-wideband cellular elements support advanced LTE and 5G deployments for maximum throughput and improved RF reliability.
Ultra-Wideband Cellular Coverage (410–6000 MHz): Supports all contemporary 4G/LTE and 5G bands up to 6 GHz, enabling multi-operator compatibility and future-proof deployments.
Wi-Fi 6E & Wi-Fi 7 Ready (2.4 GHz and 5–7.2 GHz): Four dual-band Wi-Fi antennas provide concurrent operation, supporting higher capacity, lower latency, and improved 6 GHz performance.
Optimised for Carrier Aggregation & High Throughput: Designed for modern multi-port 5G routers and dual-modem systems where sustained data speed is critical.
Integrated Dual-Band GNSS: Provides fast, accurate, and reliable positioning for navigation, fleet tracking, and location-aware applications.
Single Rugged Enclosure Design: Consolidates 13 antenna elements into one durable housing, reducing installation complexity while maintaining high RF performance.

Designed for environments where maximum throughput, reliability, and continuous connectivity are non-negotiable, the MIMO-8-841 delivers a complete communications platform — combining ultra-wideband 5G/LTE, next-generation Wi-Fi, and precise GNSS positioning in one rugged antenna system.

Ideal Applications

  • Mobility & Transportation: High-speed 5G, Wi-Fi 6E/7 and GNSS for buses, trucks, fleet vehicles, and public safety applications
  • Broadcasting & Media: Reliable multi-network connectivity for outside broadcast trucks and mobile production units
  • Marine Sector: Robust cellular, Wi-Fi and GNSS performance for vessels and offshore communication systems
  • Industrial IoT & Smart Logistics: High-throughput connectivity for remote monitoring, smart transport, and automation
  • Temporary & Emergency Deployments: Rapid deployment connectivity for construction sites, events, and disaster response setups

Technical Specifications for MIMO-8-841

Additional information

Industry (Application)

, ,

Technology

, ,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , , , ,

Product Configuration

Gain

Directionality

Mounting Type

, , , ,

Connectors

MIMO

Polarisation

Environmental

LTE Ports

Wi-Fi Ports

GNSS/GPS Ports

Accessories

, ,

Product Options/Variants for MIMO-8-841

SKU Connector Type COAX Cable Type / Length Colour
A-MIMO-0008-V1-841-B SMA (m) & RP-SMA (m) RTK-031 / 2m Black

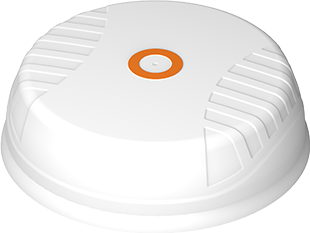

A-MIMO-0008-V1-841-W RTK-031 / 2m White

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.

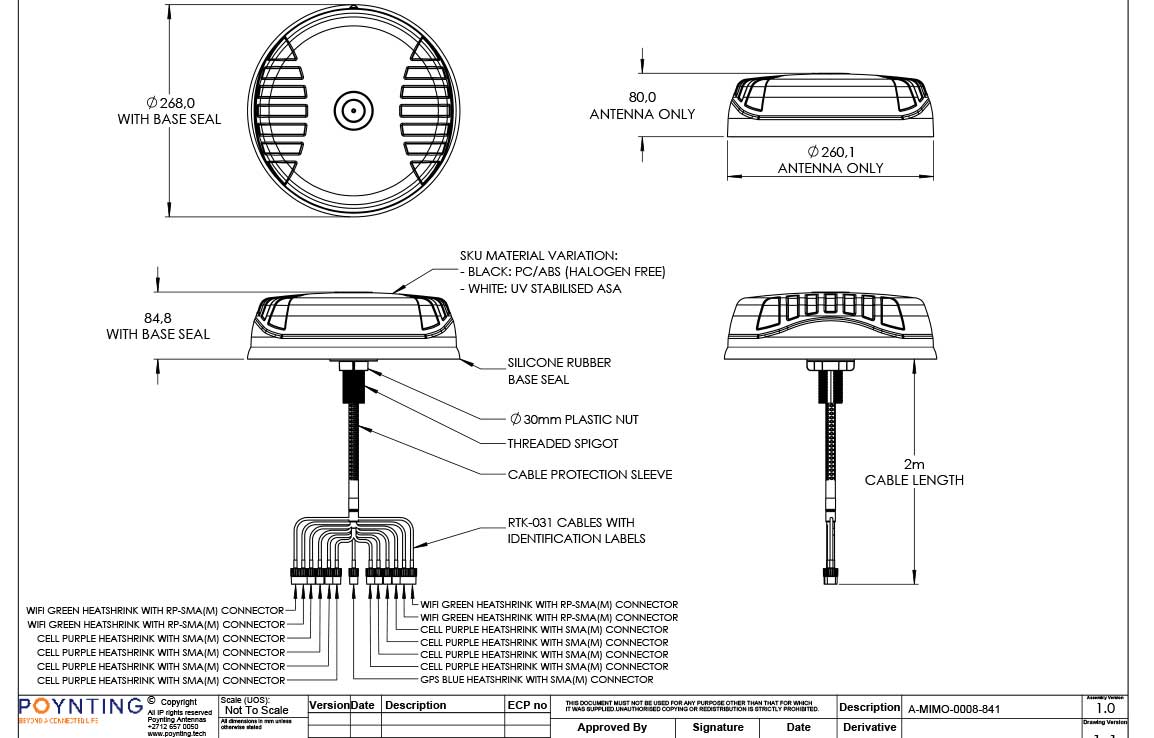

Technical Drawing

FAQ's & Articles

No articles available currently.

Shipping Details

SKU - EAN: - HS Code: - Packaged Weight: - Packaged Dimensions: - Master Box QTY: - Master Box Weight: - Master Box Dimensions: - Country of Origin: -
SKU -
EAN -
HS Code -
Packaged Weight -
Packaged Dimensions -
Master Box QTY -
Master Box Weight -
Master Box Dimensions -
Country of Origin -
