OMNI-121

The Mamba Enclosure
Omni-Directional, Wideband LTE Antenna
698 - 960 MHz, 1.8dBi; 1710 - 2700 MHz, 6dBi
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural houses, ensuring seamless internet access and communication in remote locations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for urban and rural estates, providing seamless communication and internet access for residential and business applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural homes on the outskirts of urban areas, ensuring seamless internet access across large open spaces and farmland. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity in rural open fields, providing seamless communication and internet access for agricultural and remote operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
698-2700 MHzview details below
6dBi±22km/14mi coverage*
Omni-Directional
2.4-2.5 GHz
IP65Dust-tight & Water-resistant
-40°C to +70°C
Fire Resistant

Key Features

  • Cover the GSM 900, GSM 1800/UMTs and LTE Frequency bands
  • Increased connectivity stability
  • Machine-to-machine (M2M) capabilities
  • Consistent high gain over a very wide frequency range
  • Popular choice with installers because of its versatile base station
  • Vandal and water-resistant enclosure (IP 65)
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0121-V3
A-OMNI-0121-V3,Omni-Directional, Wideband LTE Antenna,Wideband LTE Featured Image

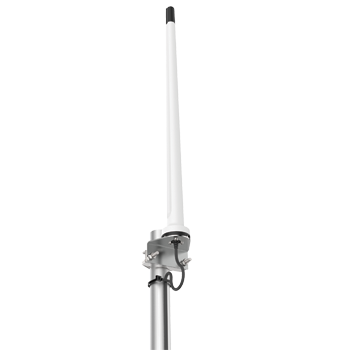

A-OMNI-0121-V3,Omni-Directional, Wideband LTE Antenna,Wideband LTE Back View

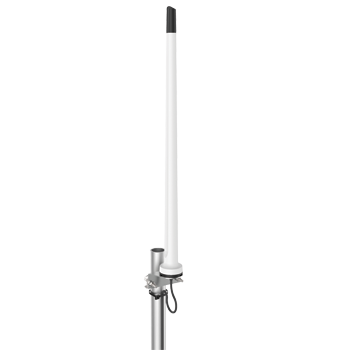

A-OMNI-0121-V3,Omni-Directional, Wideband LTE Antenna,Wideband LTE Front View

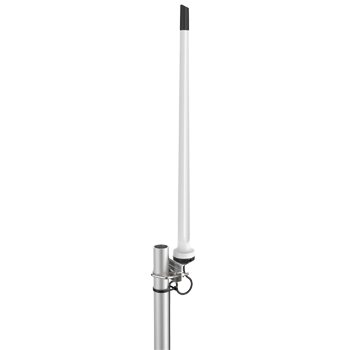

A-OMNI-0121-V3,Omni-Directional, Wideband LTE Antenna,Wideband LTE Side View
Medium-Gain Omni-Directional Antenna for GSM, UMTS, and LTE Networks

This medium-gain omni-directional antenna is designed to cover GSM 900, GSM 1800, UMTS, and LTE frequency bands, providing reliable connectivity for various applications. Lightweight and easy to install, this antenna offers a cost-effective solution with an included 5m cable for flexible deployment. Its versatile base station capabilities make it a popular choice for installers, while its robust performance supports machine-to-machine (M2M) applications communicating over GSM networks.

Wideband Frequency Coverage: Supports GSM 900, GSM 1800, UMTS, and LTE bands for seamless connectivity.
Reliable Signal Reception: Provides medium gain for enhanced performance in urban, suburban, and remote areas.
Easy Installation: Lightweight design with a pre-installed 5m cable for quick and flexible deployment.
Versatile Base Station Compatibility: Ideal for network installations requiring omni-directional coverage.
Optimized for M2M Applications: Suitable for machine-to-machine (M2M) communication using GPRS, EDGE, 3G, HSPA, and LTE technologies.
Cost-Effective Connectivity Solution: Provides stable signal reception at an affordable price.

This antenna is an excellent choice for installers and businesses needing a dependable, easy-to-install solution for GSM, UMTS, and LTE connectivity, ensuring strong and stable communication across various applications.

Ideal Applications

  • Enables rural and remote wireless service provision.
  • M2M communications (ATMs, financial data processing, telemetry, etc.).
  • Extending wireless data to weak signal areas (can extend connectivity range by factor of 3 or more).
  • Poor data signal reception (indoor or outdoor).
  • Slow data transmission connection.
  • Unstable connection.
  • Increase system transmission reliability.

Technical Specifications for OMNI-121

Additional information

Industry (Application)

,

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

,

MIMO

Polarisation

Environmental

Cellular Ports

Product Options/Variants for OMNI-121

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0121-V3 SMA (m) HDF-195 / 8m Off White
A-OMNI-0121-01-V3 SMA (m) HDF-195 / 5m Off White
A-OMNI-0121-03-V3 FME (f) HDF-195 / 5m Off White

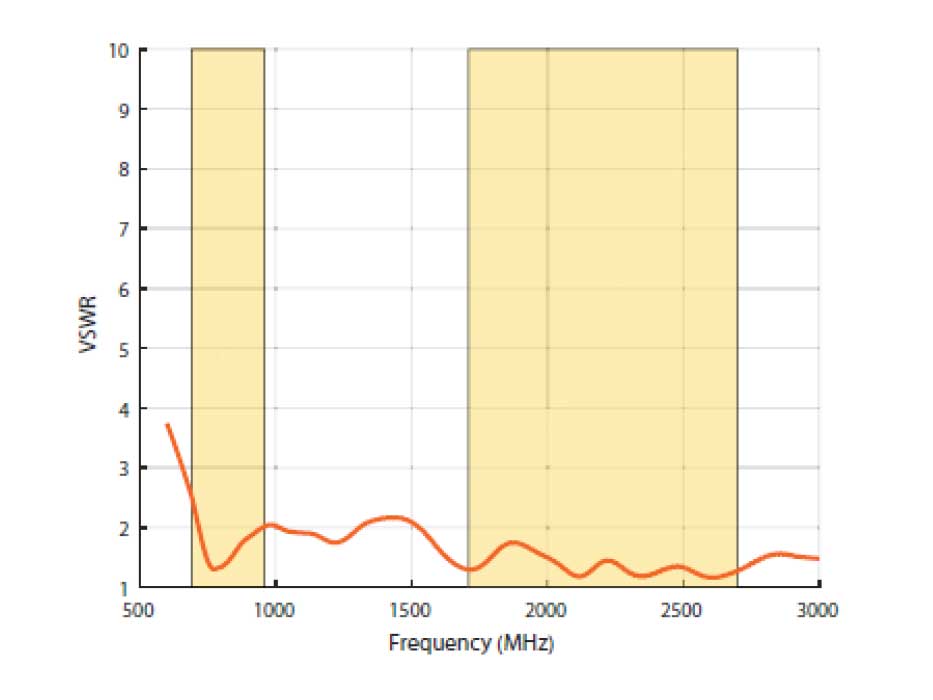

VSWR & Gain

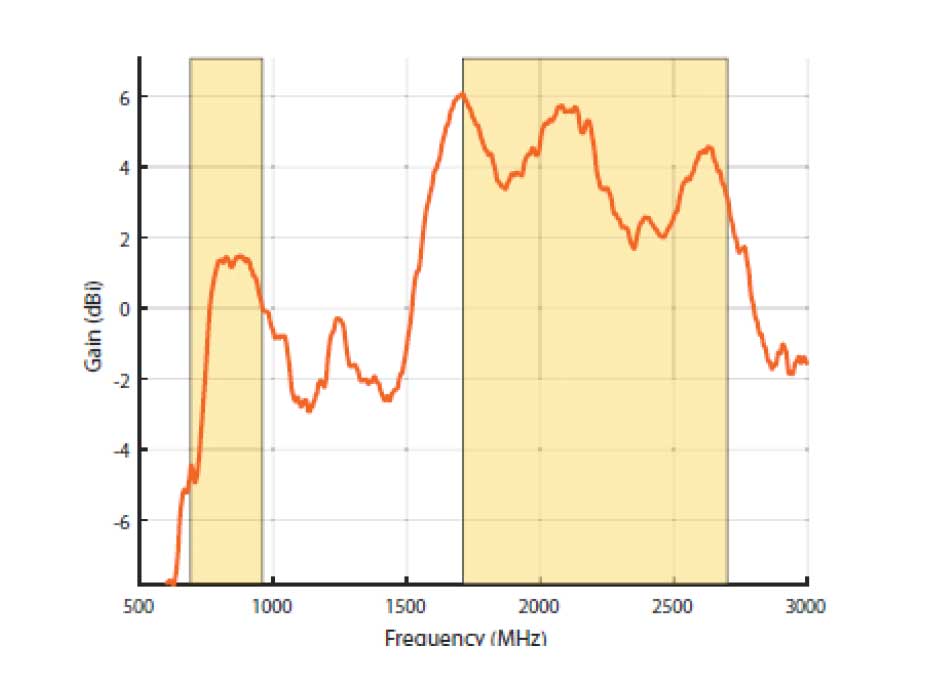

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Teltonika

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

OMNI-121 Product Certificates

A-OMNI-0214-V1-01 Declaration of Conformity

High Resolution Images

A-OMNI-0121-V3-01 Wideband LTE Feature Image A-OMNI-0121-V3-01 Wideband LTE Back View A-OMNI-0121-V3-01 Wideband LTE Front View A-OMNI-0121-V3-01 Wideband LTE Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0121-V3 EAN: 6009710923887 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.72kg
1.59lbs		 Packaged Dimensions: 595 x 130 x 65 mm
23.43 x 5.12 x 2.56 inch		 Master Box QTY: 20 Master Box Weight: 14.8kg
32.63lbs		 Master Box Dimensions: 610 x 545 x 352 mm
24.02 x 21.46 x 13.86 inch		 Country of Origin: CN
SKU A-OMNI-0121-01-V3 EAN: 6009710923900 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.6kg
1.32lbs		 Packaged Dimensions: 595 x 130 x 65 mm
23.43 x 5.12 x 2.56 inch		 Master Box QTY: 20 Master Box Weight: 14.4kg
31.75lbs		 Master Box Dimensions: 610 x 545 x 352 mm
24.02 x 21.46 x 13.86 inch		 Country of Origin: CN
SKU A-OMNI-0121-03-V3 EAN: 6009710922507 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.63kg
1.39lbs		 Packaged Dimensions: 595 x 130 x 65 mm
23.43 x 5.12 x 2.56 inch		 Master Box QTY: 20 Master Box Weight: 14.4kg
31.75lbs		 Master Box Dimensions: 610 x 545 x 352 mm
24.02 x 21.46 x 13.86 inch		 Country of Origin: CN
SKU A-OMNI-0121-V3A-OMNI-0121-01-V3A-OMNI-0121-03-V3
EAN 600971092388760097109239006009710922507
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.72kg
1.59lbs		0.6kg
1.32lbs		0.63kg
1.39lbs
Packaged Dimensions 595 x 130 x 65 mm
23.43 x 5.12 x 2.56 inch		595 x 130 x 65 mm
23.43 x 5.12 x 2.56 inch		595 x 130 x 65 mm
23.43 x 5.12 x 2.56 inch
Master Box QTY 202020
Master Box Weight 14.8kg
32.63lbs		14.4kg
31.75lbs		14.4kg
31.75lbs
Master Box Dimensions 610 x 545 x 352 mm
24.02 x 21.46 x 13.86 inch		610 x 545 x 352 mm
24.02 x 21.46 x 13.86 inch		610 x 545 x 352 mm
24.02 x 21.46 x 13.86 inch
Country of Origin CNCNCN
