OMNI-292

The Adder Enclosure
Omni-Directional, Wideband LTE Antenna
617 - 960 MHz, 1710 - 2700 MHz, 8dBi
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication and real-time data access for farmers using tablets in the field. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural homes on the outskirts of urban areas, ensuring seamless internet access across large open spaces and farmland. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural houses, ensuring seamless internet access and communication in remote locations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for rural wind farms, ensuring seamless communication, monitoring, and automation for efficient energy production. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-2700 MHzview details below
8dBi±37km/19mi coverage*
Omni-Directional
2.4-2.5 GHz
IP65Dust-tight & Water-resistant
-40°C to +70°C
Fire Resistant

Key Features

  • High performance omni-directional antenna
  • Compatible with 4G, 3G and 2G technologies, supports 2.4 GHz Wi-Fi
  • Ideal for machine to machine (M2M) applications
  • Consistent high gain over a very wide frequency band
  • Excellent broadband quality antenna
  • Vandal and water-resistant enclosure
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0292-V2
A-OMNI-0292-V2,Omni-Directional, Wideband LTE Antenna,Wideband LTE Featured Image

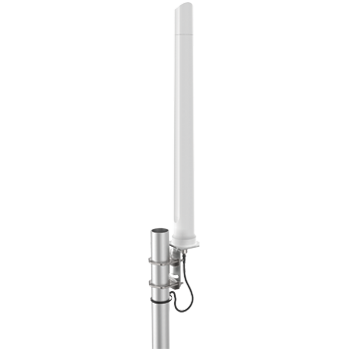

A-OMNI-0292-V2,Omni-Directional, Wideband LTE Antenna,Wideband LTE Back View

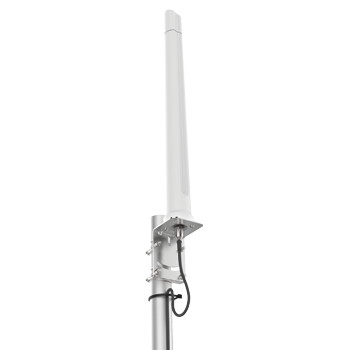

A-OMNI-0292-V2,Omni-Directional, Wideband LTE Antenna,Wideband LTE Front View
A-OMNI-0292-V2,Omni-Directional, Wideband LTE Antenna,Wideband LTE Side View
High-Gain Omni-Directional Antenna for LTE, 3G, and Wi-Fi Applications

The OMNI-292 is a high-gain omni-directional antenna designed to cover all essential cellular frequency bands required for LTE (4G), as well as HSDPA, 3G, EDGE, GPRS, and voice communication. Additionally, it supports 2.4 GHz LTE and Wi-Fi bands, making it a versatile solution for fixed installations and machine-to-machine (M2M) applications. This antenna is one of the few omni-directional options available that delivers consistent high gain across a wide frequency spectrum while maintaining excellent radiation pattern performance.

Comprehensive Frequency Coverage: Supports LTE (4G), HSDPA, 3G, EDGE, GPRS, voice, and 2.4 GHz LTE/Wi-Fi bands.
Consistent High-Gain Performance: Offers stable signal strength across multiple frequency bands for optimal connectivity.
Ideal for Fixed Installations: Designed for stationary deployments, ensuring reliable performance in various locations.
Optimized for M2M & IoT Applications: Supports machine-to-machine (M2M) communications over GSM networks (GPRS, EDGE, 3G, HSPA, LTE).
Excellent Radiation Pattern: Provides superior 360° coverage for seamless signal reception in all directions.
Base Station Agile: Designed for broad compatibility with multiple network providers, making it a top choice for installers.

The OMNI-292 is a future-ready, high-performance antenna, delivering wideband coverage, strong signal stability, and versatile deployment options for LTE, 3G, and Wi-Fi applications.

Ideal Applications

  • Machine to machine (M2M)
  • Poor data signal reception (indoor or outdoor)
  • Slow data transmission connection
  • Unstable connection
  • Increases system transmission reliability
  • High-end industrial grade router applications
  • Mobile offices
  • Transportation applications: Caravans, RV’s

Technical Specifications for OMNI-292

Additional information

Industry (Application)

, ,

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

Cellular Ports

Product Options/Variants for OMNI-292

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0292-V2 N-Type (f) N/A / N/A Off White

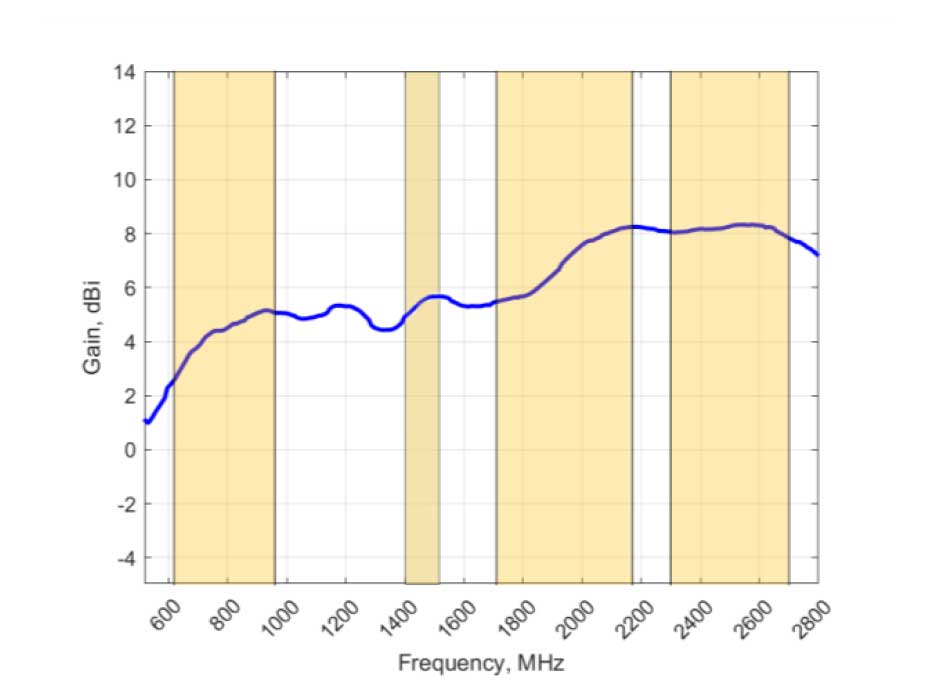

VSWR & Gain

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Advantech
Digi
Robustel
Teltonika

Technical Drawing

FAQ's & Articles

Downloadable Files

High Resolution Images

A-OMNI-0292-V2 Wideband LTE Feature Image A-OMNI-0292-V2 Wideband LTE Back View A-OMNI-0292-V2 Wideband LTE Front View A-OMNI-0292-V2-Wideband-LTE Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0292-V2 EAN: 6009710923726 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.242kg
2.74lbs		 Packaged Dimensions: 700 x 95 x 95 mm
27.56 x 3.74 x 3.74 inch		 Master Box QTY: 24 Master Box Weight: 29.8kg
65.7lbs		 Master Box Dimensions: 810 x 600 x 400 mm
31.89 x 23.62 x 15.75 inch		 Country of Origin: CN
SKU A-OMNI-0292-V2
EAN 6009710923726
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.242kg
2.74lbs
Packaged Dimensions 700 x 95 x 95 mm
27.56 x 3.74 x 3.74 inch
Master Box QTY 24
Master Box Weight 29.8kg
65.7lbs
Master Box Dimensions 810 x 600 x 400 mm
31.89 x 23.62 x 15.75 inch
Country of Origin CN
