OMNI-294

The Moray Enclosure
X-Polarised, Omni-Directional, 4x4 MIMO Antenna
Dual-Band Wi-Fi; 2400 - 2500 MHz, 3300 - 4200 MHz, 4900 - 7200 MHz; 8.5 dBi & 5.2 dBi
POYNTING antennas provide reliable connectivity for rural farming, ensuring seamless communication between silos, warehouses, and smart agricultural operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for rural wind farms, ensuring seamless communication, monitoring, and automation for efficient energy production. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for IoT-enabled warehouses, supporting seamless communication for autonomous bots and smart logistics operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural homes on the outskirts of urban areas, ensuring seamless internet access across large open spaces and farmland. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural houses, ensuring seamless internet access and communication in remote locations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
2.4-2.5GHz; 3.3-4.2GHz; 4.9-7.2GHz
Wi-Fi: 5.2dBi; 8.5dBi
Omni-Directional
2.4-2.5 GHz 4.9-7.2 GHz
IP65Dust-tight & Water-resistant
-40°C to +80°C
4×4 MIMO

Key Features

  • Dual-band Wi-Fi antenna for 2.4 GHz and 4.9 to 7.2 GHz
  • CBRS band support from 3.3 to 4.2 GHz
  • 4x4 MIMO capability for improved performance
  • Cross-polarised antennas (vertical and horizontal)
  • High gain performance across multiple frequency bands
  • Robust and weather-resistant enclosure with an IP 65 rating
Supported Connectivity Technologies

Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0294-V1-01

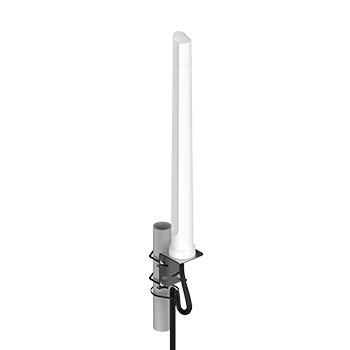

A-OMNI-0294-V1-01,X-Polarised, Omni-Directional, 4x4 MIMO Antenna,Featured Image

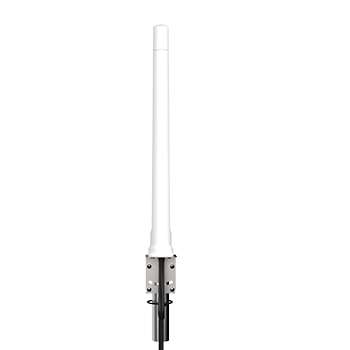

A-OMNI-0294-V1-01,X-Polarised, Omni-Directional, 4x4 MIMO Antenna,Front View

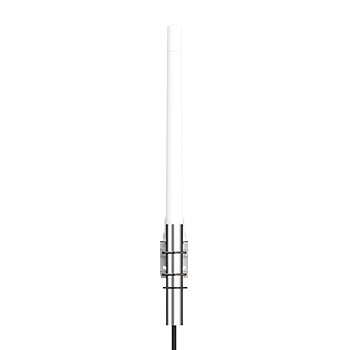

A-OMNI-0294-V1-01,X-Polarised, Omni-Directional, 4x4 MIMO Antenna,Back View

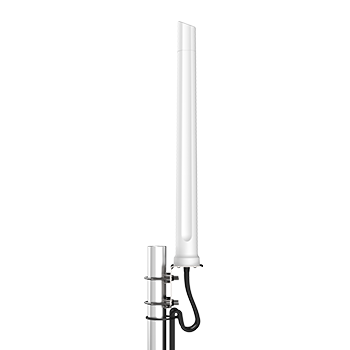

A-OMNI-0294-V1-01,X-Polarised, Omni-Directional, 4x4 MIMO Antenna,Side View

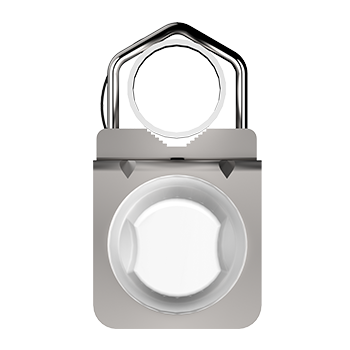

A-OMNI-0294-V1-01,X-Polarised, Omni-Directional, 4x4 MIMO Antenna,Top View
High-Performance Cross-Polarized Dual-Band Wi-Fi Omni-Directional Antenna

The OMNI-294 is a high-performance cross-polarized dual-band Wi-Fi omni-directional antenna, specifically designed for Fixed Wireless Access (FWA) deployments. Covering the 2.4 GHz and 4.9 to 7.2 GHz frequency bands, this antenna ensures compatibility with legacy and next-generation Wi-Fi technologies, including Wi-Fi 7. In addition, the OMNI-294 supports the 3.3 to 4.2 GHz CBRS band, enhancing 5G connectivity and enabling multi-network compatibility.

Dual-Band Wi-Fi Coverage: Supports 2.4 GHz and 4.9 – 7.2 GHz, providing seamless integration with modern Wi-Fi networks.

CBRS & 5G Compatibility: Covers 3.3 – 4.2 GHz, making it ideal for Citizens Broadband Radio Service (CBRS) and 5G applications.

4×4 MIMO Technology: Utilizes vertically separated radiating elements for improved data throughput and network efficiency.

Cross-Polarized Design: Features high-gain vertical antennas (8.5 dBi peak gain) and low-gain horizontally polarized antennas (5.2 dBi peak gain) for enhanced performance.

True Omni-Directional Coverage: Provides 360° signal reception, optimizing connectivity in FWA applications.

Versatile Deployment: Suitable for Wi-Fi and 5G access points, ensuring reliable and robust wireless coverage in various environments.

The OMNI-294 is a future-ready, high-performance Wi-Fi and 5G antenna, delivering dual-band connectivity, 4×4 MIMO support, and CBRS compatibility for superior wireless performance in FWA deployments.

Print Friendly, PDF & Email

Ideal Applications

  • Industrial and commercial Wi-Fi deployment
  • Public Wi-Fi hotspots like parks, malls, airports, and stadiums
  • Building sites and open-cast mines
  • Production facilities and factories
  • Smart Cities for M2M and IoT applications
  • Areas with large amounts of machinery (cluttered environments)

Technical Specifications for OMNI-294

Additional information

Industry (Application)

, ,

Technology

,

Cellular Freq. Range

Frequency Band

, , ,

5G Bands

, ,

Wi-Fi Standard

, , , , ,

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Product Options/Variants for OMNI-294

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0294-V1-01 SMA (M) & RPSMA adaptors Twin HDF-195 / 2m White

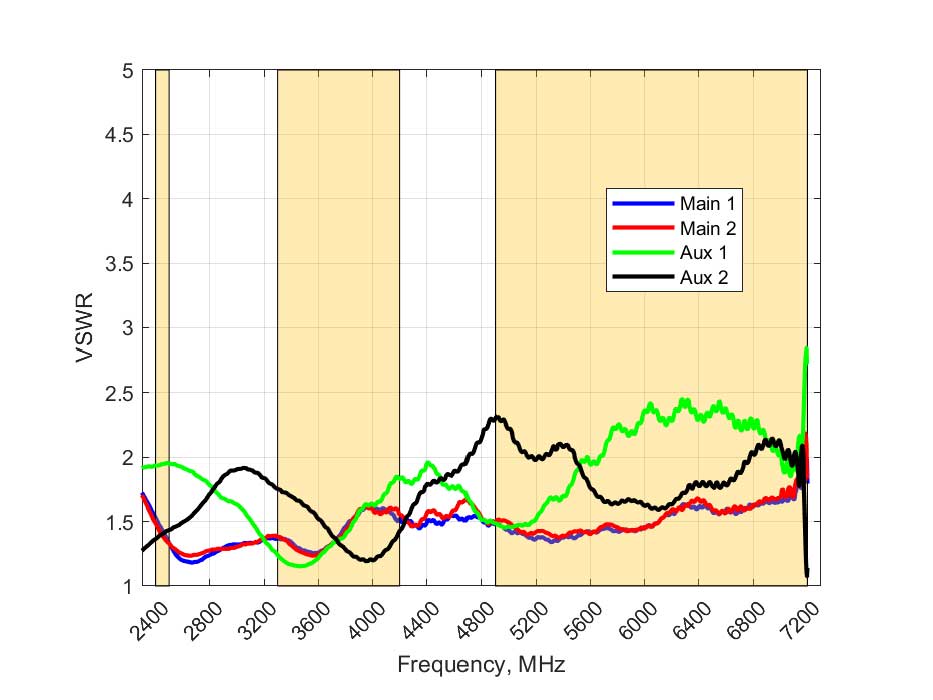

VSWR & Gain

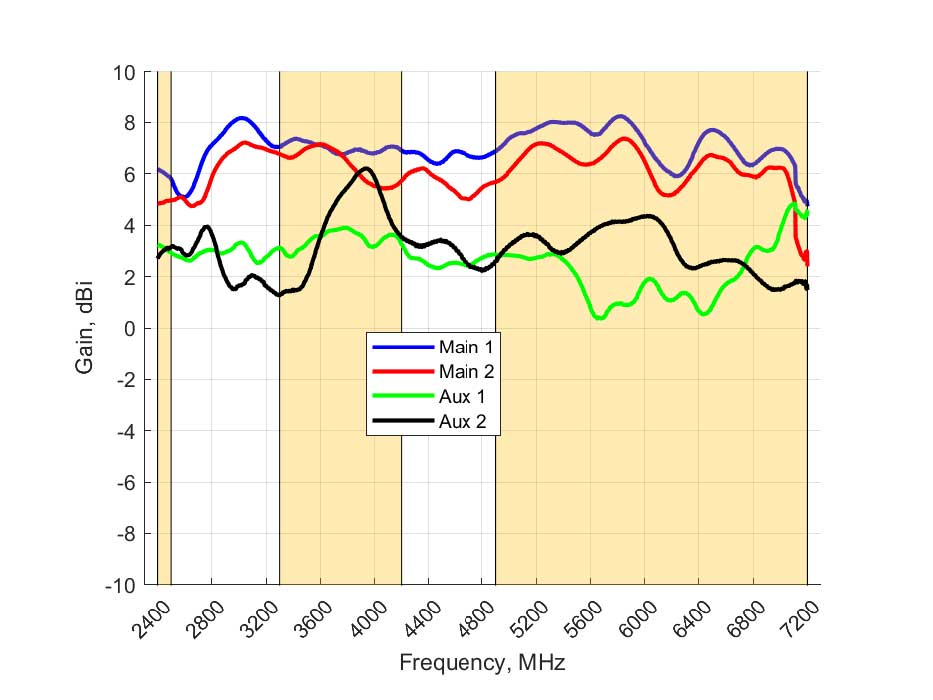

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.
Advantech
Billion
Cisco
EuroTech
Huawei
Rajant

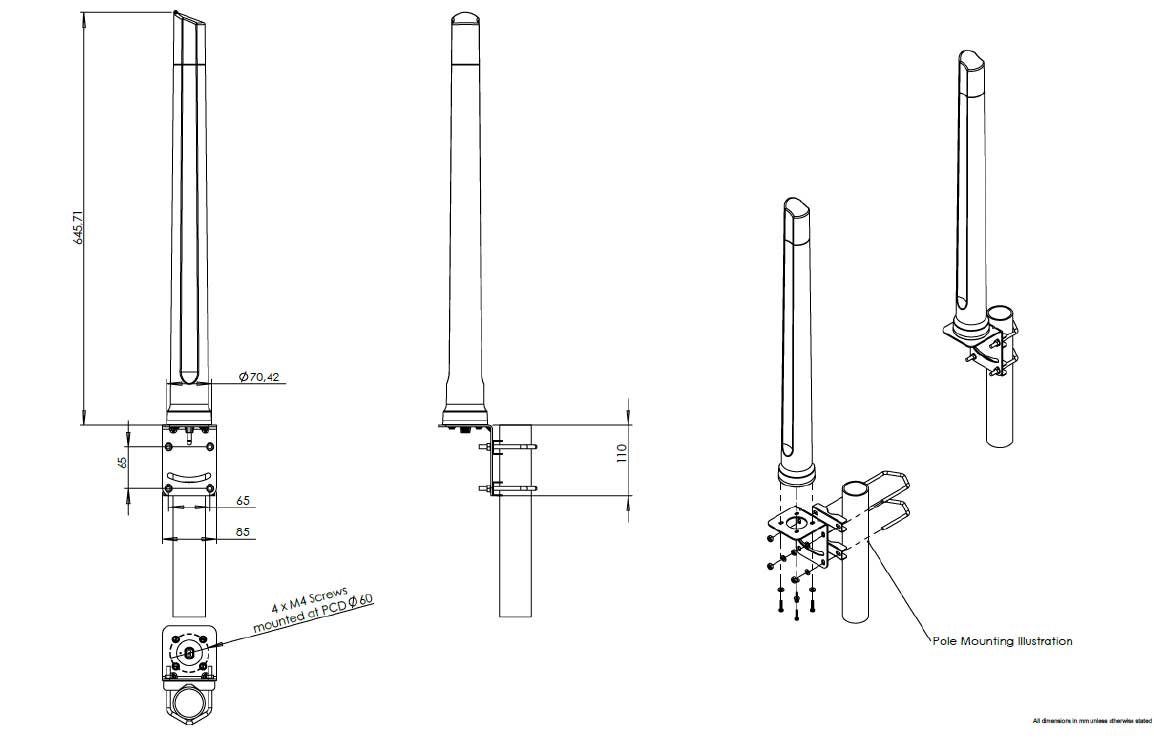

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

A-OMNI-0294-V1-01 Feature Image A-OMNI-0294-V1-01 Back View A-OMNI-0294-V1-01 Front View A-OMNI-0294-V1-01 Side View A-OMNI-0294-V1-01 Top View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0294-V1-01 EAN: 6009710929032 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.65kg
3.64lbs		 Packaged Dimensions: 710 mm x 150 mm x 100 mm
27.95 x 5.90 x 3.94 inch		 Master Box QTY: 10 Master Box Weight: 16.25kg
35.825lbs		 Master Box Dimensions: 560 x 350 x 770 mm
22.05 x 13.78 x 30.32 inch		 Country of Origin: CN
SKU A-OMNI-0294-V1-01
EAN 6009710929032
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.65kg
3.64lbs
Packaged Dimensions 710 mm x 150 mm x 100 mm
27.95 x 5.90 x 3.94 inch
Master Box QTY 10
Master Box Weight 16.25kg
35.825lbs
Master Box Dimensions 560 x 350 x 770 mm
22.05 x 13.78 x 30.32 inch
Country of Origin CN
