OMNI-296

The Cobra Enclosure
Omni-Directional, Dual-band Wi-Fi Antenna
2400 - 2500 MHz, 3300 - 4200 MHz & 4900 - 7200 MHz, 10dBi
2400-7200 MHzview details below
10dBi±10km/6mi coverage*
Omni-Directional
2.4-2.5 GHz; 5.0-7.2 GHz
IP65Dust-tight & Water-resistant
-40°C to +80°C

Key Features

  • Dual-band Wi-Fi antenna for 2.4 GHz and 4.9 to 7.2 GHz
  • Omni-directional antenna with medium gain
  • Complaint with IEEE 802.11ac/ax/be/b/g/n wireless standard
  • Covers the 3.5 GHz CBRS band for future 5G applications
  • Vandal and water-resistant enclosure (IP 65)
Supported Connectivity Technologies



A-OMNI-0296-V2
Dual-Band Omni-Directional Wi-Fi Antenna for High-Performance Connectivity

The OMNI-296 is a high-performance dual-band Wi-Fi omni-directional antenna, developed by Poynting Antennas. Designed for seamless connectivity with both older and modern dual-band Wi-Fi technologies, this antenna helps resolve channel saturation and enhance network performance. Its robust construction and broad frequency coverage make it ideal for high-density and RF-noisy environments.

Dual-Band Wi-Fi Coverage: Operates across 2.4 GHz, 3.3 – 4.2 GHz, and 5 – 7.2 GHz, ensuring maximum radio spectrum utilization.
High-Gain Performance: Provides 7 dBi gain in the 2.4 GHz band, 10 dBi gain in the 5 GHz band, and 8 dBi peak gain for the 3.5 GHz CBRS band.
Omni-Directional Design: Ensures 360° coverage, making it suitable for point-to-point links in cluttered RF environments.
CBRS & Future 5G Ready: Supports the 3.5 GHz CBRS band, preparing for next-generation 5G applications.
Durable Industrial Construction: Made from high-impact ABS plastic, resistant to acids and chemicals found in industrial environments.
Versatile Deployment: Ideal for commercial, industrial, and high-interference environments, ensuring stable Wi-Fi connectivity.
Easy Integration: Equipped with an N-Type female connector, allowing flexible cable connections for customized installations.

The OMNI-296 is a versatile and future-ready Wi-Fi antenna, providing high-gain omni-directional coverage for demanding industrial, commercial, and high-density network environments.

Ideal Applications

  • Small business
  • Building sites and open-cast mines
  • Production facilities and factories
  • M2M and IoT applications
  • Areas with large amounts of machinery (cluttered environments)

Technical Specifications for OMNI-296

Additional information

Industry (Application)

,

Technology

,

Cellular Freq. Range

Frequency Band

, ,

5G Bands

, ,

Wi-Fi Standard

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Product Options/Variants for OMNI-296

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0296-V2-01 N-Type (f) N/A / N/A White

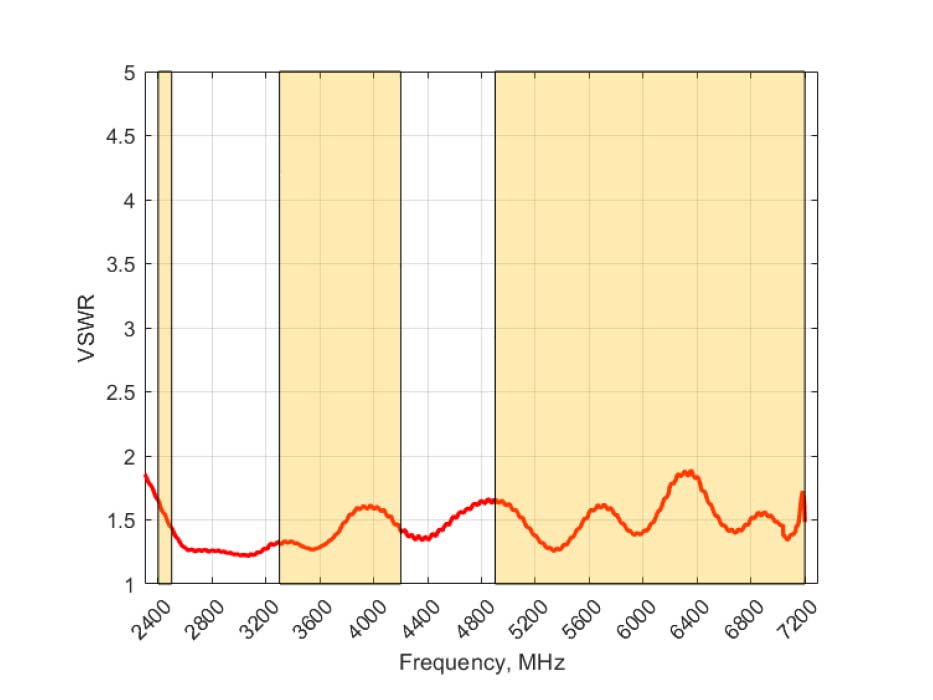

VSWR & Gain

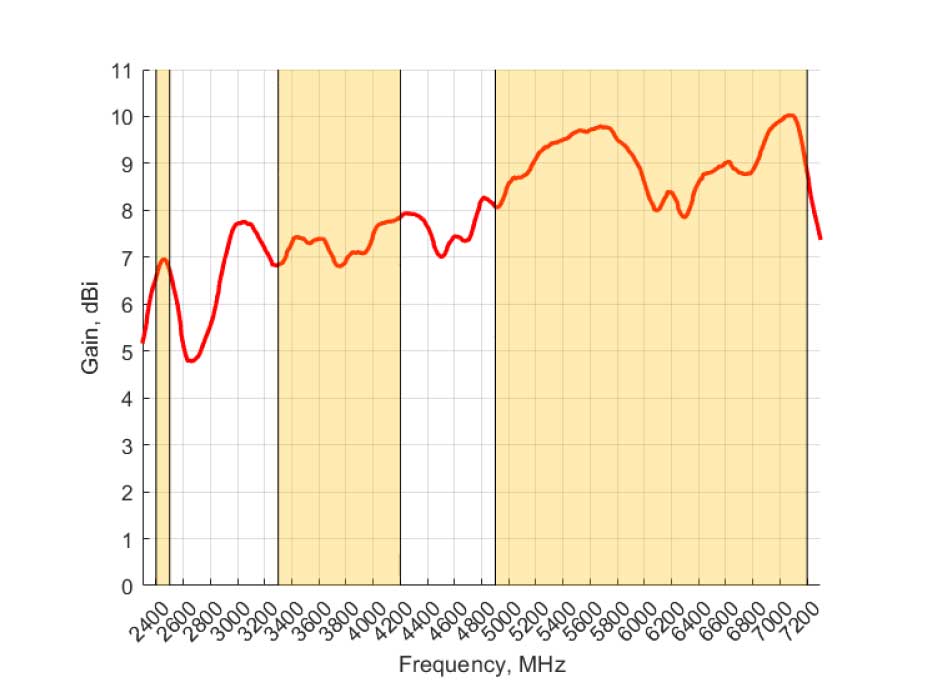

Gain (excluding Cable Loss)

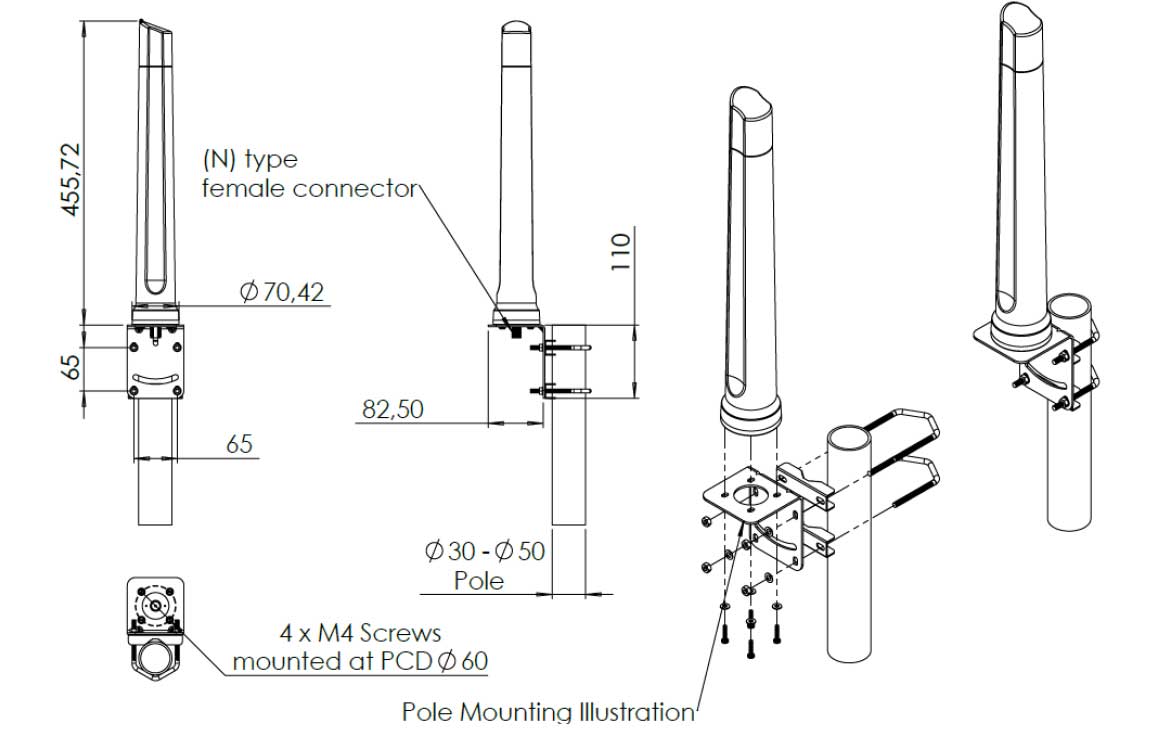

Technical Drawing

Shipping Details

SKU A-OMNI-0296-V2 EAN: 6009710925744 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: 0.91kg
2lbs
Packaged Dimensions: 510 x 95 x 95 mm
20.1 x 3.74 x 3.74 inch
Master Box QTY: 20 Master Box Weight: 21.30kg
46.96lbs
Master Box Dimensions: 530 x 490 x 400 mm
20.86 x 19.29 x 15.75 inch
Country of Origin: CN
SKU A-OMNI-0296-V2
EAN 6009710925744
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.91kg
2lbs
Packaged Dimensions 510 x 95 x 95 mm
20.1 x 3.74 x 3.74 inch
Master Box QTY 20
Master Box Weight 21.30kg
46.96lbs
Master Box Dimensions 530 x 490 x 400 mm
20.86 x 19.29 x 15.75 inch
Country of Origin CN
