OMNI-496

The Seahorse Enclosure
Omni-Directional, Marine & Coastal Antenna; Dual-band Wi-Fi
2400 - 2500 MHz, 3300 - 4200 MHz, 5000 - 7200 MHz; 10dBi
2400-7200 MHzview details below
10dBi±10km/6mi coverage*
Omni-Directional
3.5 GHz CBRS
2.4-2.5 GHz; 5.0-7.2 GHz
IP68Dust-tight & Waterproof
-40°C to +80°C
Fire Resistant

Key Features

  • Dual-band Wi-Fi antenna for 2.4 GHz and 4.9 to 7.2 GHz
  • Supports Wi-Fi/Wi-Fi6e/Wi-Fi7, 5G 3.3 – 4.2 GHz frequencies with a max gain of 8 dBi
  • Compliant with IEEE 802.11ac/ax/be/b/g/n wireless standards
  • Easy mounting with feed through 1-inch marine standard mount
  • Robust and all-weather proof (IP 68)
  • Various 316 stainless steel mounting brackets available optionally
  • UV and saltwater protected against tempestuous weather conditions
Supported Connectivity Technologies


A-OMNI-0496-V2-01
Dual-Band Omni-Directional Marine Wi-Fi Antenna

The OMNI-496 is a high-performance dual-band Wi-Fi omni-directional antenna developed by Poynting Antennas. Designed for seamless integration with both older Wi-Fi technologies and modern dual-band 802.11ax-enabled networks, this antenna ensures exceptional Wi-Fi performance and flexibility. As an IP68-rated marine version of the OMNI-296, it is purpose-built for demanding maritime and coastal environments.

Dual-Band Wi-Fi Coverage: Supports 2.4 GHz, 3.3 – 4.2 GHz, and 5 – 7.2 GHz bands, optimizing radio spectrum utilization.
High-Gain Performance: Provides 7 dBi gain in the 2.4 GHz band and 10 dBi in the 5 GHz band for enhanced connectivity.
Omni-Directional Coverage: Offers 360° signal reception, ensuring stable Wi-Fi connections in all directions.
Marine-Grade Durability: IP68-rated for protection against dust, water ingress, and extreme weather conditions.
Ideal for High-Performance Wi-Fi: Resolves channel saturation and enhances network stability in congested environments.
Versatile Deployment: Suitable for marine, industrial, and commercial applications where reliable wireless connectivity is essential.
Customisable Connectivity: Equipped with an N-Type female connector, allowing easy termination to cables of various types and lengths.

The OMNI-496 is a robust and future-ready Wi-Fi antenna designed for superior performance in marine, offshore, and industrial environments. With its high gain, omni-directional coverage, and durable construction, it ensures reliable long-range connectivity in challenging conditions.

Ideal Applications

  • Marine / Yachts / Boats / Ferries
  • Enhanced LTE reception
  • IoT and M2M
  • Poor data signal reception
  • Improve data transmission connection reliability & stability
  • Wi-Fi applications

Technical Specifications for OMNI-496

Product Options/Variants for OMNI-496

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0496-V2-01 N-Type (f) N/A / N/A White

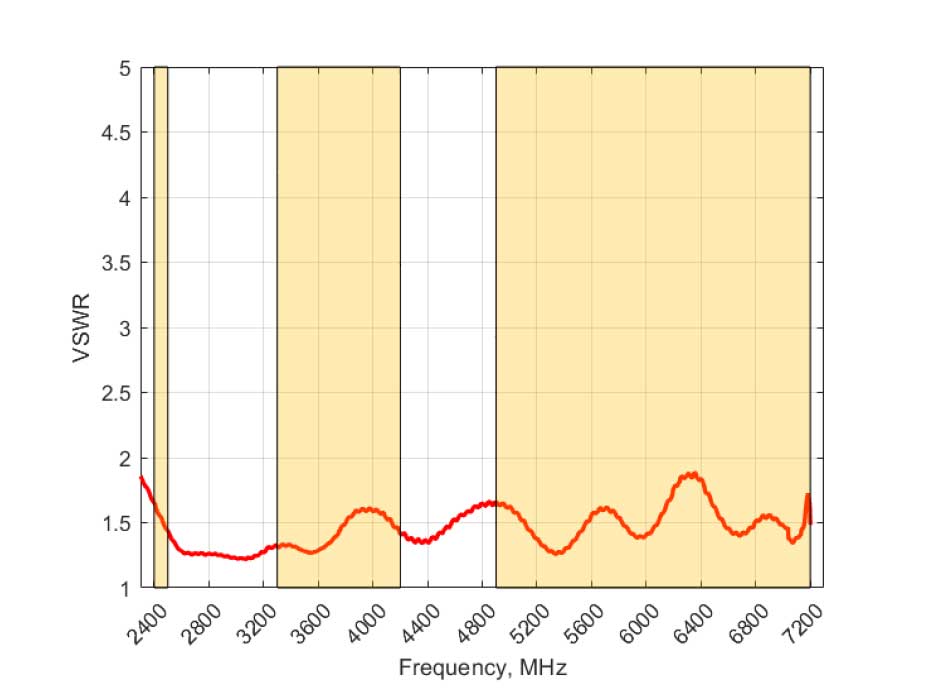

VSWR & Gain

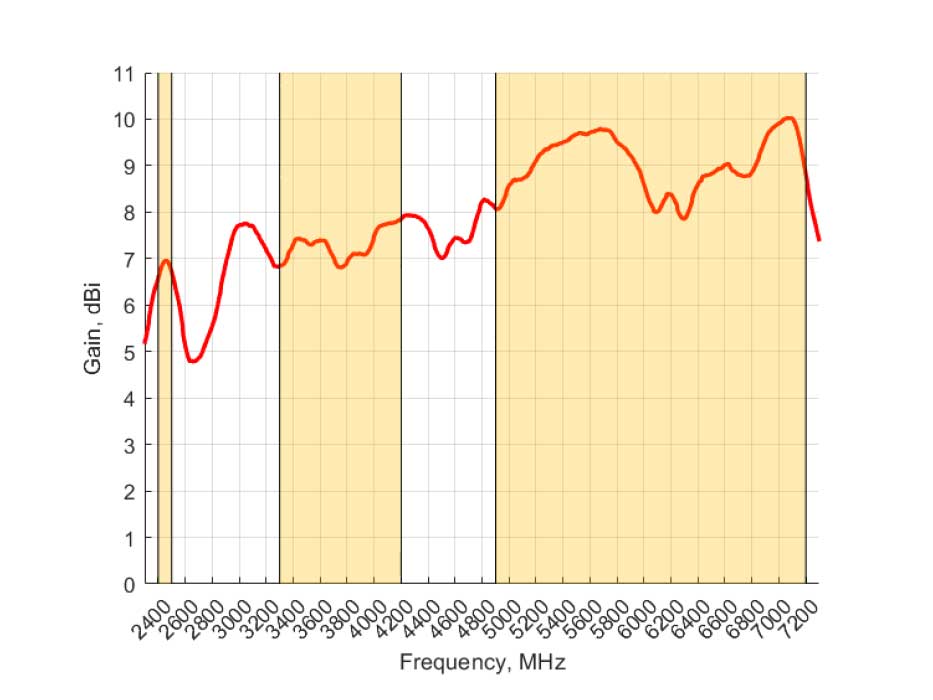

Gain (excluding Cable Loss)

Technical Drawing

Shipping Details

SKU A-OMNI-0496-V2 EAN: 6009710925768 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: 1.3kg
2.86lbs
Packaged Dimensions: 580 x 95 x 95 mm
22.83 x 3.74 x 3.74 inch
Master Box QTY: 20 Master Box Weight: 26.8kg
59.08lbs
Master Box Dimensions: 400 x 500 x 610 mm
15.75 x 19.68 x 24.02 inch
Country of Origin: CN
SKU A-OMNI-0496-V2
EAN 6009710925768
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.3kg
2.86lbs
Packaged Dimensions 580 x 95 x 95 mm
22.83 x 3.74 x 3.74 inch
Master Box QTY 20
Master Box Weight 26.8kg
59.08lbs
Master Box Dimensions 400 x 500 x 610 mm
15.75 x 19.68 x 24.02 inch
Country of Origin CN
