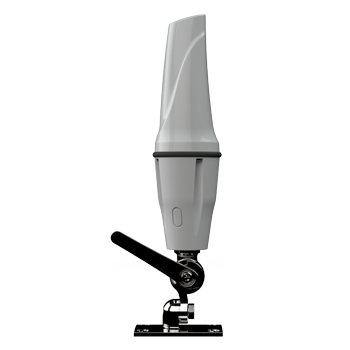

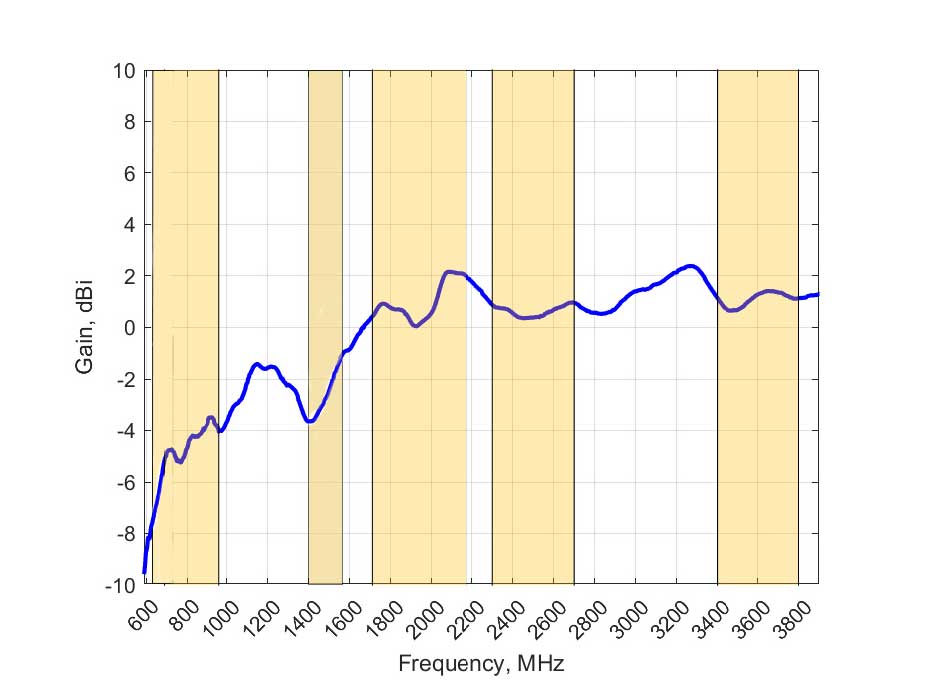

The OMNI-404 is a high-performance omni-directional LTE and 5G antenna, designed specifically for marine and coastal environments. With a compact radome and ultra-wideband coverage from 617 to 3800 MHz, this antenna ensures balanced gain across all frequencies, enhancing network performance with multi-carrier aggregation (CA) support. Its rugged construction and marine-grade mounting compatibility make it ideal for harsh offshore conditions.
Wideband LTE & 5G Coverage: Supports frequencies from 617 to 3800 MHz, ensuring compatibility with global LTE and 5G networks. Compact Marine-Optimised Design: Features a smaller profile radome for seamless integration in marine and coastal environments. Enhanced Performance with Multi-Carrier Aggregation (CA): Improves signal reliability and data throughput across all bands. Superior Pattern Control: Ensures stable and consistent signal reception across the entire frequency range. Patented Feed Network: Utilizes multiple dipoles and an innovative feed design for optimized performance. Easy Marine Installation: Equipped with a standard 1-inch (14 TPI) marine mount connector for effortless attachment to standard marine fittings. Built for Harsh Environments: Designed to withstand extreme marine conditions, ensuring long-lasting performance.The OMNI-404 is an exceptional omni-directional LTE and 5G antenna, providing compact, high-performance connectivity for vessels, offshore platforms, and other maritime applications. Its balanced gain, superior pattern control, and rugged design make it the ideal choice for marine deployments.
| Industry (Application) | |
|---|---|
| Technology | |
| Cellular Freq. Range | |
| Frequency Band | 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256 |
| LTE/4G Bands | B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106 |
| Wi-Fi Standard | |
| Product Configuration | <a href="/product-tag/5g/" target="_blank" title="View all Products with 5g C |
| Gain | |
| Directionality | |
| Mounting Type | |
| Connectors | |
| MIMO | |
| Polarisation | |
| Environmental | |
| Cellular Ports | |
| Accessories |
| SKU | Connector Type | COAX Cable Type / Length | Colour |
|---|---|---|---|
| A-OMNI-0404-V1-01 | N-Type (f) | N/A / N/A | White |
| SKU | A-OMNI-0404-V1-01 | EAN: 6009710920923 | HS Code: 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
Packaged Weight: 0.5kg 1.1lbs |

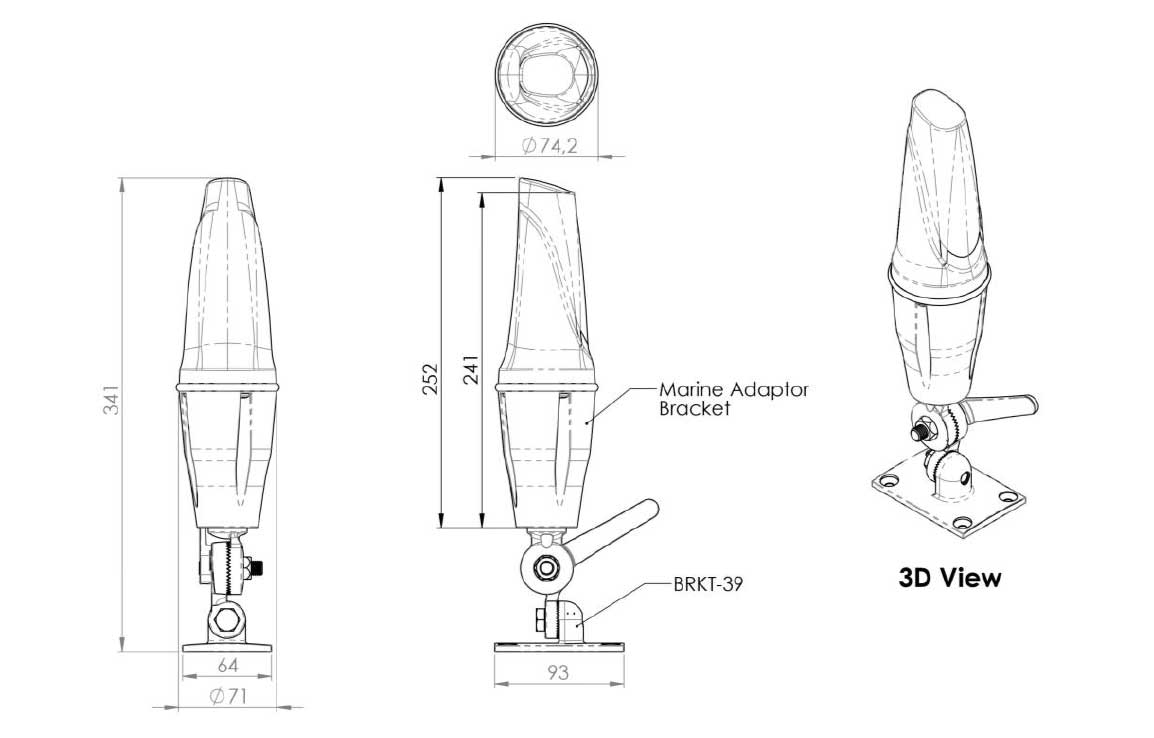

Packaged Dimensions: 288 x 97 x 97 mm 11.34 x 3.82 x 3.82 inch |
Master Box QTY: 40 | Master Box Weight: 21.55kg 47.51lbs |
Master Box Dimensions: 400 x 500 x 610 mm 15.75 x 19.67 x 24.02 inch |
Country of Origin: CN |
|---|---|---|---|---|---|---|---|---|---|
| SKU | A-OMNI-0404-V1-01 | ||||||||
| EAN | 6009710920923 | ||||||||
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) | ||||||||
| Packaged Weight | 0.5kg 1.1lbs | ||||||||
| Packaged Dimensions | 288 x 97 x 97 mm 11.34 x 3.82 x 3.82 inch | ||||||||
| Master Box QTY | 40 | ||||||||
| Master Box Weight | 21.55kg 47.51lbs | ||||||||
| Master Box Dimensions | 400 x 500 x 610 mm 15.75 x 19.67 x 24.02 inch | ||||||||
| Country of Origin | CN |
