As 5G continues to evolve, an innovation known as 5G RedCap (short for "Reduced Capability") is poised to play a pivotal role in expanding the reach and versatility of 5G networks. Introduced in the 3GPP's Release 17, RedCap aims to address the needs of mid-tier IoT applications by providing a cost-effective, power-efficient alternative to full-scale 5G.
Let’s explore what 5G RedCap is, how it works, and its potential impact on industries worldwide, with insights into its key features, application areas, and antenna considerations.
Also known as NR-Light, 5G RedCap is a streamlined version of 5G tailored for devices that don’t require ultra-high-speed connectivity. By reducing the complexity and bandwidth requirements of traditional 5G, RedCap enables cost-efficient and power-saving solutions for IoT devices such as wearables, sensors, and surveillance cameras.
Whereas traditional 5G operates within a 100 MHz channel, RedCap reduces this to just 20 MHz, achieving data transfer speeds of 30 Mbps to 80 Mbps—sufficient for most IoT use cases. This reduced capability is designed to extend battery life and lower costs, making it ideal for applications where ultra-high throughput is unnecessary.
The key to RedCap's efficiency lies in its optimized use of network resources. By scaling down bandwidth and simplifying antenna requirements, RedCap delivers a more targeted approach to connectivity. This reduction in complexity not only extends battery life but also decreases manufacturing costs, paving the way for affordable 5G adoption in emerging markets and industries.
RedCap is expected to have a profound impact across various industries, offering efficient connectivity solutions for:
RedCap technology is set to enhance industrial applications, providing reliable connectivity for video surveillance systems, industrial sensors, and smart manufacturing processes. By enabling seamless communication between devices and systems, it will facilitate real-time monitoring, data collection, and automation in industries such as manufacturing and logistics, boosting operational efficiency and safety.
In healthcare, RedCap will revolutionize patient care by improving the functionality of wearable medical devices, portable diagnostic equipment, and remote patient monitoring systems. With enhanced connectivity, telemedicine services can be expanded, allowing healthcare professionals to provide remote consultations and monitoring, ensuring timely interventions and improving patient outcomes.
RedCap will contribute significantly to the development of smart cities by improving traffic management systems, enabling better environmental monitoring, and supporting the operation of smart grids. Through reliable and efficient connectivity, RedCap will help optimize urban infrastructure, reduce energy consumption, and enhance the overall quality of life for citizens.
While 5G RedCap simplifies antenna requirements compared to full 5G, a high-quality antenna remains crucial for optimal performance. Unlike full 5G, which typically requires 4-8 or more antennas to support Massive MIMO and beamforming, RedCap only needs 1-2 antennas, often in SISO or 2x2 MIMO configurations. This reduction in complexity makes RedCap an excellent choice for IoT applications, as it lowers costs and simplifies deployment.
However, the choice of antenna significantly impacts the device's ability to maintain a stable connection while consuming less energy. This is directly aligned with one of RedCap’s key objectives: reducing power usage to extend battery life. POYNTING’s antennas, fully compatible with 5G RedCap, play a vital role in achieving this balance of performance and efficiency.

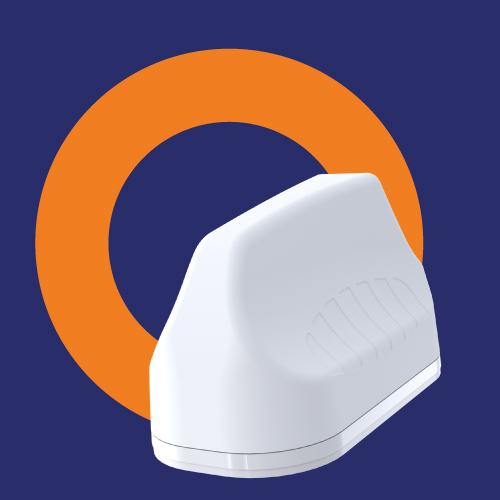

POYNTING offers a variety of antennas tailored to meet the unique demands of 5G RedCap applications. These antennas are designed to maximize connectivity while maintaining efficiency and durability. Key features include:

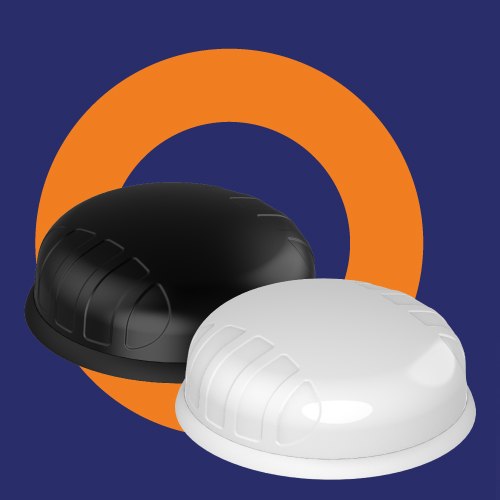

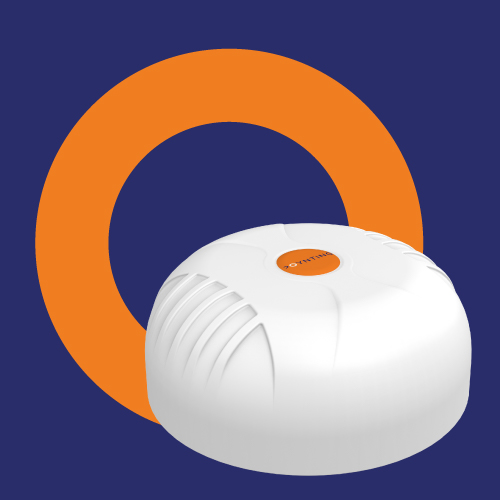

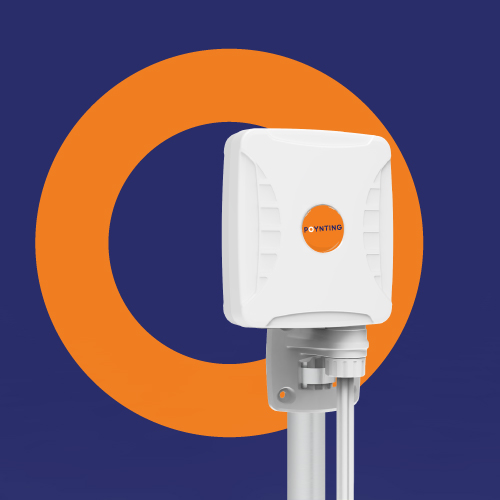

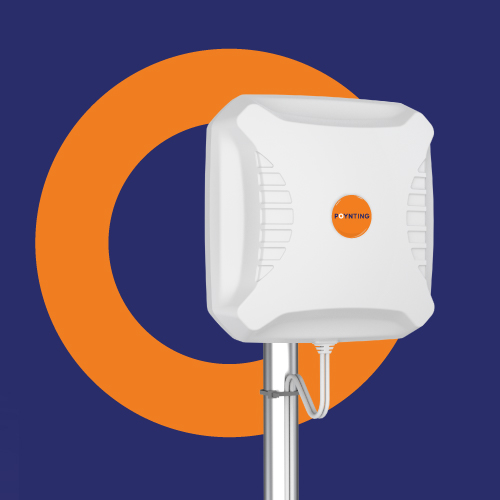

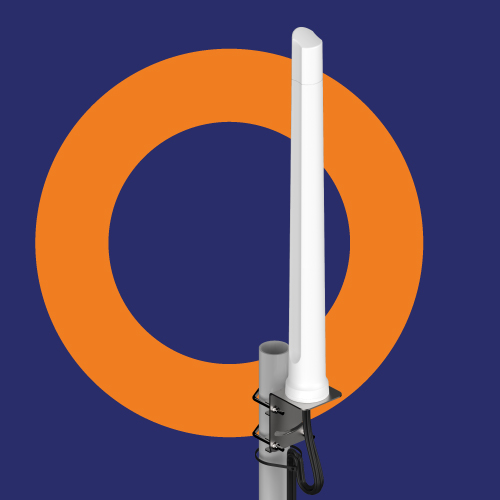

POYNTING offers a range of antennas that are particularly well-suited, including:
Each of these models is designed to deliver strong, reliable connectivity, even in challenging environments, helping RedCap devices achieve the desired energy efficiency and extended battery life.

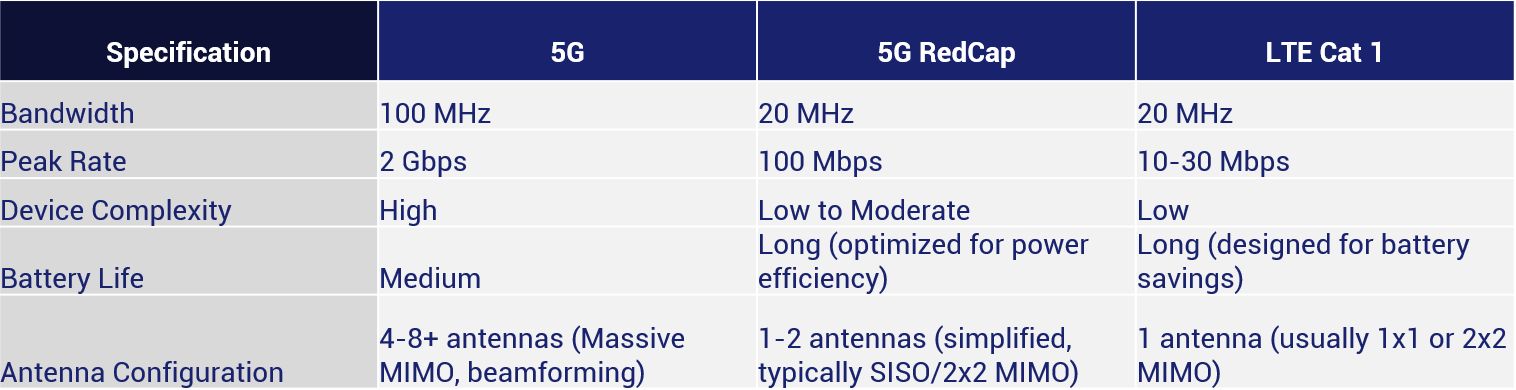

RedCap’s introduction marks a turning point for IoT. By offering a middle ground between LTE and full-scale 5G, it provides the following benefits:
As carriers and technology providers continue to develop and deploy RedCap solutions, its impact on the IoT landscape will be profound. The first chipsets for RedCap were launched in 2023-2024, marking the beginning of a new era in connectivity. Full-scale adoption is expected post-2024, with the US and APAC regions leading the way in its implementation. From smart agriculture to industrial automation, 5G RedCap is set to revolutionize how industries harness connectivity by providing an efficient, cost-effective solution for a wide range of applications.
For businesses and consumers alike, RedCap represents an opportunity to leverage 5G’s scalability and efficiency without the high costs associated with traditional implementations. By 2030, it is estimated that up to 18% of all cellular IoT modules will be based on RedCap, demonstrating its growing market potential. Furthermore, the introduction of enhanced RedCap (eRedCap) will expand the technology’s use cases to include LTE Cat 1 and LTE Cat 1 bis, further solidifying its role in a variety of industries. With these advancements, RedCap is poised to become a cornerstone of IoT connectivity in the years to come.
